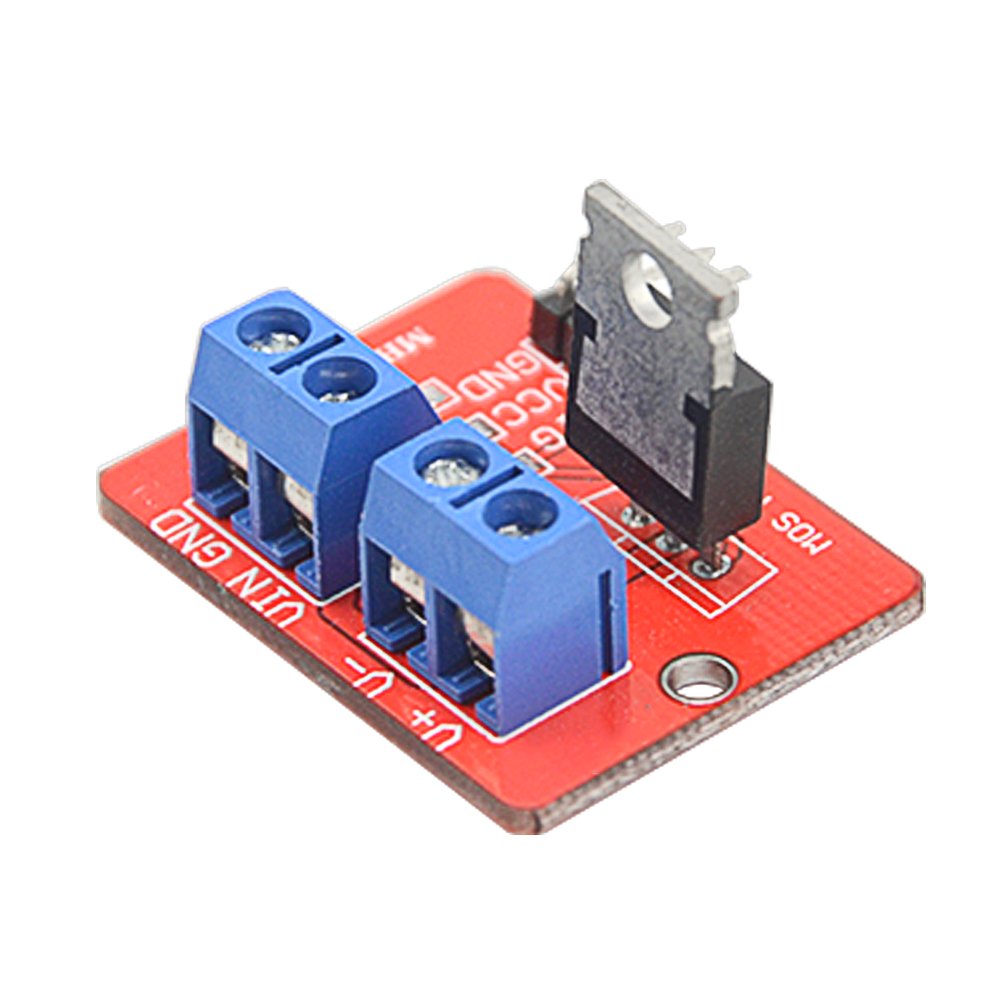

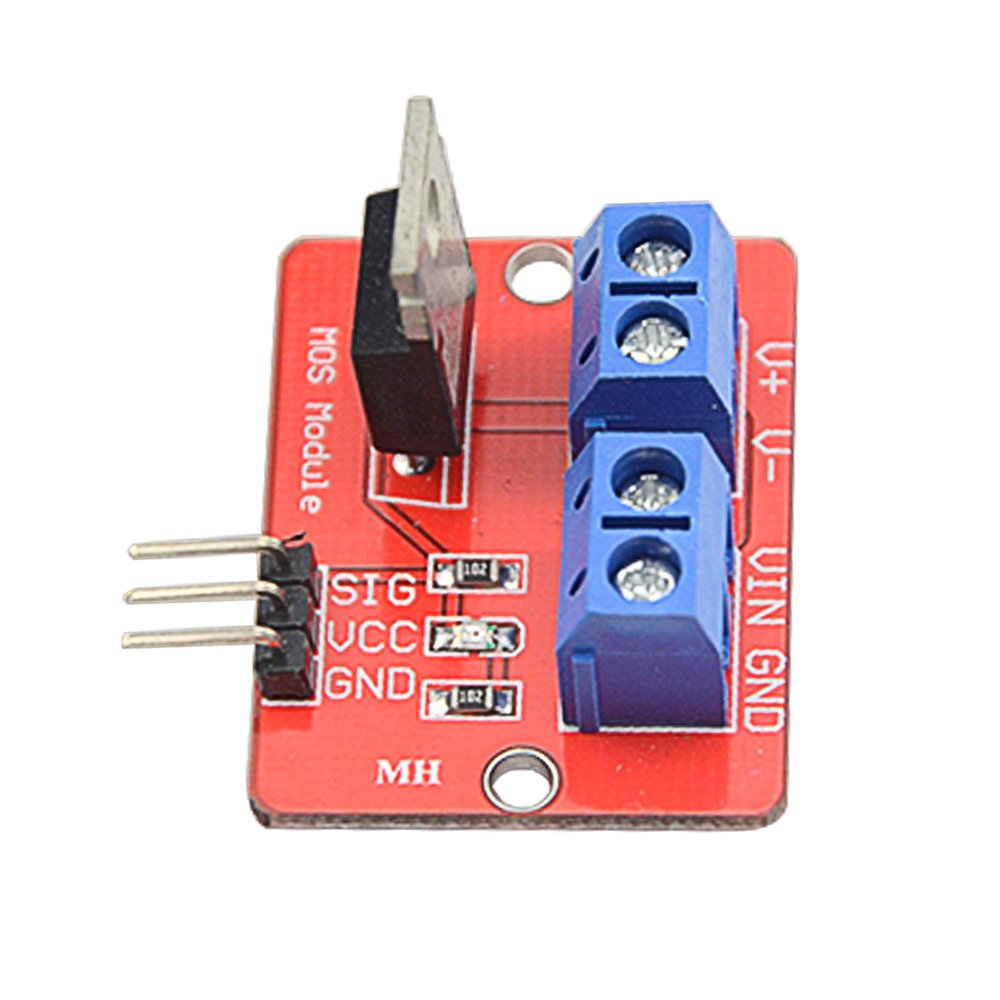

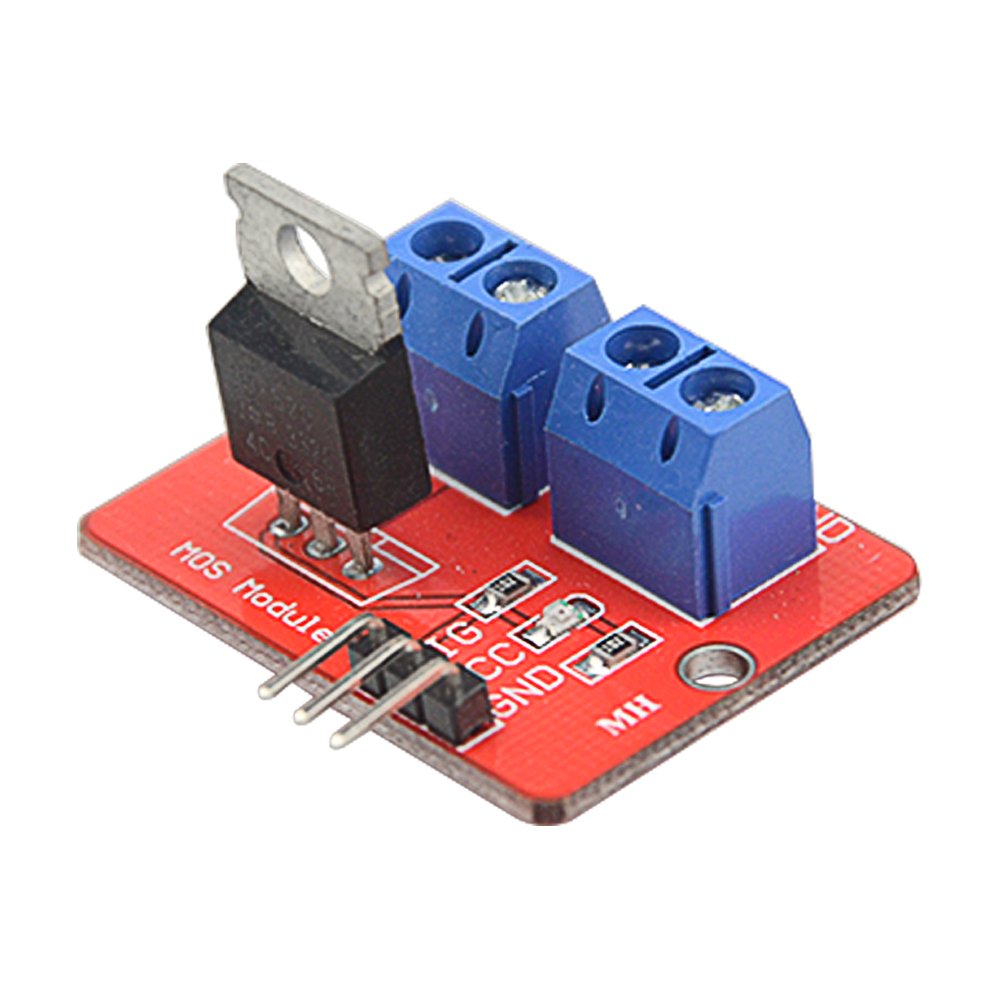

WMYCONGCONG 10 PCS MOSFET Driver Module MOSFET Button Driver Module
About this item
- MOSFET driver module, using for power MOS tube for PWM adjustment output, compatible with Arduino 3D printer.
- Output Voltage: 0-24V; Max Load Current: 5A.
- Dimension: 33 * 24mm/1.29 * 0.94inch
- Note: The heat sink must be installed to drive a load above 1A, drive 1A above need to add heat sink.
- Package Content: 10 * MOSFET Driver Module.
Product description
Specification: Dimension: 33 * 24mm/1.29 * 0.94inch. Weight: 10g/0.35oz. Voltage: 3.3V, 5V. Output Voltage: 0-24V. Input Current: Below 5A (Heat sinked is needed when current is above 1A) Port: Digital level. Platform: work for Arduino, SCM, ARM, Raspberry Pi. Features: power MOS tube for PWM adjustment output. Work with Arduino to drive loads up to 24V, such as LED strips, DC motors, micro-pumps, solenoid valves. Modulation can be used to achieve stepless dimming Light Emitting Diode, motor stepless speed regulation. Package Content: 10 * MOSFET Driver Module
