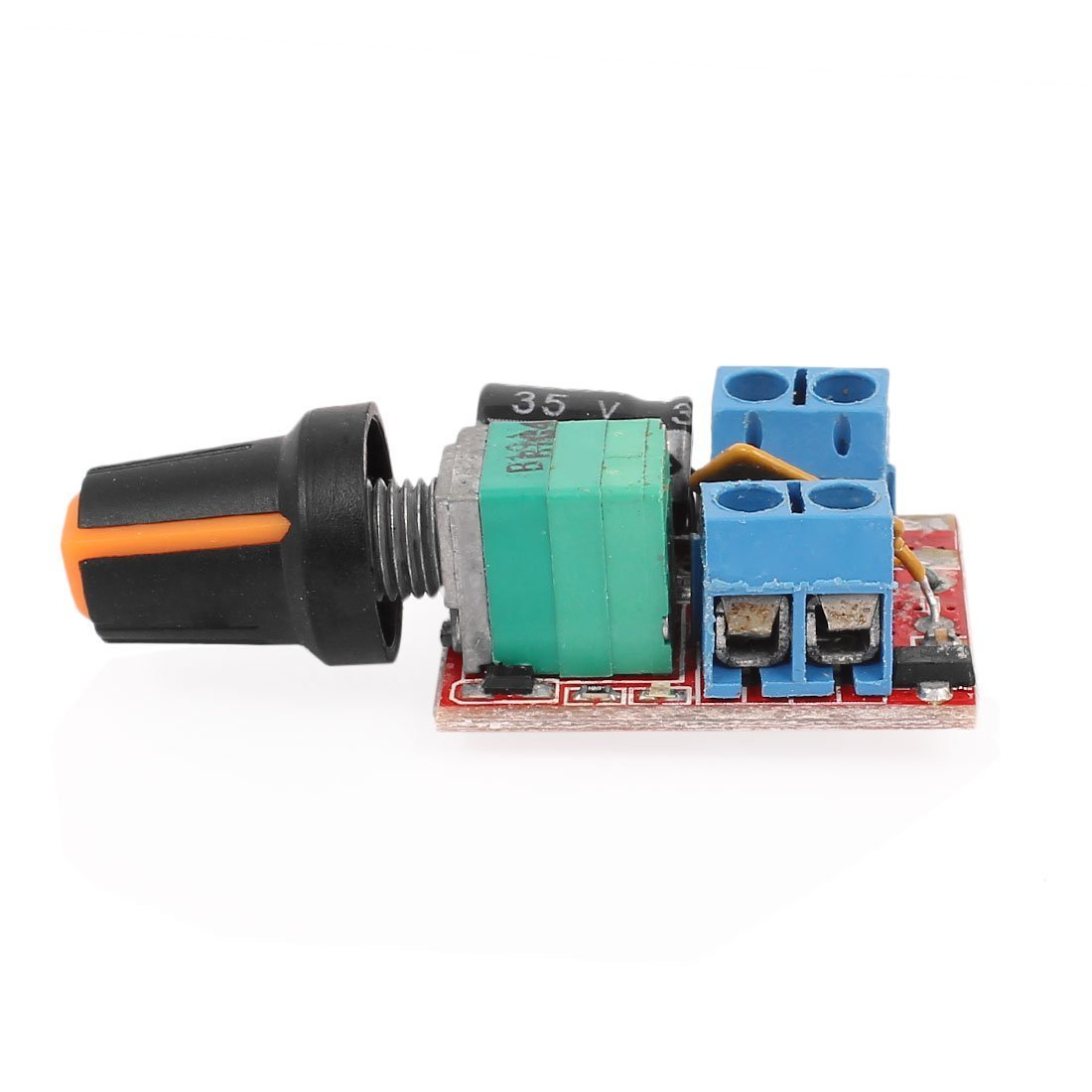

WINGONEER DC Motor Speed Control Controller 3V-35V 5A PWM Controller Stepless DC 3V 6V 12V 24V 35V Variable Voltage Regulator Regulator

• Mini DC motor controller, but also apply to LED regulation
• Wide Voltage DC Motor Speed Regulator, PWM Duty Cycle: 1% -100%
• By screwing the potentiometer, it can turn off the power supply output High voltage and high current fuse resettable, automatic overcurrent disconnect, shut off for cooling for a few seconds fuses automatic recovery
• The default short-circuit point disconnect, is applicable to the input voltage 5-35V; If connect the short circuit point, it is suitable for the input of low voltage 3-15V

WINGONEER trademark Reg.NO:012678447 Specifications: 1.Operating voltage: DC3V-35V 2.Control power: Maximum 90W 3.Quiescent current: 0.01A(Standby) 4.PWM duty cycle: 1%-100% 5.PWM frequency: 10khz 6.Model: ZS-X4 7.Shell size: 30MM*24MM(Without handle) total height is 15MM 8. Net weight: 0.015KG Note: Input voltage selection is divided into two stalls. Intermediate short contact and 3-15V short contact to connect to low voltage 3-15V input, intermediate and short contact 5-35V to connect to high voltage 5-35V. The default send out goods is 5-35V. Packing included: 1 x PWM Speed Controller
