WiFi 220V controller of solar water heater, used for separated pressurized solar hot water system

• Water proof grade: IP41
• Power supply: AC100-240V, 50-60Hz.
• Range of collector temperature measuring: -10 ~ 220 °C

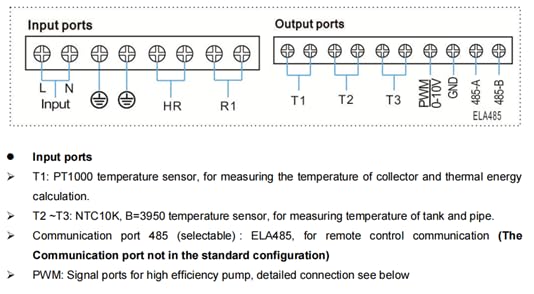

• Inputs: 3 sensors, 1 pcs*Pt1000 sensor (≤500℃) for collector (silicon cable≤280℃), 2pcs*NTC10K, B3950 sensor (≤ 135℃) for tank, (PVC cable ≤105℃),
• Outputs: 2 relays, for circulation pump and backup heating

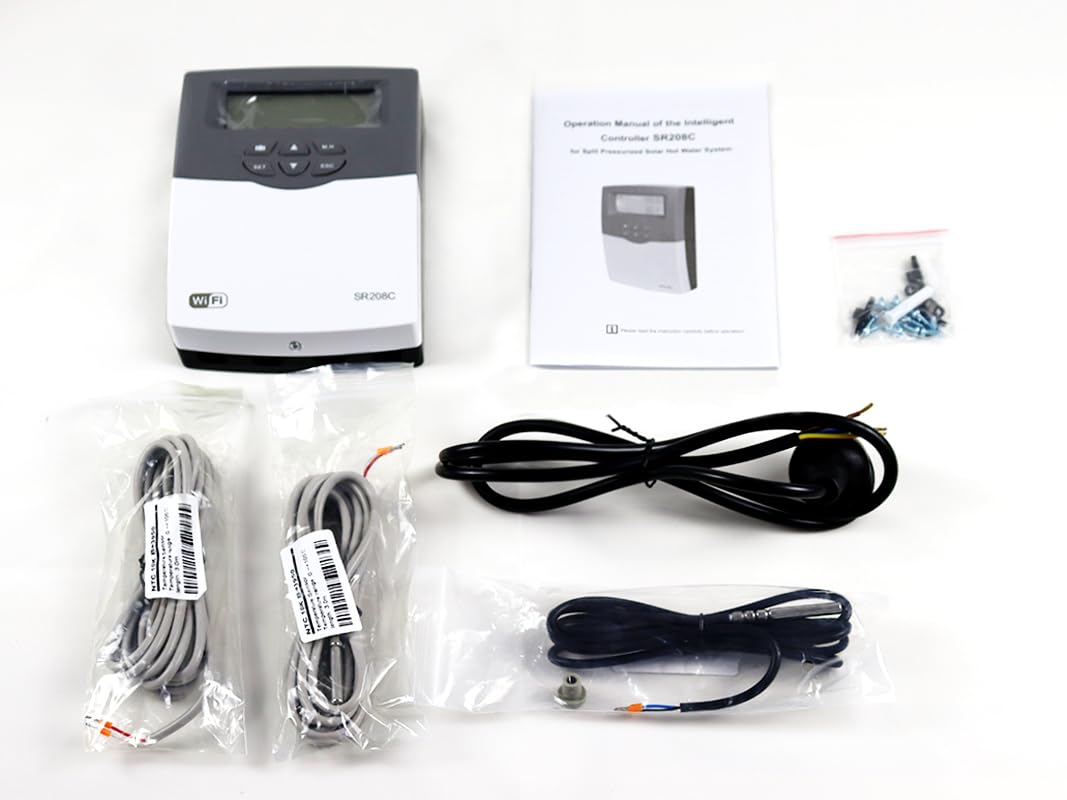

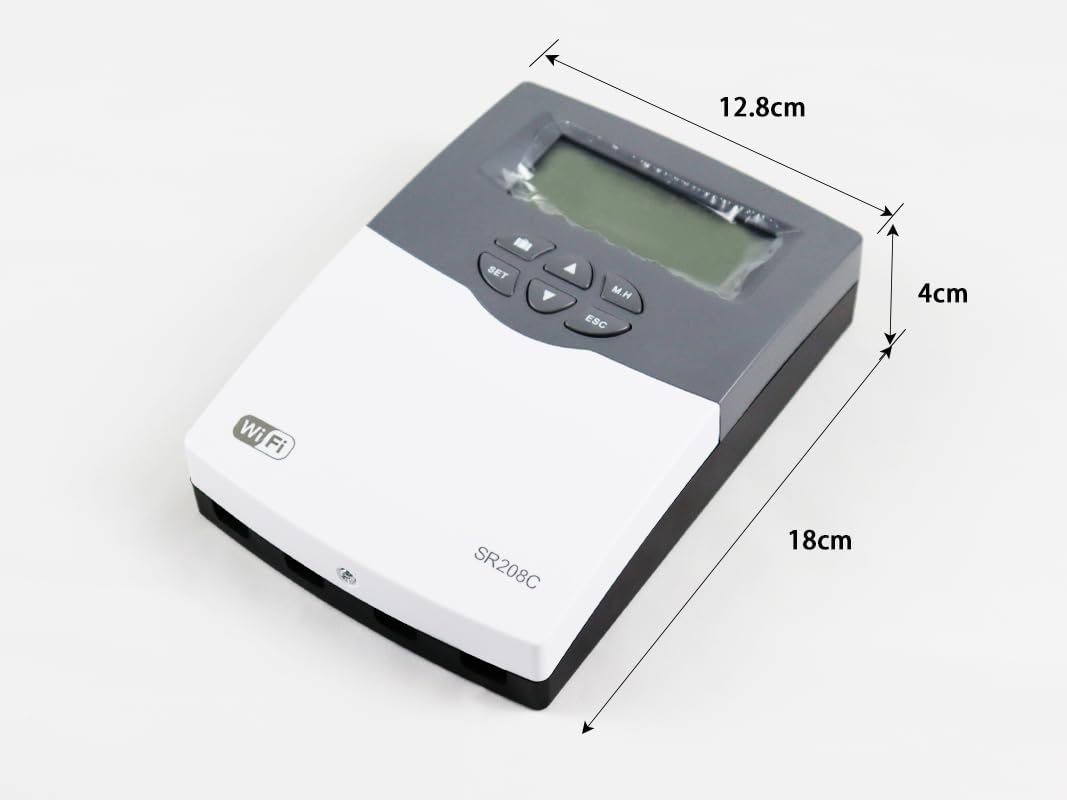

Description: This listing includes: 1 unit of controller for solar water heater, 220 V (Wi-Fi version). It is suitable for separated solar hot water system. Application capacity: Max.number of collectors:1 Max.number of storage tanks:1. Max.number of relays:2. Max.number of sensors:3. Max.number of visualization application system:1 Brief Introduction: The controller calculates the temperature difference between collector sensor T1 and tank sensor T2. If the difference is larger than or identical to the adjusted switch-on temperature difference, the solar circulation pump (R1) will be switched on and the tank will be loaded until the switch-off temperature Difference or the maximum tank temperature is reached. Main technical data * Size of Controller:178mm x120mm x43mm * Power supply: AC100-240V, 50-60Hz. * Power consumption: <2.5W. * Accuracy of temperature measuring: ± 0.1°C * Range of collector temperature measuring: -10~220°C * Range of tank temperature measuring: 0~110°C * Suitable power of pump: 1 pump possible to be connected, output power <300W. * Suitable power of HK (backup heating): 1pc 500W. * Inputs: 3 sensors, 1 x Pt1000 sensor (≤500℃) for collector (silicon cable≤280℃). 2pcs*NTC10K, B3950 sensor (≤ 135°C) for tank, (PVC cable ≤105℃), * Outputs: 2 relays, for circulation pump and backup heating. * Ambient temperature: -10 ~ 50°C. * Water proof grade: IP41. Main functions AH After heating/thermostat Password protection LOAD Tank heating OCEM Collector emergency shutdown OCCO Collector cooling OCMI Collector minimum temperature OCFR Antifreeze OTCO Collector Tube Pump control mode. OSYC System cooling OSTC Tank Cooling MAN Manual mode BLPR Blocking Protection OTDI Thermal Disinfection UNIT C-F switch BEEP beeper fault warning Memory function. Screen protection. Trouble checking This controller (Wi-Fi version) can be integrated into Tuya APP.
