Steca Solsum 8.8 F solar charger regulator 12/24

• Battery connection: 12/24 V. Own power consumption: < 4 mA.
• Cable cross section: 4 mm² / 6 mm².
• Charging voltage (gas control): 13.9 V (27.8 V).
• Charging current, max.: 8 A. Load current: 8 A. Load current max.: 8 A. Module current (max.): 8A. Module Power: Approx. 240 WP.
• Nominal voltage: 12/24 V. Matching battery: lead. System voltage: 12/24 V. Temperature range: - 25 – + 50 °C. Deep discharge protection: for 12 and 24 V systems.

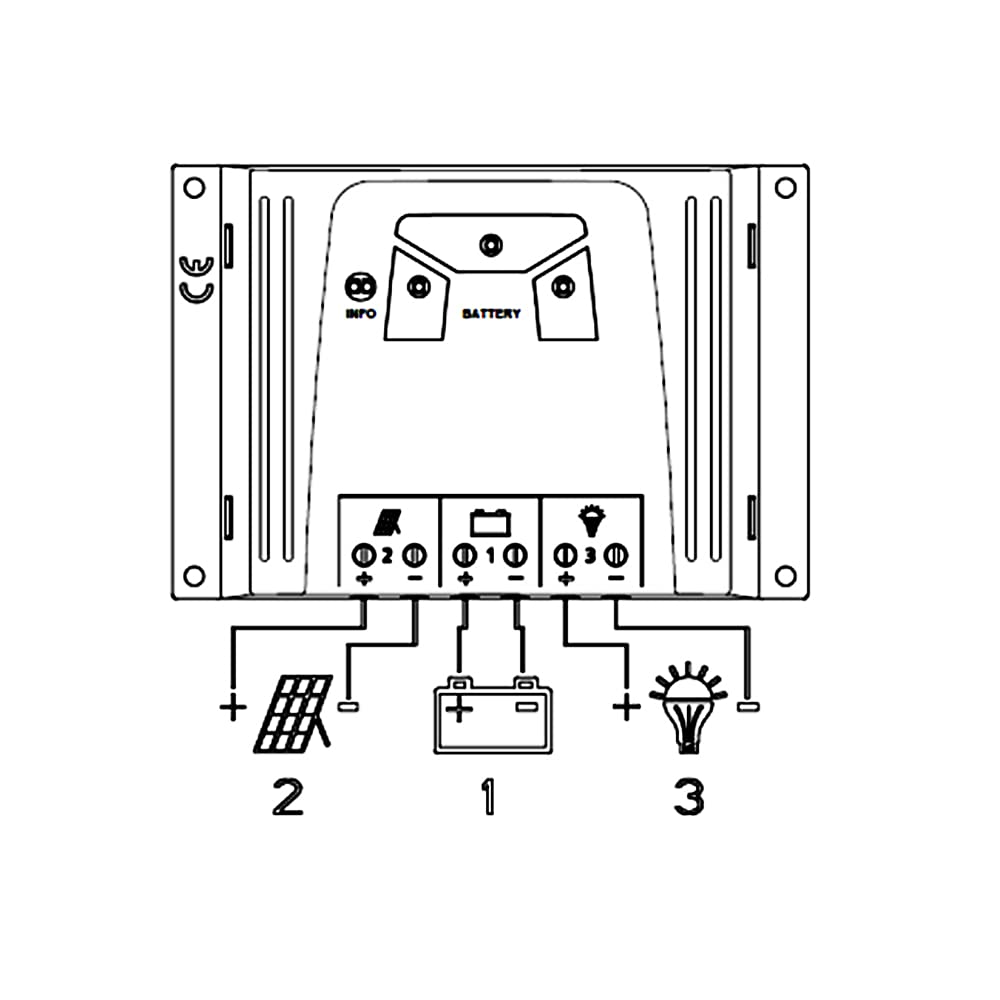

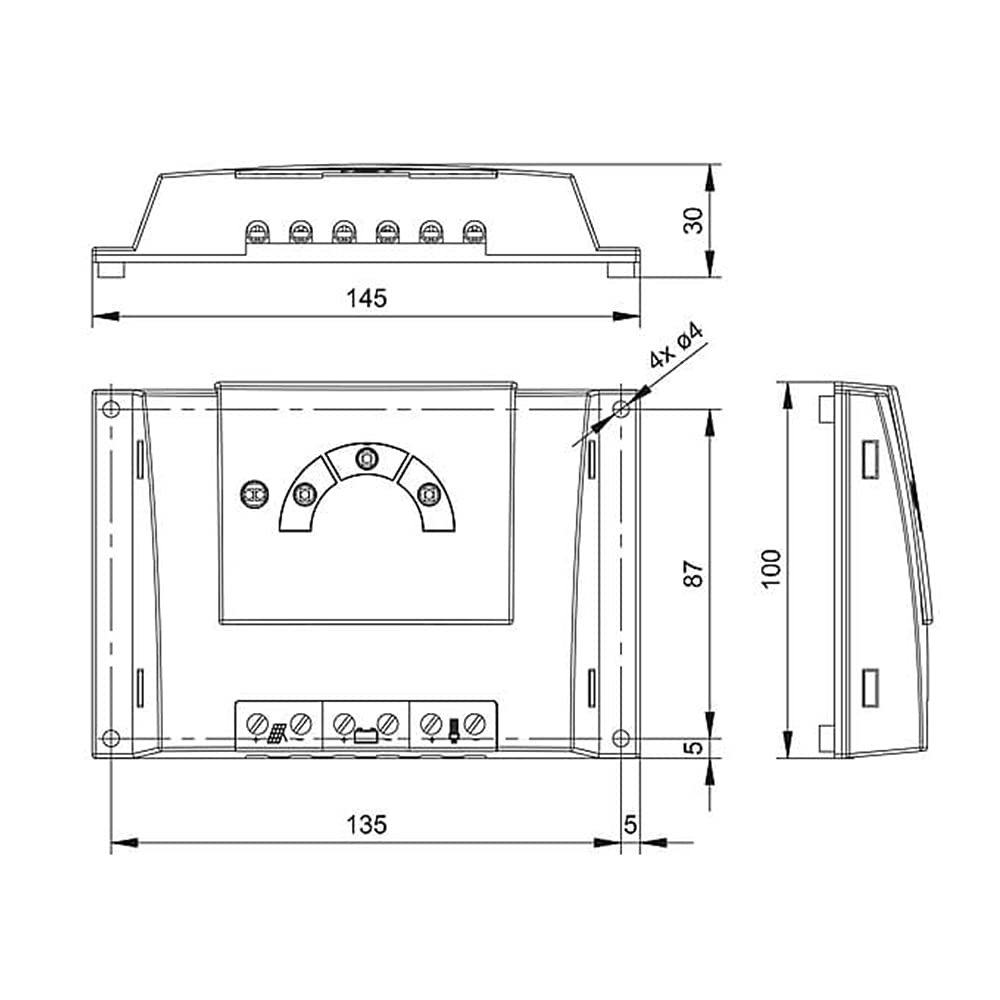

F Solsum Steca is the generation of charge controllers the most common for solar systems in the home. With charging currents of up to 10 A during automatic switching of 12 V or 24 V, it is ideal for devices with up to 240 W power supply. The printed circuit is fully electronically protected and the LED display allows easy reading of the battery status. The connections allow for easy connection of solar panels, batteries and charges. Steca Solsum works as a standard controller with high-energy efficiency on PWM basis. Multi-stage charging technology, automatic load activation, LED multi-function display, topology: Mosfet series, automatic voltage adjustment, voltage regulation, PWM regulation, multi-stage charging technology, automatic load compensation, temperature measurement: negative or positive plus grounding of the compensation charging terminals. Height: 100 mm. Own consumption: <4 mA. Charging current: 8 A. Width: 145 mm. Length: 30 mm. Power module (max.): 8 A. Weight: 150 g. Product type: charge controller. Further technical data: terminals (fine/single strands): 4 mm2 / 6 mm2 – AWG 12/9. Protection class IP31 F Solsum Steca is the generation of charge controllers most commonly used for home solar systems. With charging currents of up to 10 A during automatic switching of 12 V or 24 V, it is ideal for devices with up to 240 W power supply. The printed circuit is fully electronically protected and the LED display allows easy reading of the battery status. The connections allow for easy connection of solar panels, batteries and charges. Steca Solsum works as a standard controller with high-energy efficiency on PWM basis. Multi-stage charging technology, automatic load activation, LED multi-function display, topology: Mosfet series, automatic voltage adjustment, voltage regulation, PWM regulation, multi-stage charging technology, automatic load compensation, temperature measurement: negative or positive plus grounding of the compensation charging terminals. Height: 100 mm. Own consumption: <4 mA. Charging current: 8 A. Width: 145 mm. Length: 30 mm. Power module (max.): 8 A. Weight: 150 g. Product type: charge controller. Further technical data: terminals (fine/single strands): 4 mm2 / 6 mm2 – AWG 12/9. Protection class IP31.
