Westshine 9CH 5MP POE NVR H.265 Network Video Recorder 9 Channel CCTV NVR P2P Quick QR Code Scan Easy Remote View HDMI/VGA Output, Supports up to 8TB HDD (Not Included)

• 【5MP H.265 NVR】: This H.265 Network Video Recorder support 9 channel 5MP@15fps, 8 Channel 5MP@30fps, 9 Channel 1080P@30fps IP Cameras; 1CH 5MP playback or 2CH 1080P playback. Supports VGA (Maximum HD 1080p) and HDMI (Maximum HD 2K) output.

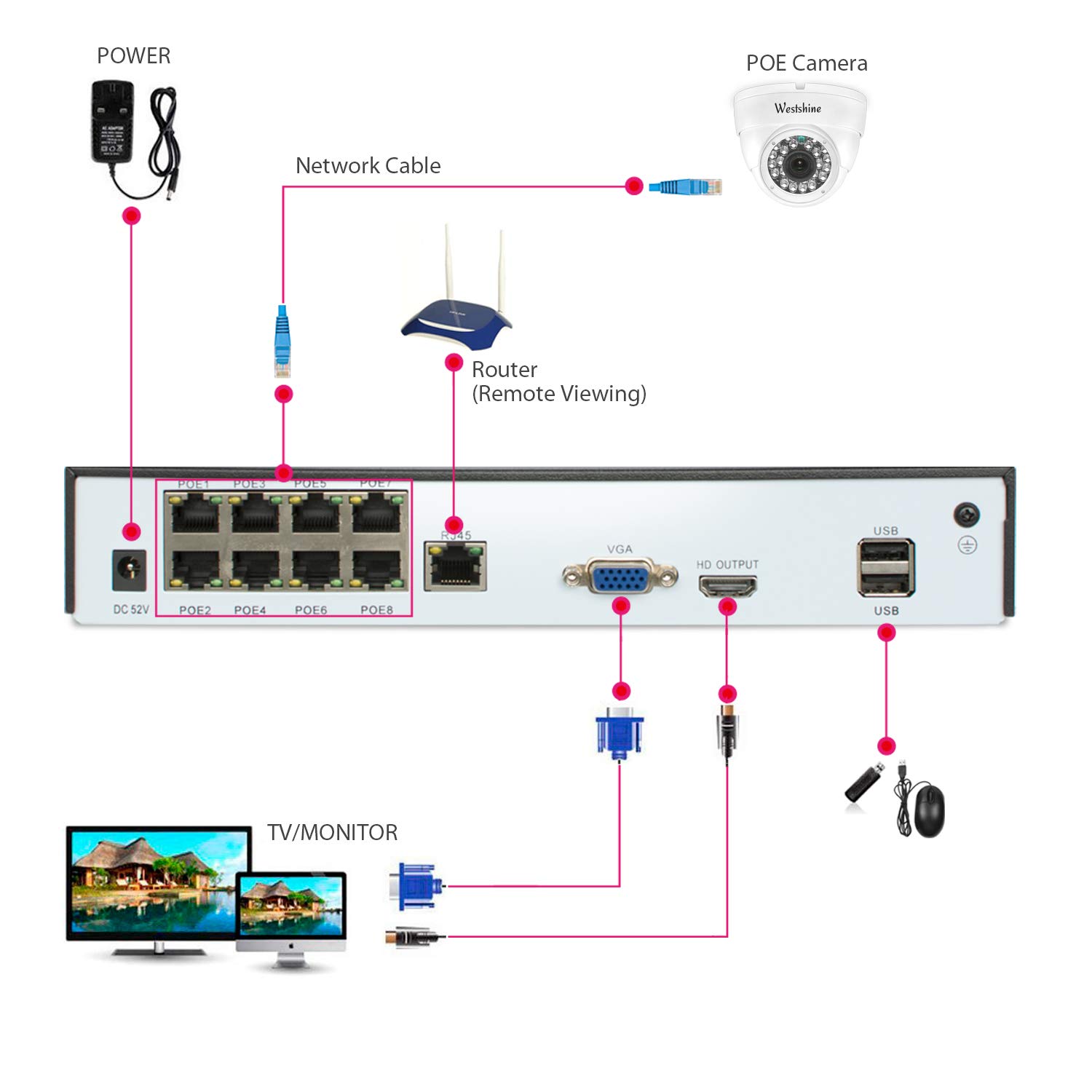

• 【POE Easy Setup】: Power Over Ethernet, Built in 8ch POE ports, Perfect combination of NVR network video recorder and POE switch. PoE enables you to use just a single cable for both power and data transmission. Supports 9pcs 5MP IP cameras. IP Cameras are NOT INCLUDED and are sold separately. Use only IP Cameras of equal or LOWER resolution than the maximum supported resolution of the NVR.

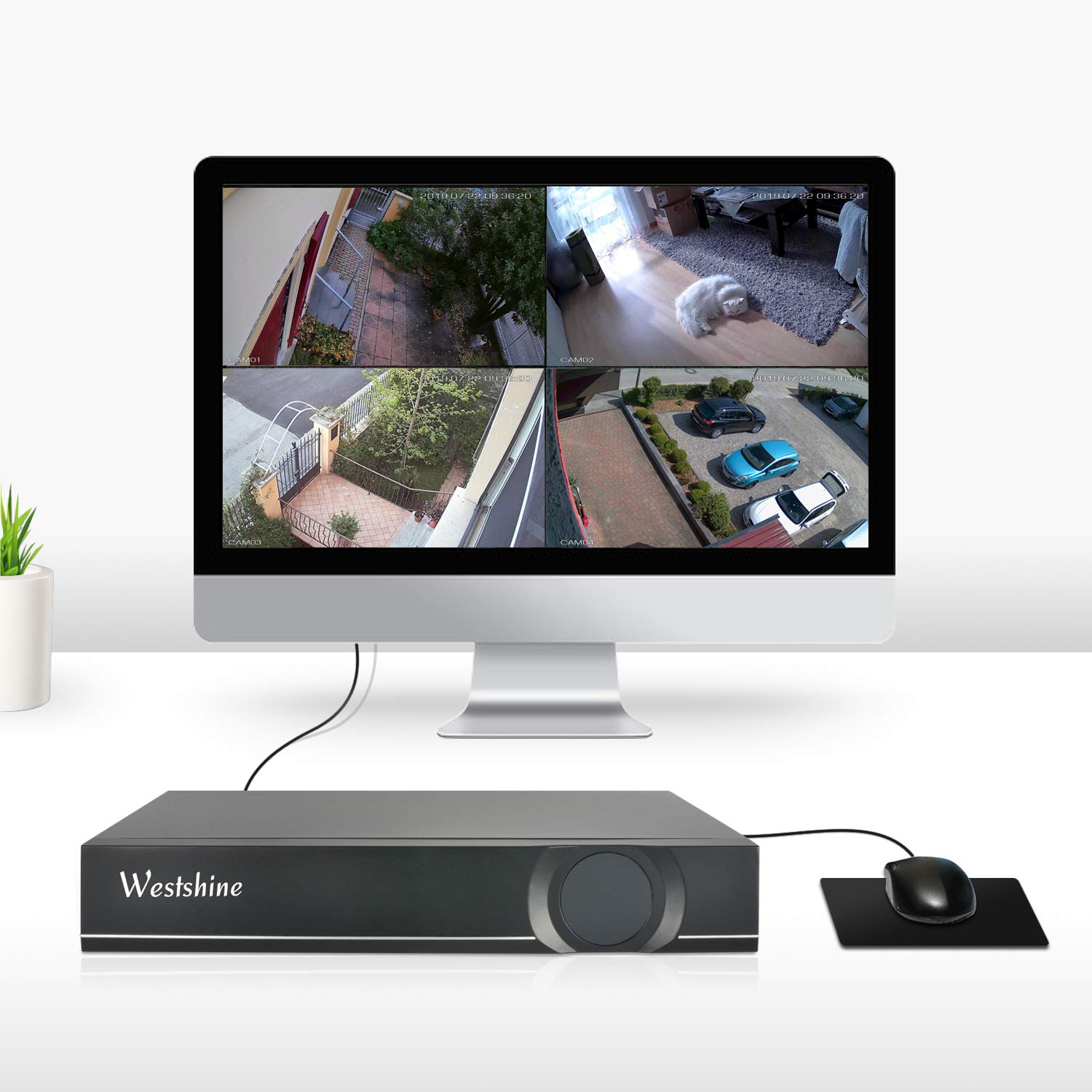

• 【Easy Remote view】: Plug & Play setup, Easy to configure, access and control. Scan QR Code on NVR from "Xmeye" app to instantly access live viewing and playback. Connects to and manages all the cameras on your network for ultimate ease and convenience in a home security system.
• Supports Westshine H.265/H.264 IP Cameras (please search ASIN: B082YXMTG2, B082YWGSV5); Provides limited support for third party brand Open Network Video Interface Forum compliant IP Cameras. Intelligent search, playback, and backup functions provide enhanced ease of use and security.
• 【Hard drive is NOT INCLUDED】Hard drive is required for recording and playback. Supports 2.5/3.5-Inch SATA 500GB to 6TB internal surveillance hard drive, We recommend using surveillance hard drive only. Other types of hard drives may cause your NVR to stutter, skip, freeze and will prematurely fail due to constant writing conditions.

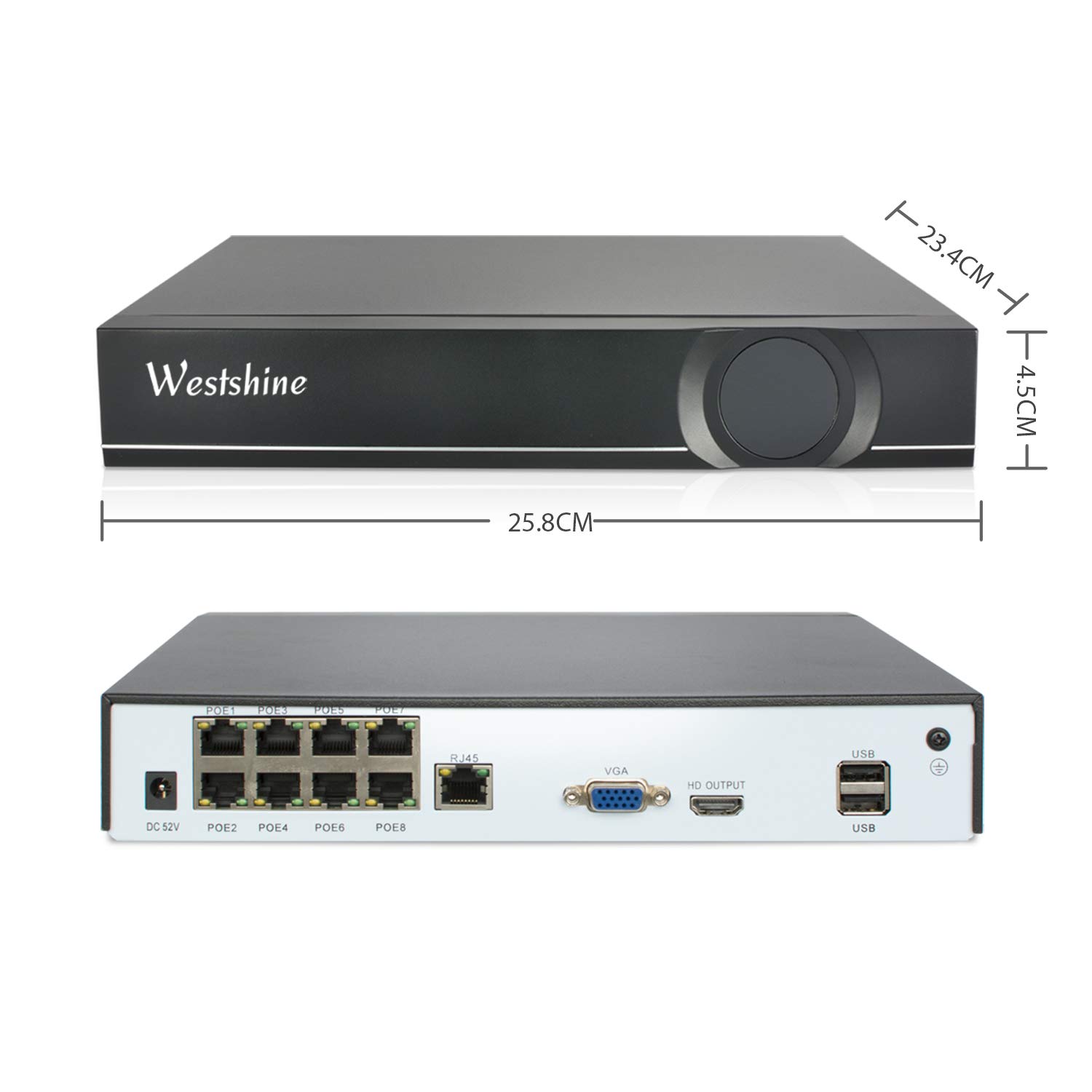

Overview Westshine 9 Channel H.265 5MP POE NVR Supports 9 Channel 5MP/4MP/3MP/2MP/1.3MP/1MP Onvif POE IP Cameras, Easy remote view from IE Browser/Mobile App (Xmeye)/CMS; Super high resolution good for your home and business surveillance. Main Features: * Super High resolution 5MP, supports 9 channel 5MP IP Cameras. * Power Over Ethernet, built in 8 POE ports, plug and play. * Advanced H.265 video compression technology. * Smart search playback to easy locate incident videos. * Quick Access QR Code Remote Viewing on iOS & Android devices (w/ Xmeye app) * HDMI and VGA output both support 1080P. Specifications: 【IP Video input】: Max 9ch 5MP (Built in 8ch POE Ports) 【HDMI/VGA output】: Support VGA (Maximum HD 1080p) and HDMI (Maximum HD 2K) output. 【Audio input/output】: No audio input/Audio with HDMI out 【Video compression standard】: H.265/H.264 【Preview】: 9ch* 5MP@15fps, 8ch* 5MP@30fps, 9ch* 1080P@30fps 【Local Playback】: 1ch 5MP/2ch 1080P 【Record Mode】: Manual, Alarm, Motion detection, Timing 【Back up mode】: Network, USB portable HDD, USB DVD-RW 【Video Standard】: PAL/NTSC 【Interface Type】: 1 SATA Interface (Max support 1x 8TB HDD) 【Network Interface】: 1 RJ45 10M/100M adaptive Ethernet Interface 【USB Port】: 2xUSB 2.0 interface 【Power Supply】: DC52V Package 1 x CCTV NVR (Hard Disk is Not Included) 1 x DC 52V/2.3A Power Supply 1 x Mouse 1 x Manual Note: Hard Drive is not included in Package Notes 1. Default login user name is admin, No password. You must be set password for device, Otherwise you can not access to system. 2. IP Camera only support ONVIF.
