Westshine 16CH 1080N Security DVR, H.264 HD CCTV Surveillance DVR System, Support Motion Detection, Email Alert, Remote Access, Hybrid DVR NVR for AHD/TVI/CVI/Analog/IP Camera (NO Hard Disk)

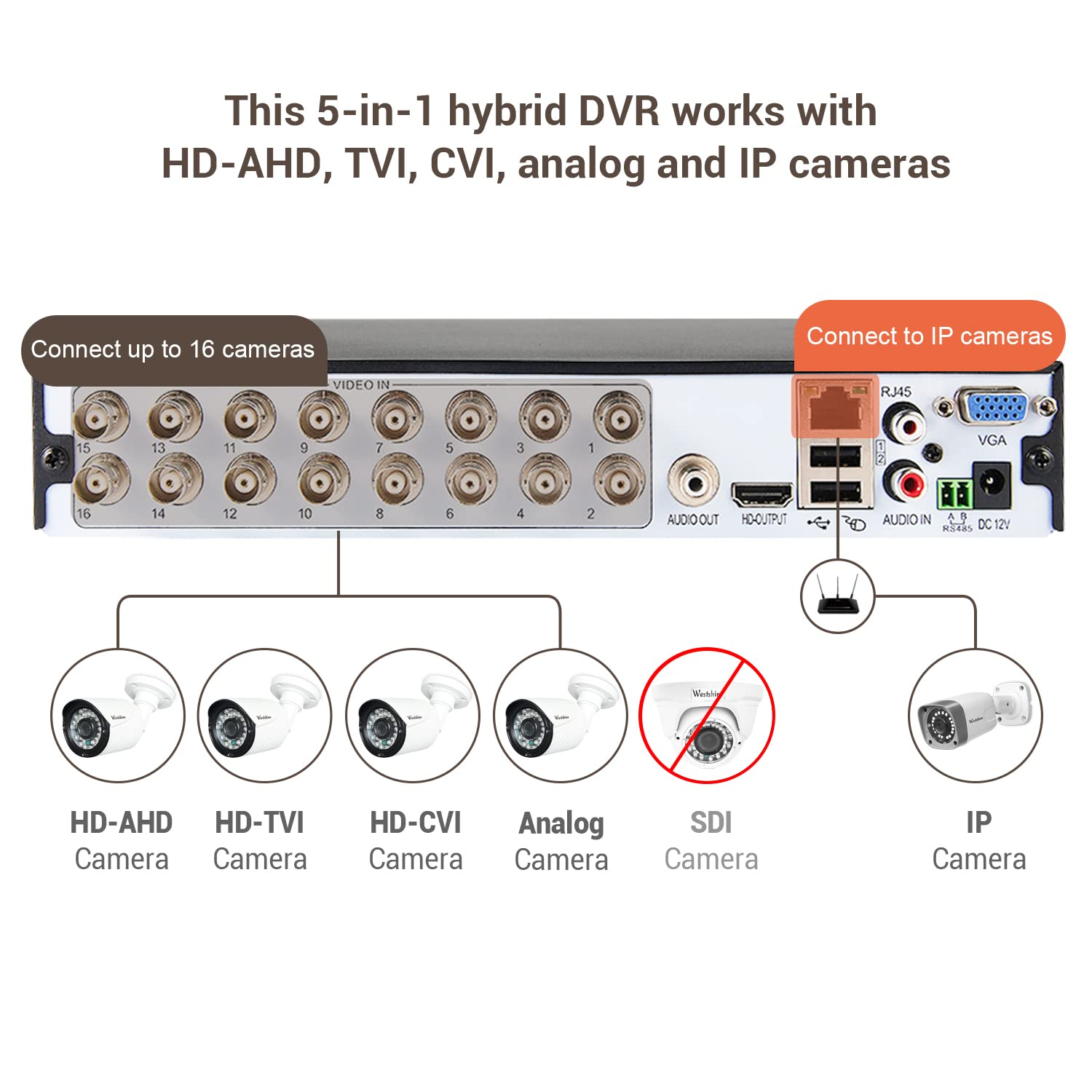

• 【5 in 1 DVR】This 16 channel 1080N hybrid security DVR/NVR recording system can record IP cameras and analog cameras simultaneously. Cameras are NOT INCLUDED and are sold separately, only use cameras of equal or lower resolution. Support 720P/1080P AHD/TVI/CVI/IP Camera and 960H Analog Camera.
• 【1080N Resolution】This 1080N security DVR works with 1080P AHD, TVI, CVI, analog and IP security cameras. H.265 high profile compression. HDMI and VGA output at 1920*1080P resolution output(under NVR mode).
• 【Motion Detection】Instant motion detection email alert to let you know exactly what happened. Use the DVR to customize motion detection exactly to your needs: set a perimeter zone, etc.
• 【P2P Cloud Remote】Support cloud service, P2P function, easy to do remote control. Enable you to live view not only within your home network but also outside. It's very convenient to view on your smartphone and tablet(Android & iOS) via free XMeye app.
• 【Easy Operation】Easy operation interface, VGA/HDMI video output, with 2*USB2.0 interfaces. Support multiple languages, Windows IE and CMS software. Hard drive is required for recording and playback. Hard Disk is NOT INCLUDED and sold separately. Supports 3.5-Inch SATA 500GB to 6TB internal surveillance hard drive, We recommend using surveillance hard drive ONLY to avoid premature hard drive failure.

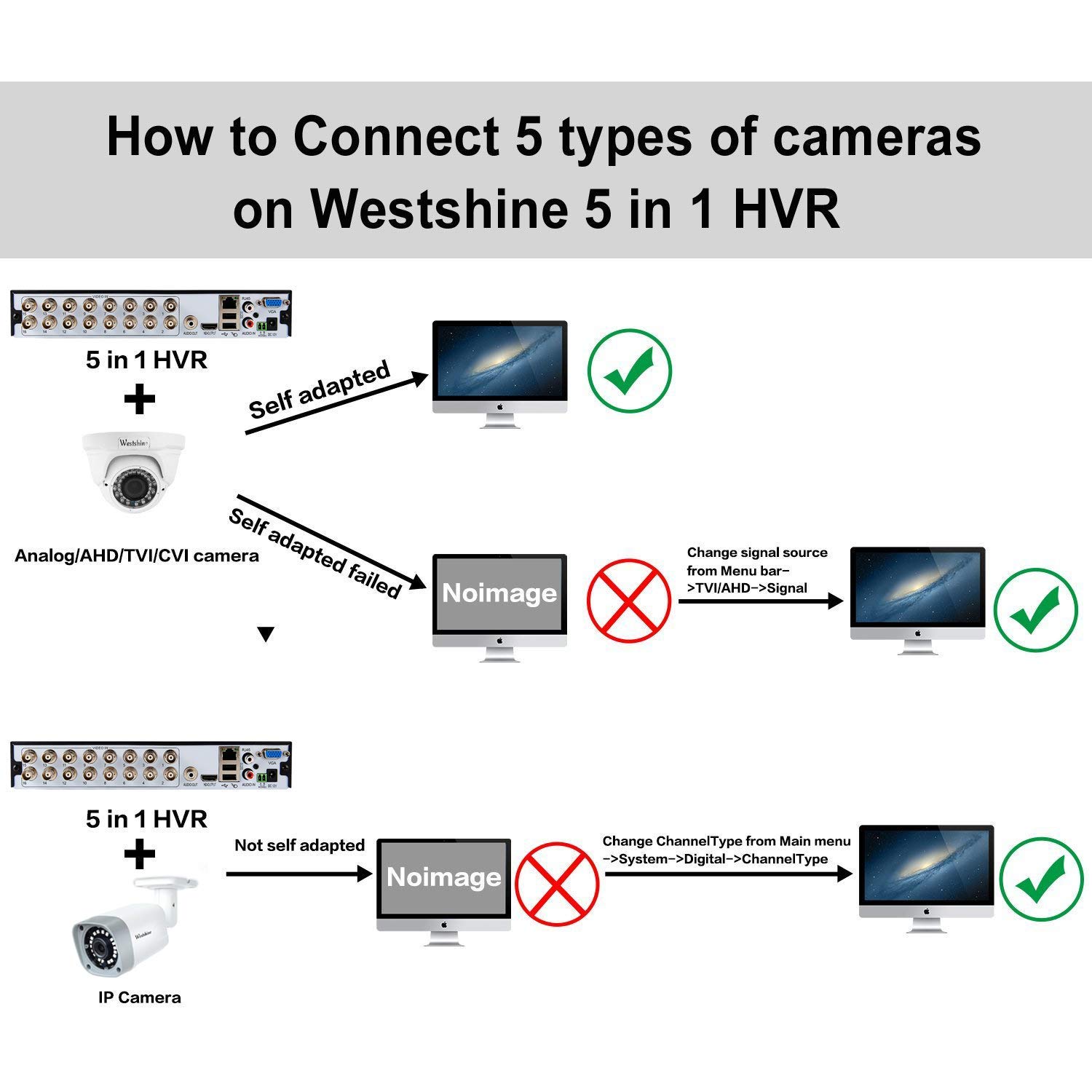

Specification: Video input:16ch BNC interfaces HDMI/VGA output:Support up to 1080P display Audio input/output:2CH/1CH RCA Display Quality:VGA/HDMI(1920*1080P) Playback quality:1080N/720P Record Mode:Manual,alarm,motion detection,timing Back up mode:Network,USB portable HDD,USB DVD-RW Record Resolution&Frame: PAL: 1080N/720P@200fps Video Standard:PAL 1xSATA HDD interface(Max 6TB) 1xRJ-45 10M/100Mbps Network interface 2xUSB 2.0 interface 1xRS485 PTZ Camera interface Features: 1080N resolution shows crisp image. Support Dual stream (Main stream for local storage, sub-stream for network transmission) This 5-in-1 DVR supports Analog, AHD,TVI,CVI and IP cameras. DVR can auto detect AHD Camera,no need to manually switch mode; TVI/CVI/IP/Analog Camera not support auto detection,pls refer to user manual to manually switch Smart Playback Function--This function allows you to customize a specific searching area, then videos will be speed up when nothing happens in that region, when motion detected,videos are played in normal speed QR-code Connection, Set Up Remote Access in Minutes--Steps:Connect the DVR to a Camera or a Monitor, Connect to the Network,Scan the QR Code(can be found on DVR box or in Apple/Android store)to download APP,Enjoy Live Viewing from your mobile or tablet. 3 Modes: DVR mode:16CH 1080N/720P AHD/TVI/CVI/Analog camera Hybrid mode:8CH 1080N AHD+8CH 960P IP camera NVR mode:4CH 5MP/3MP IP camera,8CH 1080P IP, 16CH 960P Software: PC:CMS,VMS Mobile:XMeye free APP Online Cloud Login Web:www.xmeye.net Notes: Default login user name is Admin, You must be set Password,otherwise,you can not access to system Provides limited compatibility (live view) with third party brand compliant IP Cameras. Package: 1x16CH Hybrid AHD DVR(Hard Disk is Not Included) 1xPower Supply 1xMouse 1xManual
