Load Sensor, PSD-S1 S-Type Load Cell Sensor High Precision Load Scale Sensor with Cable for Mixing Station,Batching Machine,Asphalt Station(2000kg)

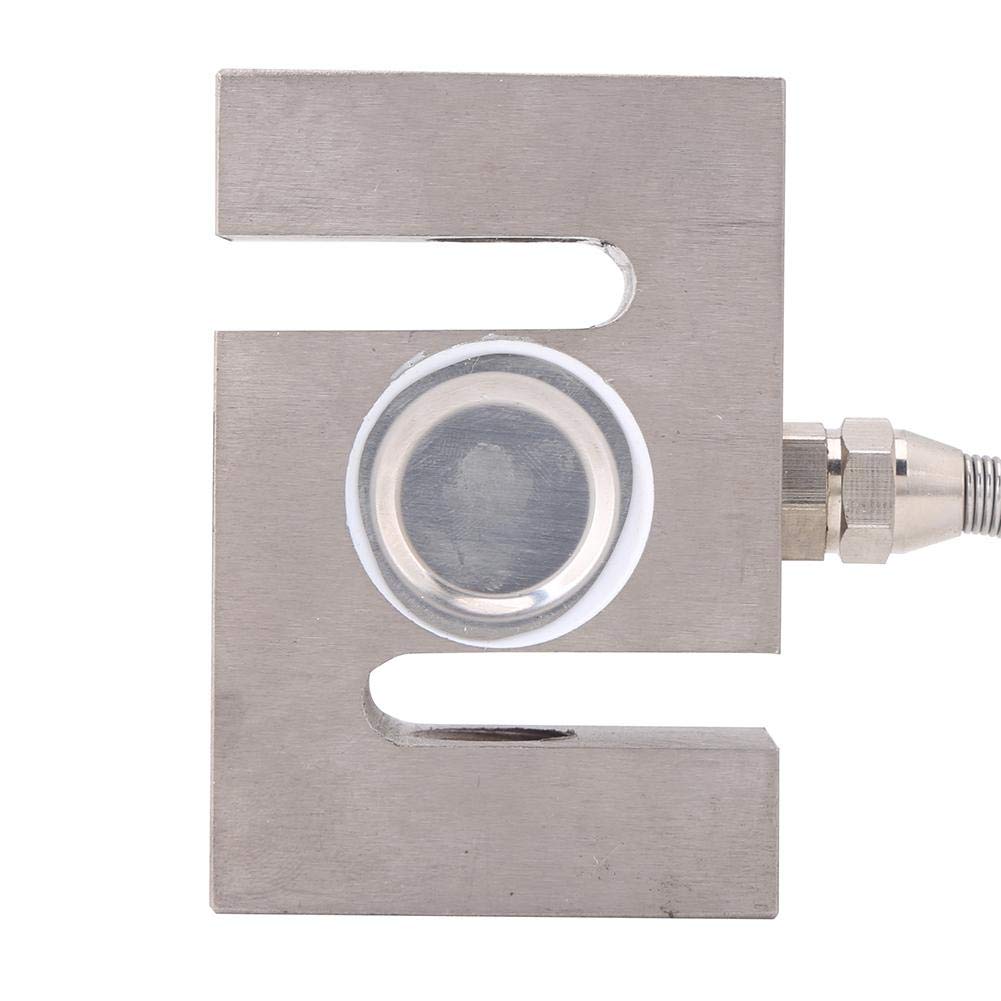

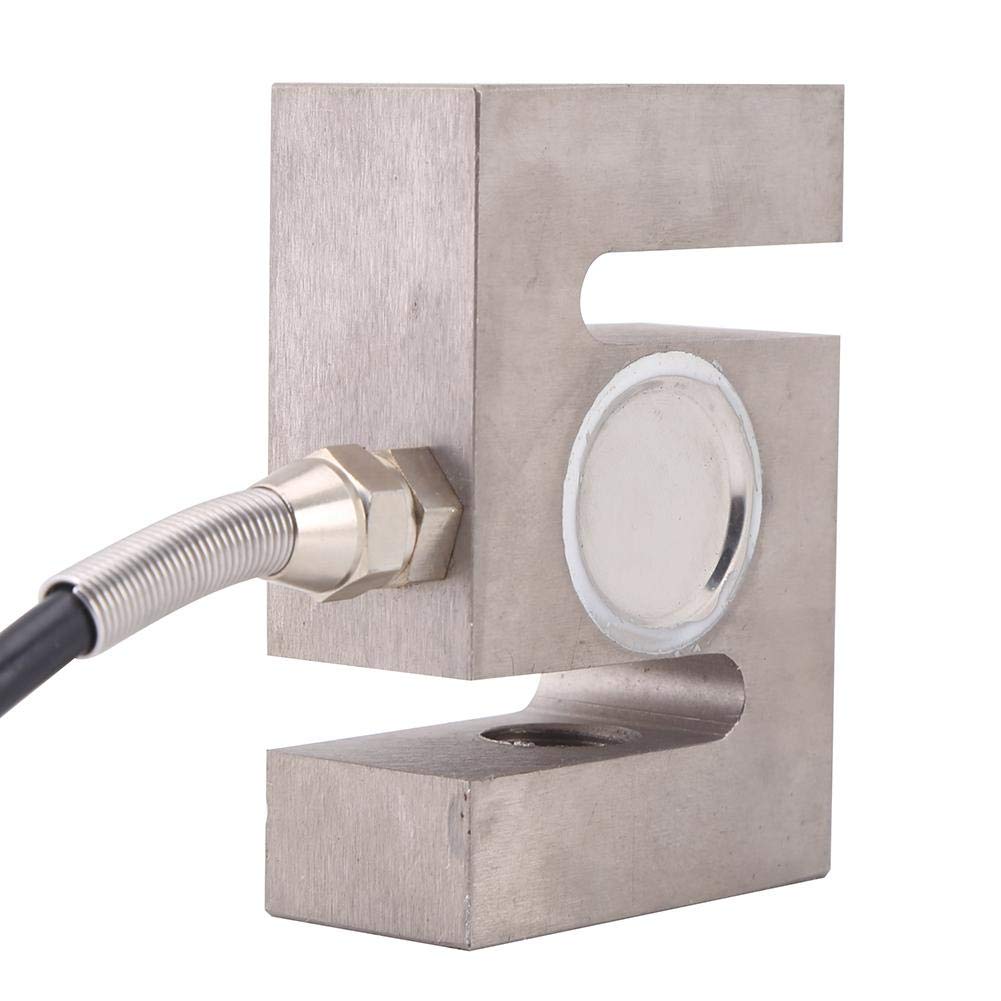

• ★★★【Features】Oil-proof, waterproof and anti-corrosion, suitable for all kinds of environments.S beam design. Precise and stable. Easy installation.
• ★★★【Suitable for】This load sensor is suitable for mixing station, batching machine, asphalt station, etc.
• ★★★【Specifications】Protection grade: IP67;Linearity: ±0.02（%F.S.）;Delaying: ±0.02（%F.S.）;Repeatability: ±0.02（%F.S.）;Sensitivity: 2.0mv/v;Drifting: ±0.02%F.S

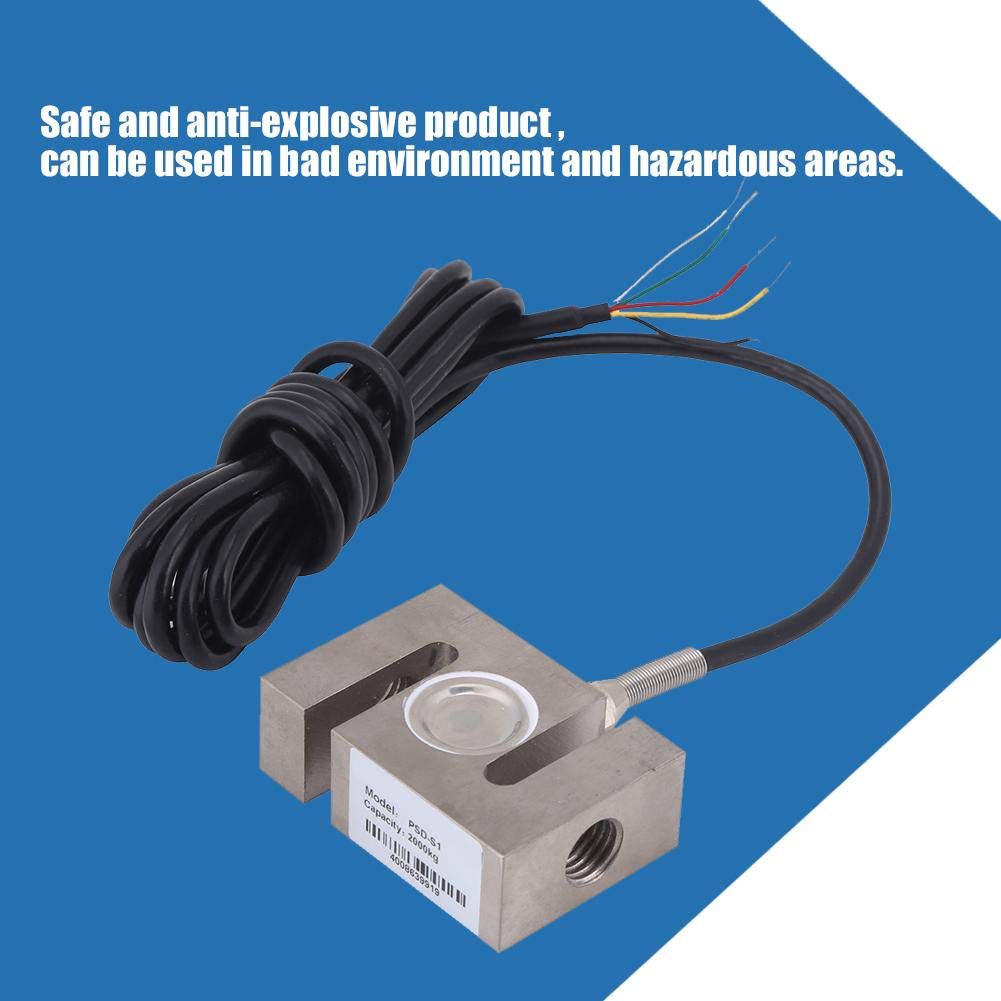

• ★★★【Safe Product】Safe and anti-explosive product, can be used in bad environment and hazardous areas.
• ★★★【After sales】If you have any questions about our products, please contact us by email with no hesitate and we will do our best to solve your problem.

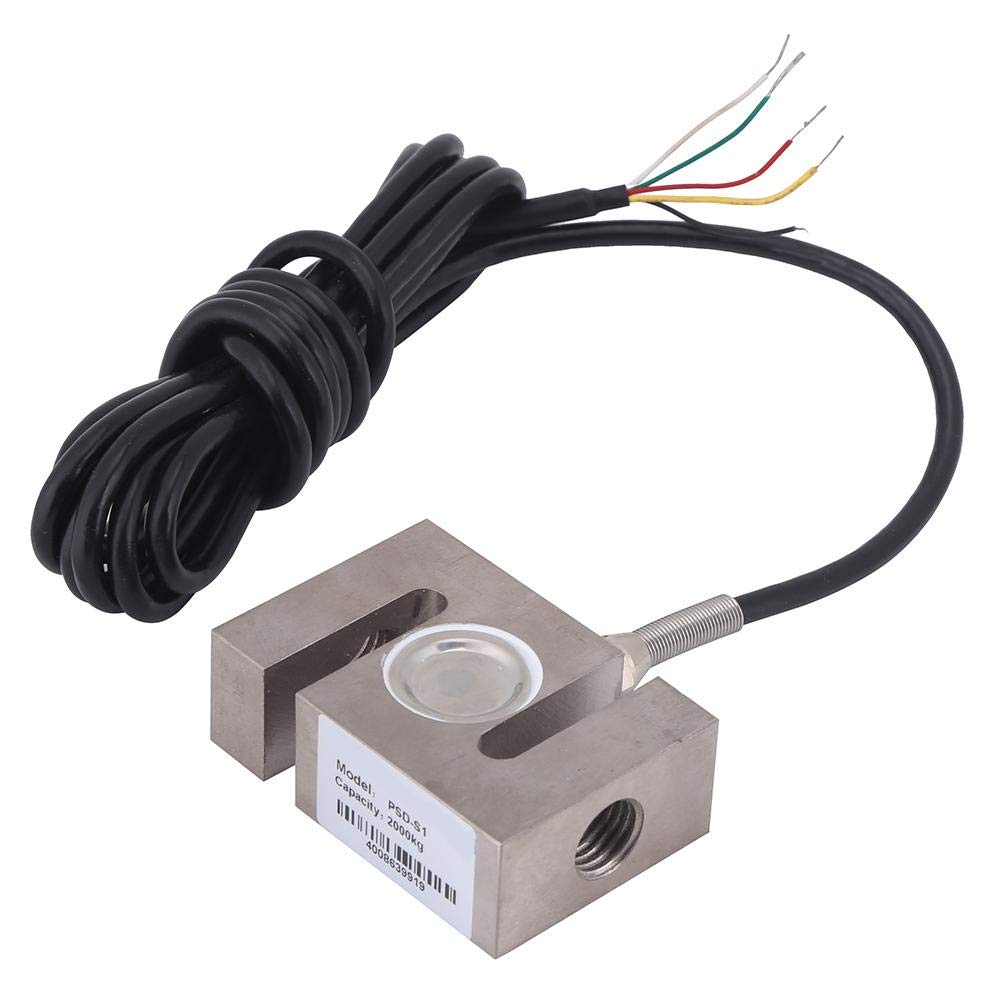

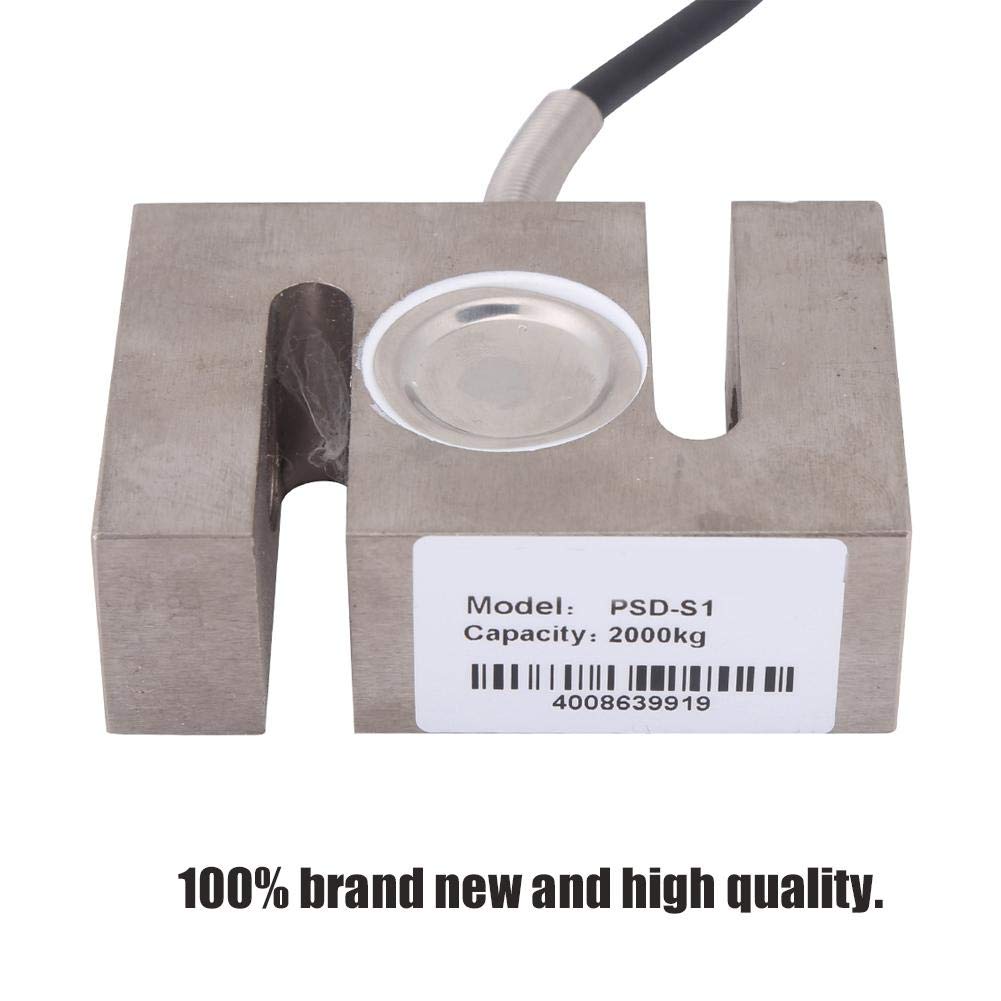

Features: brand new and high quality. Oil-proof, waterproof and anti-corrosion, suitable for all kinds of environments. S beam design. Precise and stable. Easy installation. Suitable for mixing station, batching machine, asphalt station, etc. Safe and anti-explosive product, can be used in bad environment and hazardous areas. Specifications: Model: PSD-S1 Material: metal Type: weighting Physical properties of materials: conductors Process: film Output analog grade: IP67 Linearity: ±0.02%F.S. Delaying: ±0.02%F.S. Repeatability: ±0.02%F.S. Sensitivity: 2.0mv/v Drifting: ±0.02%F.S Input impedance: 350±10Ω Output impedance: 350±5Ω Application: Mixing station, batching machine, asphalt station, etc. Measuring range(Optional): 50kg, 100kg, 300kg, 2000kg Quantity: 1PC Weight: 502g(load cell 50kg), 551g(load cell 100kg), 575g(load cell 300kg), 712g(load cell 2000kg) Wire connecting method: Input: Red wire(+), Black wire(-) Output: Green wire(+), White wire(-) Yellow wire(GND) Package Included: 1 x Weighting Sensor
