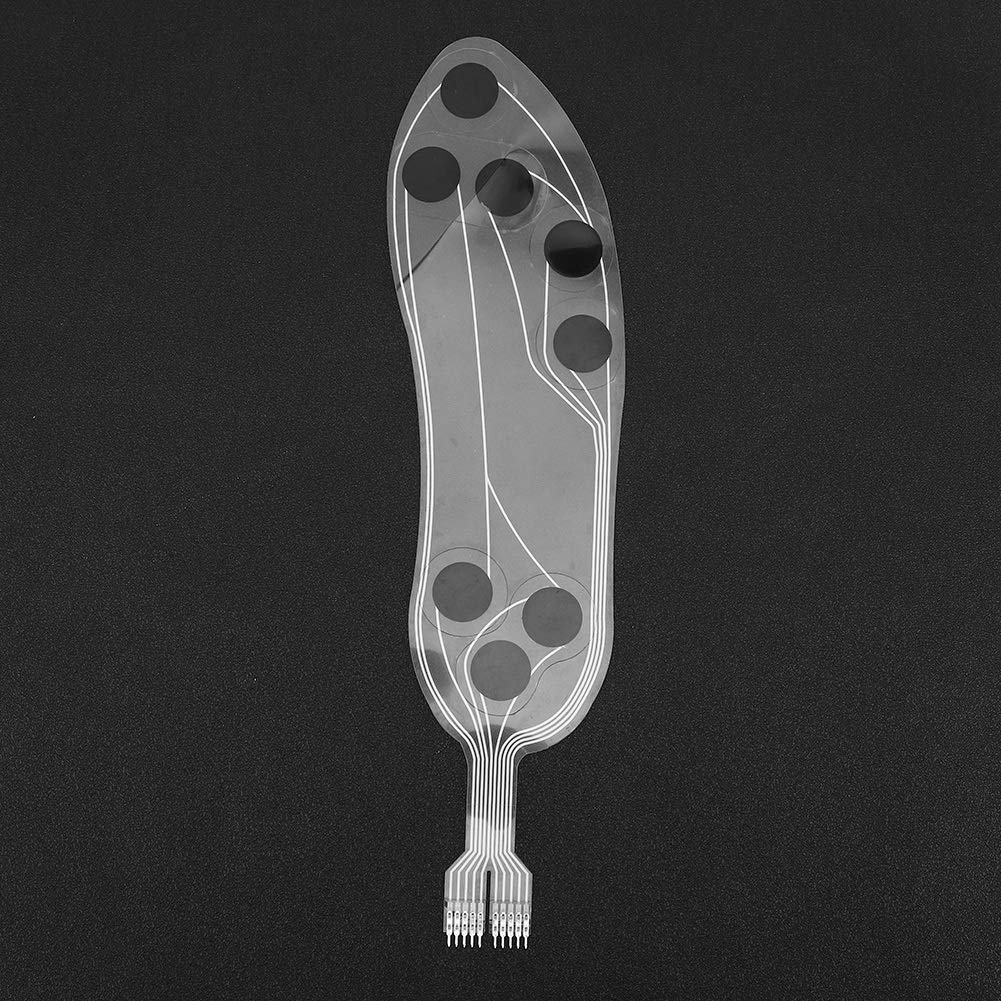

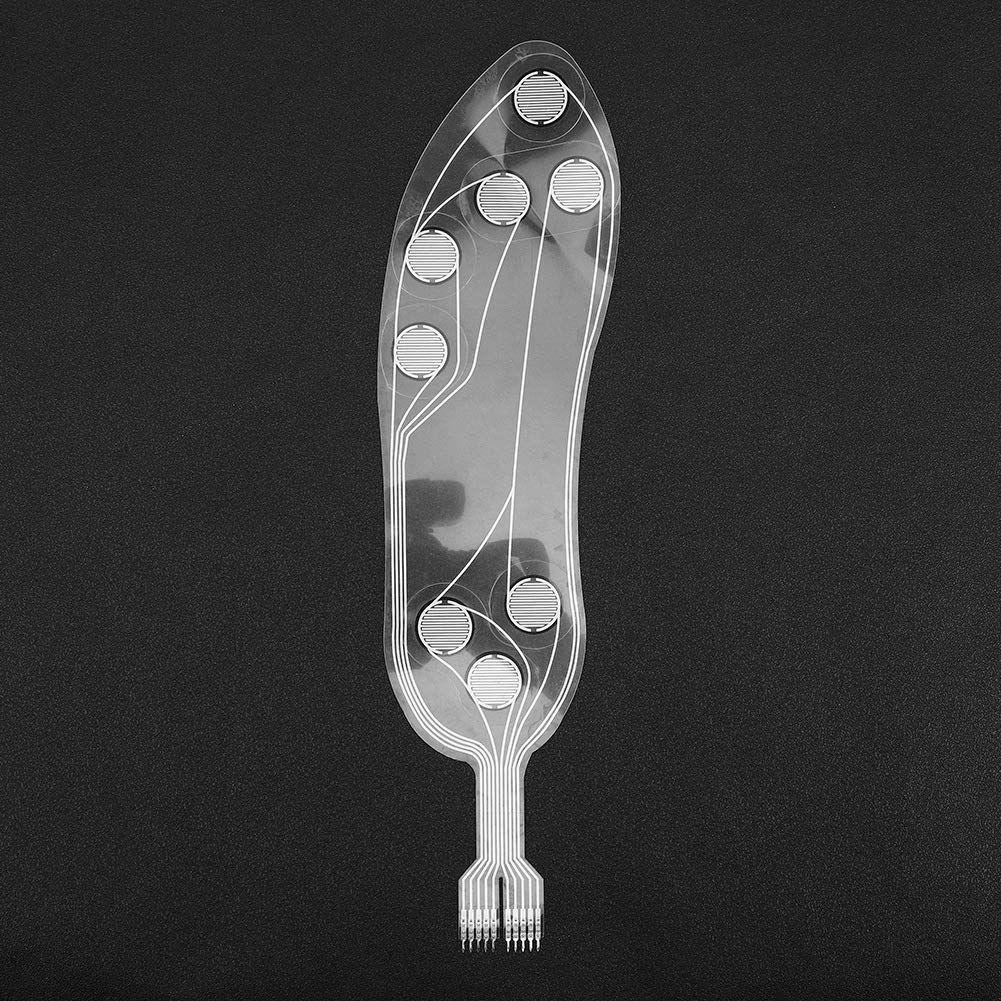

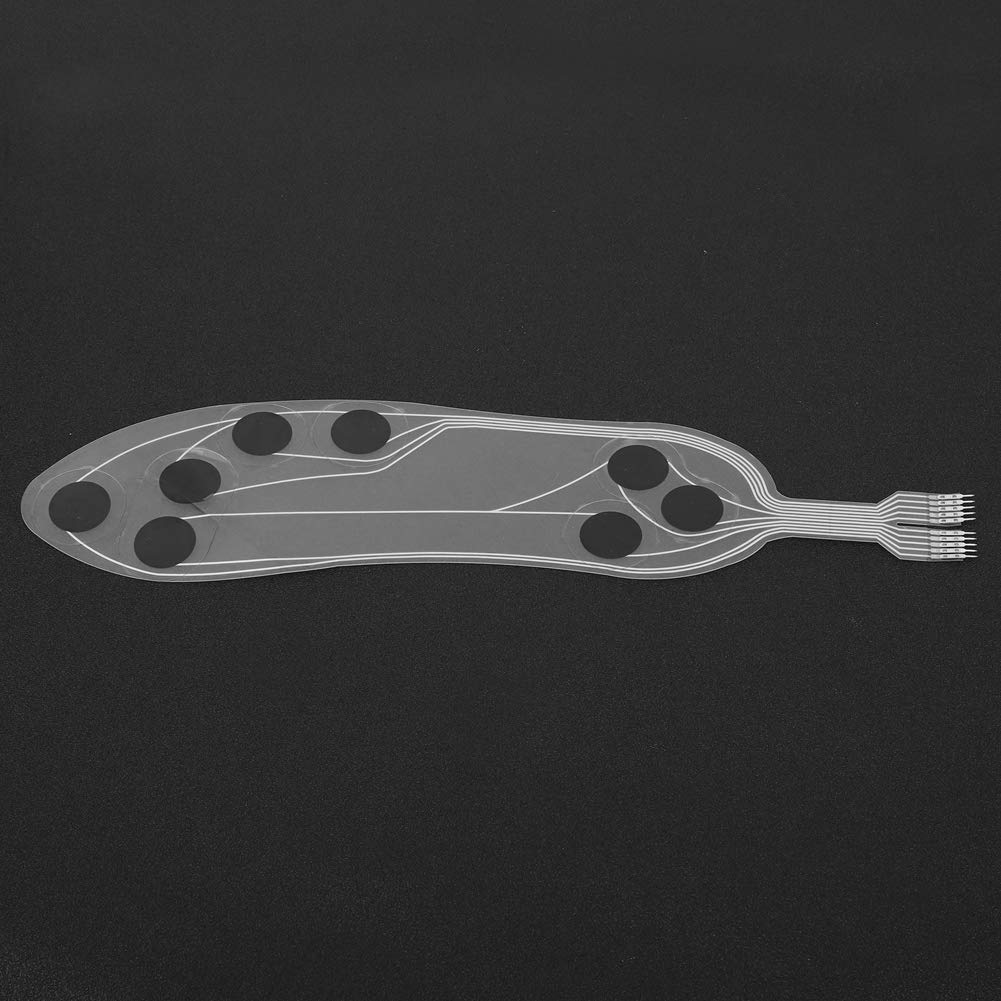

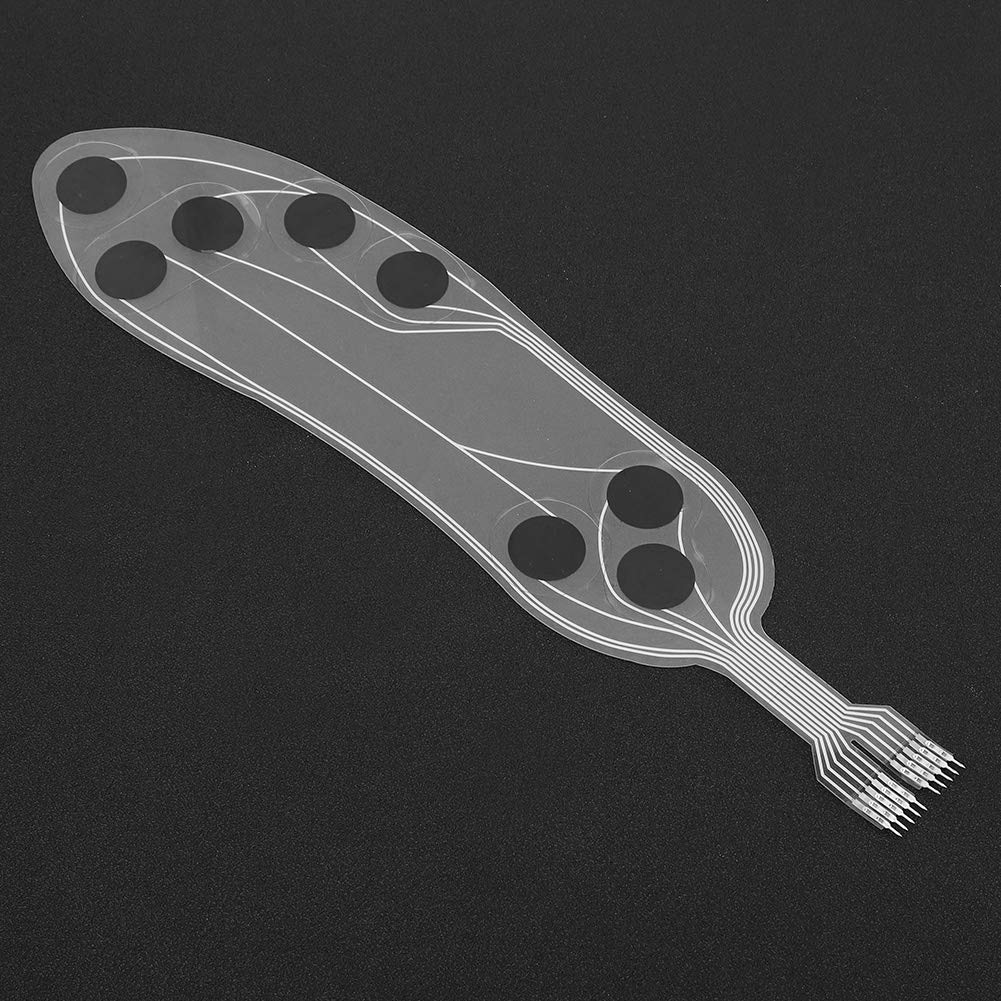

ZNX-01 Sensing Mat Pressure Sensor Shoe Accessory Smart Insole Intelligent for Step Counting, Pressure Sensor

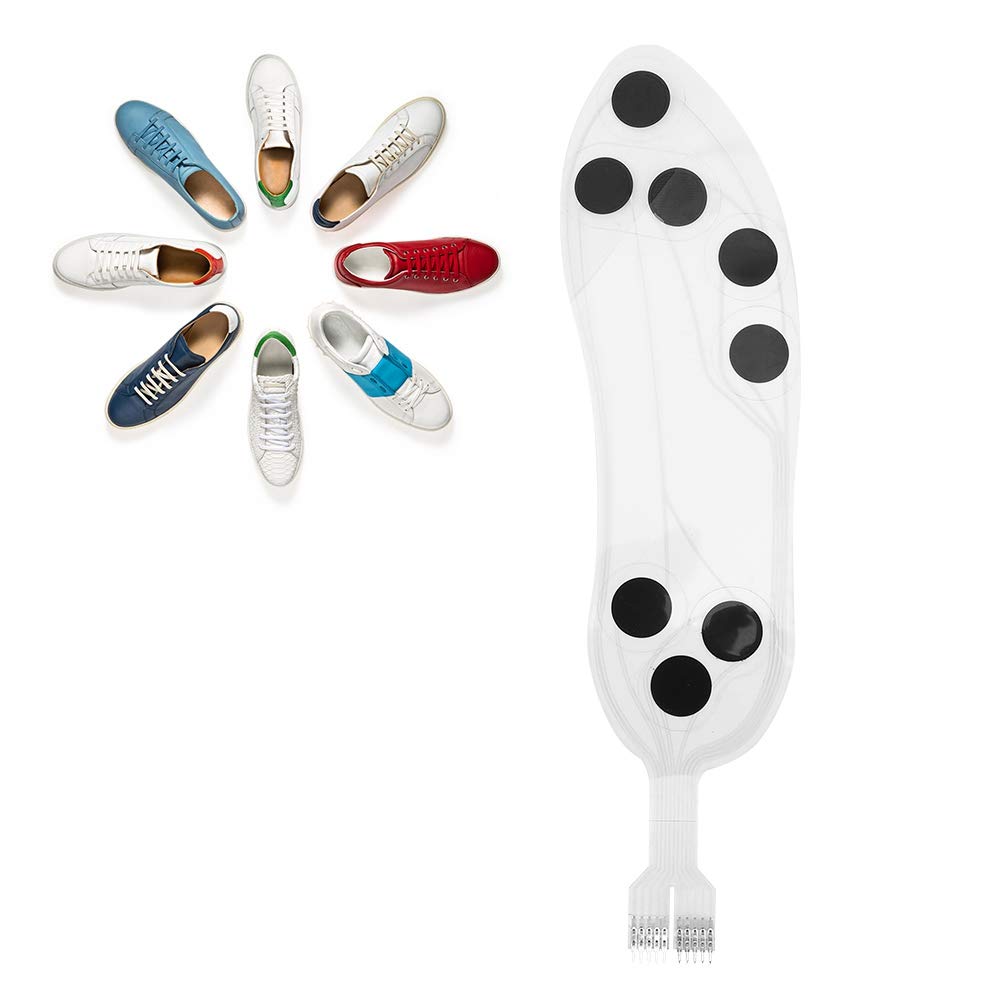

• The sensor pad of this product can be widely used in smart wearable products such as intelligent pressure-sensitive insoles.
• The pressure sensor of this product has basic functions such as steps and calorie consumption index.
• You can also monitor gait information in real time, including running posture, landing method, rhythm, landing time, landing vacancy rate, knee load index, etc.
• Sensors can support different functional requirements, and can be customized and developed for various applications in different places.

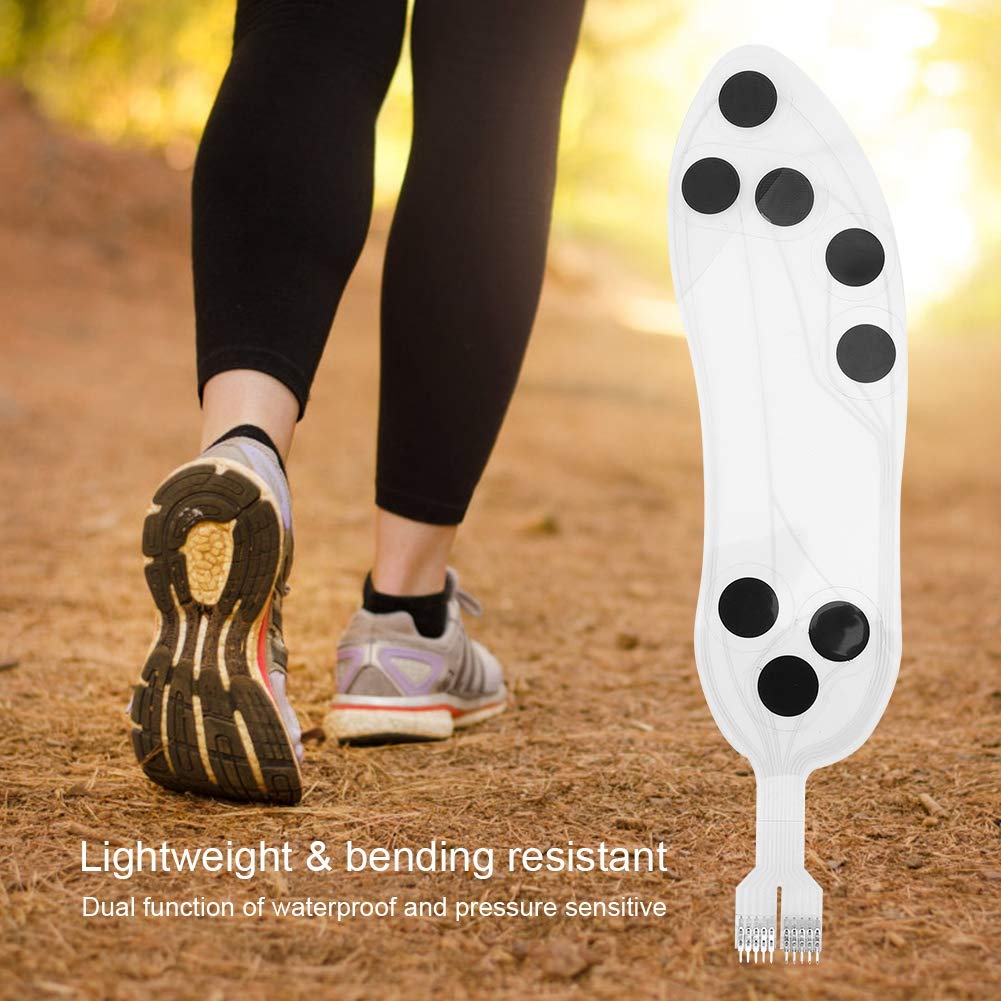

• The product has long life, high sensitivity, light bending resistance, and has dual functions of waterproof and pressure sensitive.

Specification: Item Type: Sensing mat Model: ZNX-01 Thickness: Range: Single point 10kg Response Point: 400g Durability: >1 million times Initial Resistance: >10MQ (no load) Test Voltage: Typical value DC3.3V Response Time: <1ms Recovery Time: <15ms Working Temperature: -20~60 Electromagnetic Interference: Not generated Electrostatic Discharge: Not sensitive Size: Approx. 8 x 20mm / 0.3 x 0.8in Approx. 250mm / 9.8in Approx. 307mm / 12.1in Approx. 2.54mm / 0.1in Approx. 28.92mm / 1.1in Package List: 1 x Sensing Mat
