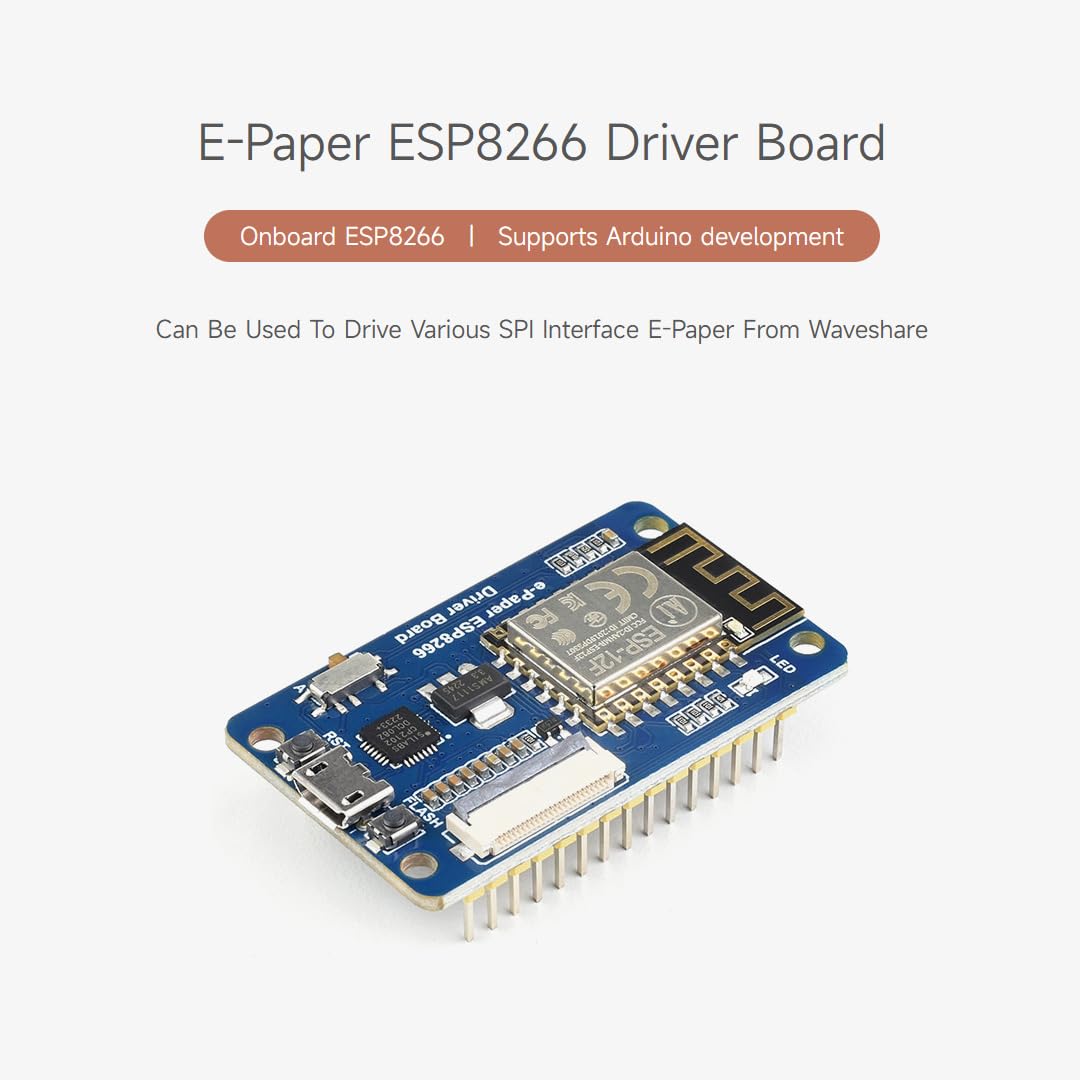

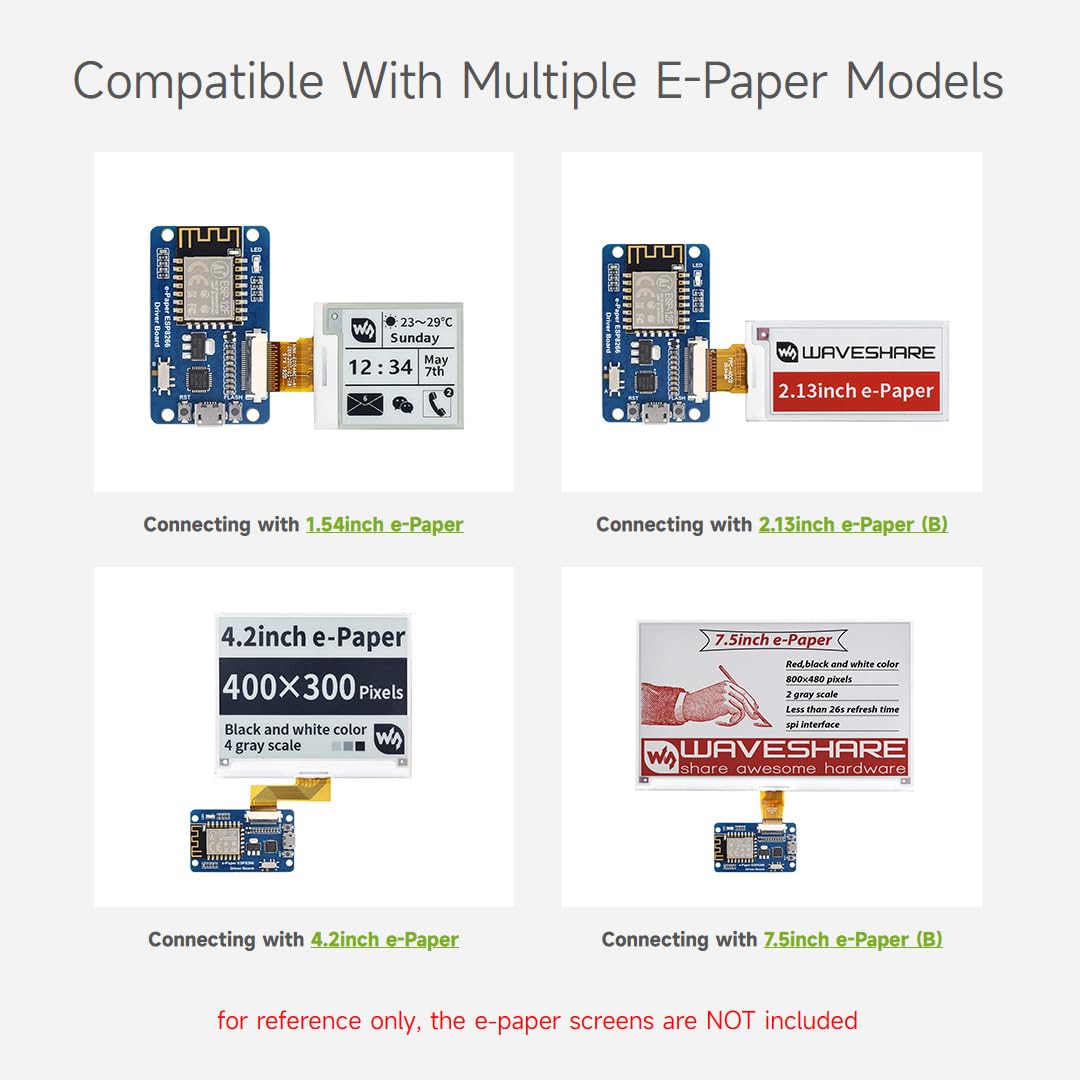

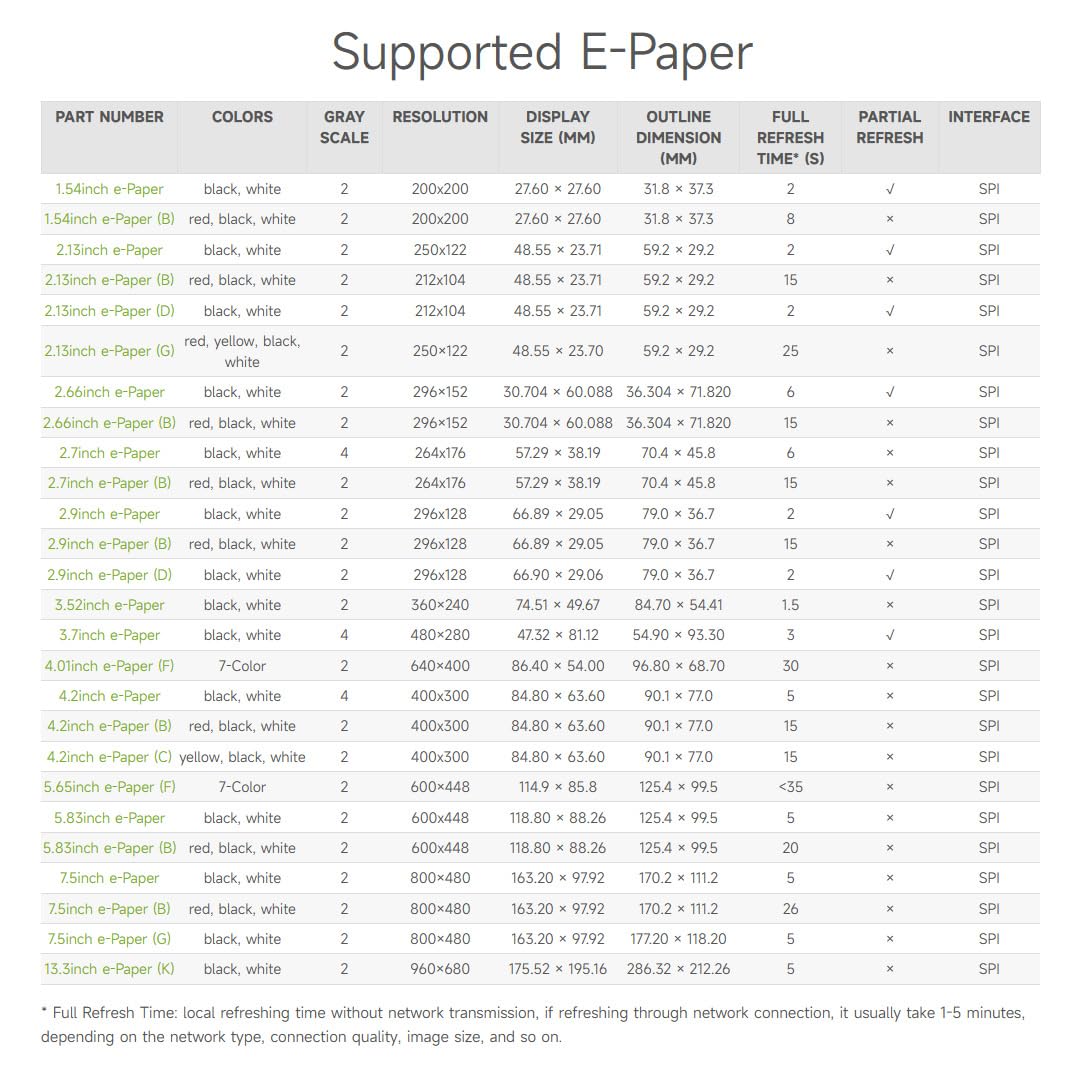

Waveshare Universal e-Paper Driver Board with Wifi SOC ESP8266 Onboard Supports Various Waveshare SPI e-Paper Raw Panels and Arduino development

• This is a universal driver board for e-Paper raw panels, thanks to the WiFi connectivity, it is allowed to display images from PC / smart phone via WiFi conveniently.
• Furthermore, it can also be used for development, just like any other normal board. Onboard ESP8266, supports development
• Provides HTML host code, allows to refresh display content via remote webpage, suit for Internet applications
• Supports Floyd-Steinberg dithering algorithm, more color combinations, better shadow rendering for the original image. Supports popular image formats: BMP, JPEG, GIF, PNG, etc.
• Comes with e-Paper driver (open source). Comes with development resources and manual. Easy to be integrated into wireless applications

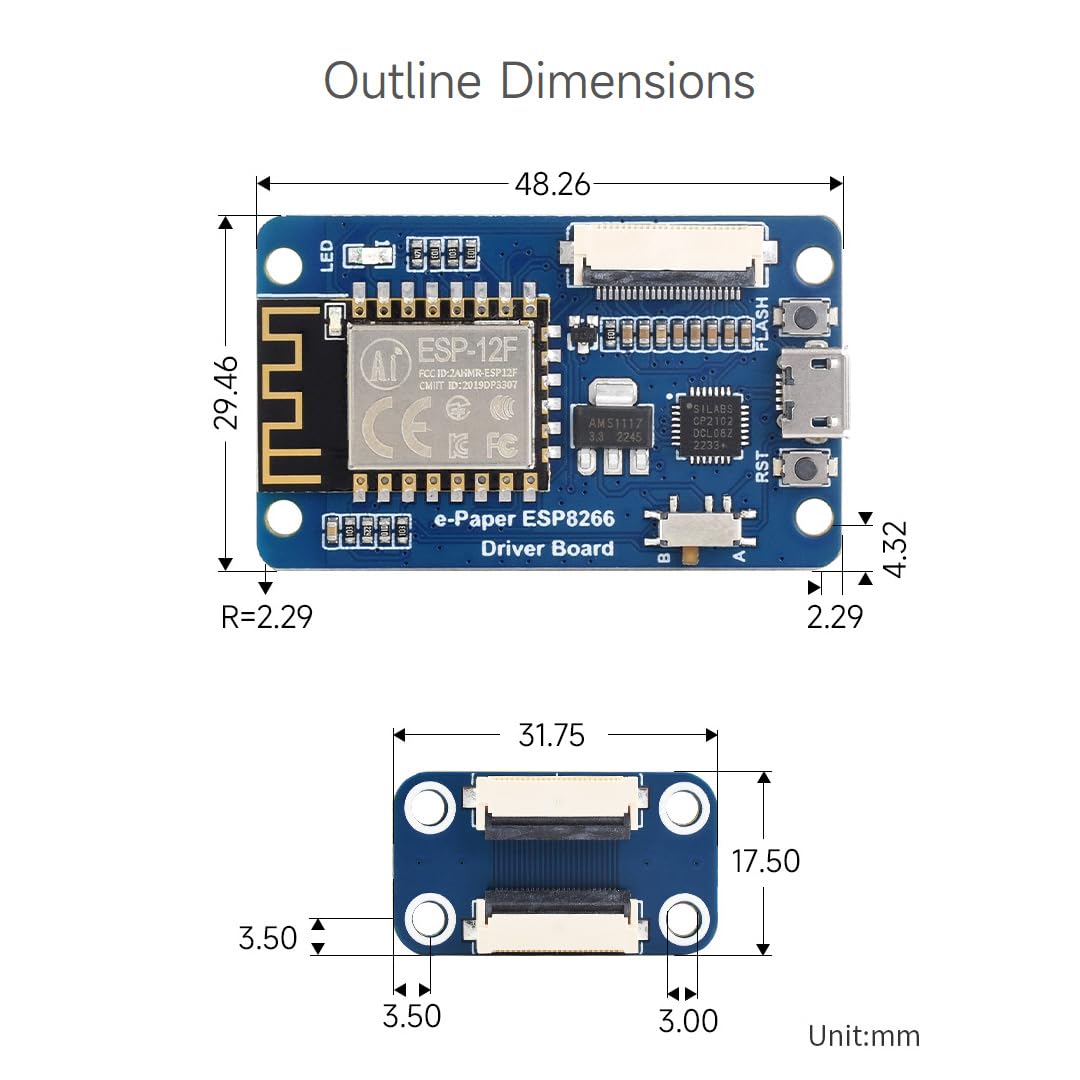

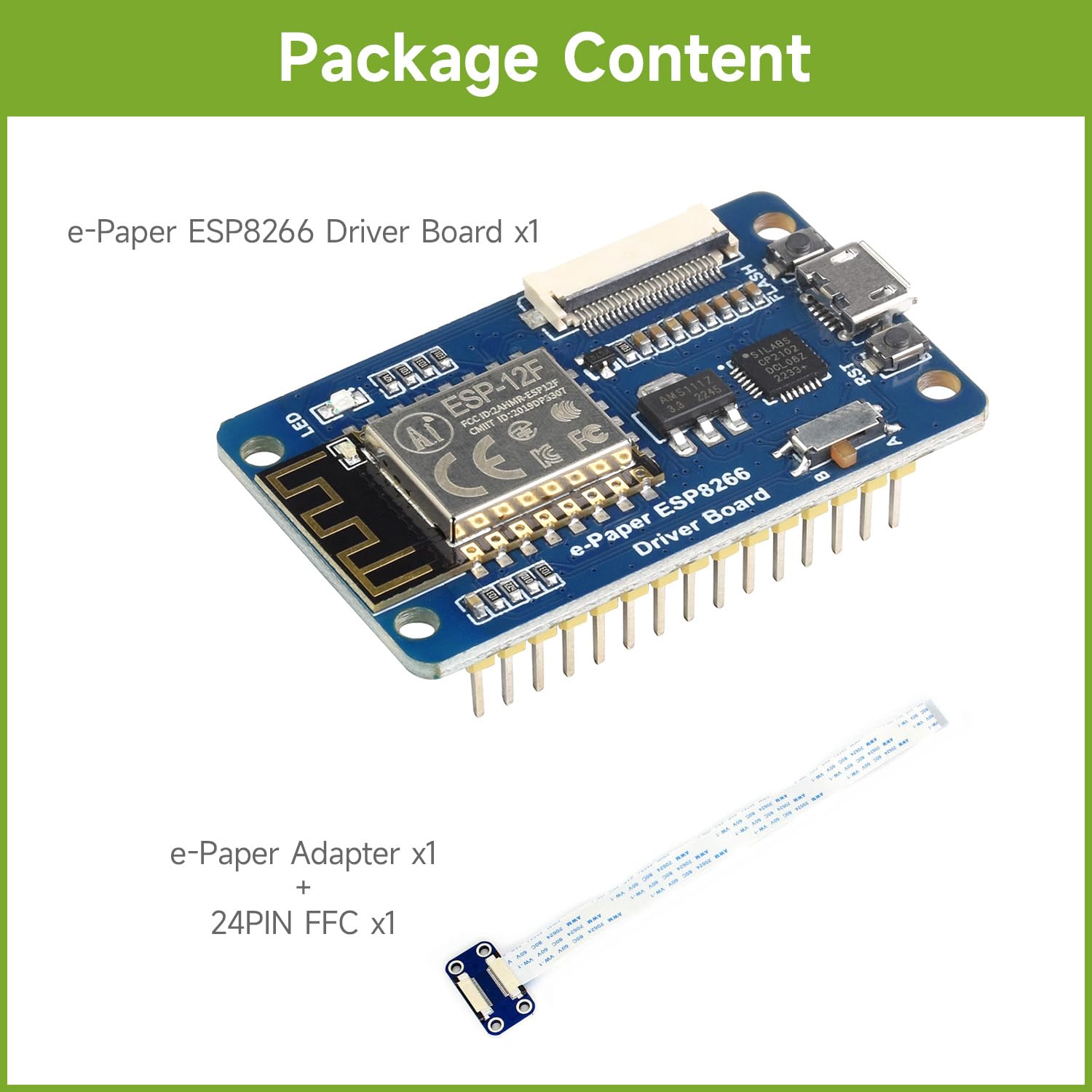

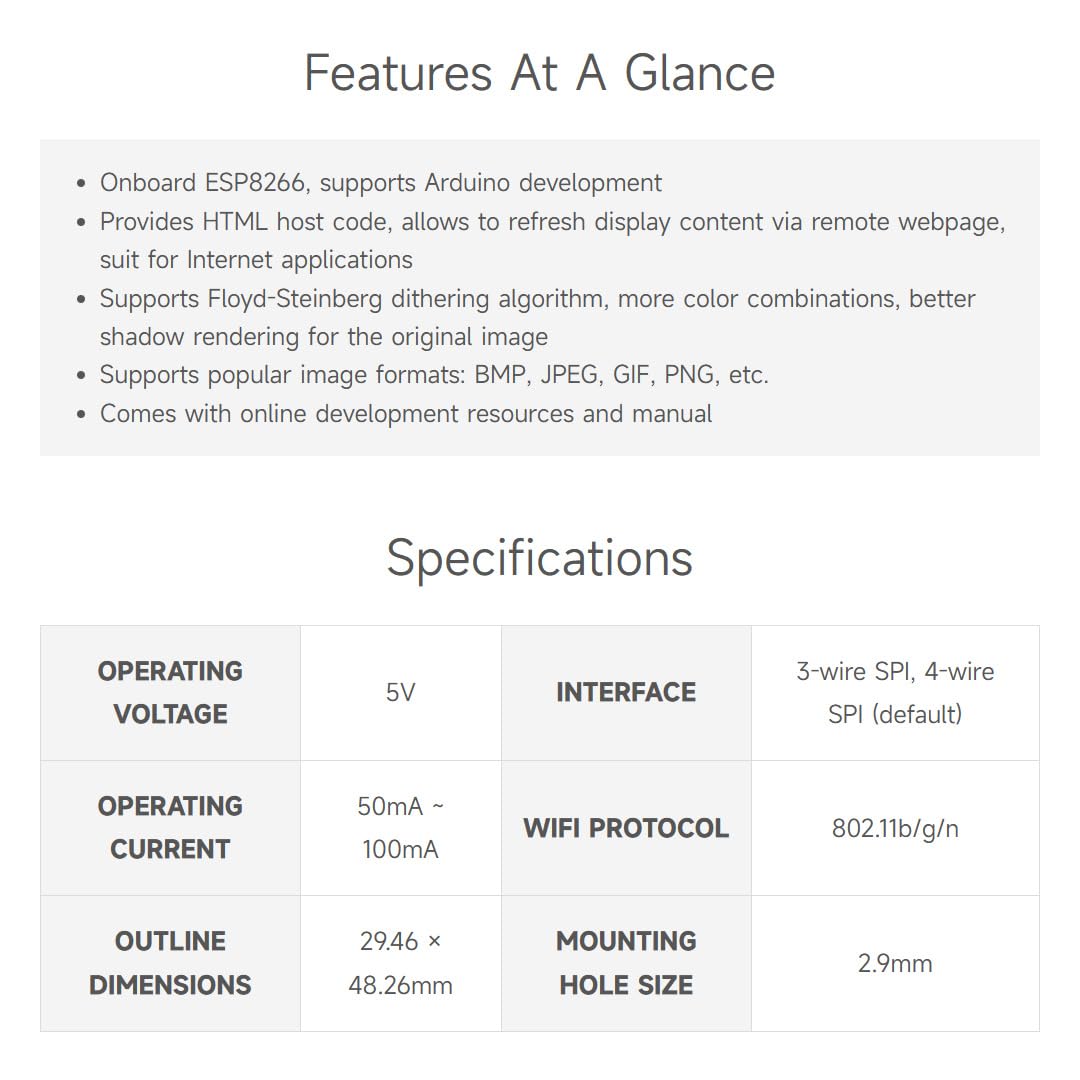

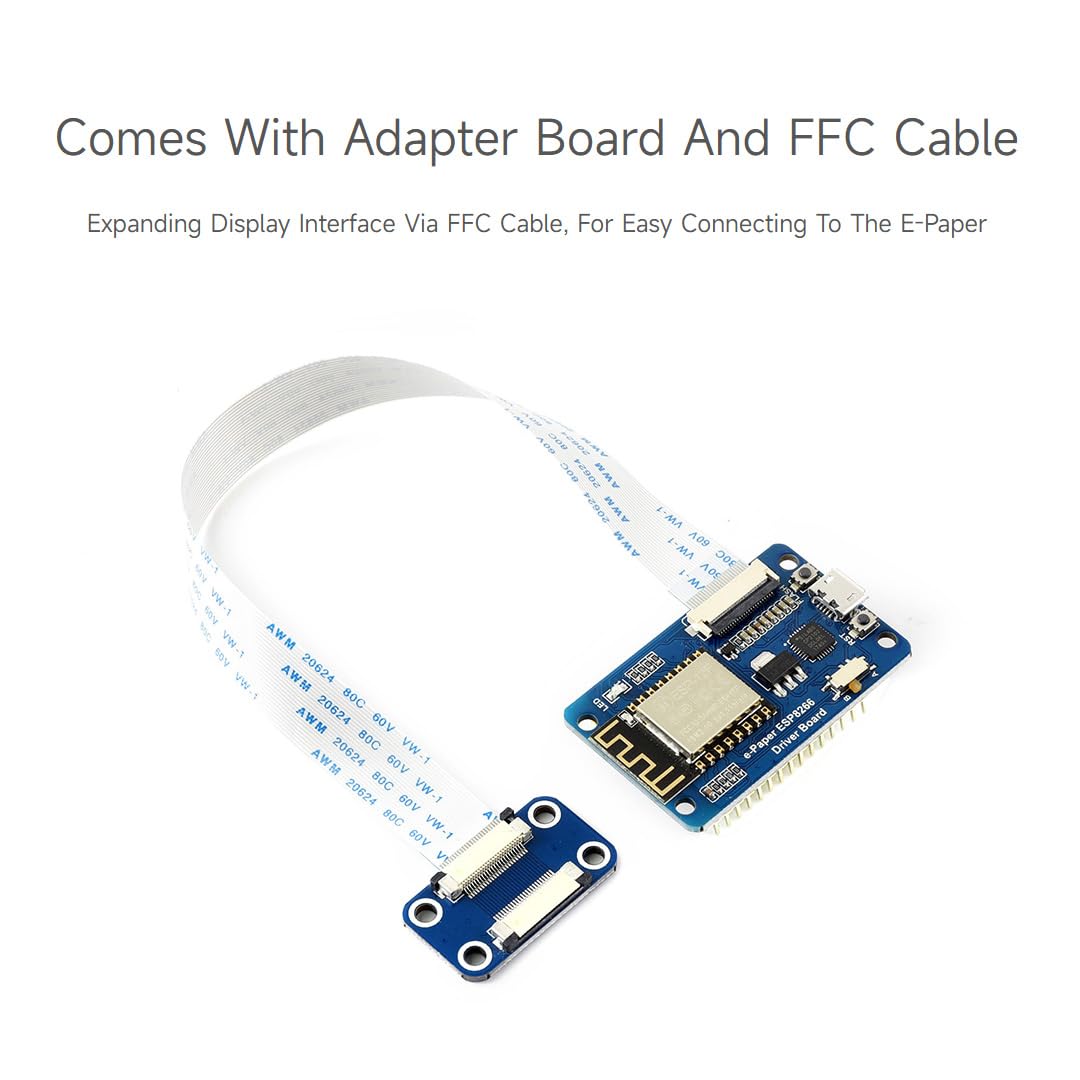

Overview This is a universal driver board for e-Paper raw panels, thanks to the WiFi connectivity, it is allowed to display image from PC/smart phone via WiFi conveniently. Furthermore, it can also be used for Android development, just like any other normal Android board. Features Onboard ESP8266, supports Arduino development Provides HTML host code Supports Floyd-Steinberg dithering algorithm, more color combinations, better shadow rendering for the original image Supports popular image formats: BMP, JPEG, GIF, PNG, etc. Easy to be integrated into wireless applications Comes with e-Paper driver (open source) Comes with development resources and manual Specifications WiFi protocol: 802.11b/g/n Interface: 3-wire SPI, 4-wire SPI (default) Operating voltage: 5V Operating current: 50mA ~ 100mA Outline dimension: 29.57mm x 48.26mm Mounting holes size: 2.9mm PACKAGE CONTENT Note: e-Paper panels in the photos are NOT included. e-Paper ESP8266 Driver Board x1 e-Paper Adapter x1 24PIN FFC x1 Development Resources Wiki : www.waveshare.com/wiki/e-Paper_ESP8266_Driver_Board?amazon
