Waveshare Universal e-Paper Driver Board with WiFi BT SoC ESP32 Onboard Supports Various SPI e-Paper Raw Panels

• Onboard ESP32, supports Arduino development;Easy to be integrated into wireless applications. Provides Android APP, allows to refresh display content via Bluetooth EDR
• Provides HTML host code, allows to refresh display content via remote webpage, suit for Internet applications
• Supports Floyd-Steinberg dithering algorithm, more color combinations, better shadow rendering for the original image Supports popular image formats: BMP, JPEG, GIF, PNG, etc.
• Bluetooth protocol: 4.2, includes traditional BR/EDR, and low power BLE

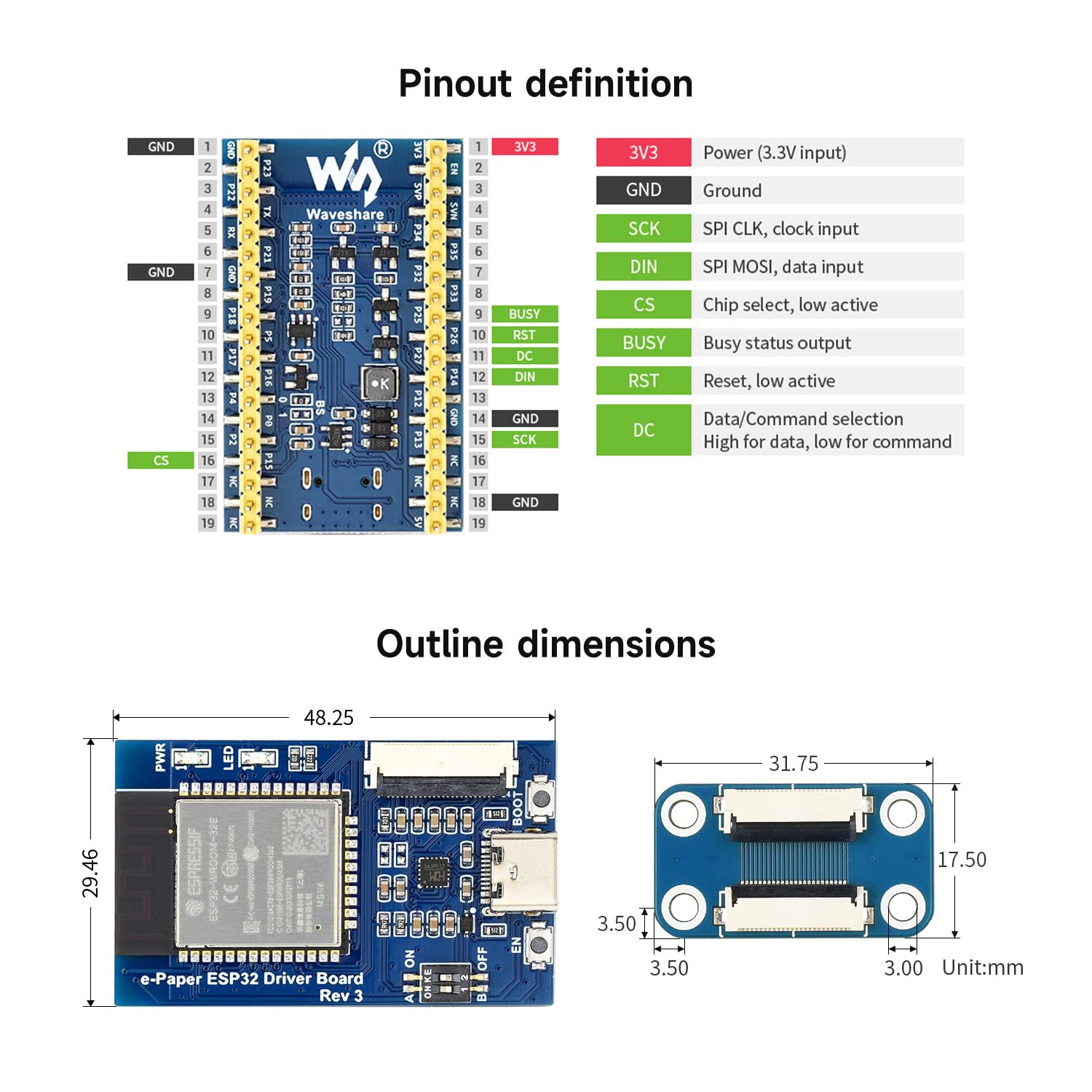

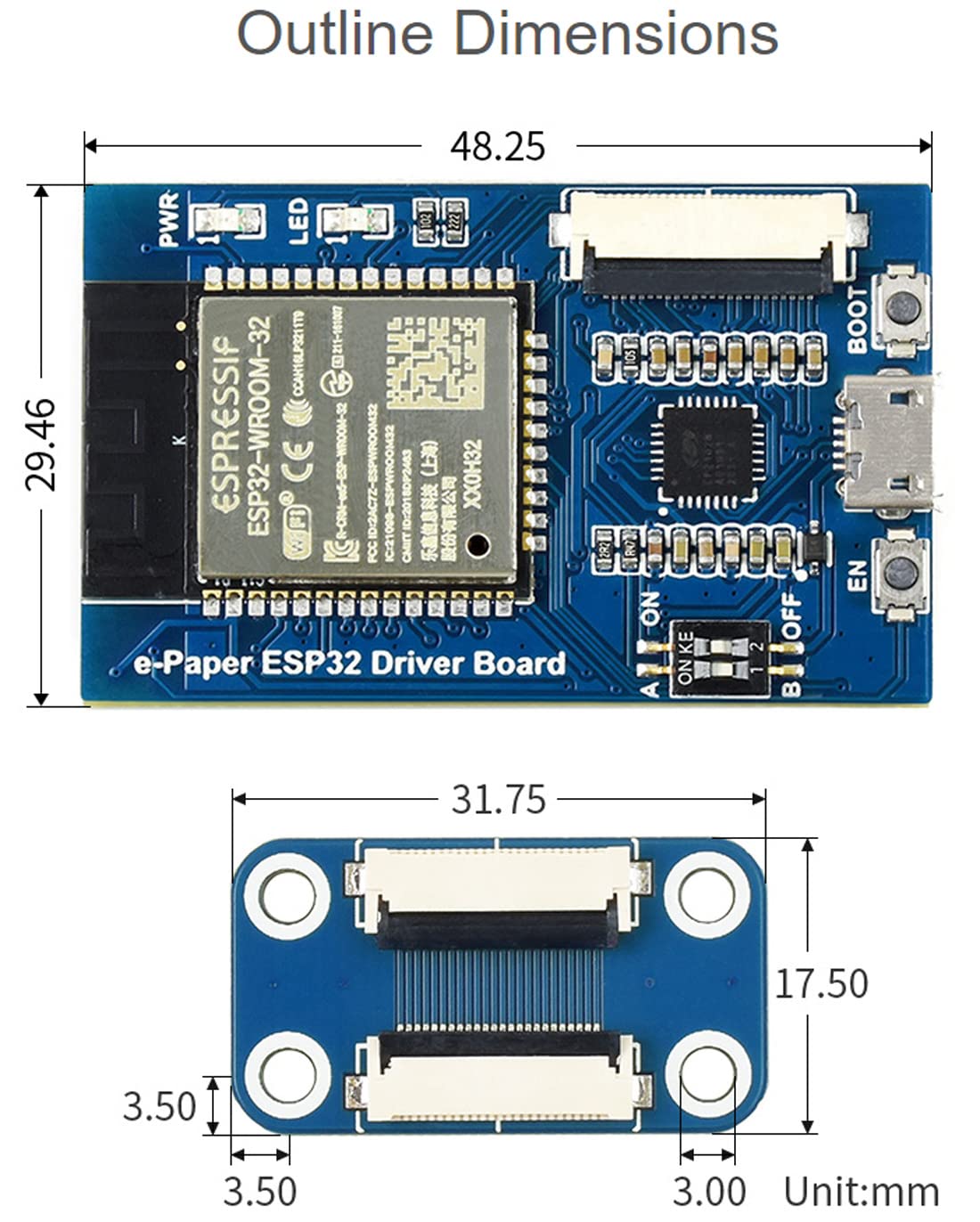

Overview This is a universal driver board for e-Paper raw panels, thanks to the dual wireless features - WiFi & BT - it is easy to display images from PC / smart phone via WiFi or BT. Furthermore, it can also be used for Arduino development, just like any other normal Arduino board. Features Onboard ESP32, supports Arduino development Provides Arduino APP, allows to refresh display content via BT EDR Provides HTML host code, allows to refresh display content via remote webpage, suit for Internet applications Supports Floyd-Steinberg dithering algorithm, more color combinations, better shadow rendering for the original image Supports popular image formats: BMP, JPEG, GIF, PNG, etc. Easy to be integrated into wireless applications Comes with e-Paper driver (open source) Comes with development resources and manual Specifications WiFi protocol: 802.11b/g/n BT protocol: 4.2, includes traditional BR/EDR, and low power BLE Interface: 3-wire SPI, 4-wire SPI (default) Operating voltage: 5V Operating current: 50mA ~ 150mA Outline dimension: 29.46mm x 48.25mm Development Resources Wiki : www.waveshare.com/wiki/e-Paper_ESP32_Driver_Board?amazon PACKAGE CONTENT e-Paper ESP32 Driver Board x1 e-Paper Adapter x1 24PIN FFC x1
