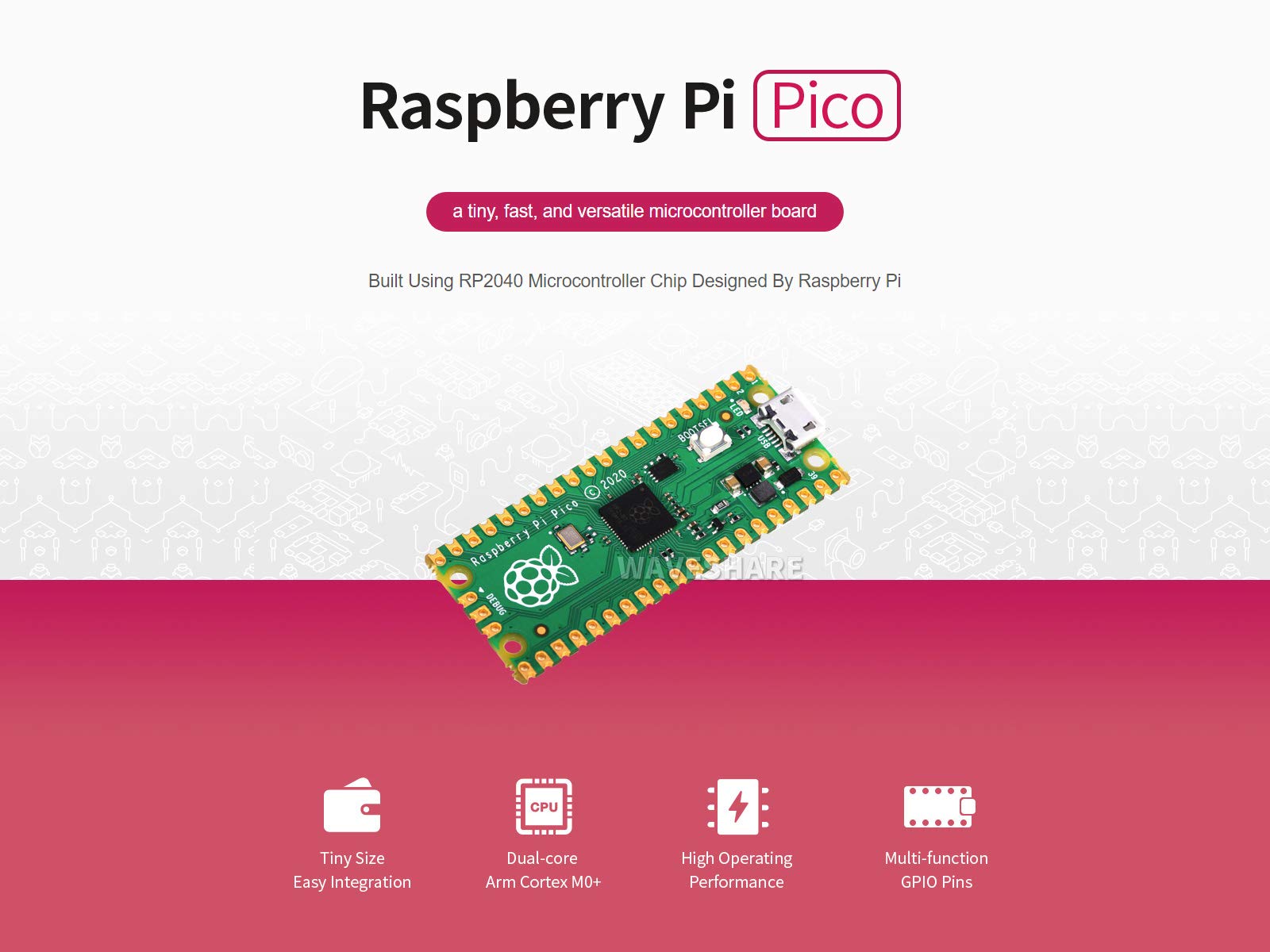

Waveshare Low-Cost High-Performance Microcontroller Board with Flexible Digital Interfaces Incorporates RP2040 Microcontroller Chip for Raspberry Pi Pico (with Sensor-Kit)

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

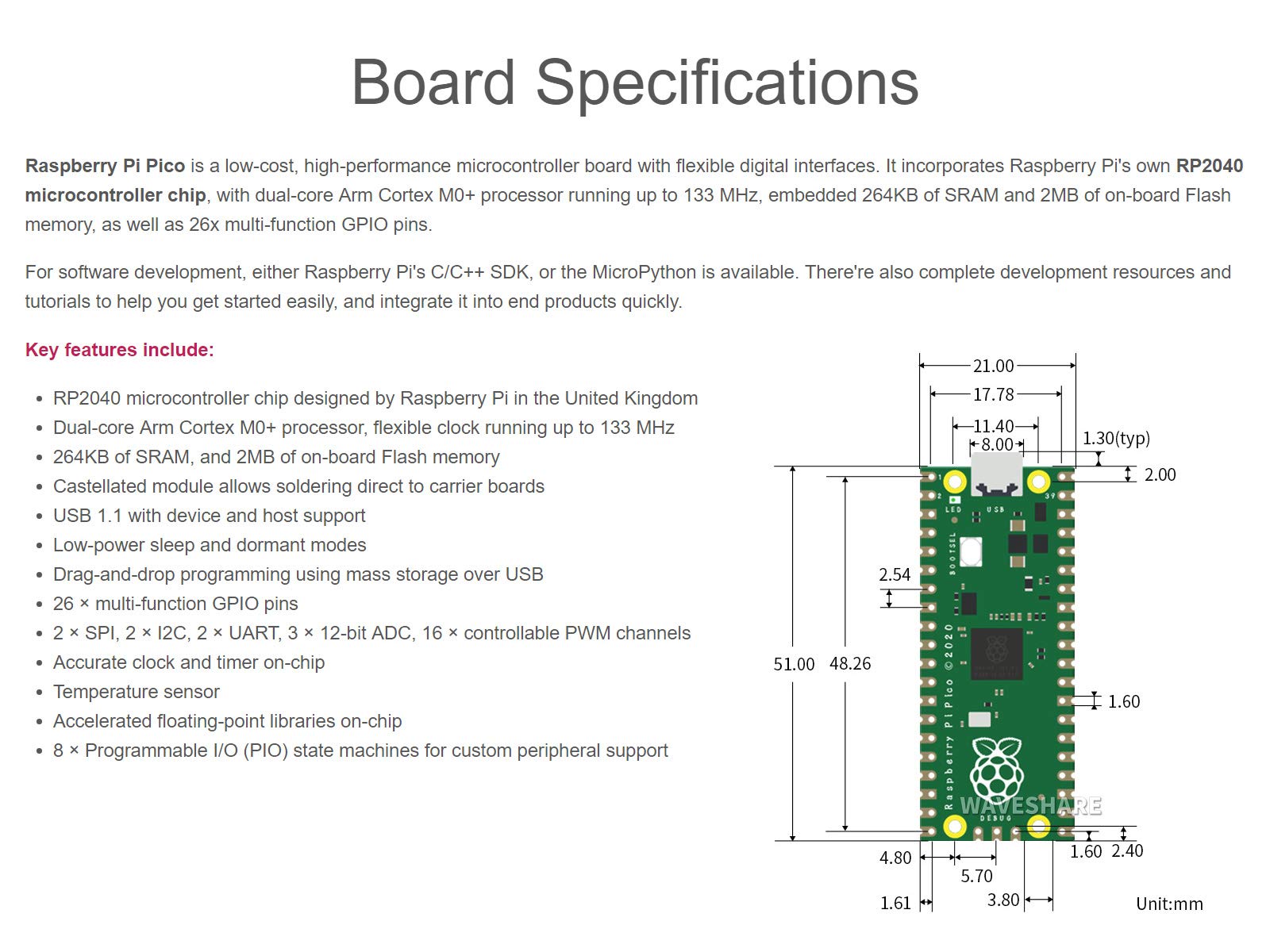

• 264KB of S-RAM, and 2MB of on-board Flash memory. Castellated module allows soldering direct to carrier boards
• USB 1.1 with device and host support. Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB

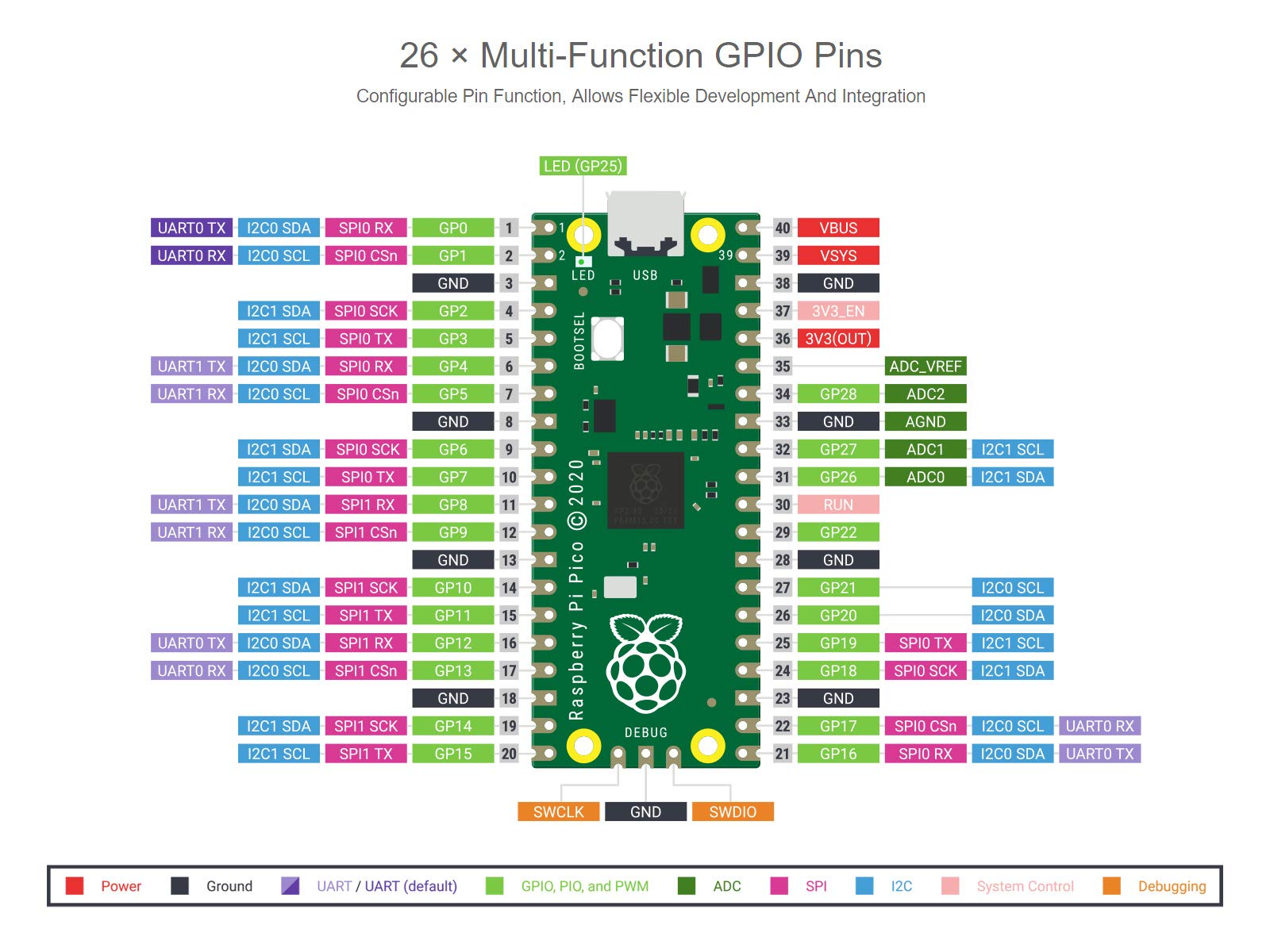

• 26 × multi-function GPIO pins. 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels. Accurate clock and timer on-chip
• Temperature sensor. Accelerated floating-point libraries on-chip. 8 × Programmable I/O (PIO) state machines for custom peripheral support

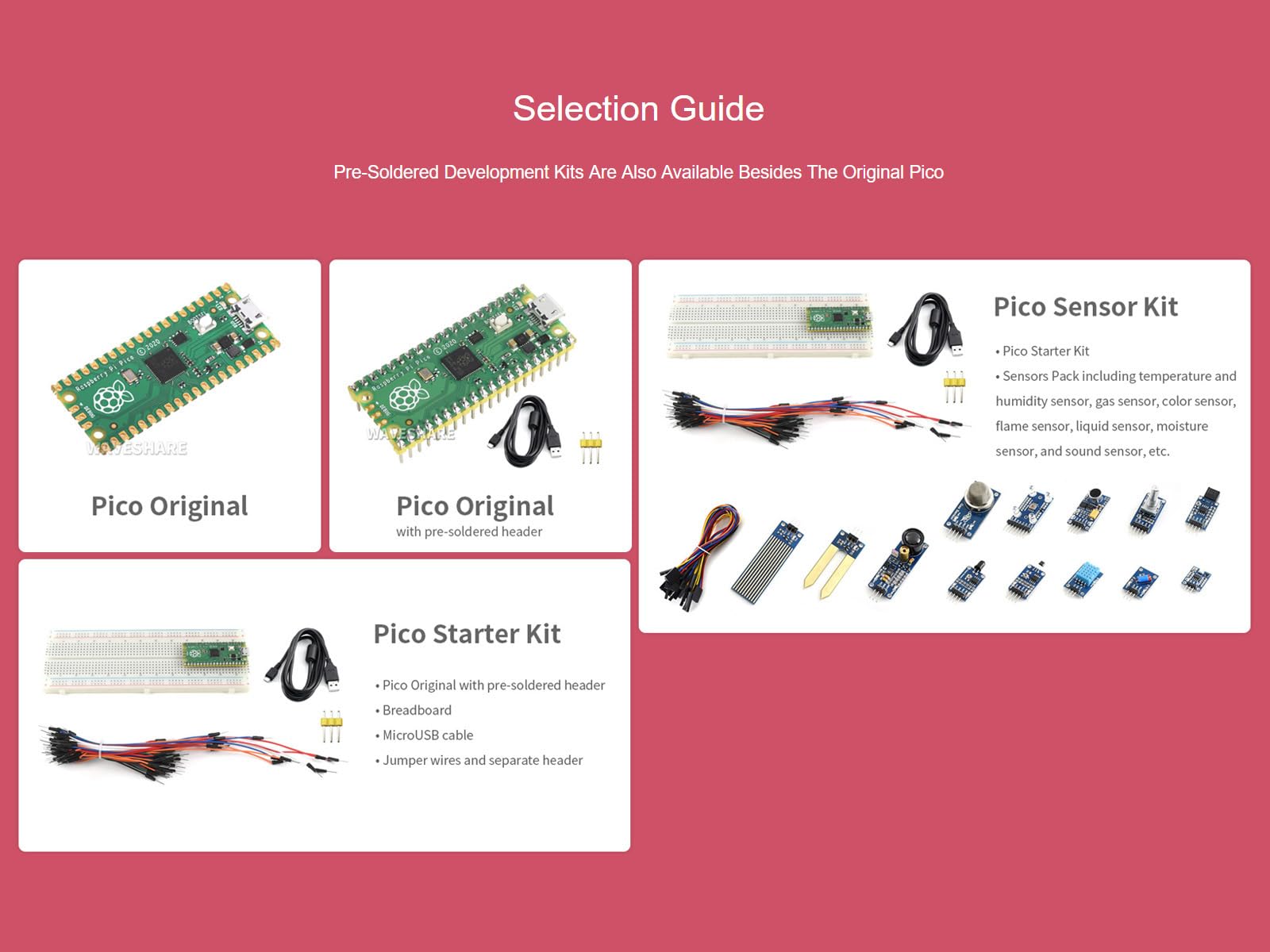

Key Features Include: RP2040 microcontroller chip designed by Pi in the United Kingdom Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz 264KB of S-RAM, and 2MB of on-board Flash memory Castellated module allows soldering direct to carrier boards USB 1.1 with device and host support Low-power sleep and dormant modes Drag-and-drop programming using mass storage over USB 26 × multi-function GPIO pins 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels Accurate clock and timer on-chip Temperature sensor Accelerated floating-point libraries on-chip 8 × Programmable I/O (PIO) state machines for custom peripheral support PACKAGE CONTENT Raspberry Pi Pico with pre-soldered header x1 1*3PIN yellow pin header x1 Breadboard x1 USB-A to micro-B cable x1 Jumper wires x1 Sensors Pack x1
