Voltage Regulator, 10000W SCR Digital Voltage Regulator Speed Controller for Electric Stoves, Water Heaters, Light Dimmers on Lamps

• 1. 【High Quality】 Designed with a large and thick heat sink that would improve heat dissipation. The voltage regulator has a shaft voltage absorption circuit and effectively protects the high-power silicon controlled rectifier, has a longer life and is more
• 2. 【Voltage】 This element has a new two-way silicon of great power and the current can be up to 80 A, which is a good solution to the overcurrent of the electric cable of the stove caused by the low resistance during the cooling.

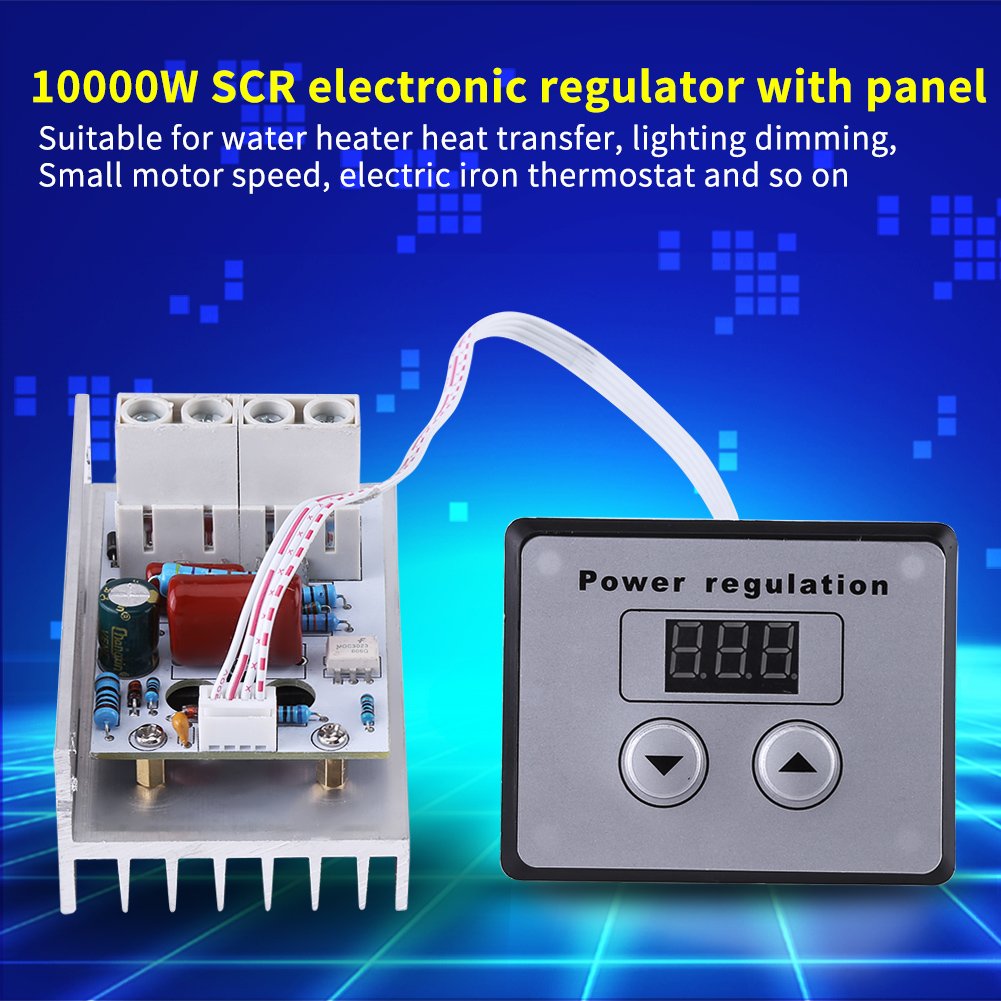

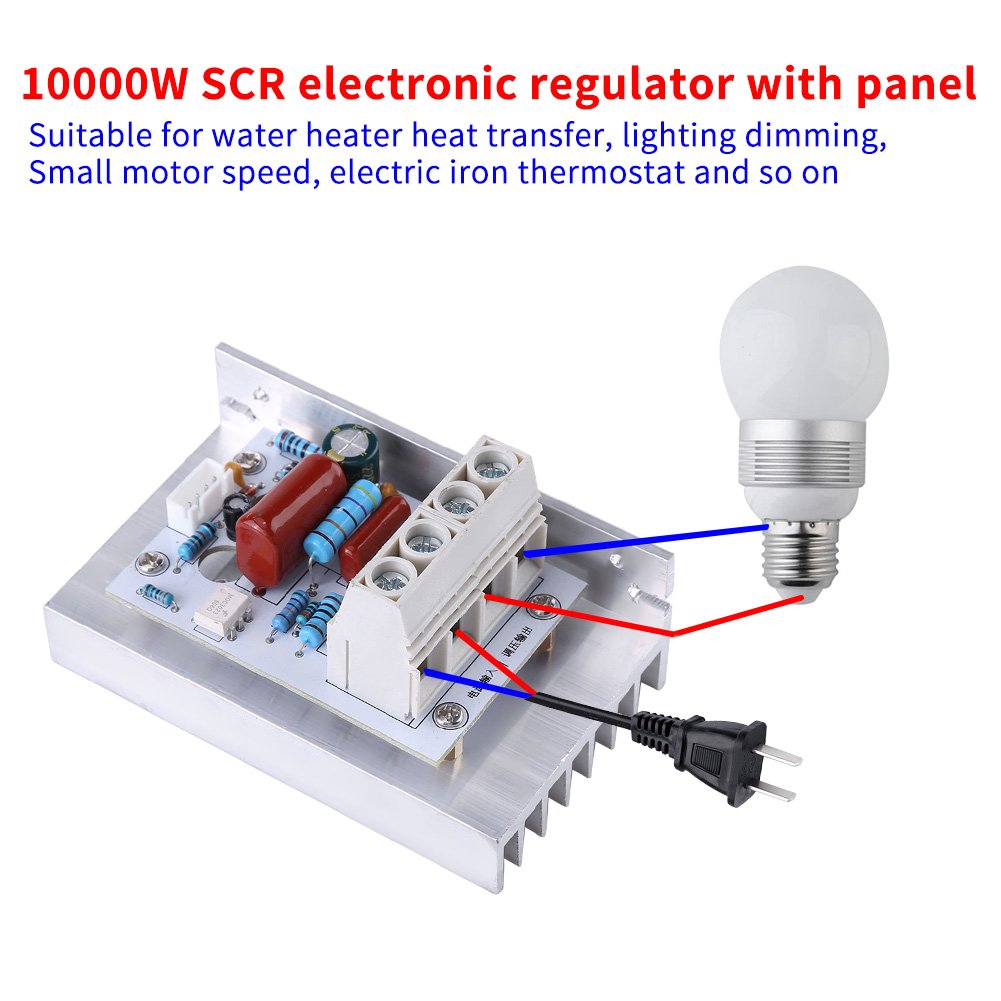

• 3. 【Application】 It could be widely used as a heat controller in electric stoves, water heaters, light dimmer in lamps, speed controller in small motors or temperature controller in electric soldering iron, etc.
• 4. 【Easy to Use】 You can easily adjust the output voltage on a scale of 0-100% (nonlinear) to the electrical device.

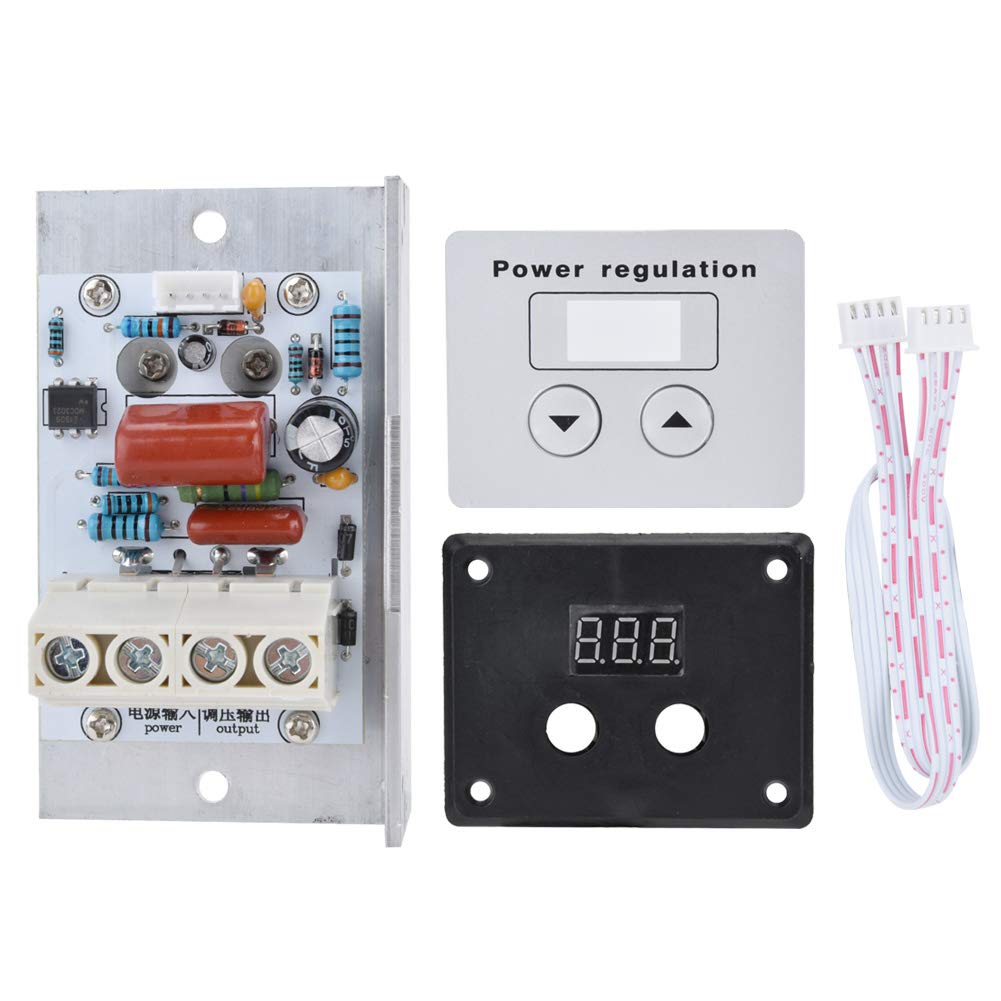

• 5. 【Package Contents】 1 x SCR Controller, 1 x ABS Panel, 1 x Panel Label, 1 x Cable

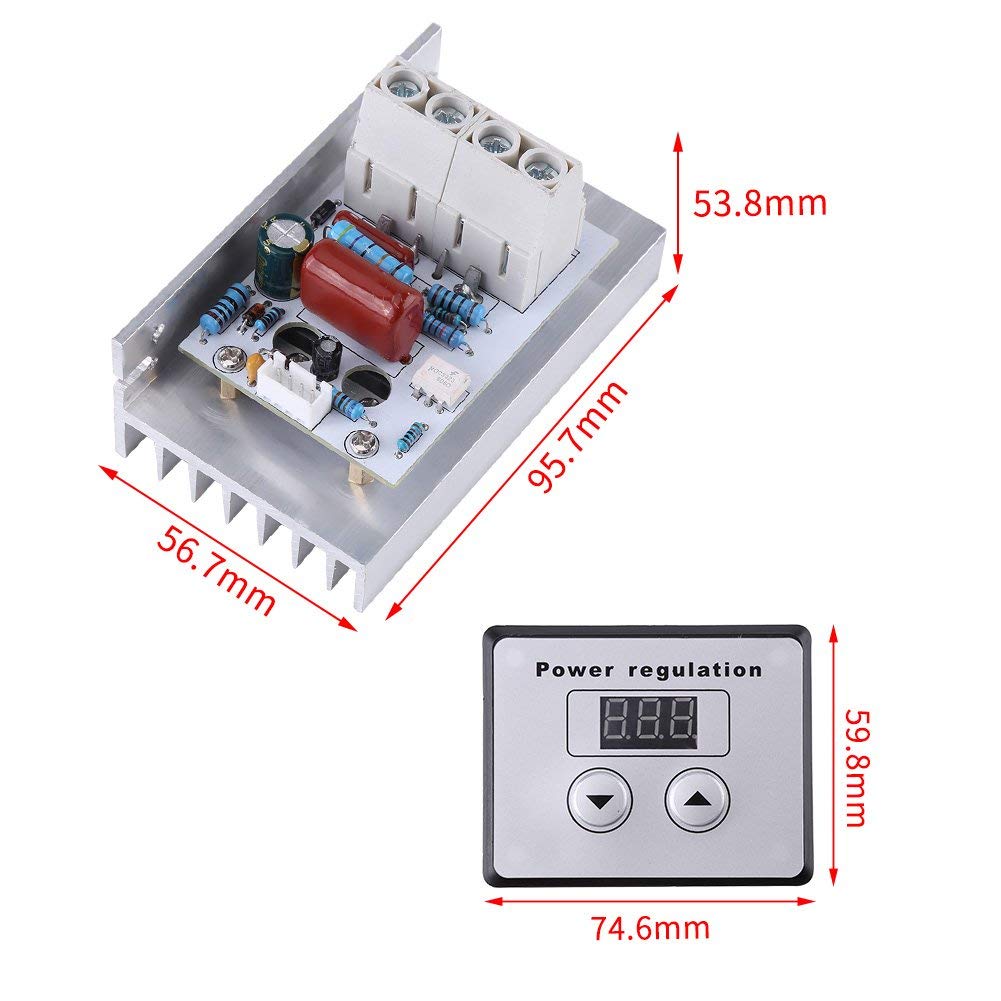

Product features: This article has new two way big power silicon rectifier and the current can be up to 80A, which is a good solution for overcurrent of electric cooker wire caused by low resistance during cooling. It can easily adjust the output voltage on a scale of 0-100% (non-linear) to the electrical device. Designed with a large and thick heat sink that would improve heat dissipation. This voltage regulator is set with a button that is much more stable than a potentiometer. Voltage regulator has shaft voltage absorbing circuit and effectively protects large power silicon controlled rectifier, longer life and more durable. It can be used as power supply for large electrical appliances of less than 10000W, enough for home appliances or for small factory. Could be widely used as a heating controller on electric stoves, water heaters, light dimmers on lamps, speed regulators on small motors or temperature controllers on electric soldering iron, etc Specifications: Voltage: AC 220V Max power: 10000W (current limit power for impedance load; for long time, it is recommended 5000W or lower) Voltage setting: 0-100% (non-linear) Control size: 95.7 * 56.7 * 53.8mm / 3.76 * 2.23 * 2.11 " Panel size: 74.6 * 59.8 * 2.3mm / 2.93 * 2.35 * 0.09 " Cable length: 287mm / 11.3 " Annotation: 1, AC input, AC output, output voltage is lower than (or equal to) input voltage; Voltage can only be adjusted when connected to the load; mainly used for ohmic load. 2, It can not replace the electric bike battery charger, nor drive electric appliances, use the switch power supply (such as 110V TV, speakers, refrigerator, air conditioner, rice cooker with a computer), and can not drive induction cooker, energy-saving lamp. Package contents: 1 x SCR controller 1 x ABS panel 1 x panel sticker 1 x cable
