ViewTool Hollong Full Channel Professional Bluetooth 4.0/4.1/4.2 BLE Sniffer Protocol Analyzer Monitor Support Windows/Linux/Mac Wireshark Dongle

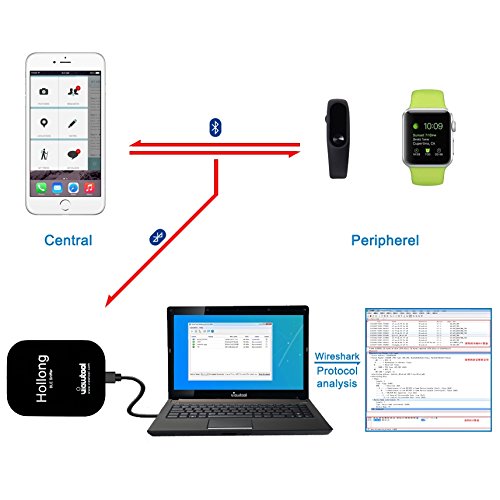

• Capture Bluetooth Low Energy transmission data in air and protocol analysis with Wireshark in portable size
• Support Windows/Linux/Mac OS to bring up extremely convenient usage on capturing BLE data and analysis with Wireshark
• Real time capture, decode, filtering and detection of data errors, reduces debug time for speed up to market
• Support BLE4.0/4.1/4.2 protocol analysis and interpret, Support capturing BLE4.2 MTU 251 bytes in one PDU

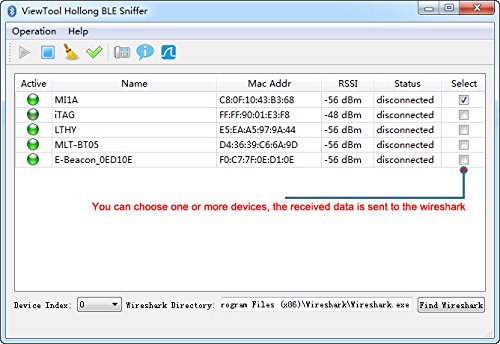

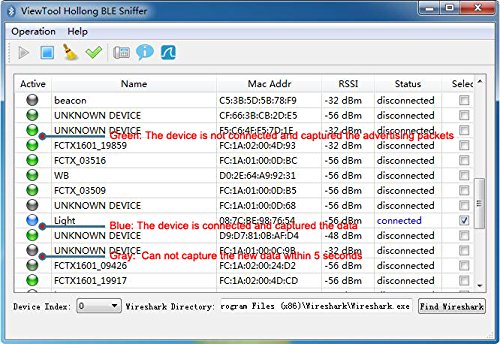

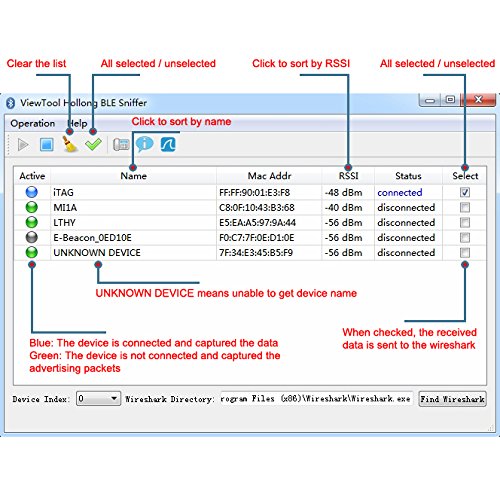

• Scans and captures all three (37, 38, 39) advertising channels concurrently

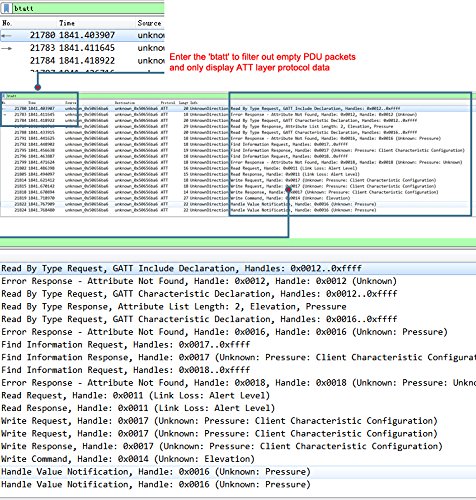

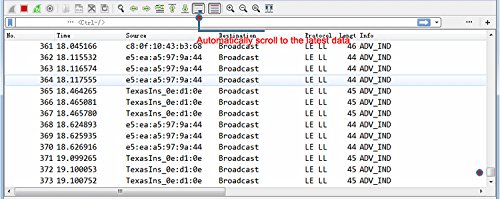

Support Windows/Linux/Mac OS, the windows driver of Hollong BLE Sniffer may need manually "disable signed driver enforcement" (only do once), viewtool website BBS has introduced detail steps to do it or search on google with keywords "disable signed driver enforcement" to get help. Typical Applications: - Extremely helpful assistant tool on BLE hardware and firmware design. - Helpful on quickly learning BLE protocol and application profile. Feature: - Mini-USB powered only, fastest way to transfer captured data to PC through USB cable. - Support BLE4.0/4.1/4.2 protocol analysis and interpret. Capturing BLE4.2 MTU 251 bytes in one PDU - Extraordinarily portable size make this the perfect tool for bench or field. - Scans and captures all three (37, 38, 39) advertising channels concurrently, three times the success rate. - Extremely easy setup, just start capturing and no Hassles Decoding. - Use Wireshark to analyze the BLE data protocol, only display the user- specified protocol layer data by filtering. - Support the latest version of Wireshark software for protocol layer analysis. - Decoding full categories of PDU: Advertising packets, Data packets, LL control packets and more. - You can specify BLE device for directional capture by one click and filter the data of other devices. - Accurate to the microsecond level of the timestamp display is great help for the development of debugging BLE device. Performance: - USB-powered，USB2.0. - Safe voltage range: 0～5V. - Size: 76mm × 56mm × 12mm. - Working temperature: -40℃～85℃. Run HollongOne to install driver automatically, usually the driver will be installed automatically and works well, In case the driver is installed but show yellow sign (not working), please refer video to do manualy disalbe digital driver signature. More info and customer support please look at website: www.viewtool.com
