30 Pack CAT7 Shielded RJ45 Connector Cat6A Cat7 Ethernet RJ45 Connector Modular Plug with Load Bar and RJ45 Boots (Gray)

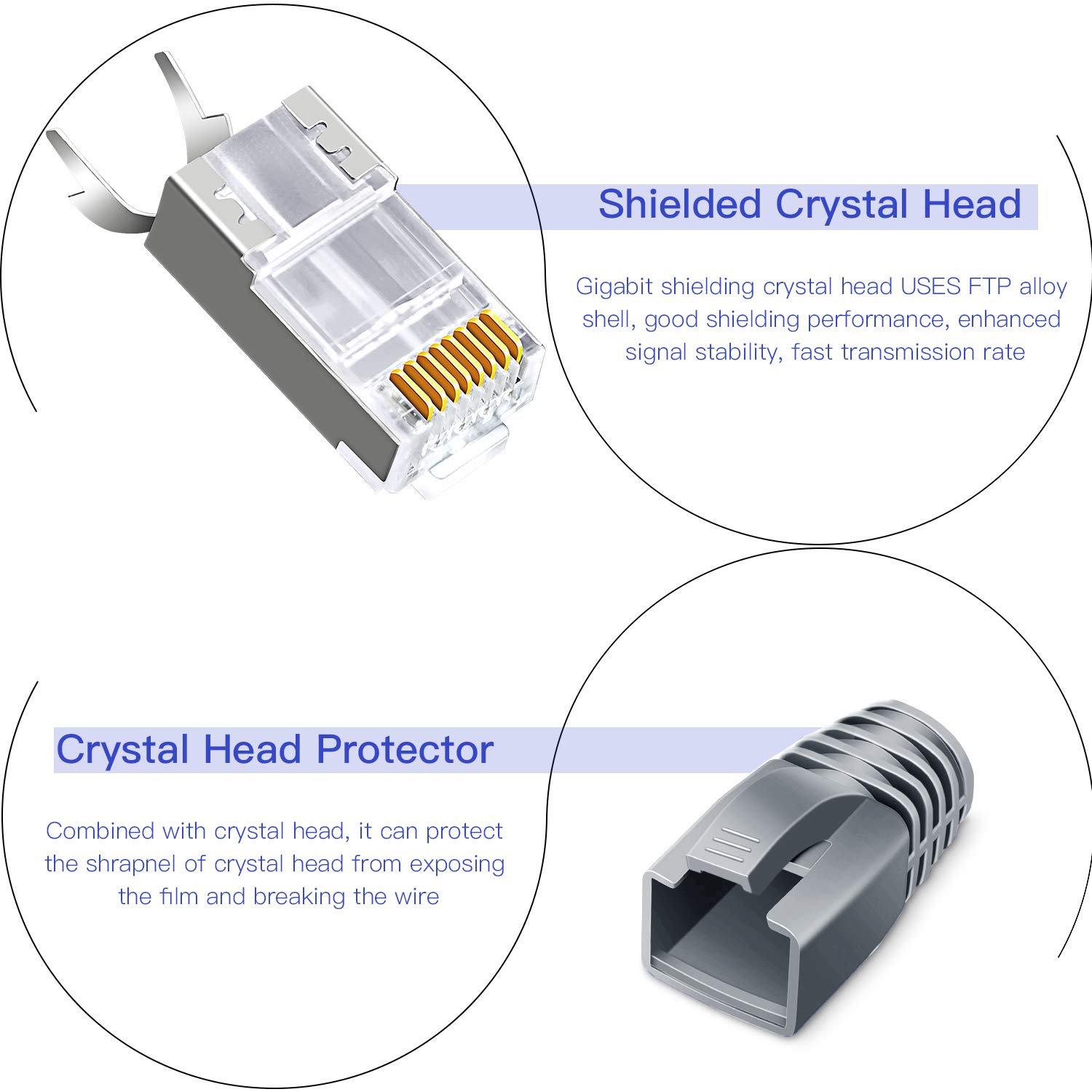

• Shielded Crystal Head,Gigabit shielding ctystal head USES FTP alloy shell,good shielding performance,enhanced signal stability,fast transmission rate
• Crystal Head Protector,Combined with crystal head,it can protect the shrapnel of crystal head from exposing the film and breaking the wire

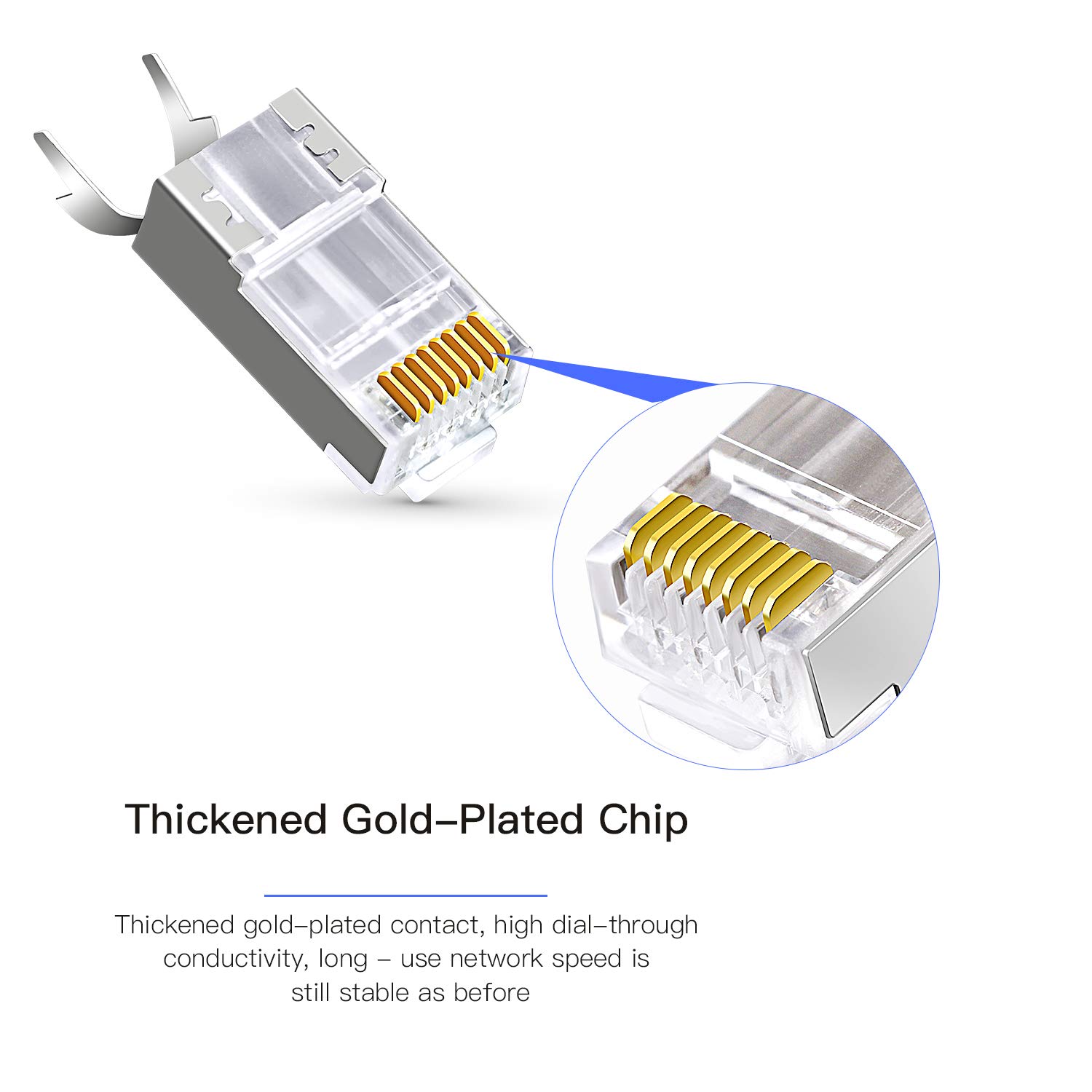

• Thickened Gold-Plated Chip,Thickened Gold-Plated contact,high dial-through conductivity,long-use network speed is still stable as before
• Line Support 1.5mm,Insulation Diameter 1.2-1.35mm
• Package,30x Shielded RJ45 connectors with Load Bar + 30x RJ45 Boots in Blue

Primus Cable’s Shielded CAT 6, CAT 6A, and CAT 7 RJ45 Plugs are made with high standards, keeping our customer and their network in mind. Even with something as small as an RJ45 plug, it must be made right and it must work right. These shielded RJ45’s work with solid and stranded cable with 8 pins (gold plated) and 8 conductors. Features 3µ” Gold Plated Contacts Works On Stranded Or Solid Conductors Transparent Housing For Easy Conductor Alignment 8 Pins x 8 Conductors Fits 23 AWG - 26 AWG (1.25~1.35 mm OD) Wires Fits Cables With A Jacket OD Of 5.8~ 7.0 mm OD Copper Alloy Shielding Electrical Specifications UL Applications: 250 Volts AC Max., at 2 AMPS Dielectric With Standing Voltage: 500 Volts AC Insulation Resistance: 100 M Ω Termination: Resistance 20m Ω Max After Environmental Testing Mechanical Specifications Cable-To-Plug Tensile Strength: 20 Pound Min. Durability: 200 Matting Cycles Physical Characteristics Housing: Polycarbonate, UL94V-0 Color: Transparent Contact Blade: Copper Alloy Conductor: Stranded & Solid Wire, 23 - 26 AWG (Plug Can Be Used For Wire OD’s Of Under 1.35 mm & Cable Out Jacket OD Should Be Under 7.0 mm) Gold Plating: 3µ” Shielded Shell: Copper Alloy
