VFD Variable Frequency Drive, 220V AC Single Phase to Three Phase 380V AC 2.2KW, VFD Inverter Converter for Spindle Motor Speed Control

• High performance - high turning moment, high accuracy and wide speed drive
• Anti-tripping - with the ability to adapt to harsh grid, temperature and dust interference

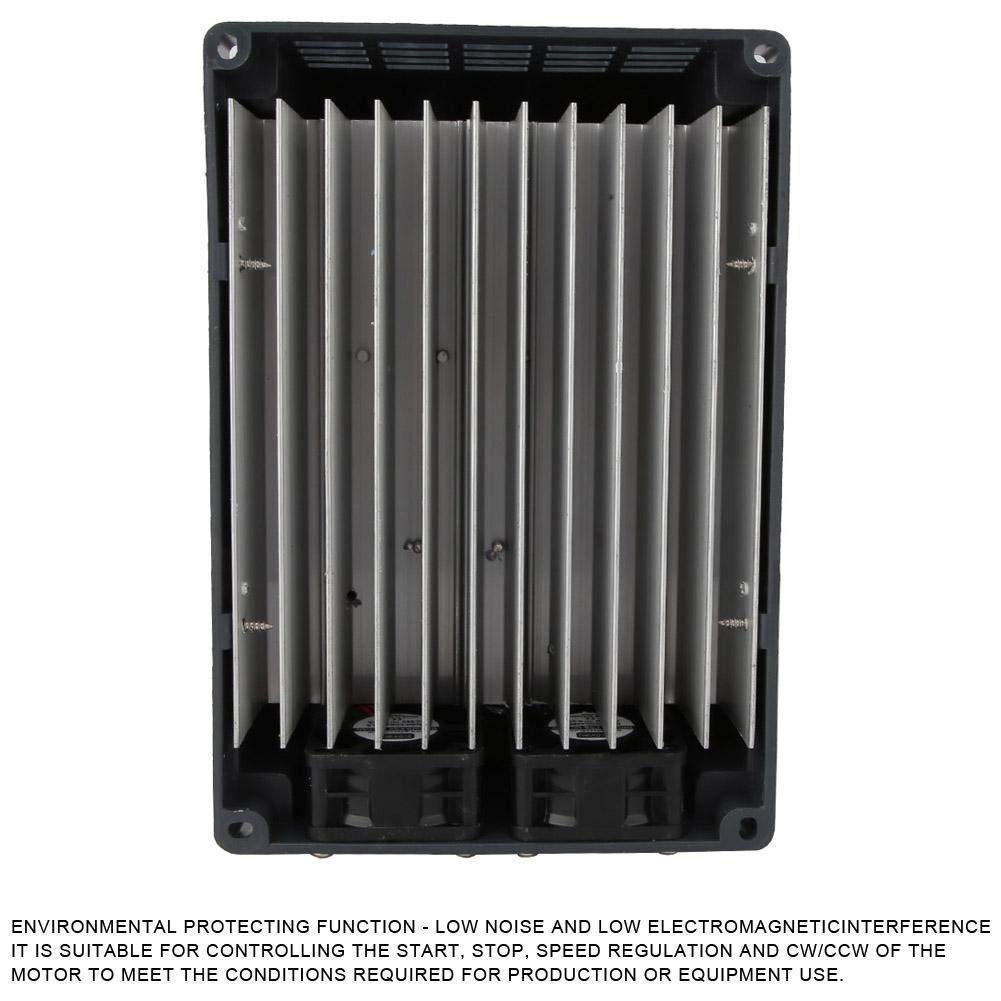

• Environmental protecting function - low noise and low electromagnetic interference
• It is suitable for controlling the start, stop, speed regulation and CW/CCW of the motor to meet the conditions required for production or equipment use.
• Adopt PWM control output voltage regulation mode, it has sable performance

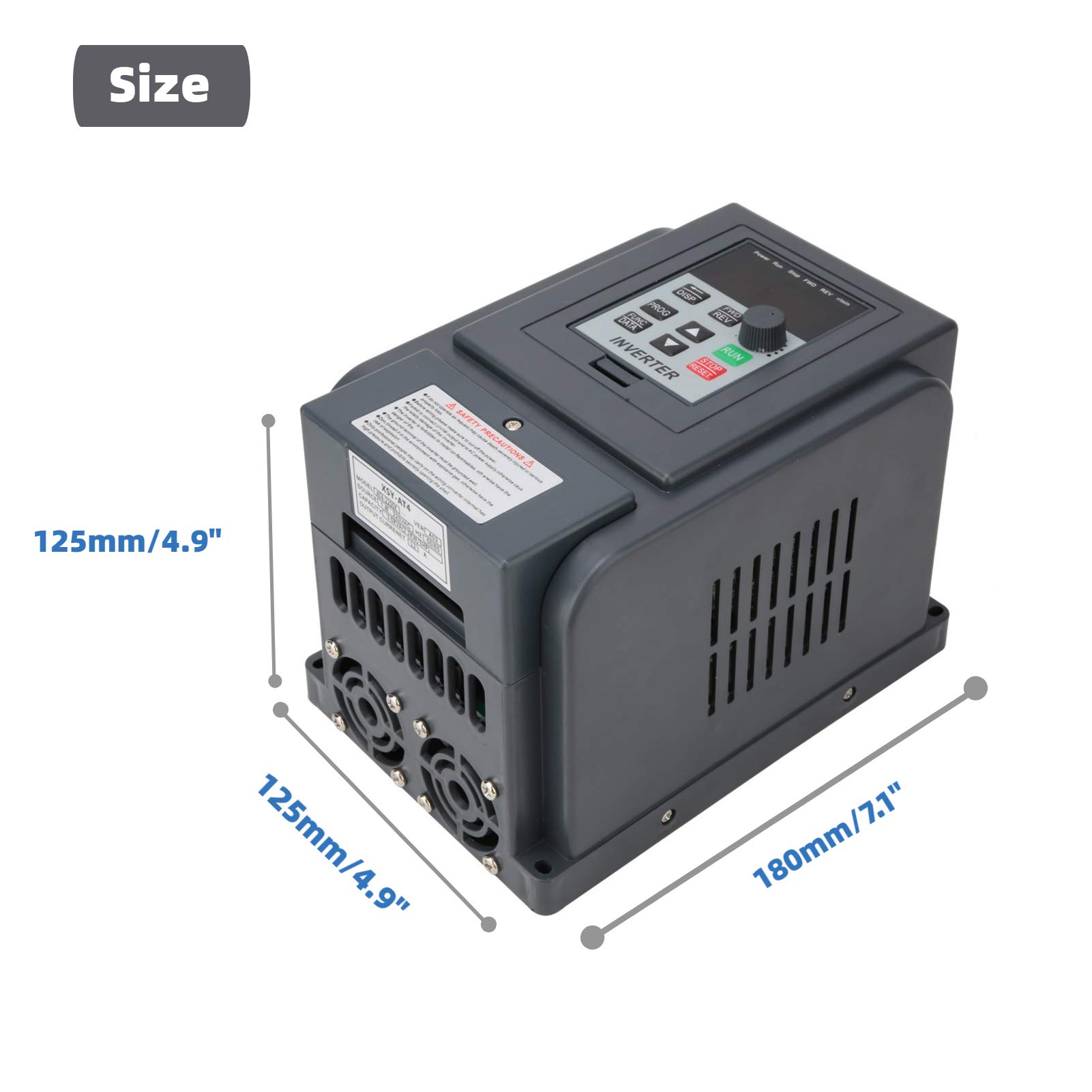

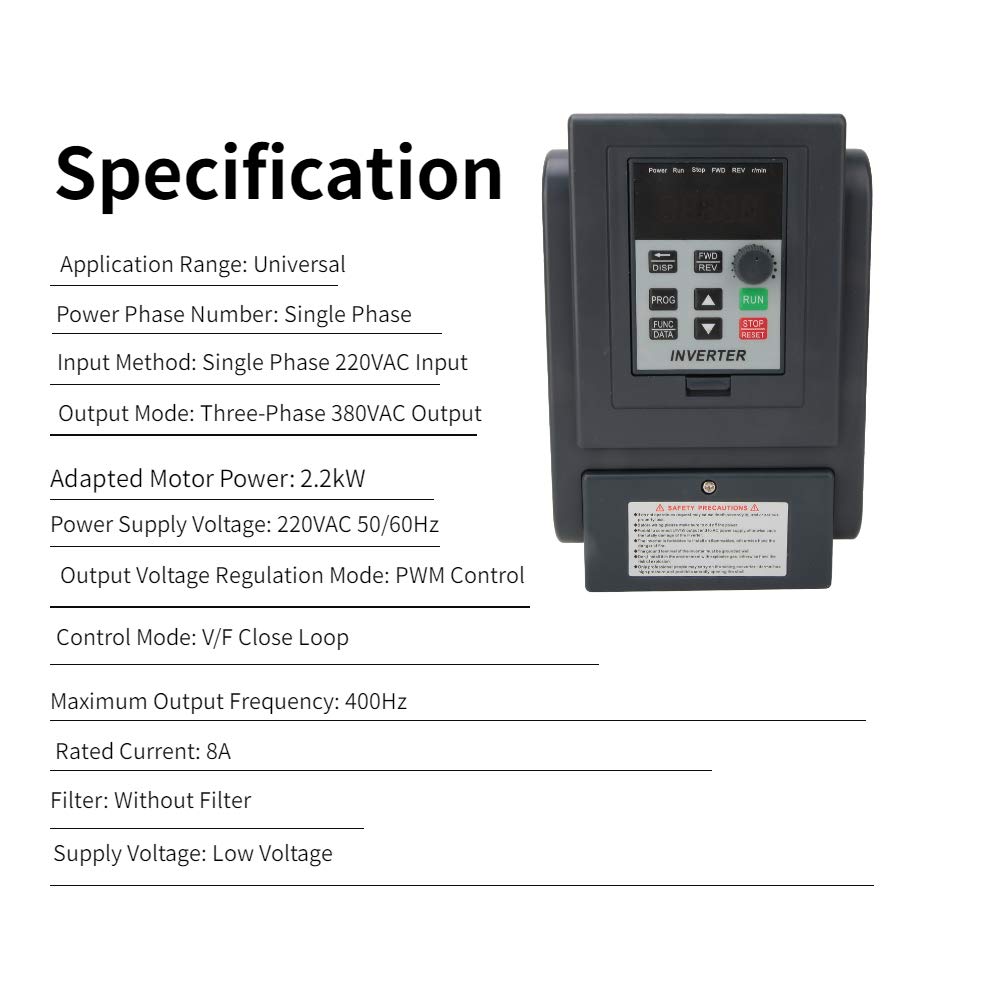

Specification: Condition: Brand New Model: AT4-2200X Application Range: Universal Power Phase Number: Single Phase Input Method: Single Phase 220VAC Input Output Mode: Three-Phase 380VAC Output Power Supply Voltage: 220VAC 50/60Hz Supply Voltage: Low Voltage Adapted Motor Power: 2.2kW Filter: Without Filter DC Power Supply Properties: Voltage Type Control Mode: V/F Close Loop Output Voltage Regulation Mode: PWM Control Appearance: Plastic Case Rated Current: 8A Maximum Output Frequency: 400Hz Size: Approx. (W x H x T) 125 * 180 * 125mm / 4.9 * 7.1 * 4.9in Note: This product is suitable for 3 phase motors with a voltage of 380V, please confirm whether your equipment is compatible with the product before purchase. The output of the product is the sine waves with HF carrier, the voltage measured by general instruments is inaccurate, the frequency is subject to the display of the product. Package List: 1 * Variable Frequency Drive Converter 1 * English User Manual
