VFD 2.2KW 220V Variable Frequency Drive, AT1-2200X PWM V/F AC Single to 3 Phase Adjustable Variable Speed Controller Drive Inverter,with Digital Display Screen Module

• STABLE AND SAFE :: The inverter adopts a unique control mode to achieve high torque, high precision and wide speed drive, which meets the trend of high performance of general-purpose inverters; Performance and ability to adapt to harsh grid, temperature, humidity and dust interference greatly enhances product stability.
• PWM CONTROL :: XSY-AT meets the user's low noise and low electromagnetic interference environment requirements by optimizing the overall design of PWM control technology and electromagnetic compatibility.
• EASY :: Remove the direct wiring with screws. Externally connectable potentiometer 0—10V, 0—5V, 4-20mA stepless speed control, 6 multi-function inputs, 2 outputs (optional relay), up to 8 speed control, start stop response time Fast, low speed is very large, the inverter's maximum output frequency is 400hz.

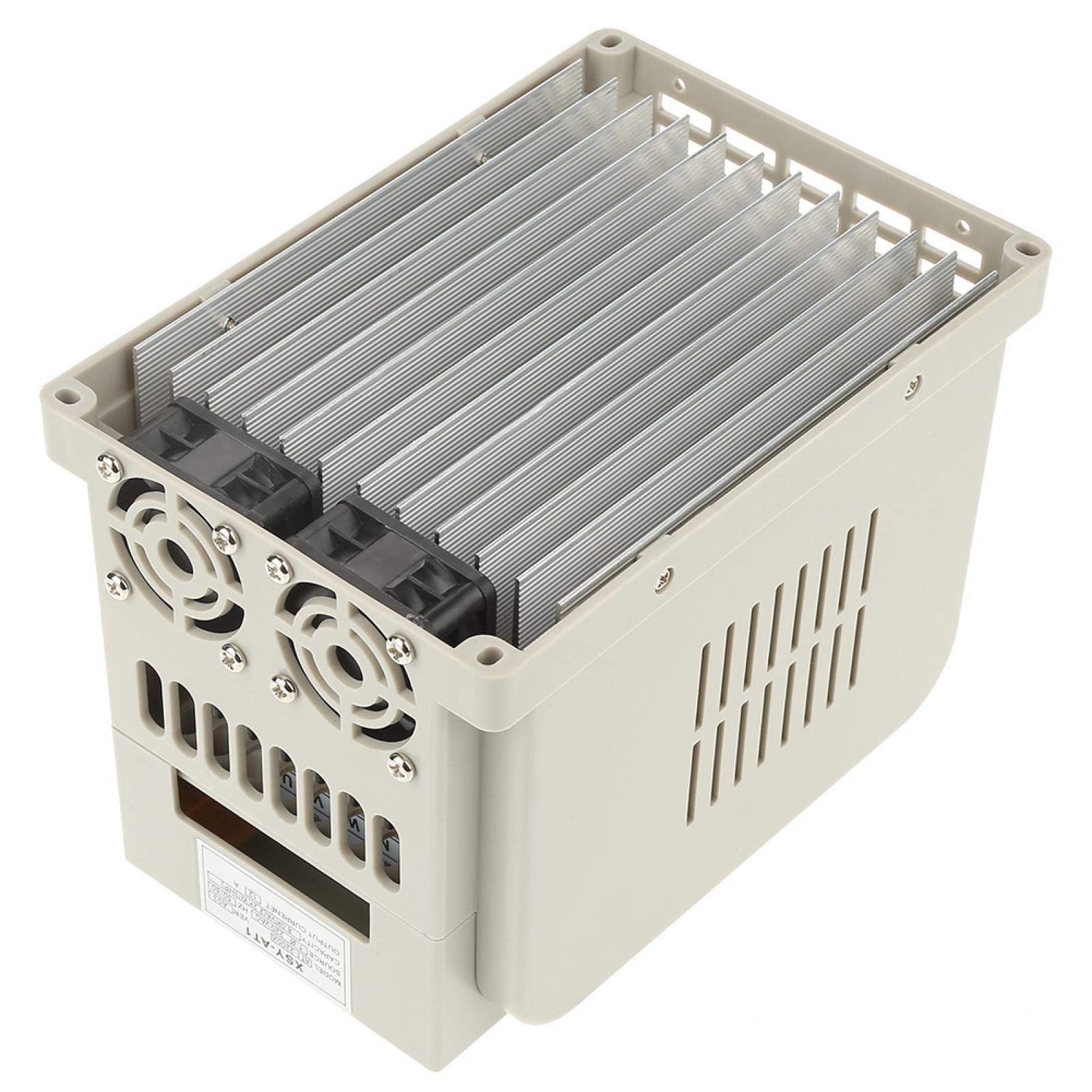

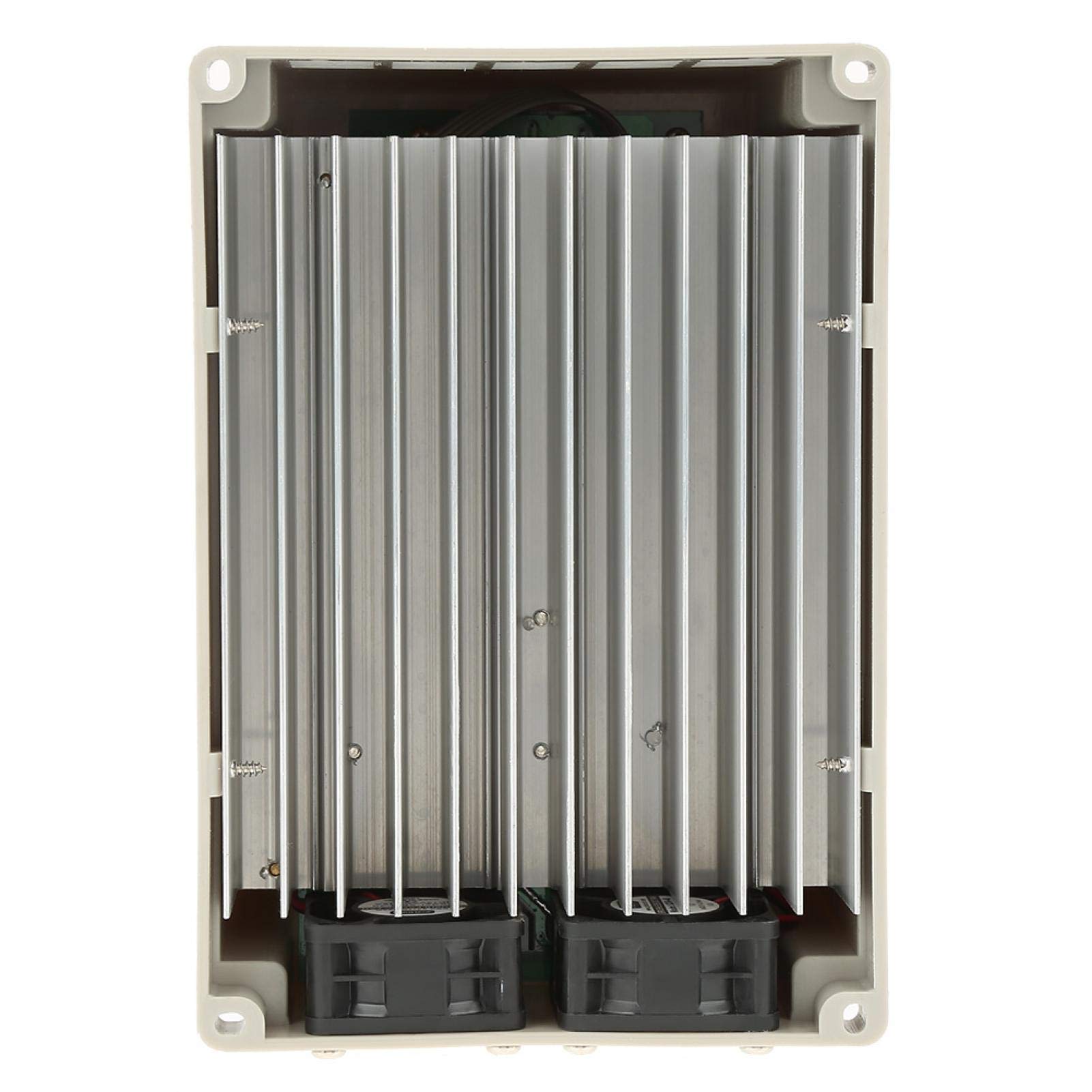

• 6 HEAVY :: against undervoltage, overvoltage, overcurrent, overheating, overload, short circuit, etc. Designed with large heat sink for better heat dissipation. Make sure you are safe.
• SERVICE PLEDGE :: If you need the English version of the manual, please contact us by email, thanks .At Jectse, We are responsible for every customer. If you have any questions about the products or suggestions, please contact us in time, we will solve the problem for you in the first time. If you are not satisfied with the products received, we will replace them for you. Product or a full refund.

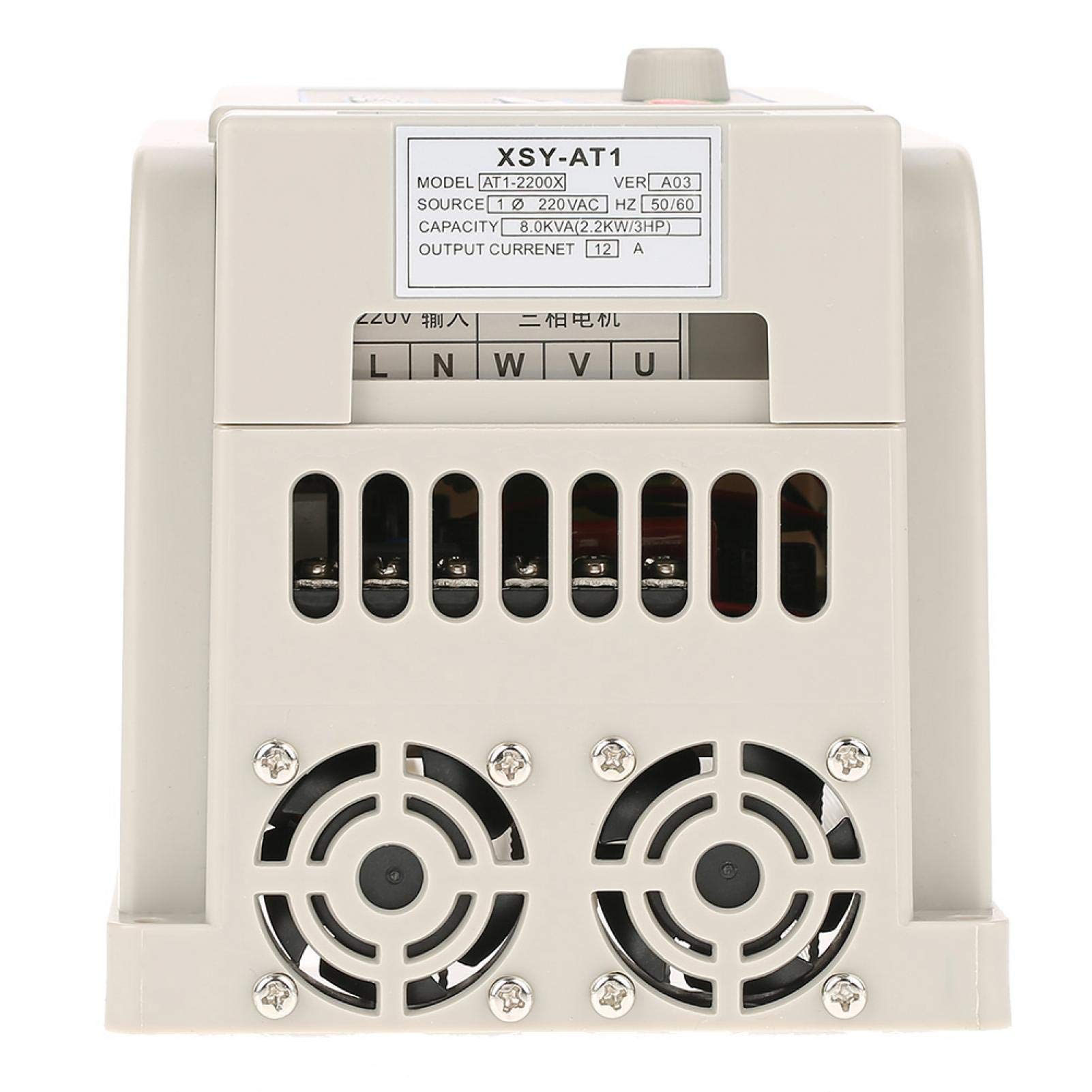

Specifications: Model: AT1-2200X Power Source Phase: Single-phase Rated Voltage: single-phase/3-phase AC220V Power Supply Voltage: Low voltage Suitable Motor Power: 2.2kW Filter: Built-in filter DC Power Supply Type: Voltage type Control Method: V/F closed loop Output Voltage Adjusting Method: PWM control Rated Current: 12A Protection: Over-current, over-voltage, over-heat, under-voltage, short circuit Max. Output Frequency: 400Hz Size: 18*12.5*12.5cm/7.1*4.9*4.9in Weight: 1.3kg(approx.) Package Includes: 1 x Variable Frequency Drive
