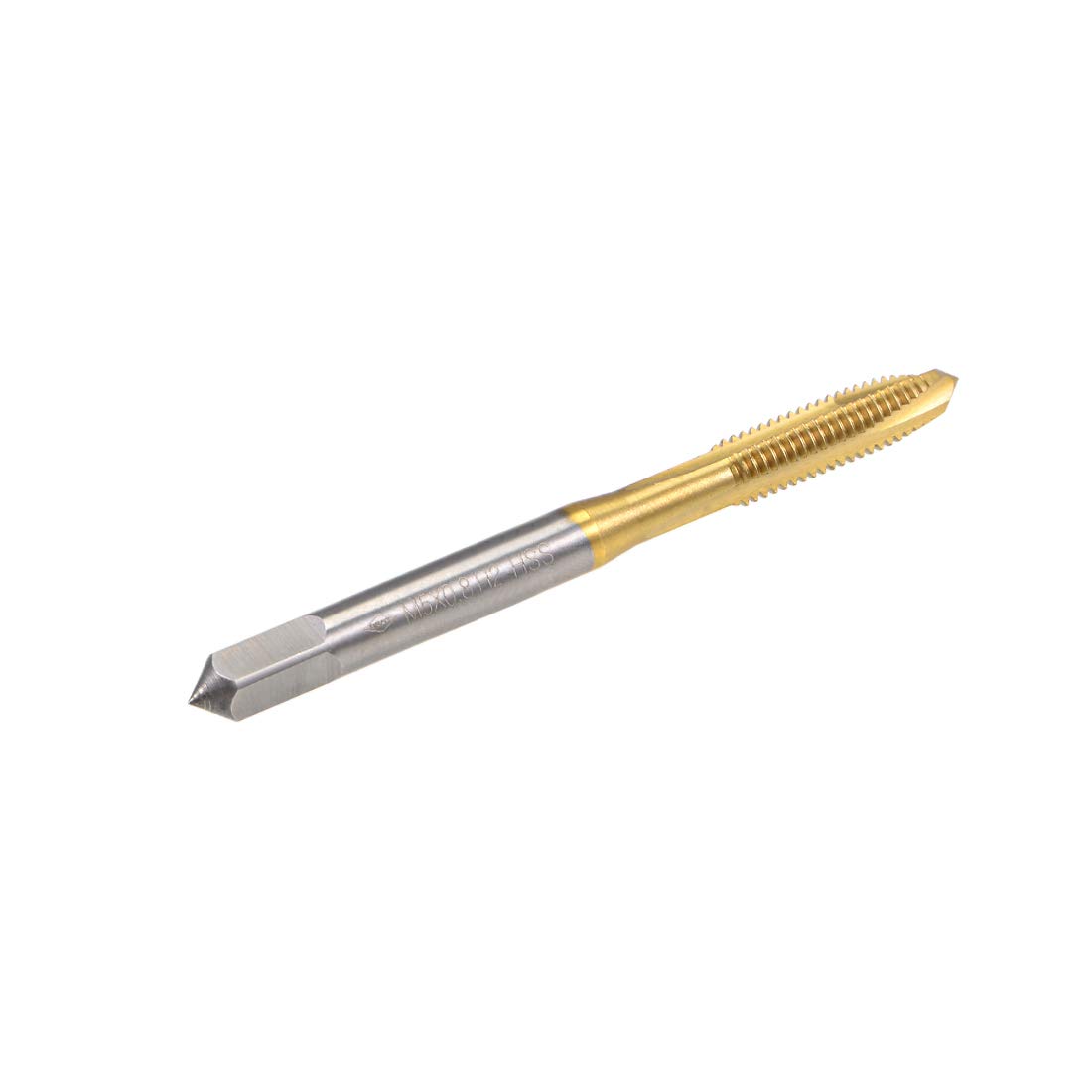

uxcell Spiral Point Plug Threading Tap M5 x 0.8 Thread, Ground Threads H2 3 Flutes, High Speed Steel HSS 6542, Titanium Coated, Metric Screw Taps Tapping Bit for Thread Repair, 2pcs

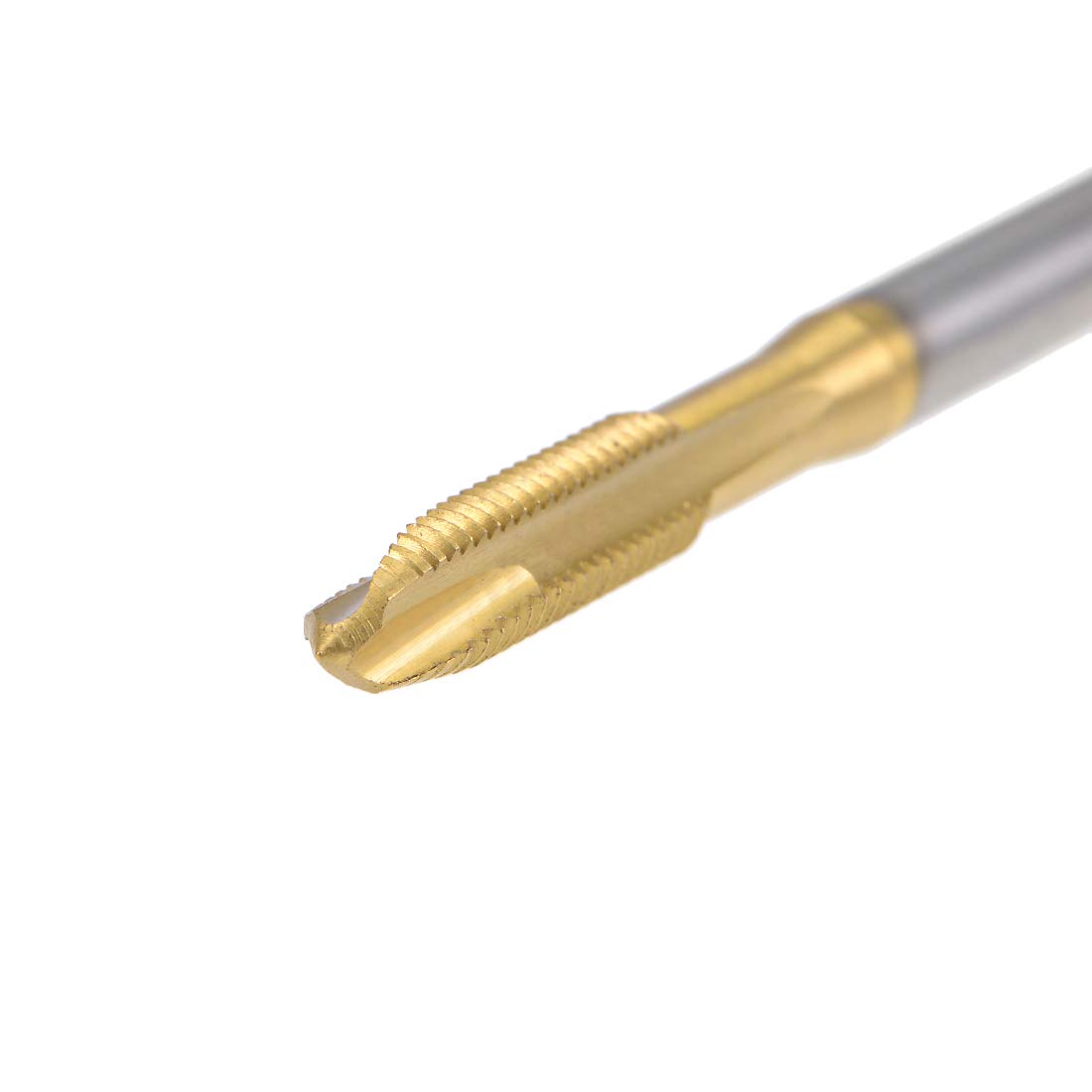

• Spiral Point Tap: Thread size: M5 x 0.8; thread tolerance: H2; thread length: 20mm / 0.78"; plug chamfer and right hand thread cutting. 3 straight flutes are ground to provide provide downward chip removal, with clear threads and sharp cutting edges.
• Material & Finish: 6542 high speed steel metric taps run at high speeds and generate threads quickly and efficiently, offering high hardness (HRC62-64), wear resistance, and good toughness. Titanium coating for improving wear resistance, hardness, heat resistance, lubricity.
• Applications: Thread taps are great for through-hole threads. Can be used for drilling and tapping stainless steel, aluminum, alloy steel, ordinary steel, cast iron, non-ferrous metals, hard plastics, etc. Flutes on the screw tap help to remove chips and debris from the hole.
• How to Use: Suitable for drill presses, tapping machines, CNC and milling machines. Used with tapping oil to get higher quality threads and more durable taps. The point of the tap helps guide it into the hole and reduces the torque required to turn it.
• Warm Tips: Machine taps are suggested to be used with tap chucks with overload protection. It is not recommended for hand use and electric drill tapping. Micro taps (such as M1-M3.5) are mainly used for clocks, watches, low-hardness woods, and soft metals.

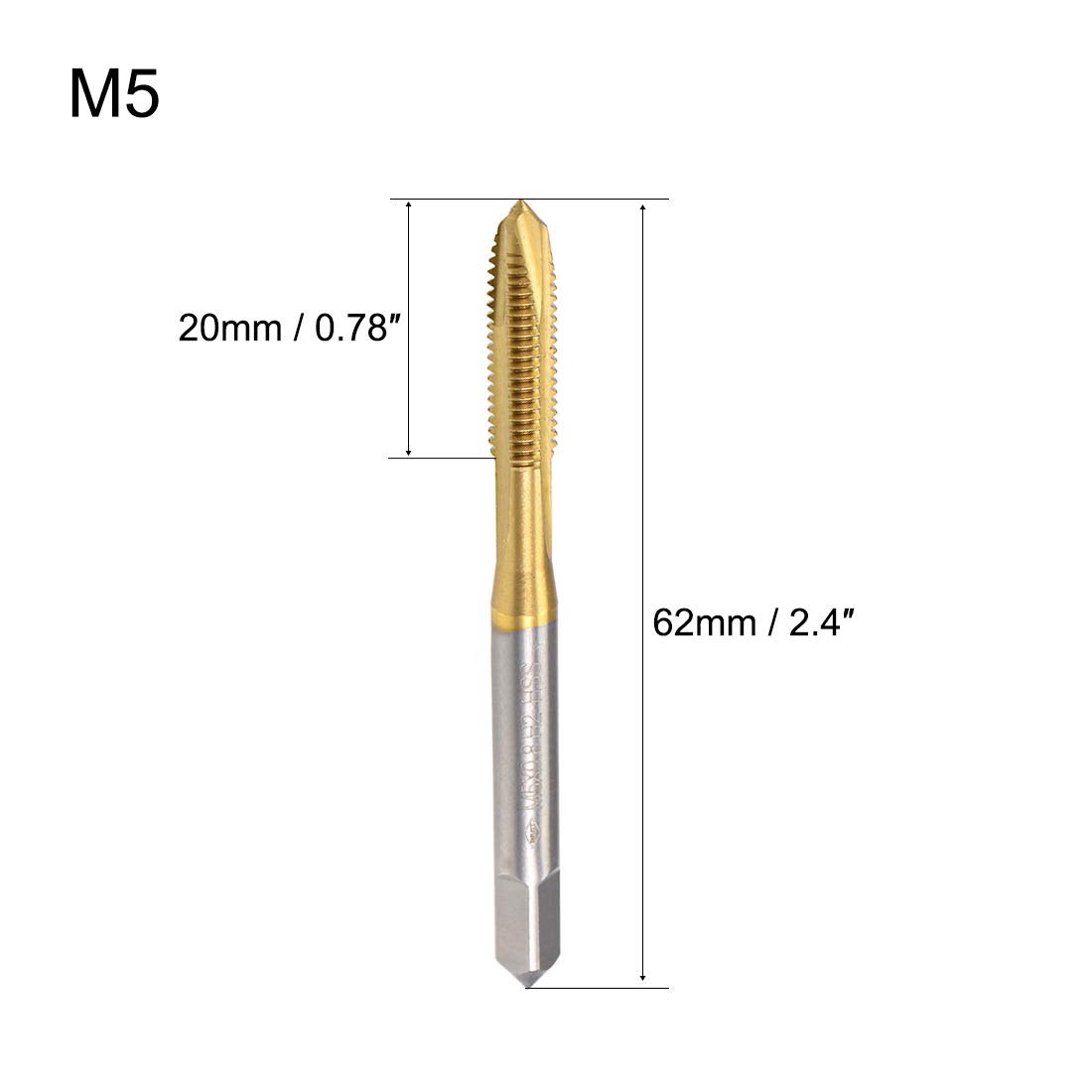

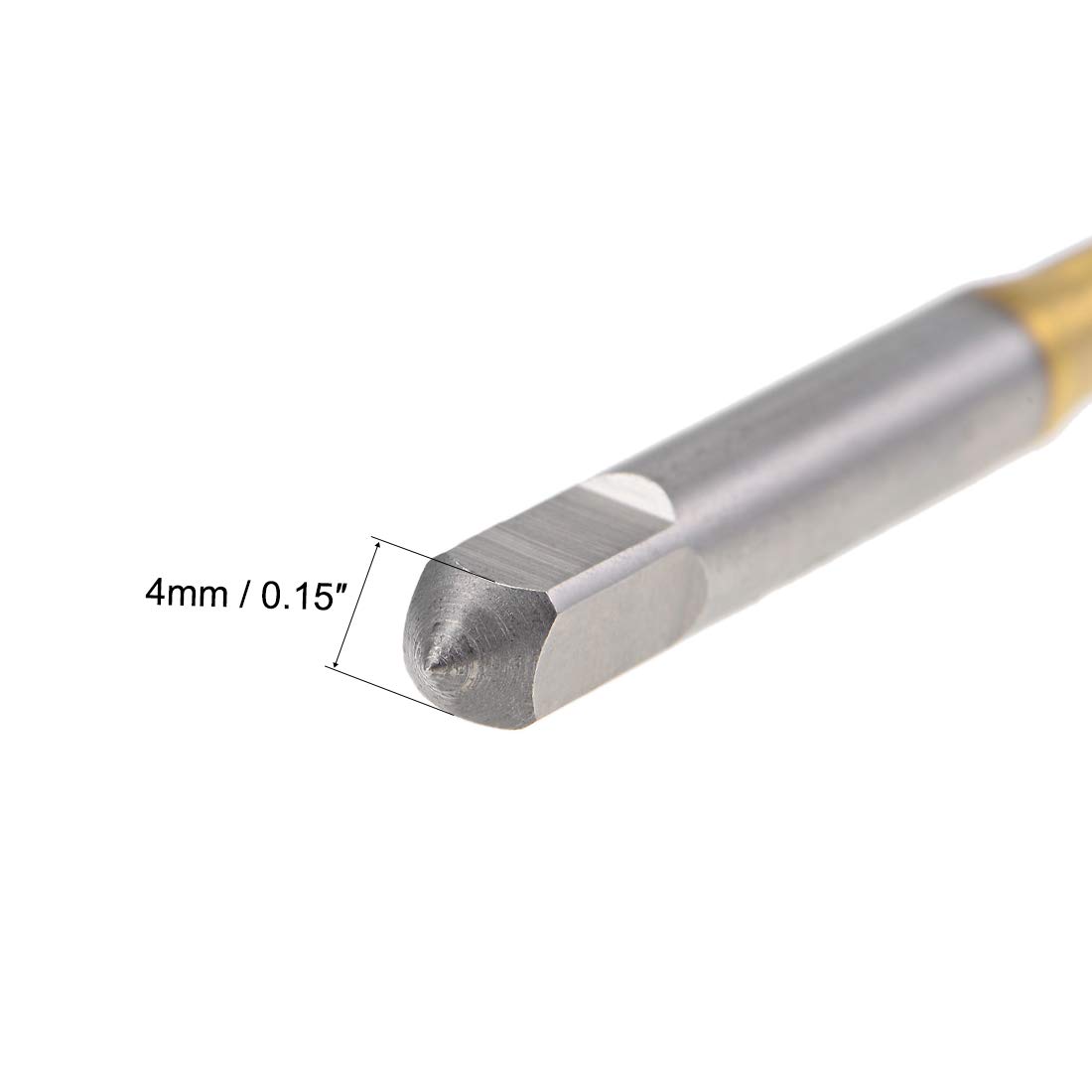

Feature: 1. Features plug chamfer and right hand thread cutting. 3 straight flutes are ground to provide downward chip removal. 2. High-speed steel tool is great for general purpose applications, offering high hardness and toughness. Titanium coating for improving wear and fusion resistance, long service life. 3. Great for through-hole threads. Can be used for drilling and tapping stainless steel (below 30HRC), aluminum, die steel, ordinary steel, non-ferrous metals, hard plastics, etc.. 4. Suitable for drill presses, tapping machines, CNC and milling machines. Used with tapping oil to get higher quality threads and more durable taps 5. Machine taps are suggested to be used with tap chucks with overload protection. It is not recommended for hand use and electric drill tapping. Specification: Material: HSS 6542 (High Speed Steel 6542) Surface Treatment: Titanium Coated Pitch: 0.8 Thread Size: M5 Shank Side Width: 4mm / 0.15 inch Thread Length: 20mm / 0.78 inch Total Length: 62mm / 2.4 inch Package Content: 2 x Spiral Point Threading Tap
