UPS HAT For Raspberry Pi Series Boards support 5V Uninterruptible Power Supply Charge and Power Output at the Same Time Real Time Monitoring

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

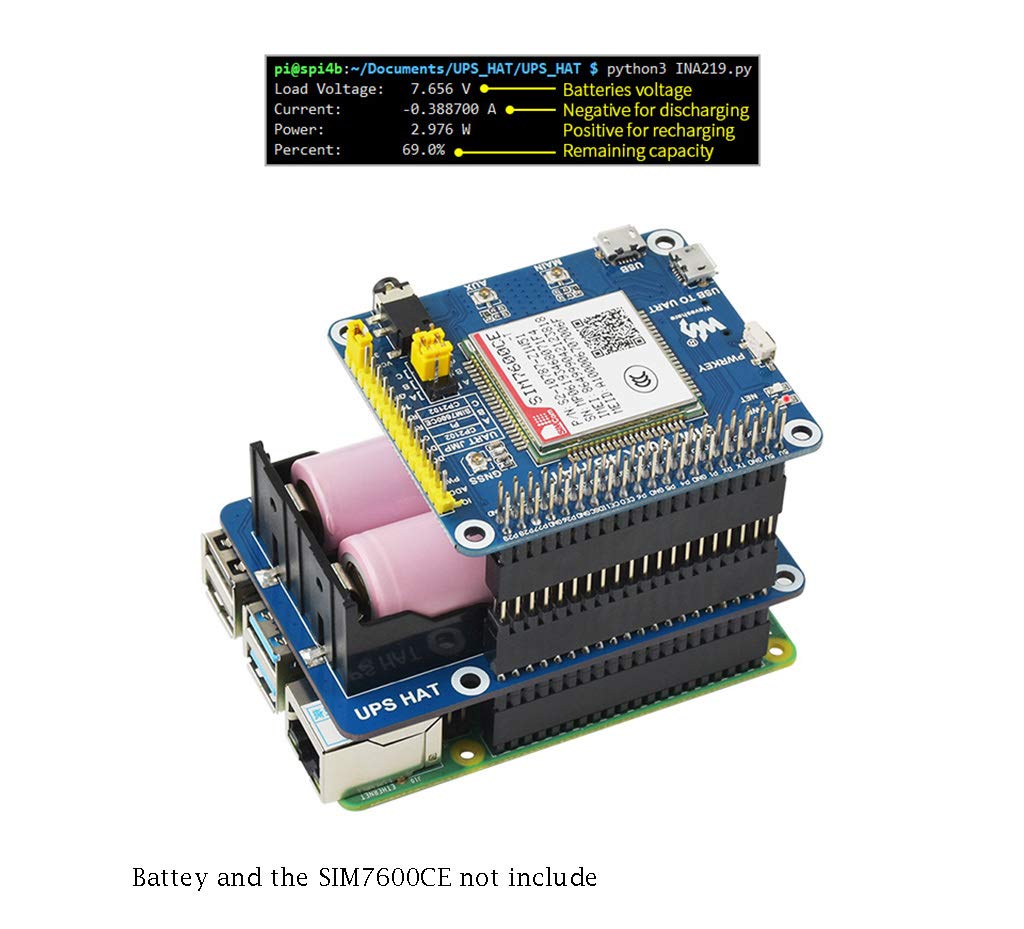

• I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time; Batteries warning indicators, easy to check if the battery is connected correctly

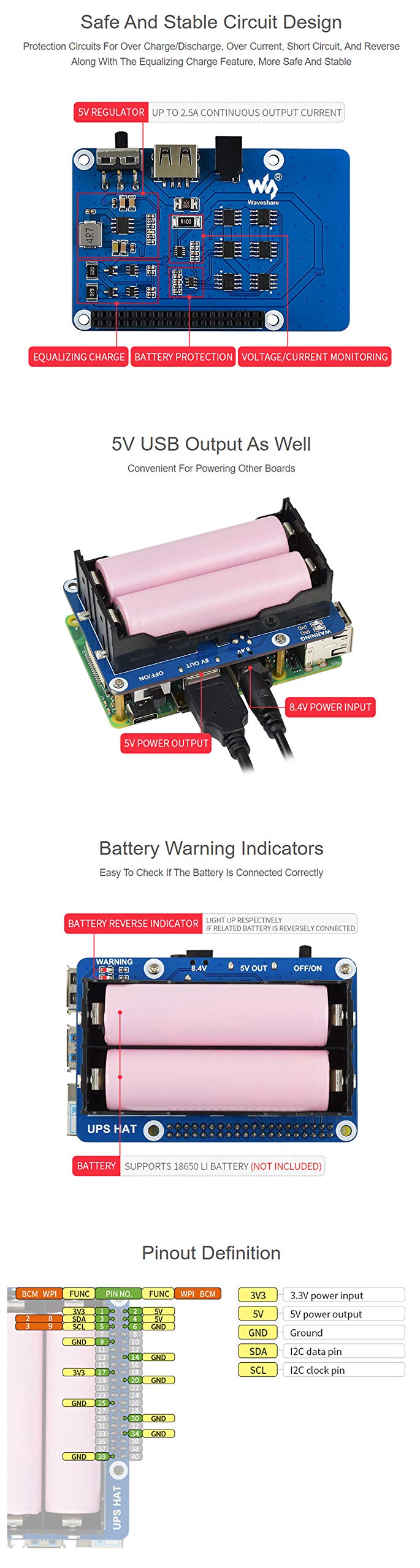

• Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
• Onboard5V regulator, up to 2.5A continuous output current; 5V USB output, convenient for powering other boards
• Comes with development resources and manual: www.waveshare.com/wiki/UPS_HAT

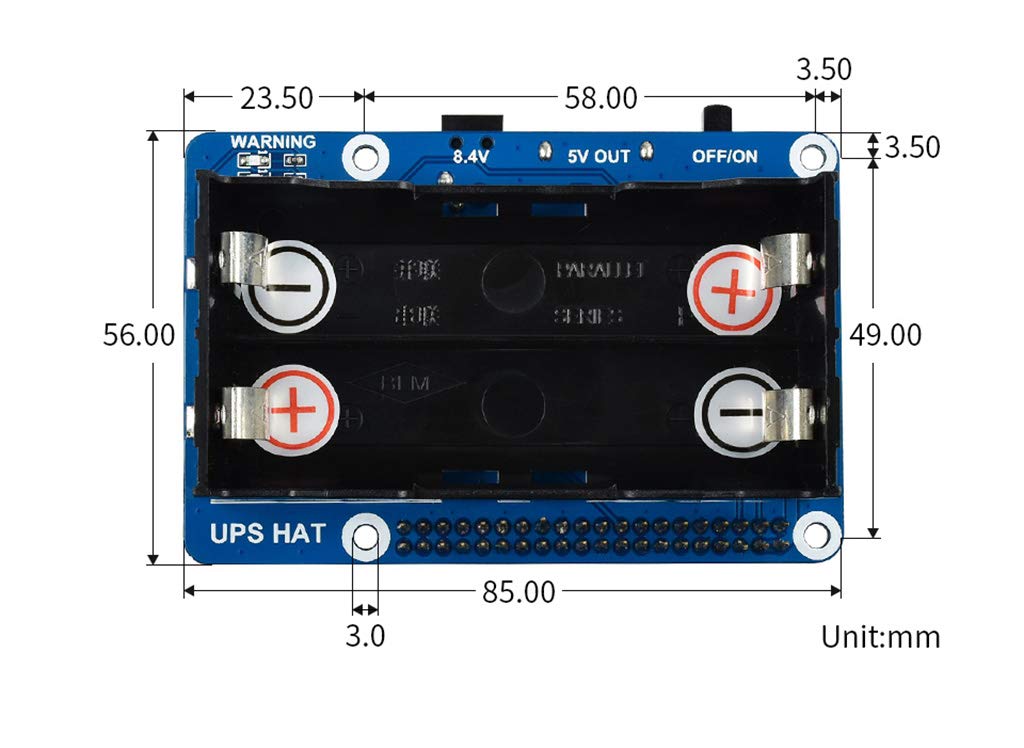

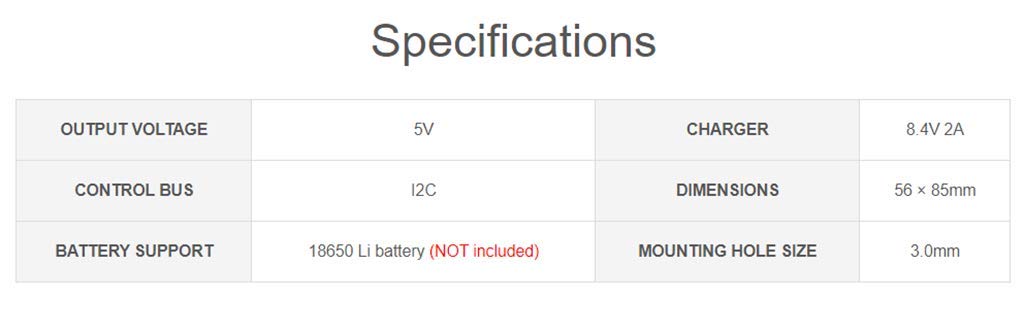

Features Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time. Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable. Onboard 5V regulator, up to 2.5A continuous output currenth 5V USB output, convenient for powering other boards. Batteries warning indicators, easy to check if the battery is connected correctly. Comes with development resources and manual. Specifications: Output voltage: 5 V. Bus control: I2C. Battery support: 18650 Li battery (not included). Charging: 8.4V 2A. Dimensions: 56 × 85 mm. Mounting hole size: 3 mm. Package content Note: The 18650 batteries are NOT included; the battery length SHOULD be less than 67 mm, some batteries with protection plate in the market are NOT supported. 1. UPS HAT x1 2. 1 x 8.4 V battery charger. 3. 2 x 20 pin female header x1 4. RPi screws pack (2 pieces) x1
