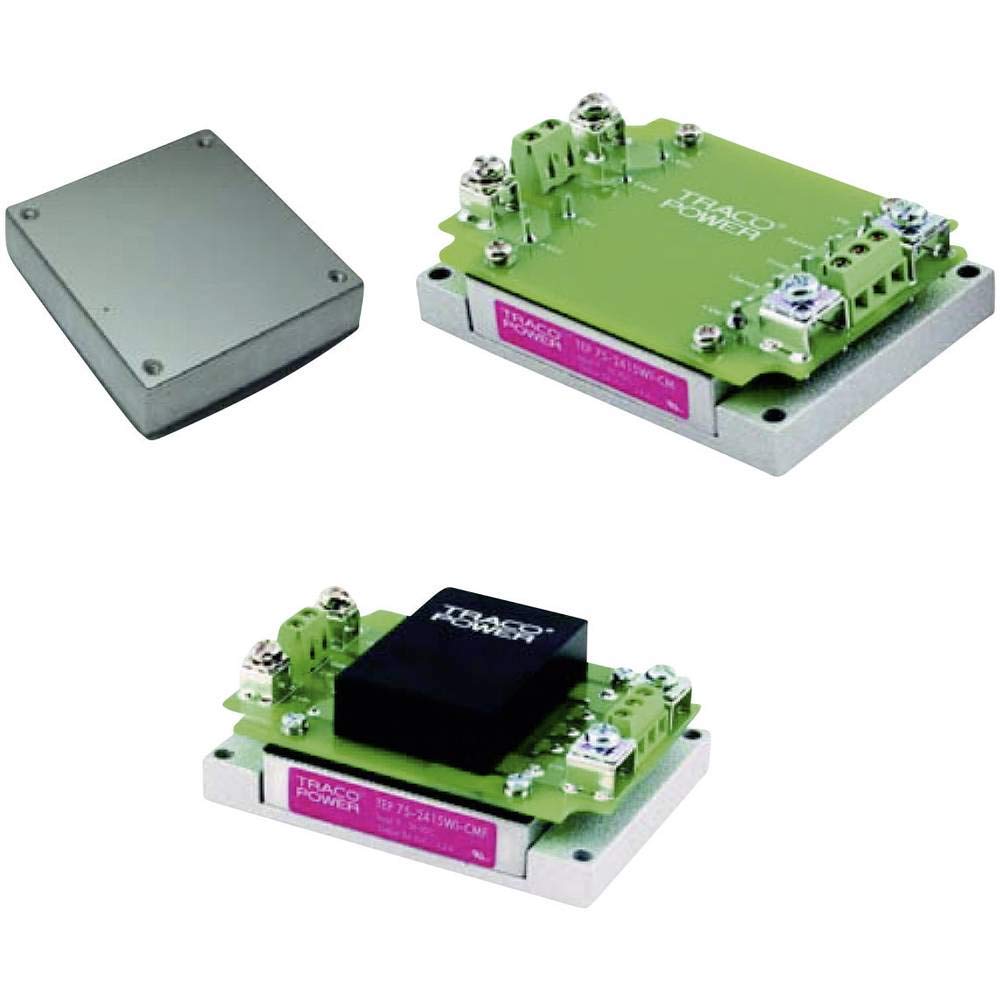

TRACOPOWER DC/DC converter element TEP 100-1212 Number of Outputs: 1 x 12 V/DC 12 V/DC 8.4 A 100 W 1 pc(s)

• Compact and robust metal housing · Wide input range: 2:1 · Full-load operation up to + 60 °C with convection cooling · Soft start · Cut-off in case of undervoltage · Reverse polarity protection at the input · Output voltage adjustment · External on/off · Cooling convector (TEP option HS1) · 3 years manufacturer warranty
• These modules are designed for a wide range of applications, especially for industrial applications
• Their very high efficiency allows a working temperature range up to +60°C without reducing power in the case of natural convection cooling
• Other functions are output voltage adjustment, external on/off and disconnection in case of undervoltage
• Thanks to their wide input range and reverse polarity protection, these converters are an attractive solution for multiple applications and battery-powered systems

CONVERTER the TEP-100 range offers very powerful, insulated DC/DC equipped with a wide 2: 1 input range in a robust and splash-proof housing. These modules are designed for a wide range of applications, particularly for industrial applications where no assembly Stainless steel is needed, but a montage of the housing. With 4 screws M3, a chassis mounting or the mounting of a heat sink can be done quickly and easily. The extremely high efficiency allows a wide range of working temperature up to + 60 °C without a reduction in power in the event of a natural cooling by convection. The other features are the adjustment of output voltage, external on/off signal and in the event of power disconnected. Due to a very large entrance and a reverse polarity protection, they are a great way for a variety of applications and systems powered by batteries. Output Voltage: 8.4 A Product Width: 61.00 mm Product Length: 57.90 mm Operating Temperature Range: -40 – + 75 °C Residual ripple: (20 MHz bandwidth) 100 m vpk-pk Max Weight: 97 g Power: 100 W Efficiency: 91% Input Voltage Range: 9-18 V Insulation Voltage: 2250 V/DC Output Voltage: 12 V Type (Manufacturer Type): TEP 100-1212
