Tosuny Support 4 k CEC HDMI EDID Feeader, Manager Emulator Resolve Signal Source and Display Compatibility, 16 EDID Patterns for HDMI Signal Input/Output

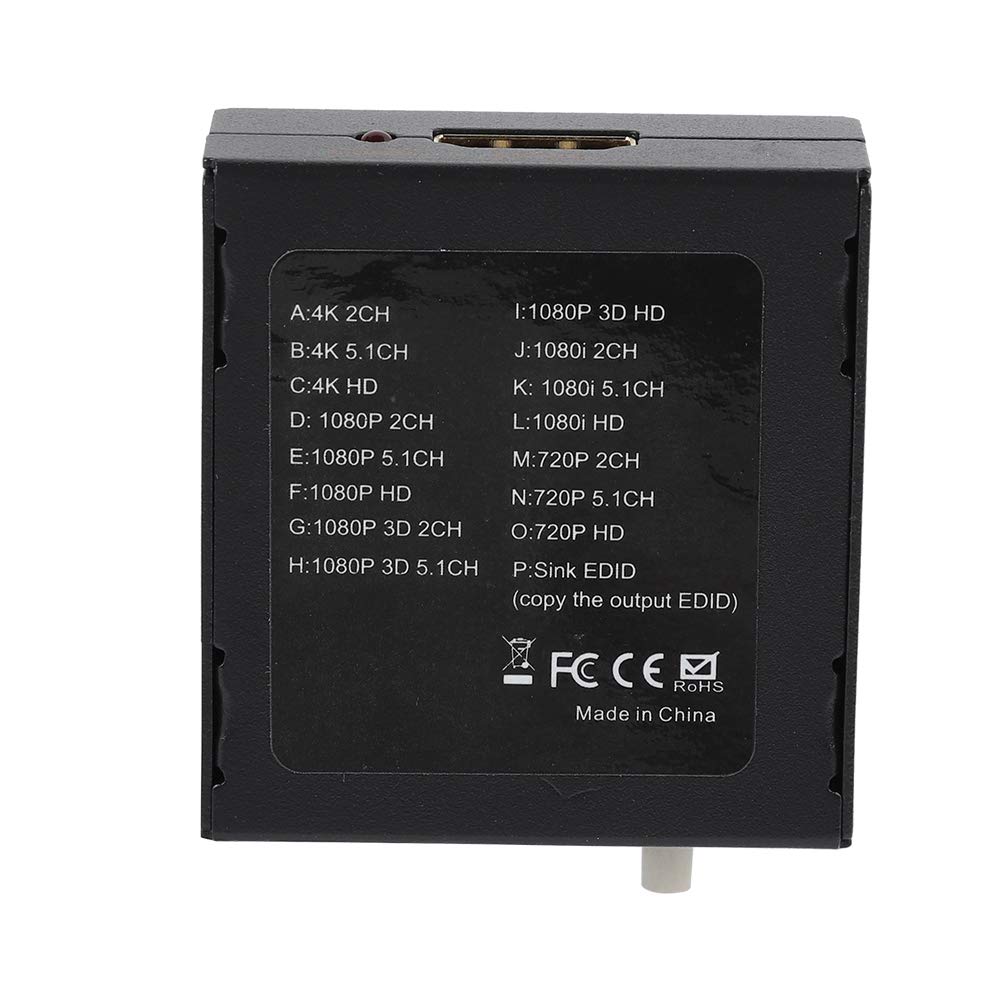

• 1. HDMI EDID manager, through 16 EDID modes, easily solve the compatibility problem between the signal source and the display, making your audio-visual equipment more convenient and comfortable to use.

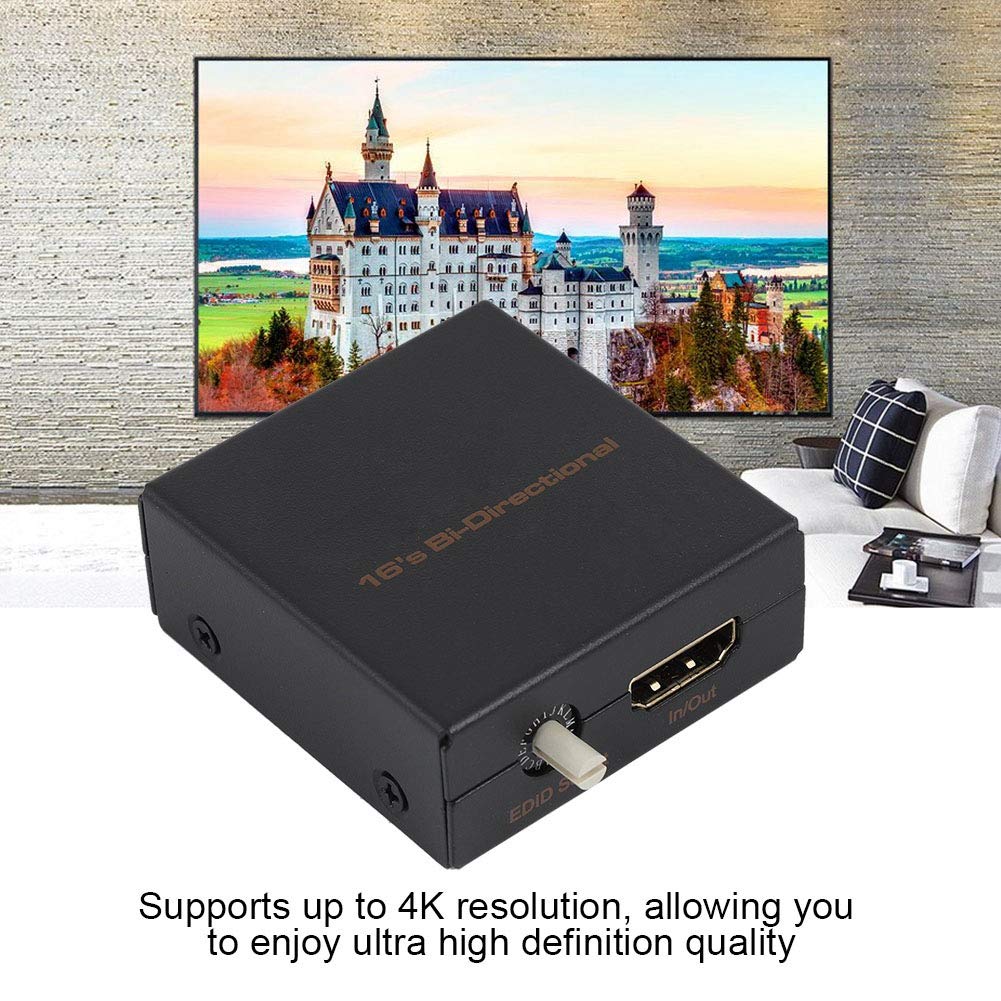

• 2. Supports up to 4K resolution, allowing you to enjoy ultra-high-definition picture quality, while also supporting CEC.
• 3. Connect the signal source (such as Blu-ray player, computer, etc.) to the HDMI input of EDID through the HDMI cable, and connect to the input device (such as TV, etc.) through the HDMI cable. Manually adjust according to the resolution supported by the back-end display device 16 modes of EDID manager.

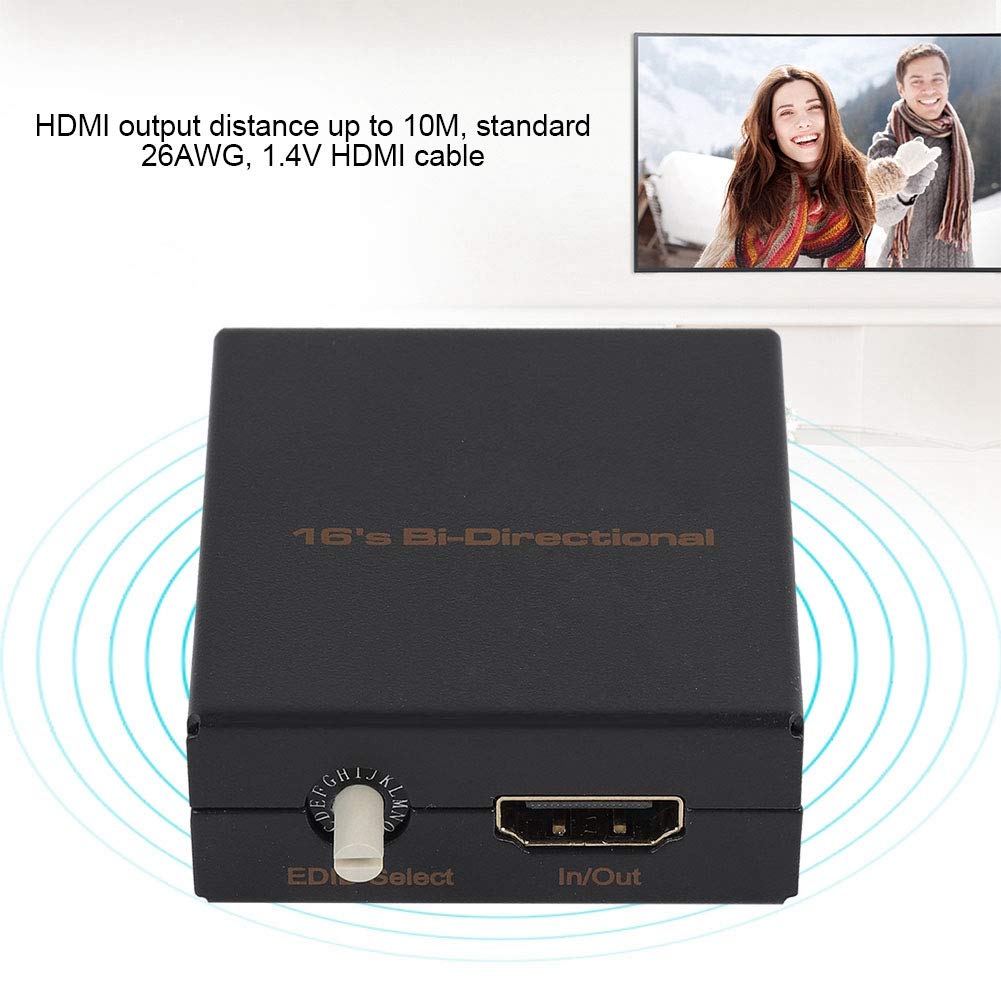

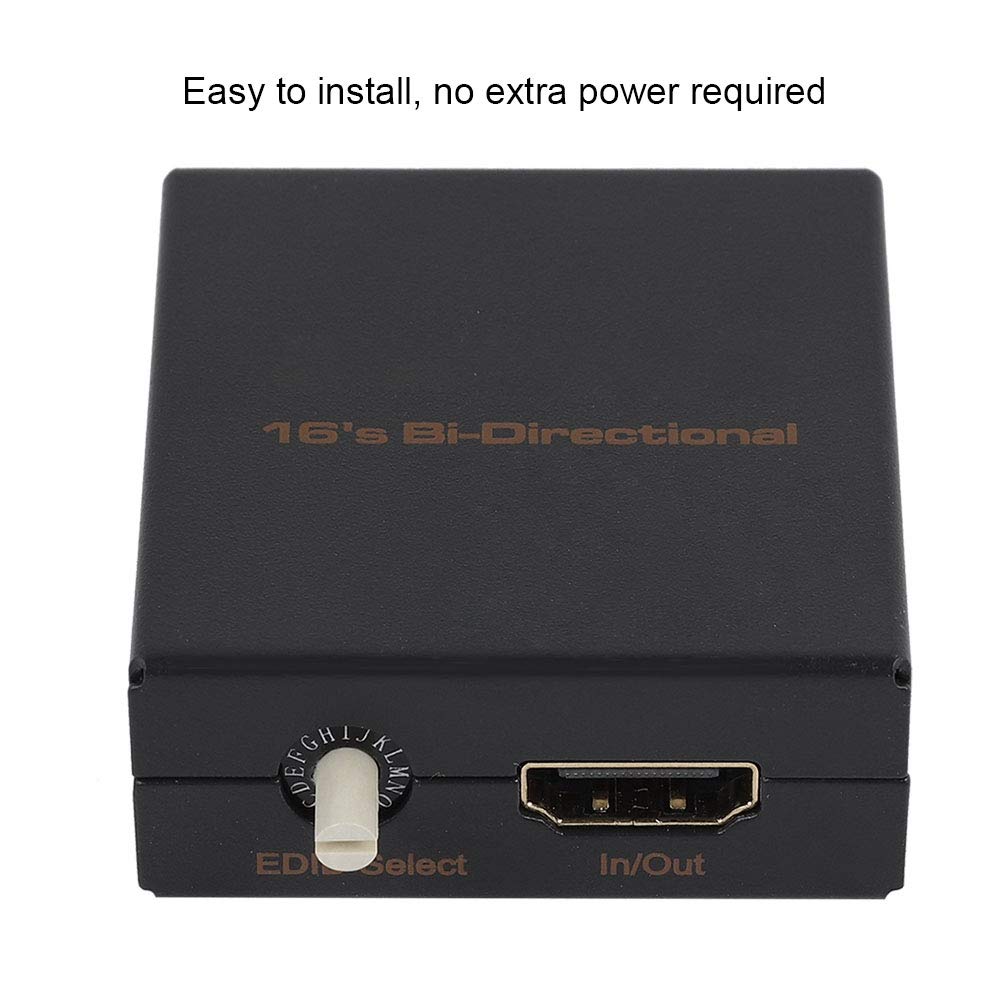

• 4. The longest HDMI output distance is 10M, standard HDMI cable, 1.4V, 26AWG, easy installation, no need for additional power supply.

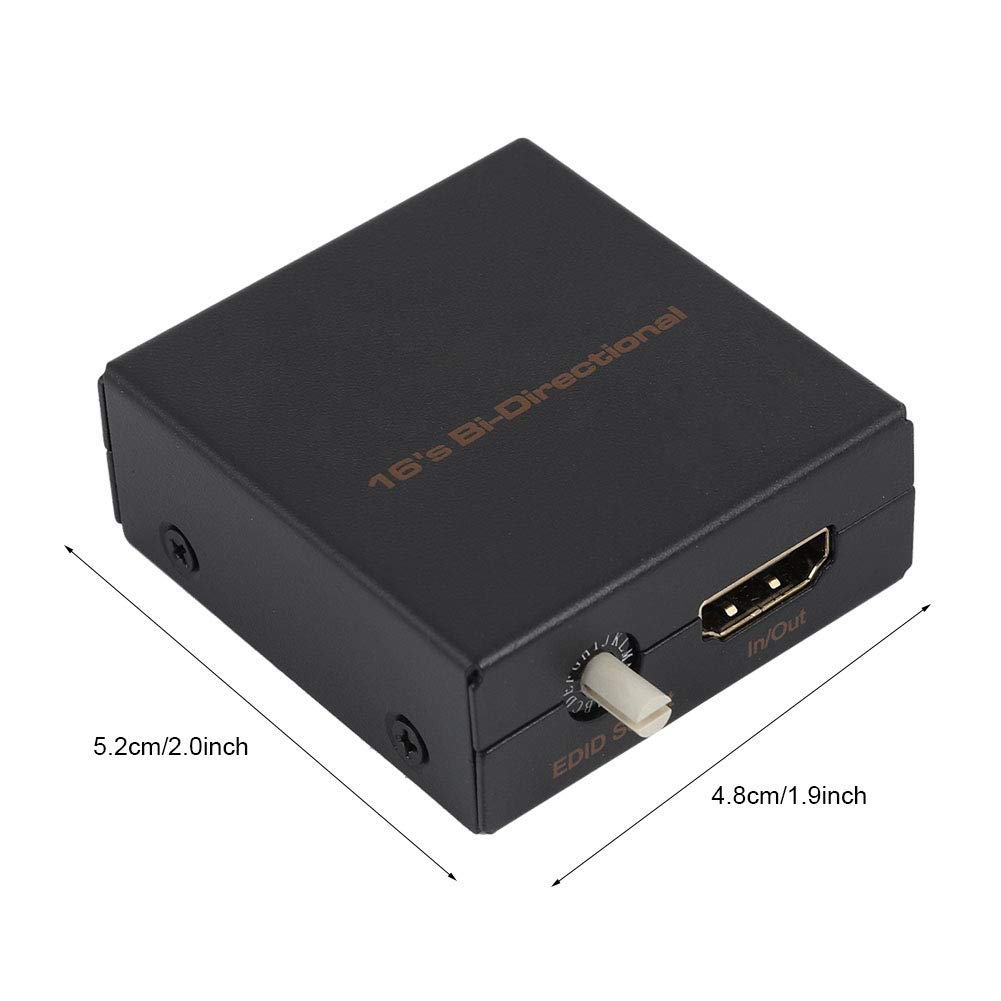

• 5. The size of this product (length*width*height) is 52.5x48.5x20(mm), maximum working current: 300mA/5V DC, working temperature range: (0 to +40℃), working humidity range: 5 to 85% RH (non-condensing), storage temperature range: (-10 to +55℃), storage humidity range: 0 to 90%RH (non-condensing).

Description Specification: Product Name: EDID Manager Model: HDSW0006M1 HDMI input audio format: LPCM2.0/DTS/Dolby-AC3 HDMI output cable length: 10m, 1.4V 26AWG Maximum operating current: 300mA/5V DC Operating temperature range: 0 to +40°C Operating humidity range: 5 to 85% RH (no condensation) Storage temperature range: -10 to +55 ° C Storage humidity range: 0 to 90% RH (no condensation) Size: approx. 5.2 * 4.8 * 2 / 2.0 * 1.9 * 0.8in Weight: approx. 81g Package List: 1 * EDID Manager
