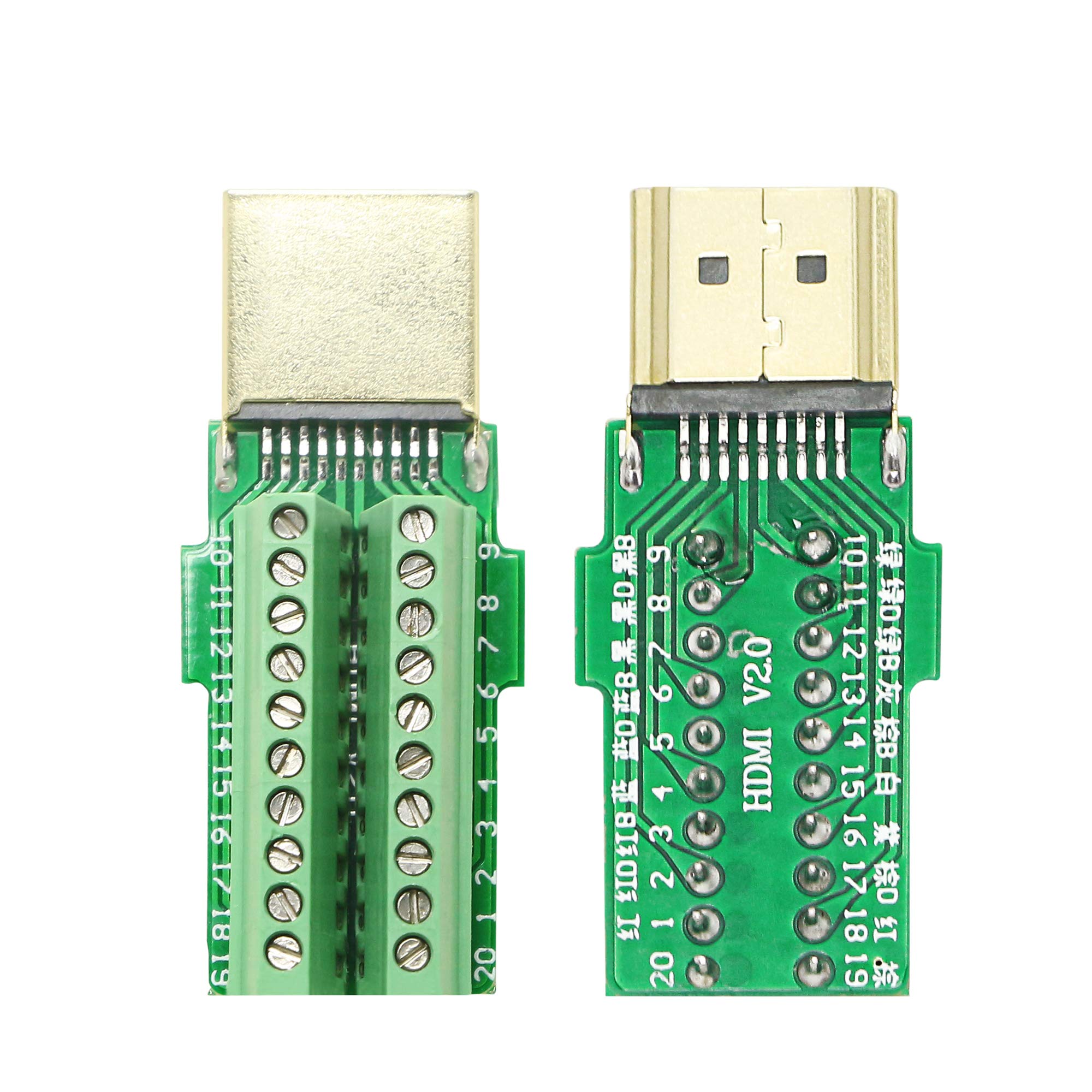

CERRXIAN HDMI Screw Terminal Block Adapter, Gold Plated HDMI Male to Solderless Terminal Breakout Board Connector Signal Module with Case

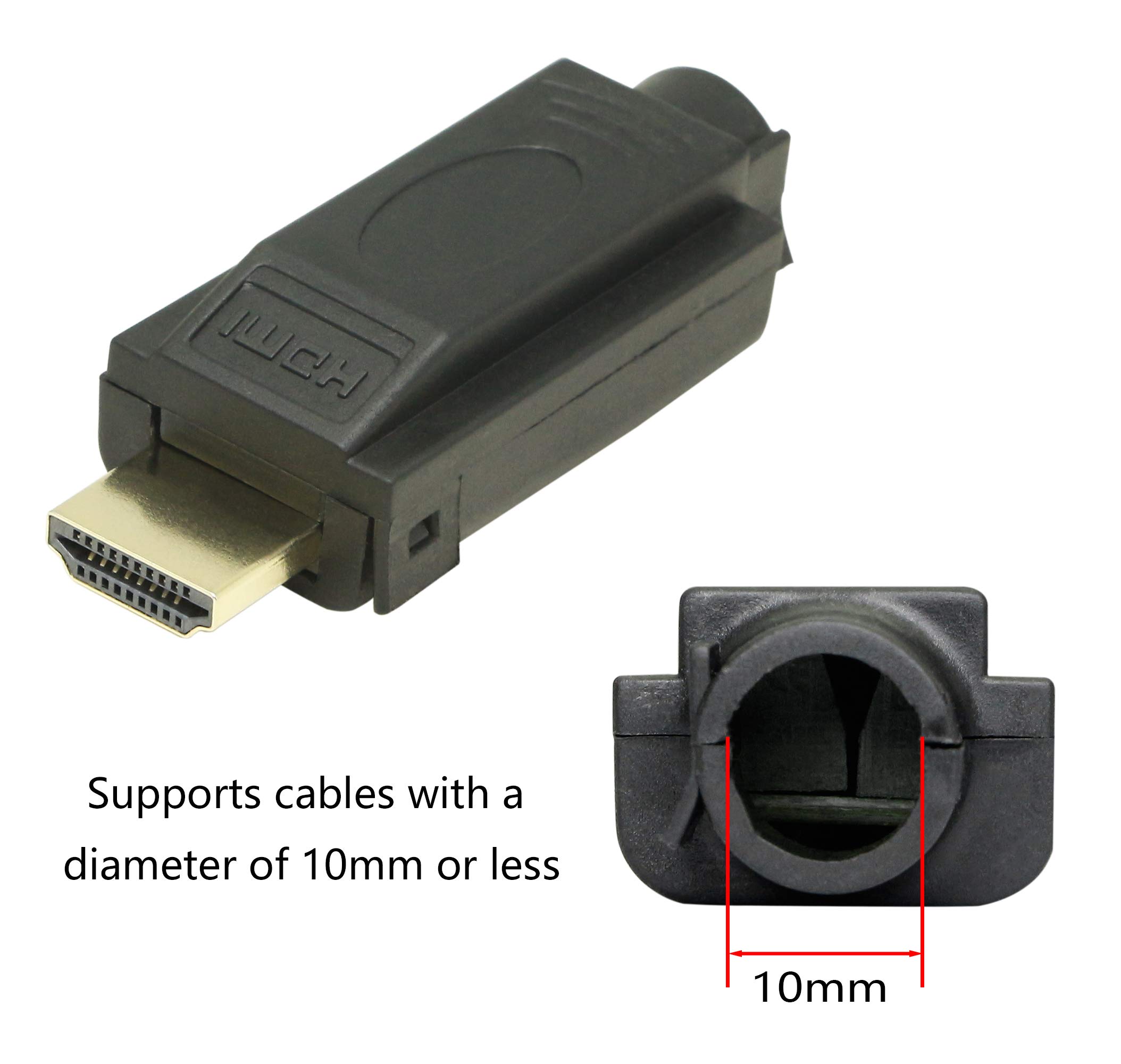

• HDMI solderless adapter, supports maximum cable diameter of 10mm. compatible with HDMI 2.0, （ HDMI 2.0 (24AWG) 19 1 core (5P 4C ADB)；1.4 and 1.3.
• Compact design and reliable connection for the male HDMI to secrew terminal adapter cable

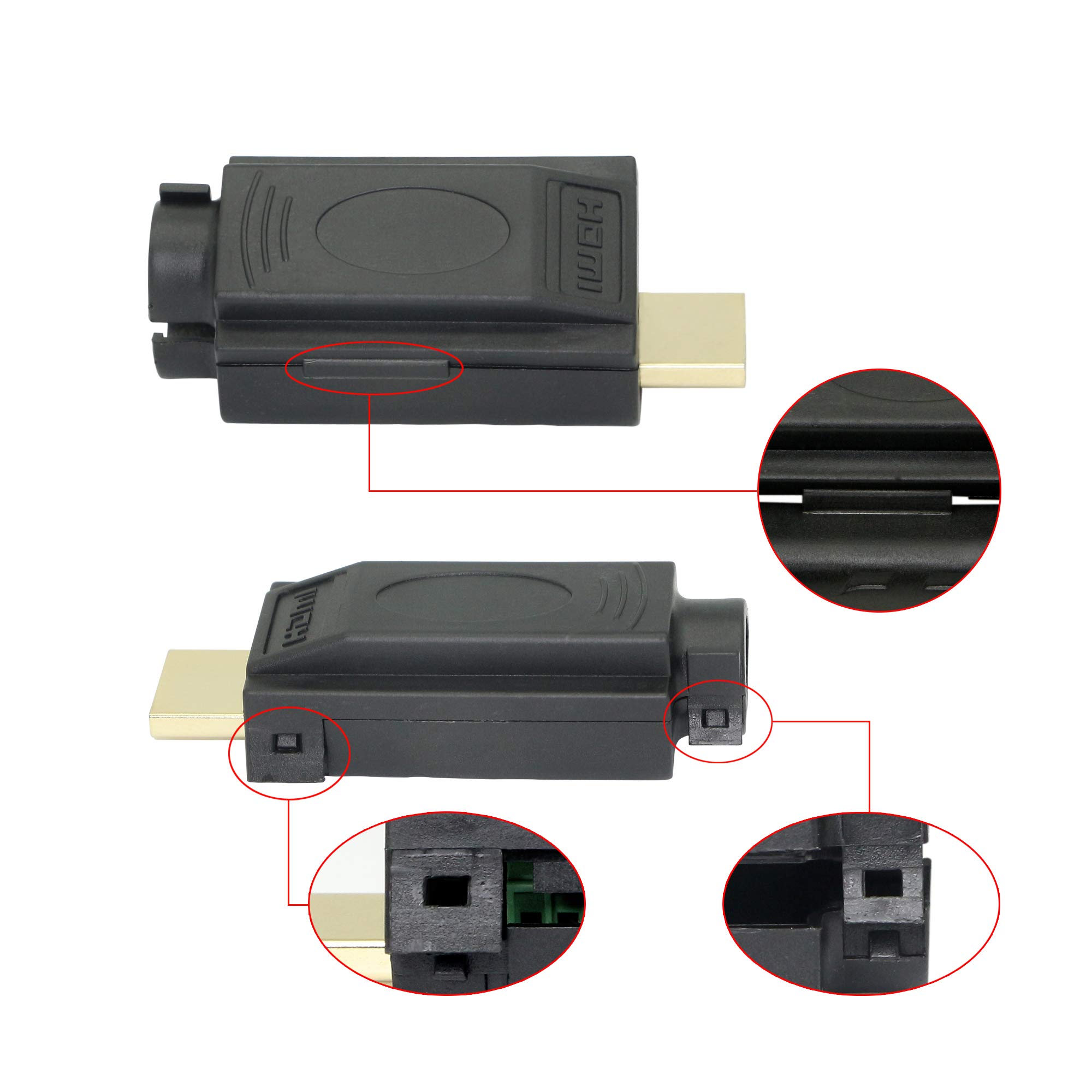

• No soldering required, easy to use,Requires only a screwdriver and a wire stripper to terminate HDMI cables,Saves time and hassle for installers.The housing is designed with a folding buckle for easy assembly and disassembly without tools.
• The connection method requires professional knowledge, and beginners should be careful to purchase.

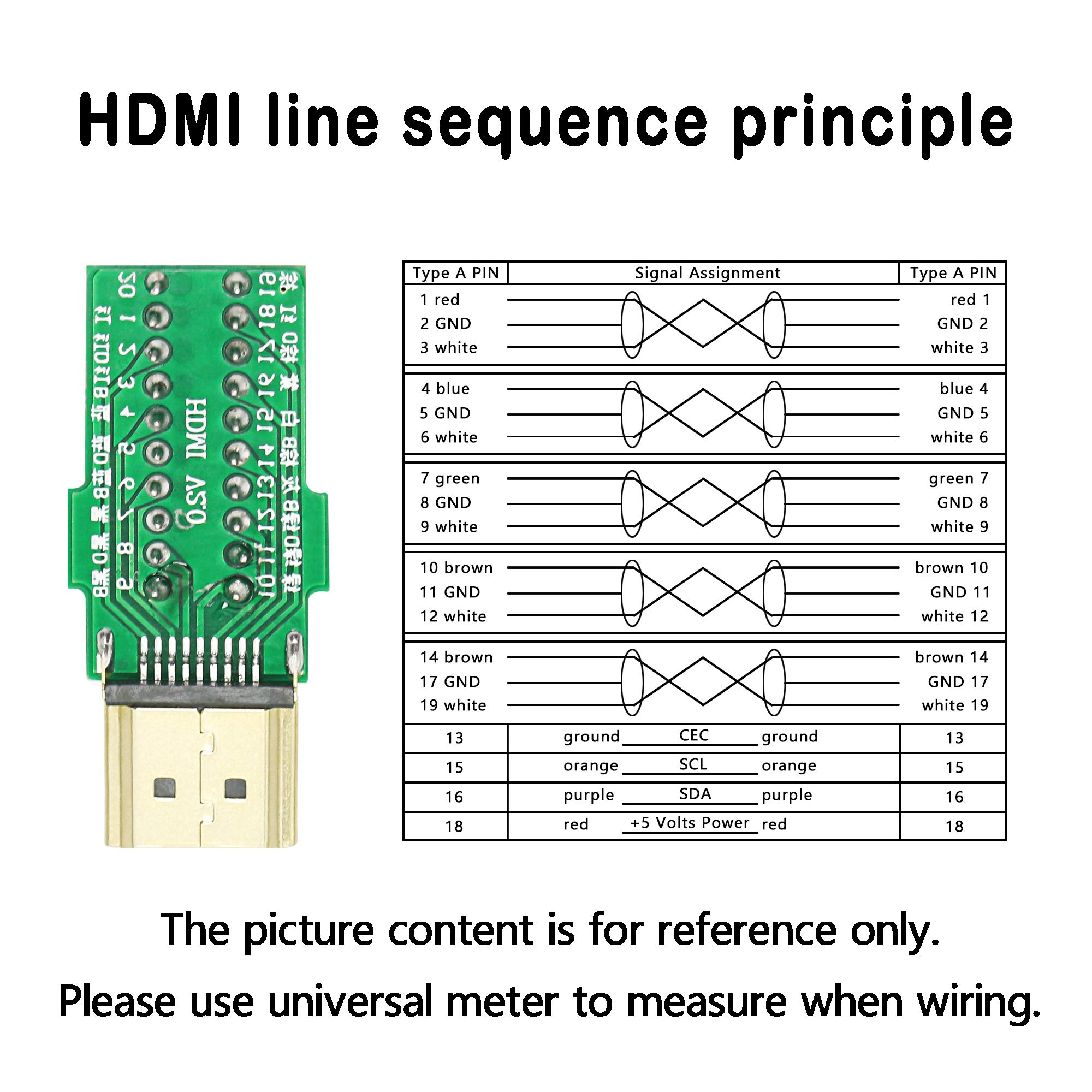

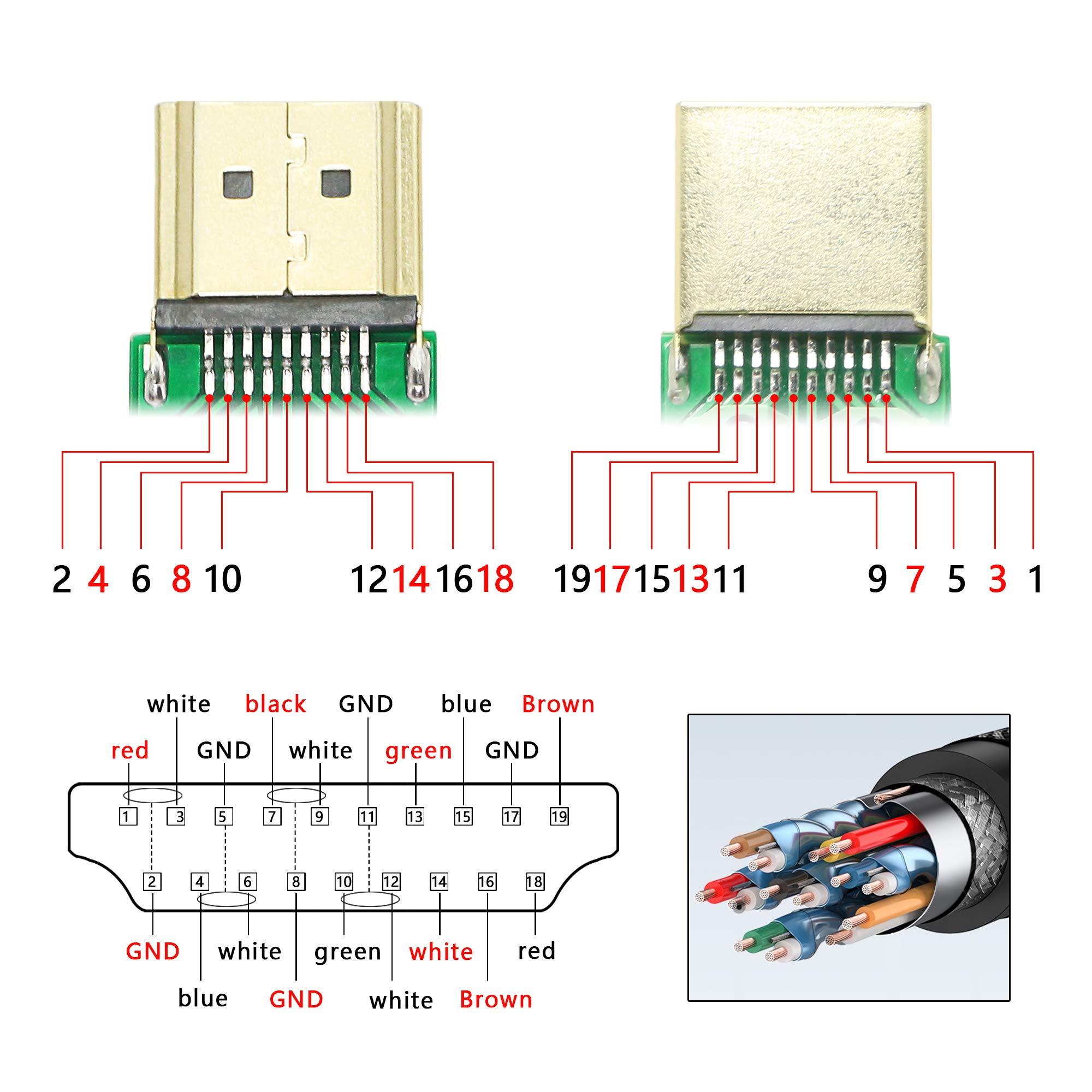

• Note：Most HDMI have different wiring schemes. Wiring diagrams vary from manufacturer to manufacturer. Our wiring diagram is shown in the application diagram and is generally for reference only. Considering that HDMI 2.0 has many nodes, it is recommended to use a universal meter to measure connections.

Product Name: HDMI Solderless Adapter Connector 1: HDMI Male Connector 2: 20 pin female jack Size: 50mm x 23mm x 17mm Note: Most HDMI cables have different wiring systems. Wiring diagrams vary from manufacturer to manufacturer. Wiring diagram included for reference only. Since HDMI 2.0 has many nodes, it is recommended to use a universal meter to measure connections.
