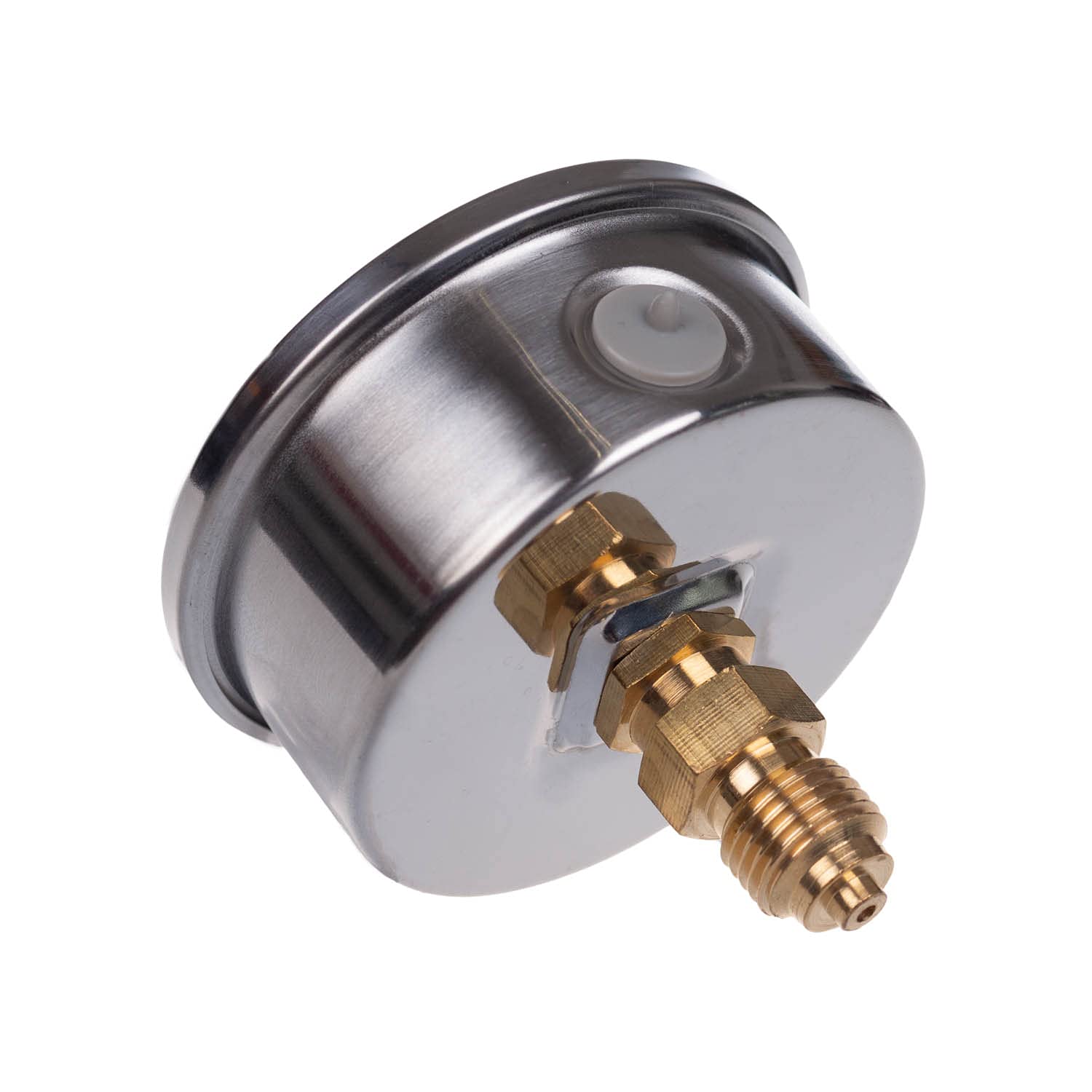

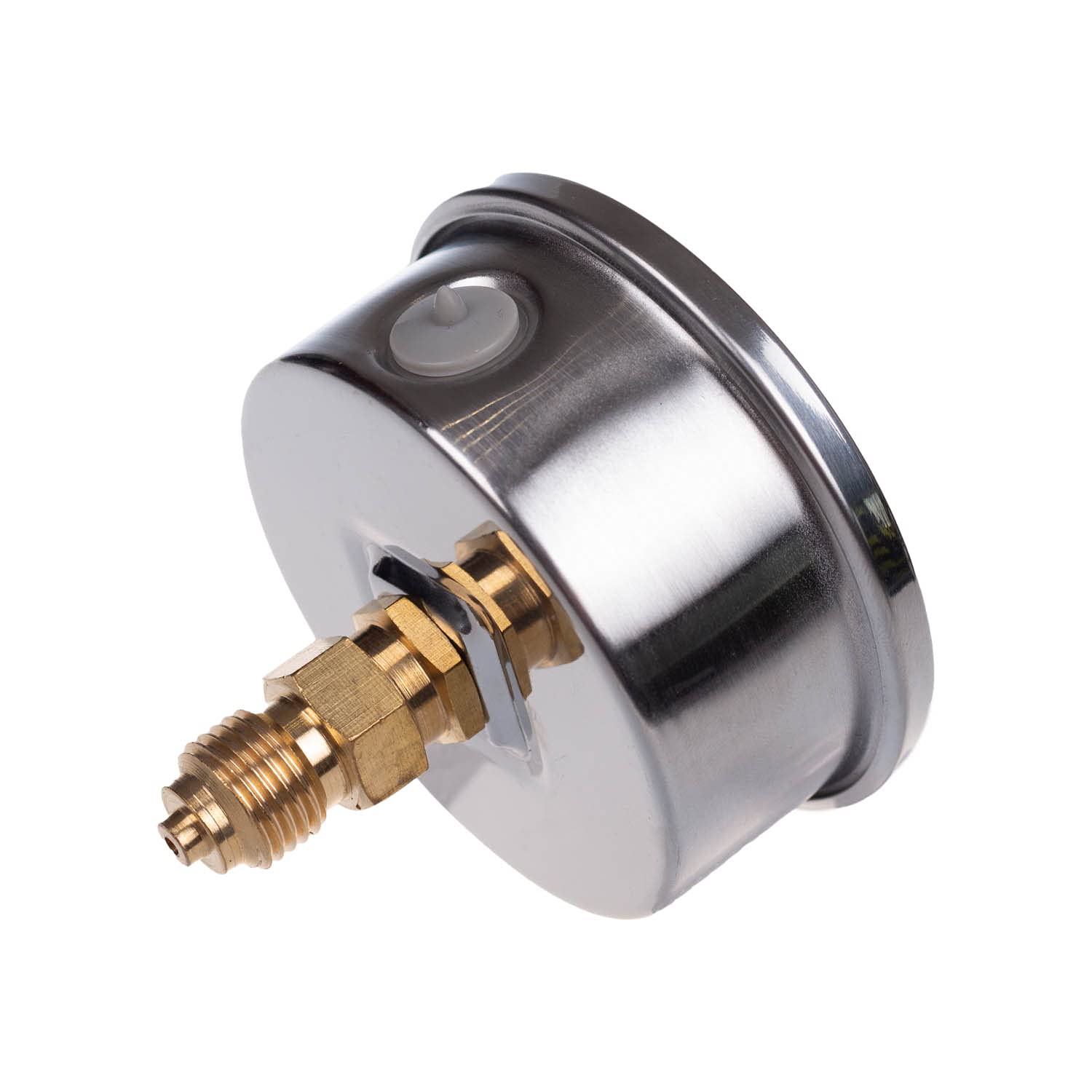

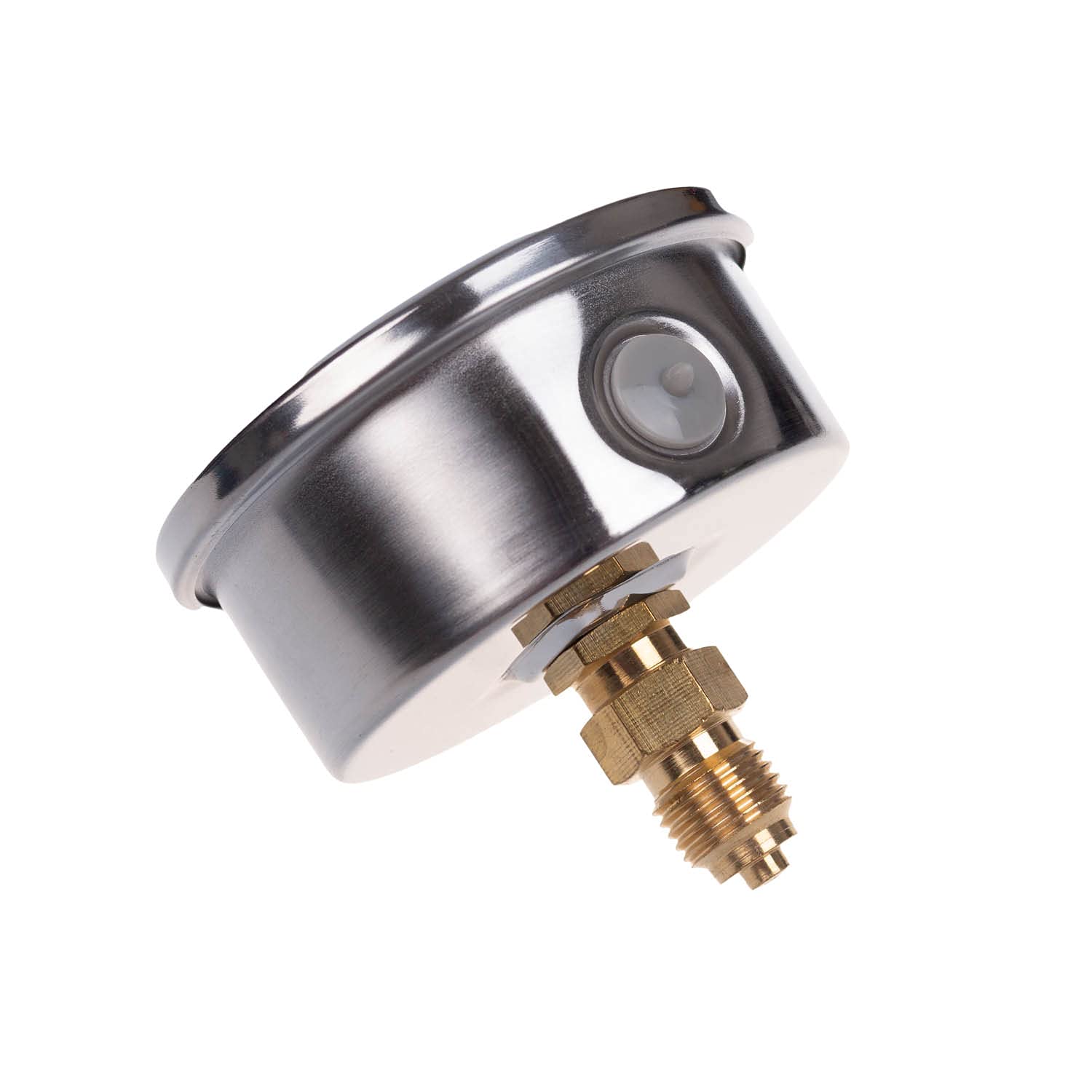

THERMIS Pressure Gauge 358G 1/4 Connection from back 0-25 bar / 350 psi, Shock resistant

• Display range: 0-25 bar/0-350 psi; Accuracy class: 1.6%; Bayonet case / encased stainless steel 17 240/1.4301

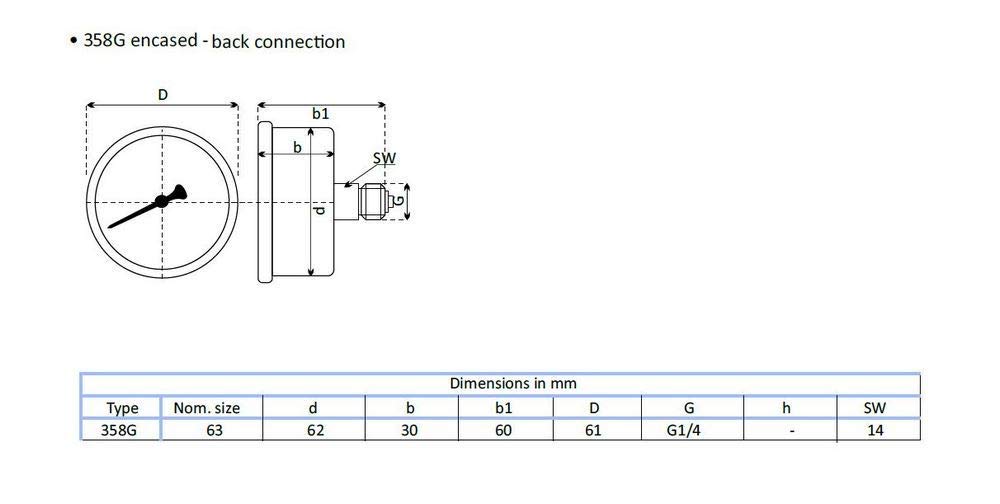

• Back Connection; Connecting thread: G1 / 4 (M12x1,5, NPT)
• Diameter: 63 mm; Material: Robust stainless steel housing; Safety glass inspection hole, acrylate; Measure mechanism CuZn and copper alloys;
• Double scale: Bar, PSI; Filled with glycerine; Resists vibration, shocks and pressure surges.
• DESIGN: pressure gauge, pressure-vacuum indicator, vacuum indicator; According to the applicable standard for pressure gauges in EU countries: EN837-1, CE Declaration of Conformity with European Union Legislation.

DESCRIPTION: bayonet case / encased stainless steel 17 240/1.4301; safety glass inspection hole, acrylate; connection 358G (back) CuZn and copper alloys; measure mechanism CuZn and copper alloys; APPLICATION: heating industry; air-conditioning; hydraulics; mechanical engineering; petrochemical industry; SPECIFICATION: Shock resistant pressure gauges 358G are produced according to standard EN837-1. Mainly used for simple pressure measurement of liquids, vapour and gases, that do not have a corrosive effect on copper alloys and its viscosity allows for measuring using bourdon pen mechanism. Shock resistant pressure gauges with water-tight case are designed into harsh conditions, where the pressure gauge is exposed to vibration, humidity and other complicating conditions. Resists vibration, shocks and pressure surges for which purpose they are equipped with pressure shock absorbers. Supplied with encased design or bayonet case. Environment temperature -40 up to 60°C, medium temperature Tmax 60°C. Other design options on request special scale design, connection threads, max. pressure needle, etc.
