Theben 1010506

• Ensure precise, motion-dependent lighting control outdoors with the theLuxa S180 BK motion sensor with infrared sensor (PIR), 180° detection range and a range of up to 12 metres

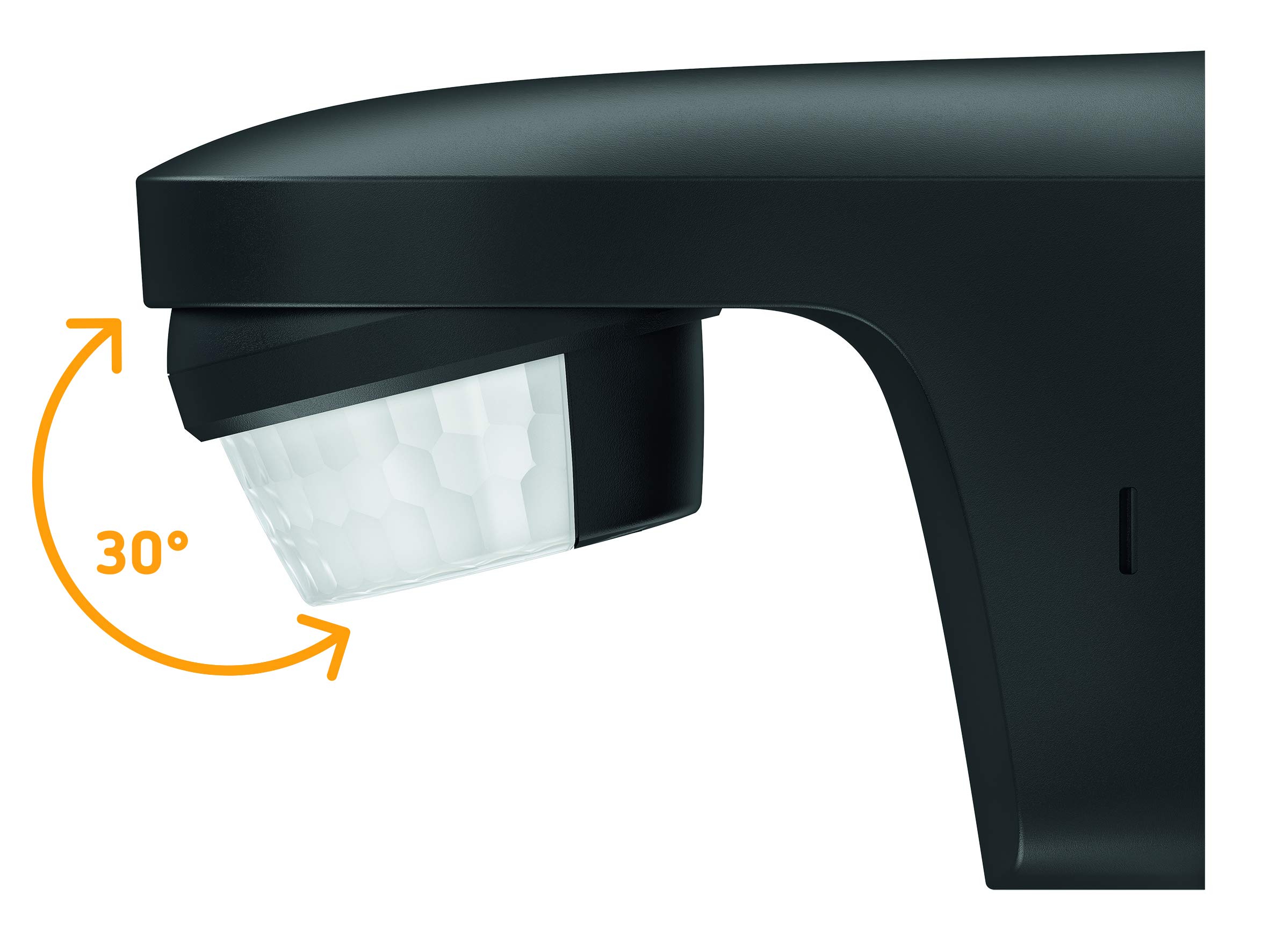

• Adjust the detection range individually: the horizontally rotatable 90° and tiltable 30° downward sensor head make it very easy
• Benefit from mixed light measurement to control LEDs, fluorescence and halogen lamps
• Use the practical pulse function of the motion sensor to quickly integrate the motion sensor into electrical installations with stair light timer switches or KNX. And thanks to zero passage circuit, extend the life of the relays even at high lamp loads such as B. LED lights
• Thanks to protection class IP 55, you can ensure the reliable function of the motion sensor outdoors, e.g. for controlling outdoor lights, spotlights, entrance lights, garden lamps and door lighting and much more.

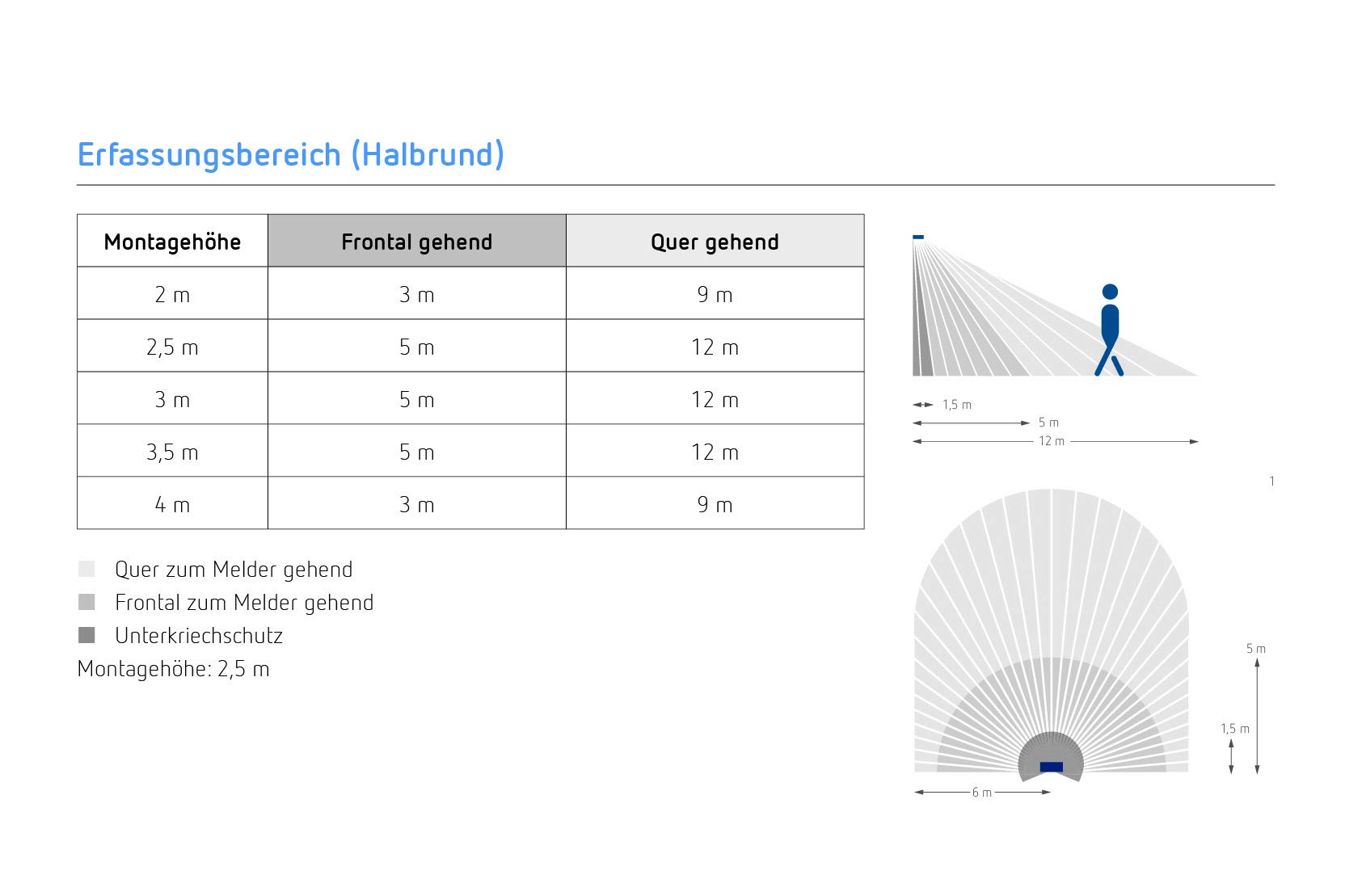

Motion sensor for wall mounting, rotating and swivelling sensor head, additional creep protection, indoor or outdoor installation, zero passage circuit, automatic switching brightness and motion-dependent, teach-in function, mixed light measurement, includes screws and dowels. Design is motion sensor. Sensor type is passive infrared. With DALI interface: no. Constant light control: no. HVAC control: no. Forced switching: no. Forced switch-off: no. Animal cut: no. Creep protection/backfield monitoring: yes. Networkable: no. Scan angle is 180°. Optimal mounting height is 2.5 m. Stair monitoring is no. Bypass switch: no. Max. Range to one side is 6 m. Max. Front range is 12 m. Detection field diameter on floor is 12 m. Suitable for wireless transmission: no. Remote control: no. With remote control: no. Adjustable response sensitivity: no. Adjustable response brightness: yes. With
