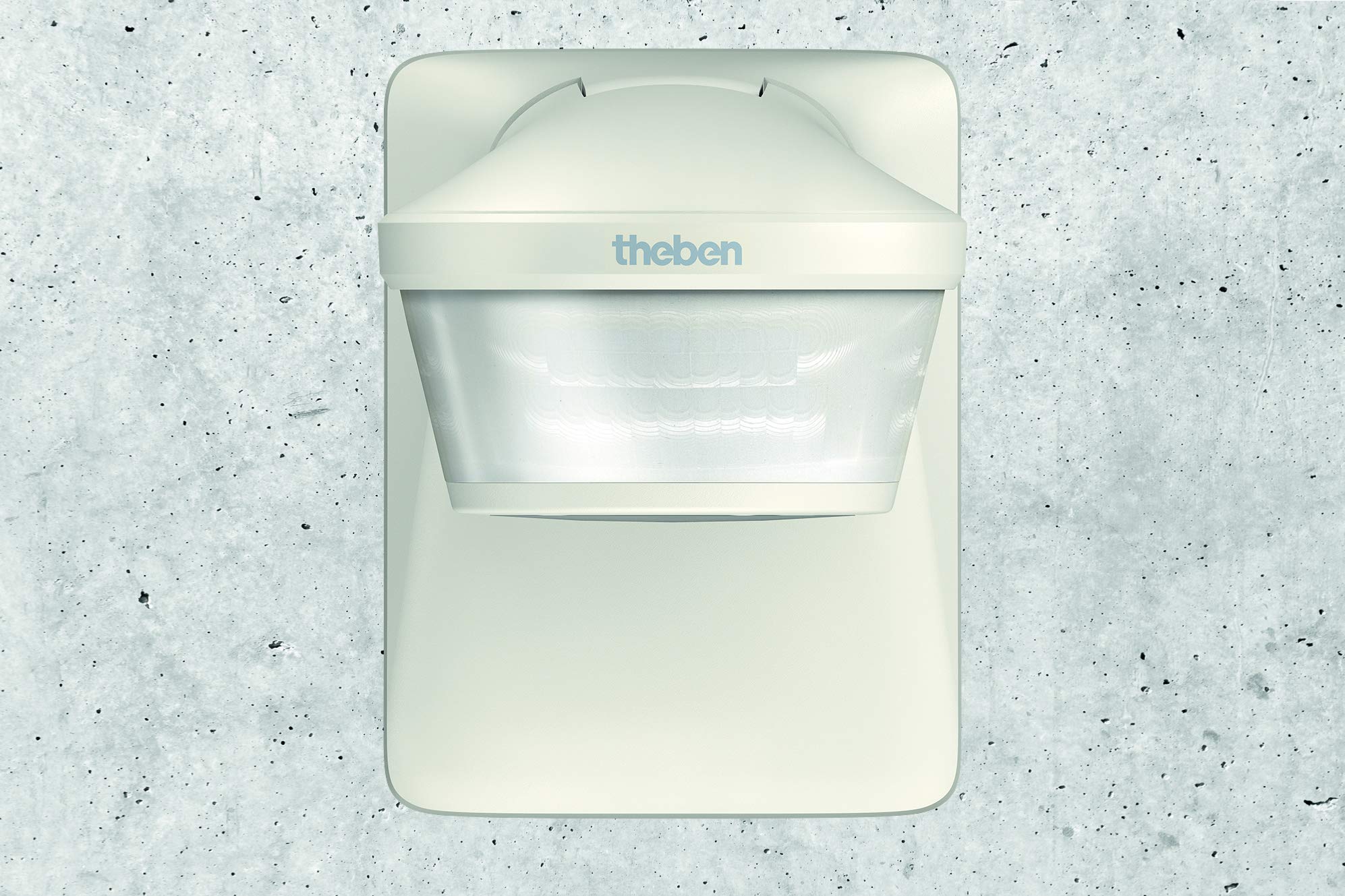

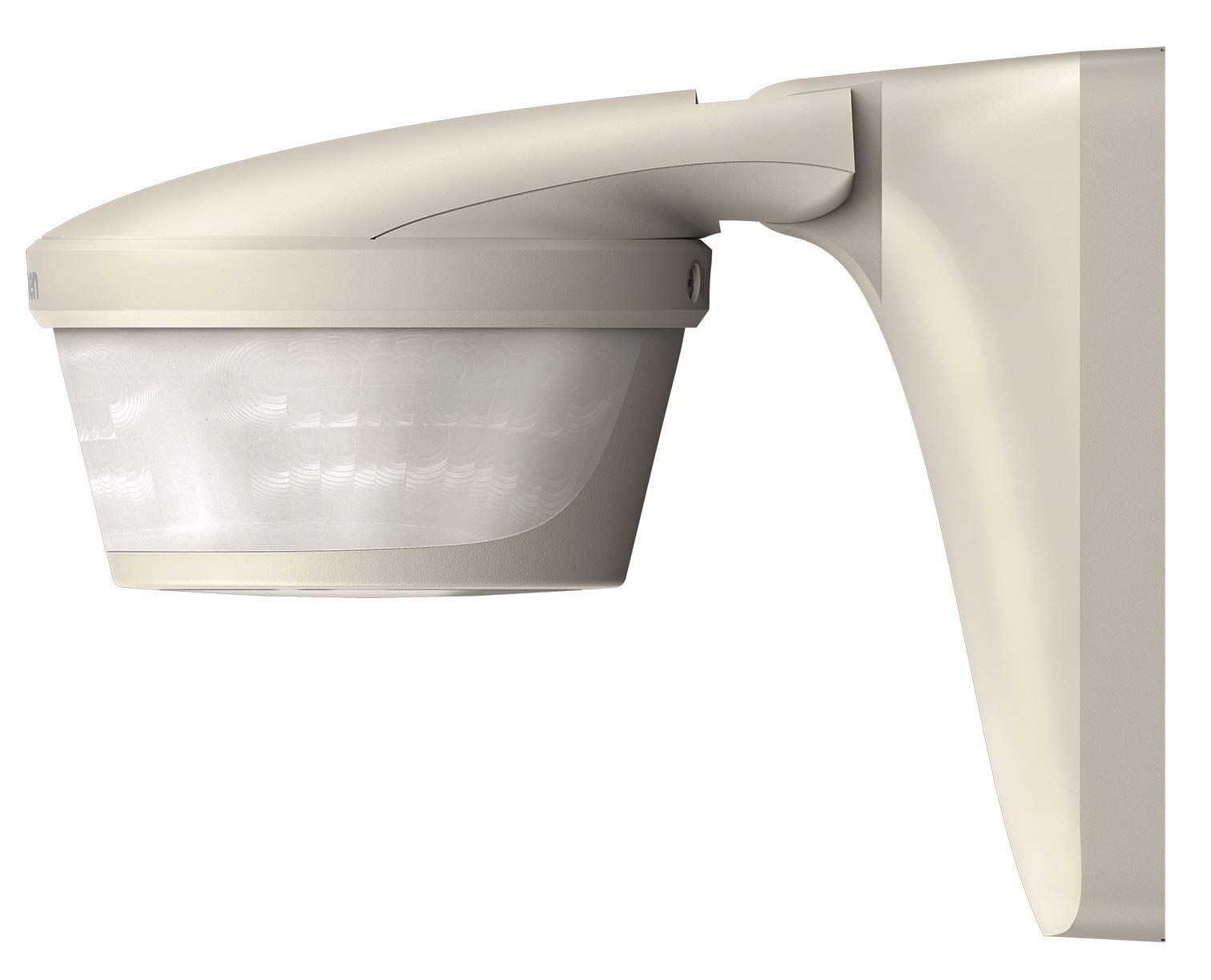

Theben Luxa P220 WH Motion Detector for Wall or Ceiling Mount, Light Control and 220 Degree Maximum 16 White (1010605

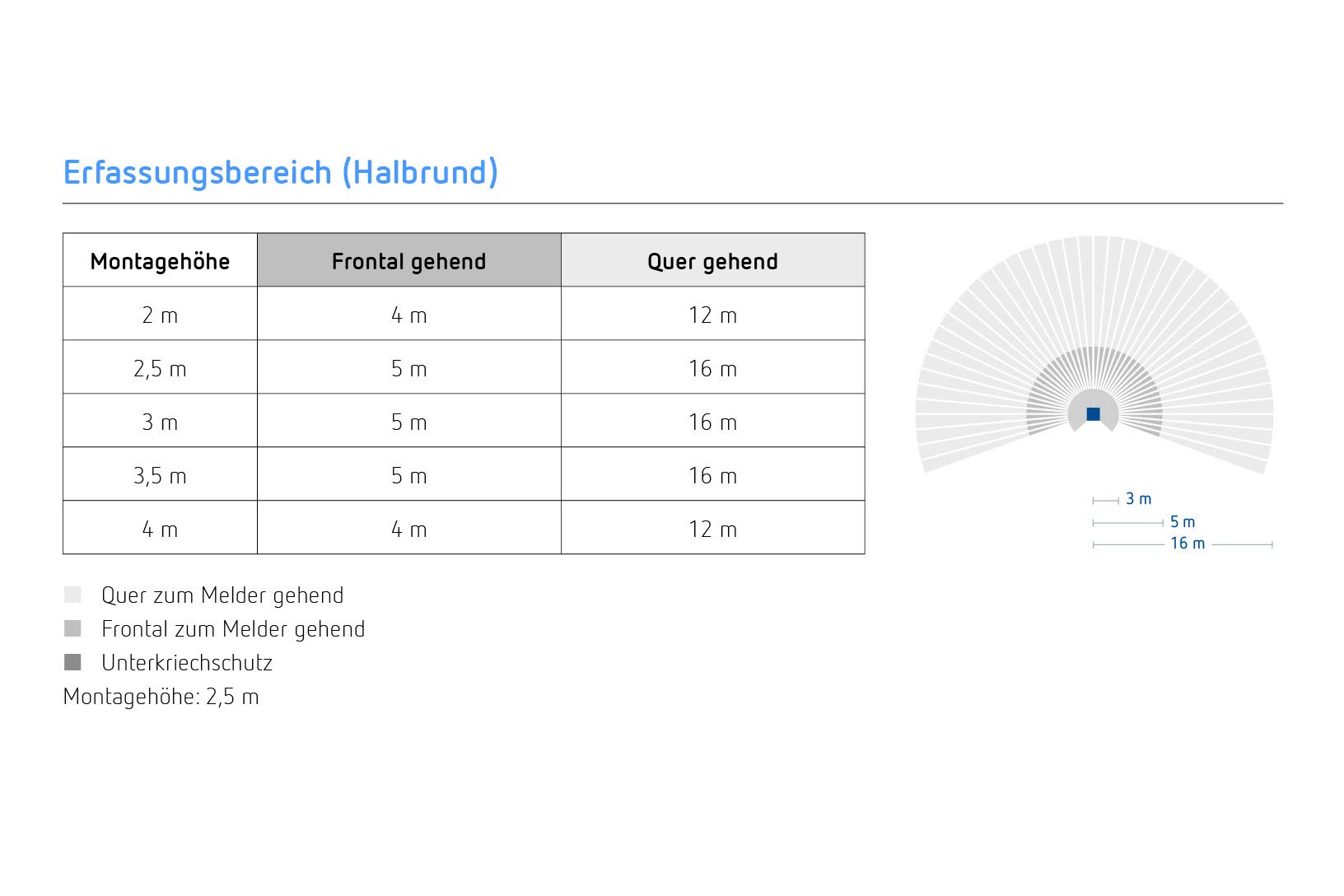

• Ensure precise, motion-dependent lighting control outdoors with the theLuxa P220 WH motion sensor with infrared sensor (PIR) with 220° detection range and a range of up to 16 metres
• Accelerate mounting on the wall or ceiling thanks to the comfortable one-handed plug-in base. Mounting on flush-mounted box (60 mm) is also possible without any problems

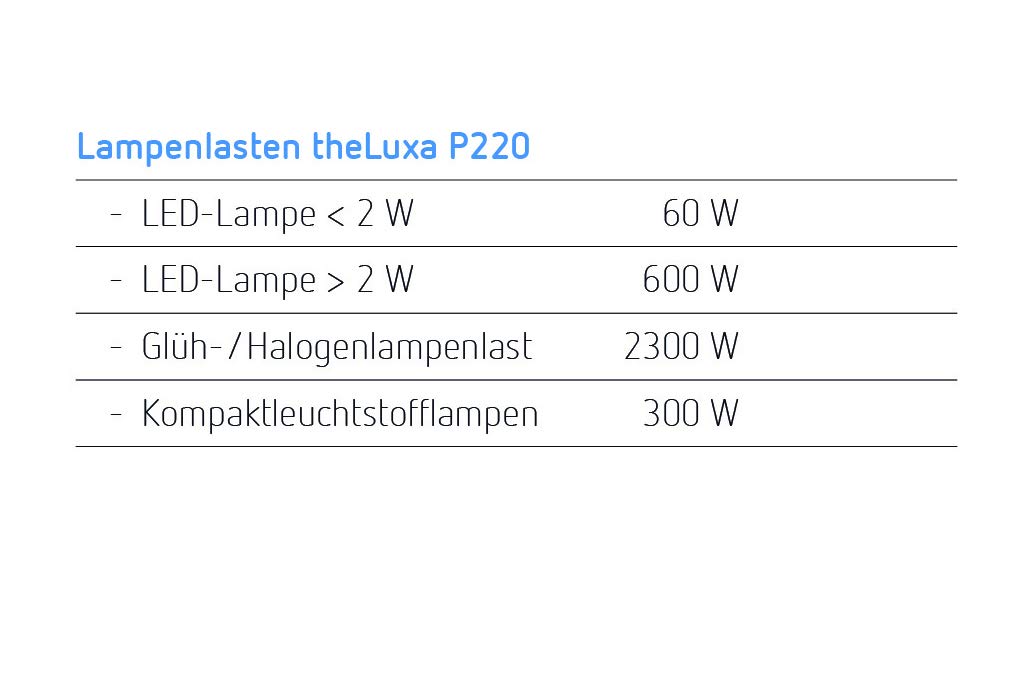

• Benefit from mixed light measurement to control LEDs, fluorescence and halogen lamps
• Enjoy many convenience functions such as the teach-in function (easy adjustment of the switch-on brightness directly on the device), the pulse function (quick integration of the motion sensor into electrical installations with stair light timer switches or KNX) and the test function (immediately check the detection area after assembly)
• Use the theLuxa P220 WH motion sensor flexibly, e.g. for larger, commercial objects outdoors such as administration buildings, hotels, schools, underground garages and warehouses

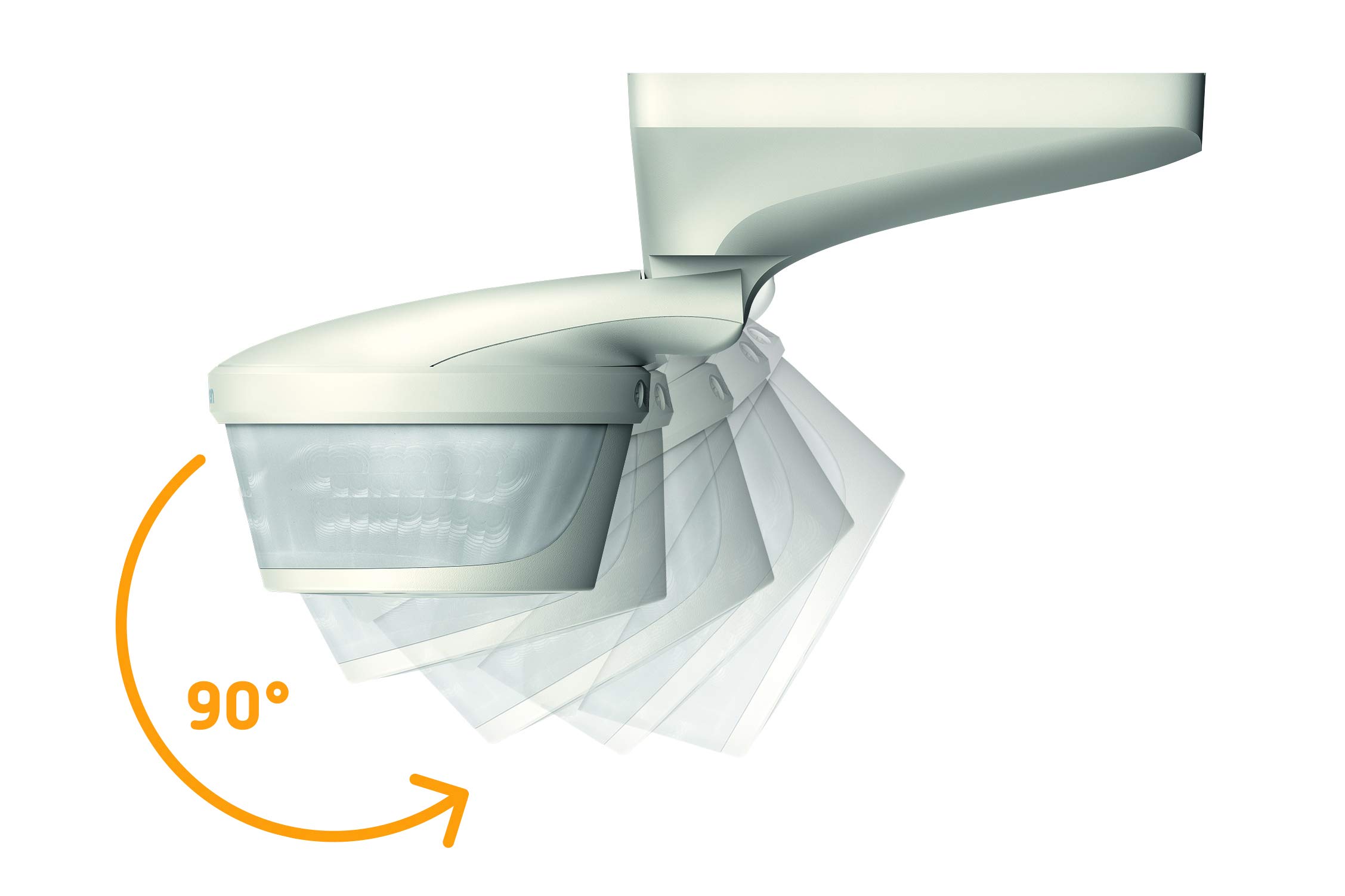

Motion sensor for wall or ceiling mounting, rotating and swivelling sensor head, additional anti-creep protection, indoor or outdoor mounting, sensitivity reduced, remote control, automatic switching brightness and motion dependent, teach-in function, mixed light measurement, including spacers, screws and dowels. Features: design: motion sensor, sensor type: passive infrared. With DALI interface: no. Constant light control: no. A * HLKANANA Control: no. Forced shutdown: no. Animal track: no. Undercreep protection/backfield monitoring: yes. Networkable: no. Optimal mounting height: 2.5 m. Staircase monitoring: no. Bridge switch: no. Max. Range to one side: 16 m. Max. Front range: 16 m * Detection field diameter on floor: 32 m * Suitable for wireless transmission: No * Remote control: Yes * With remote control: No * Response sensitivity adjustable: Yes * Response brightness adjustable: Yes * With signal unit: No * Teach function for response brightness: Yes * Dimming function with dimming insert: No * Mounting type: Surface-mounted * Material: Plastic * Material quality: Thermoplahalogen-free: no, surface: untreated, finish of surface: matt, colour: white, RAL number (similar): 9010, transparent: no, protection class (IP): IP55, voltage: AC, rated voltage: 230 V, min. Duty cycle: 1 s * Max. Duty cycle: 20 min * Switch-off delay: 1200 s * Detection angle horizontal: 0..220° * Swivel range sensor, horizontal: 0..180° * Swivel range sensor, vertical: 0..135° * Response brightness: 5..1000 lx * Max. Switching capacity: 2300 W. Suitable for C load: no. Temperature: -25 to 45 °C. Max. Inrush current: 10 A * Extension input: No * Frequency: 50..50 Hz * Alarm function: No * Width: 97 mm * Height: 127 mm * Depth: 161 mm * Suitable for: universal * Colour variant: white
