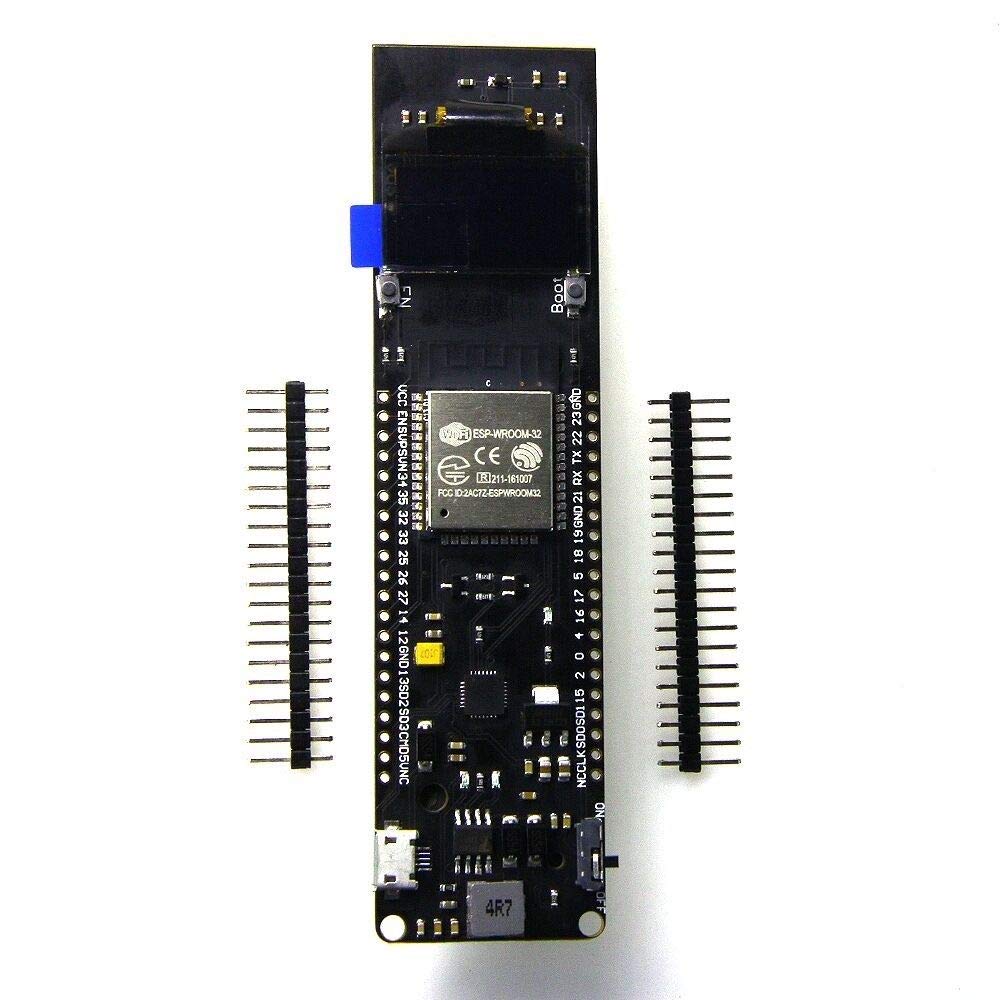

Wifi Bluetooth Batería ESP32 ESP-32 herramienta de desarrollo OLED de 0.96 pulgadas WEMS TTGO

• 【ESP32OLEDBAT】 ESP32 is already integrated antenna and RF balun, power amplifier, low-noise amplifiers, filters, and power management module. The entire solution takes up the least amount of printed circuit board area.
• 【Design compact】 This board is used with 2.4 GHz dual-mode Wi-Fi and Bluetooth chips by TSMC 40nm low power technology, power and RF properties best, which is safe, reliable, and scalable to a variety of applications.

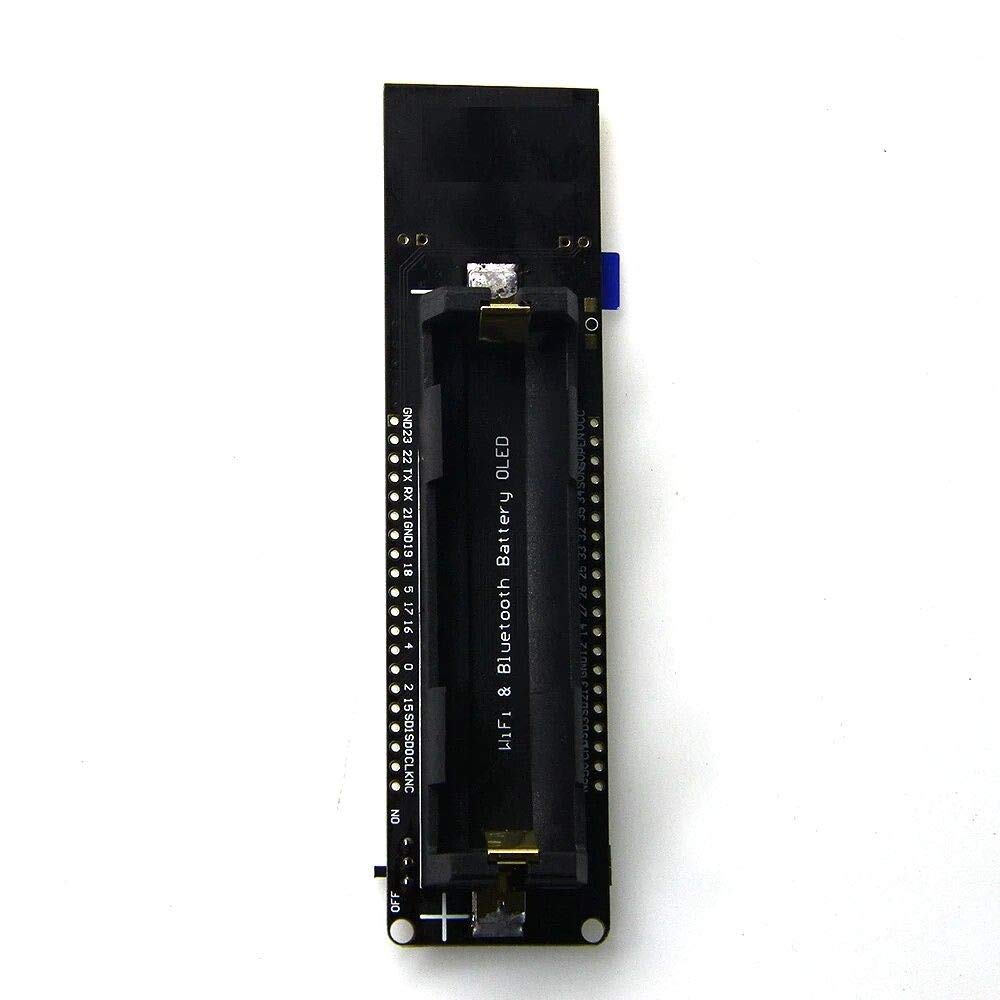

• 【Description】 When you do some ESP32 projects you must add a power bank to provide the power. This tiny board could solve such problems. A LG 3000mAH 18650 battery (NOT include) could make ESP32 run 17 hours or more.
• 【High performance】 0.96 inch OLED display integrated; 18650 charging system integrated; Small volume, easily embeded to other products; Strong function with support LWIP protocol, Freertos; Supporting three modes: AP, STA, and AP + STA; Supporting Lua program, easily to develop.

WiFi Bluetooth Battery ESP32 ESP-32 0.96 inch OLED Development Tool WEMS TTGO ESP32 is already integrated antenna and RF balun, power amplifier, low-noise amplifiers, filters, and power management module. The entire solution takes up the least amount of printed circuit board area. This board is used with 2.4 GHz dual-mode Wi-Fi and Bluetooth chips by TSMC 40nm low power technology, power and RF properties best, which is safe, reliable, and scalable to a variety of applications. When you do some ESP32 projects you must add a power bank to provide the power. This tiny board could solve such problems. A LG 3000mAH 18650 battery (NOT include) could make ESP32 run 17 hours or more. Features: 0.96 inch OLED display integrated 18650 charging system integrated Indicate LED inside(Green means full& Red means charging) Charging and working could be at the same time. 1 Switch could control the power. 1 extra LED could be programmed(Connected with GPIO16[D0]) 0.5A charging current 1A output Over charge protection Over discharge protection Full ESP32 pins break out High performance-price ratio Small volume, easily embeded to other products Strong function with support LWIP protocol, Freertos Supporting three modes: AP, STA, and AP+STA Supporting Lua program, easily to develop Useful links: ESP 32 Wiki: https://en.wikipedia.org/wiki/ESP32 PACKET CONTAINS: 1pcs x ESP32 OLED Battery Development Tool (with Pinhead)
