TECNOIOT 5pcs ADS1115 Module ADC Module 16Bit I2C 4-Channel ADS 1115 | 5pcs Module Ads1115 16 Bits ADC I2c 4 Channels With Gain Amplifier

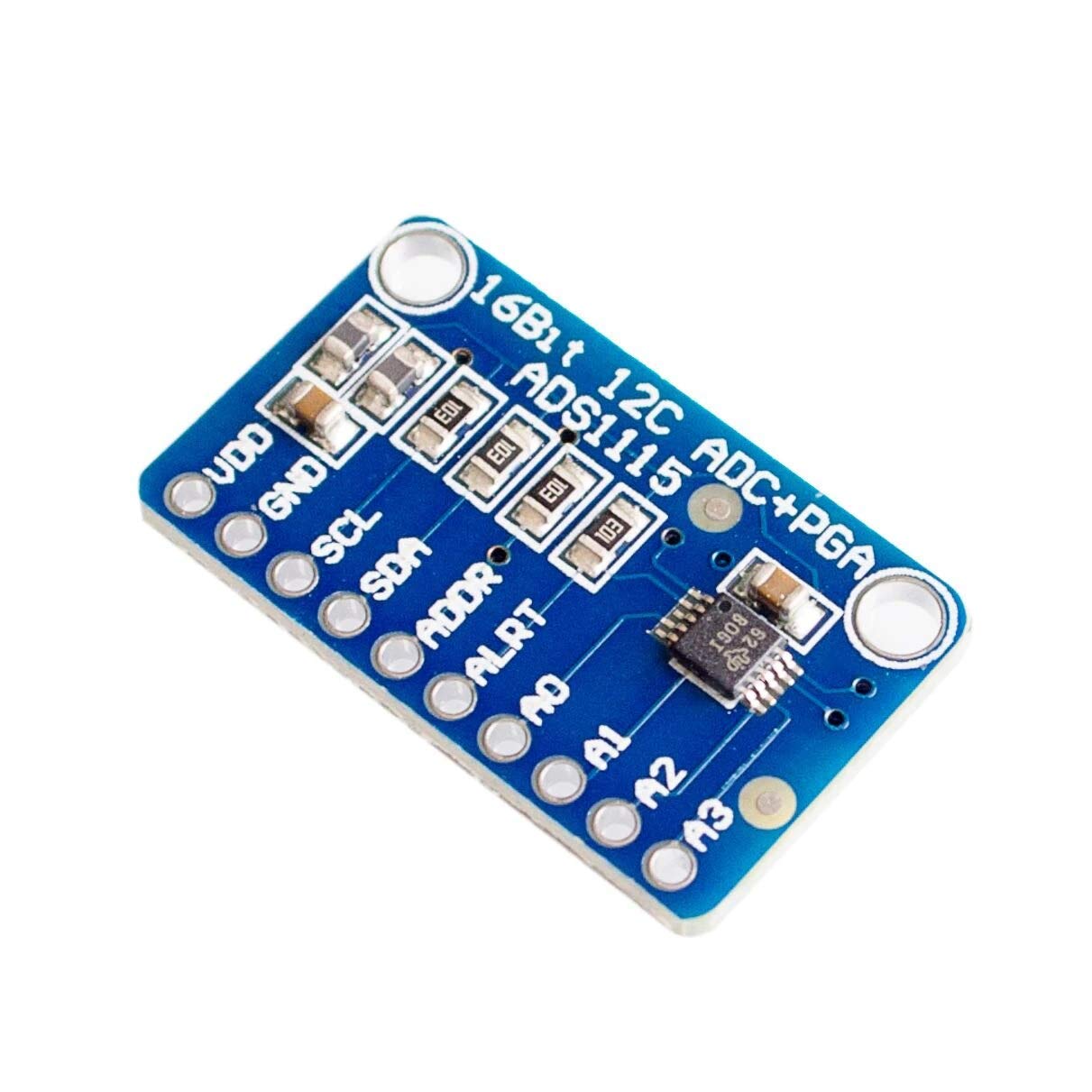

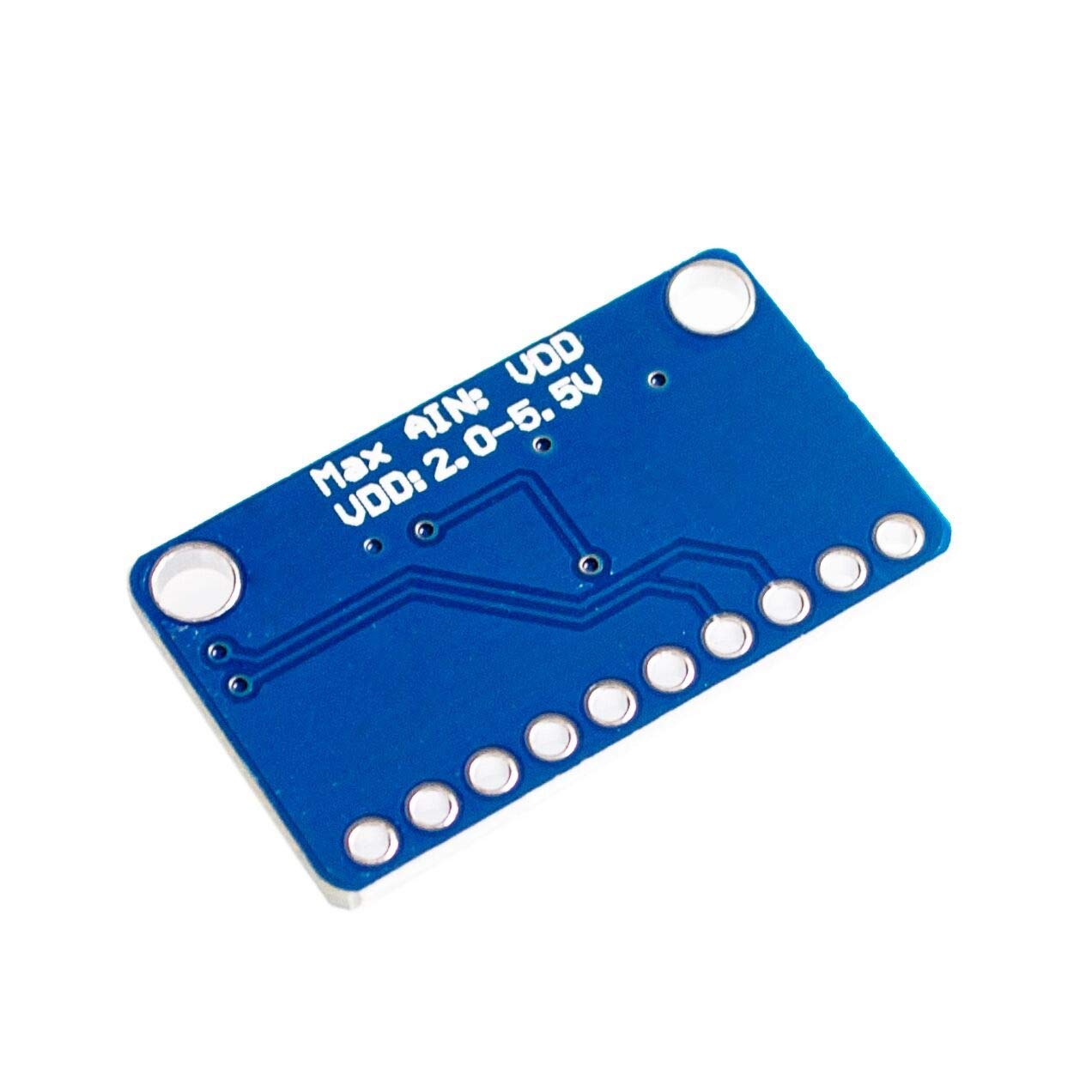

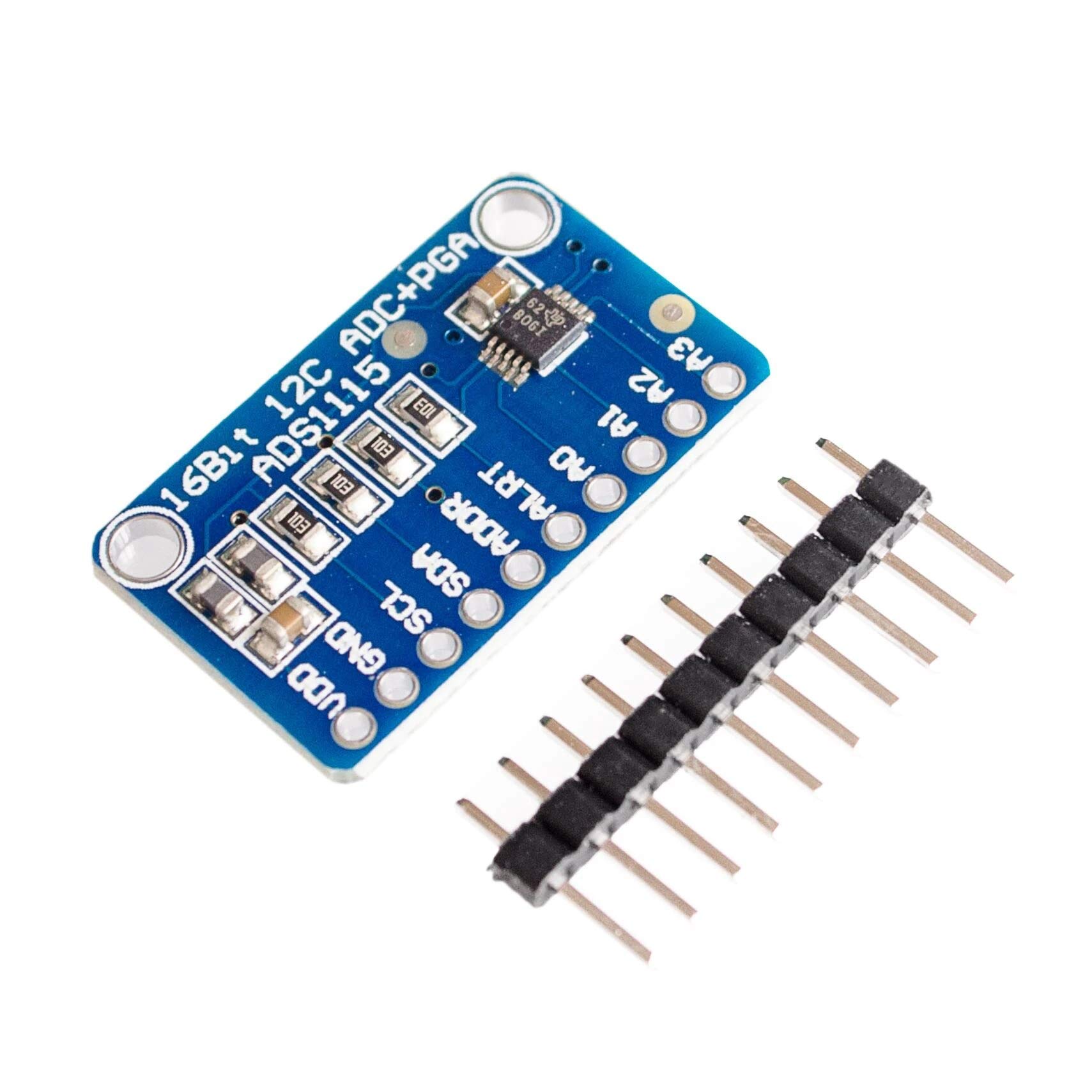

x5pcs ADS1115 Module ADC Module 16Bit I2C 4-Channel with Pro Gain Amplifier DESCRIPTION: Chip: TI ADS1115 The ADC bit rate: 16 Interface type: I2C Channel: 4-way AN0 AN1 AN2 AN3 differential input or 2 road The input voltage: 2.0 to 5.5 v Channel 0 to VDD input voltage Features 1, low current consumption, minimum 150 ua 2, the sampling rate of 8-860 SPS SPS 3, internal wave voltage benchmark in low temperature 4, internal programmable gain amplifier 5, the internal oscillator 6, programming control, input range, 7 kinds of optional input range: 0.256 V ~ + 0.256 V, 0.256 V ~ + 0.512 V, 0.512 V ~ + 1.024 V, 1.024 V ~ + 2.048 V, 2.048 V ~ ~ + + 4.096 V, 4.096 V to 6.144 V 7, the I2C 7 - bit addresses x4b x48 between 0-0 8, can provide the arduino routines and libraries 9, Size: 18 mm * 28 mm PACKAGE CONTAINS: 5pcs x ADS1115 Module ADC (as shown in th picture)
