Price
$55.44
Home/Business, Industry & Science/Industrial Electrical/Semiconductor Products/Signal Components/Signal Converters/Analog to Digital Converters

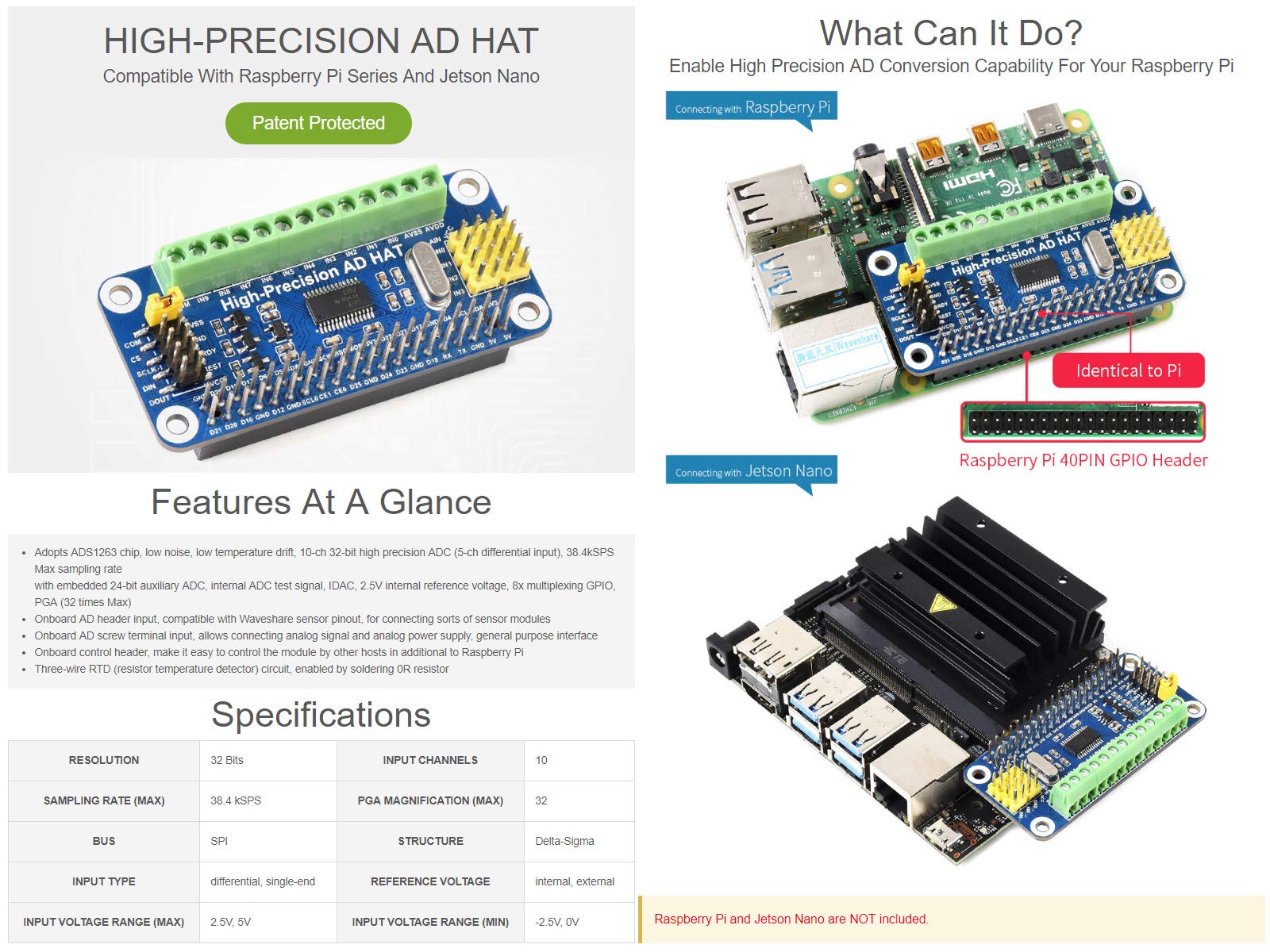

Waveshare High-Precision AD HAT For Raspberry Pi/Jetson Nano with ADS1263 Onboard 10-Ch 32-Bit Support ADC AD Input Headers for Analog Sensor Module and AD Input Screw Terminal for Analog Signal — image 1
Analog to Digital ConvertersWaveshare✓ In stock

Waveshare High-Precision AD HAT For Raspberry Pi/Jetson Nano with ADS1263 Onboard 10-Ch 32-Bit Support ADC AD Input Headers for Analog Sensor Module and AD Input Screw Terminal for Analog Signal

★★★★★
$55.44
Worldwide shipping
Fast tracked delivery
30-day returns
Hassle-free returns
Secure checkout
Safe & protected
Great service
Thousands of happy customers
About this item

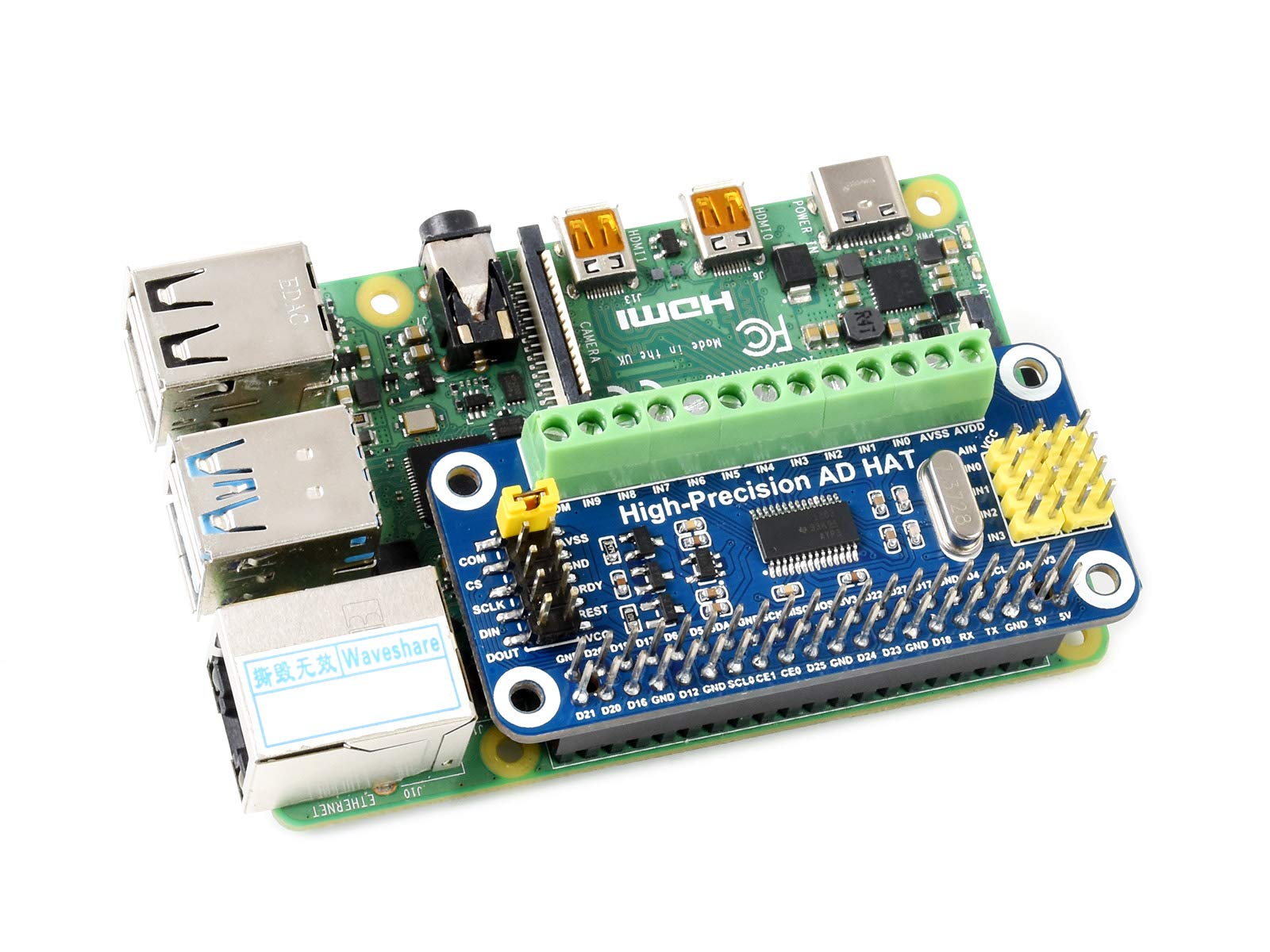

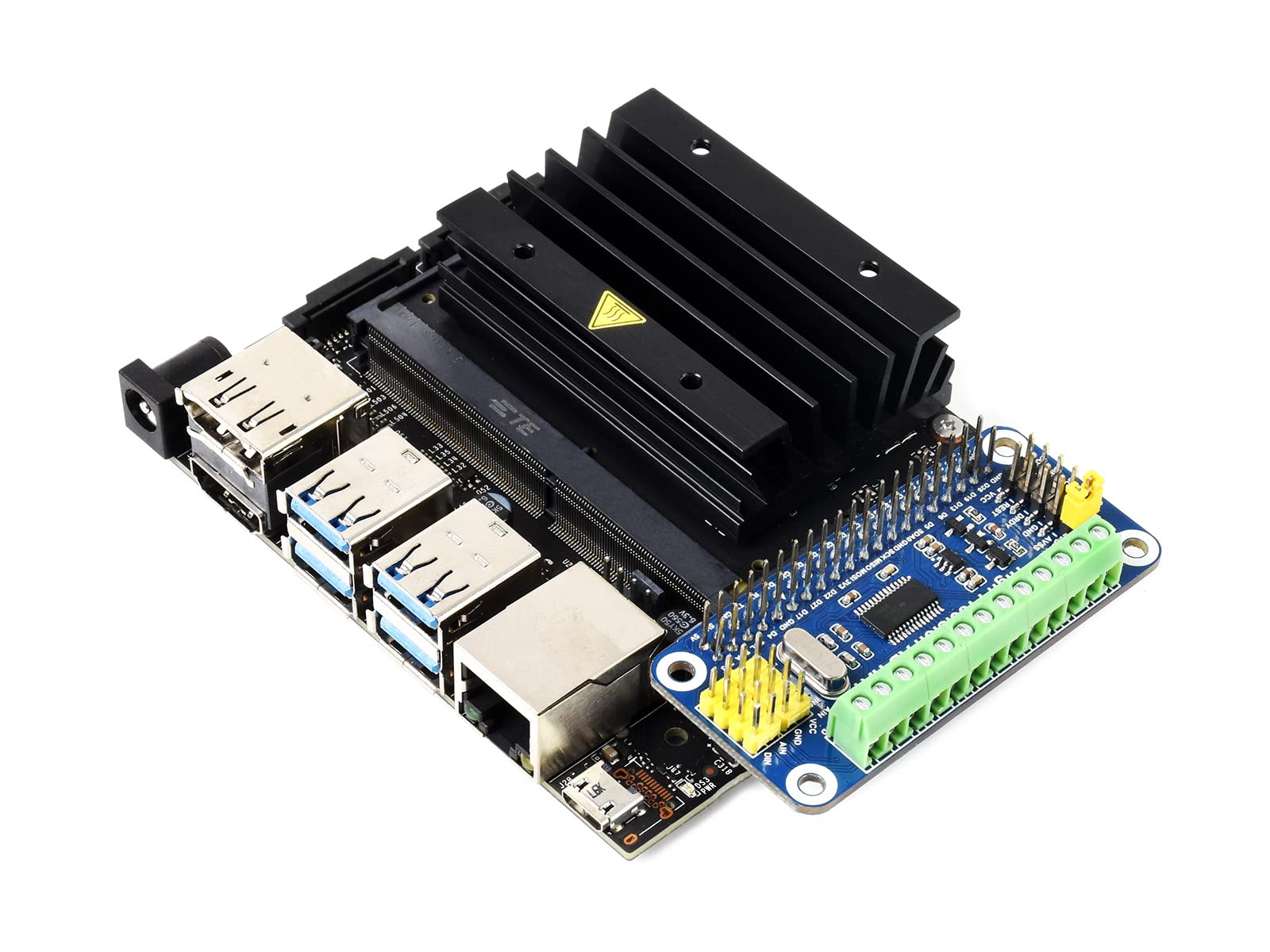

  • Compatible With Raspberry Pi Series And Jetson Nano

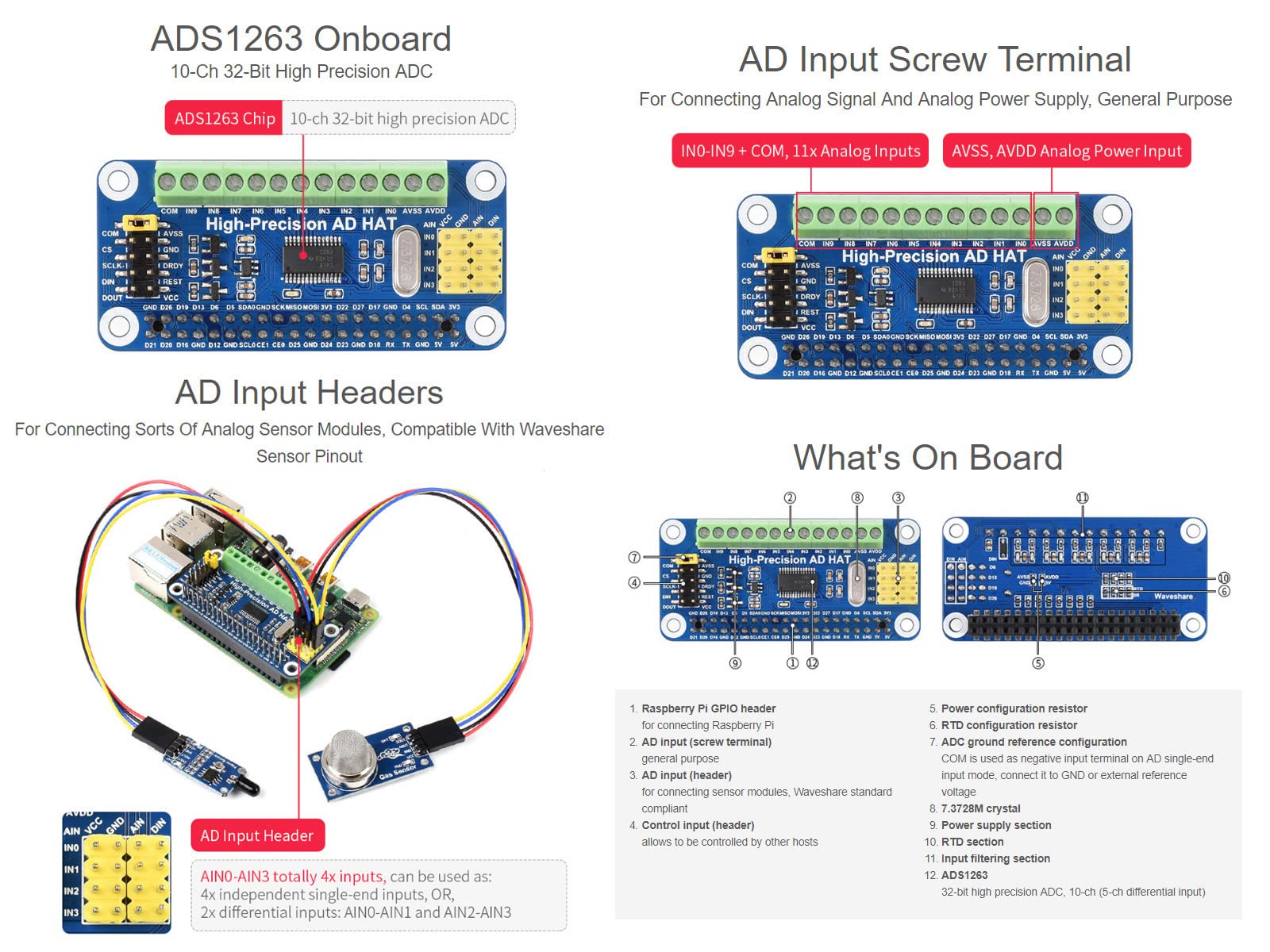

  • Adopts ADS1263 chip, low noise, low temperature drift, 10-ch 32-bit high precision ADC (5-ch differential input), 38.4kSPS Max sampling rate with embedded 24-bit auxiliary ADC, internal ADC test signal, IDAC, 2.5V internal reference voltage, 8x multiplexing GPIO, PGA (32 times Max)
  • Onboard AD header input, compatible with Waveshare sensor pinout, for connecting sorts of sensor modules
  • Onboard AD screw terminal input, allows connecting analog signal and analog power supply, general purpose interface
  • Onboard control header, make it easy to control the module by other hosts in additional to Raspberry Pi
  • Three-wire RTD (resistor temperature detector) circuit, enabled by soldering 0R resistor
Product details
Brand
Waveshare
Manufacturer
Waveshare
Colour
High-Precision AD HAT
