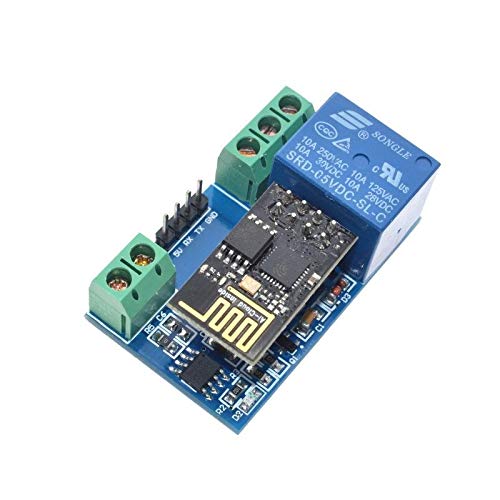

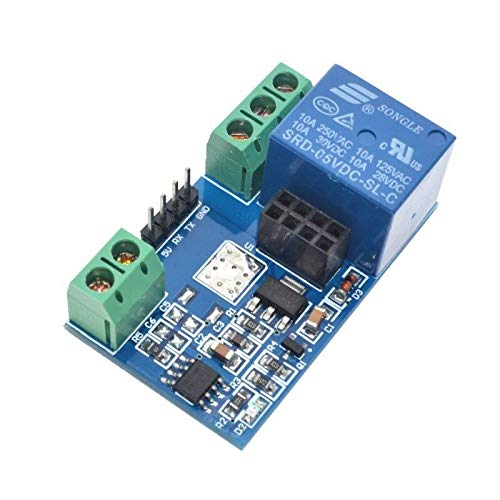

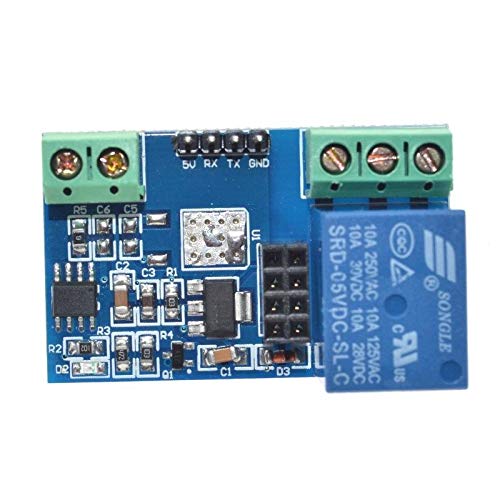

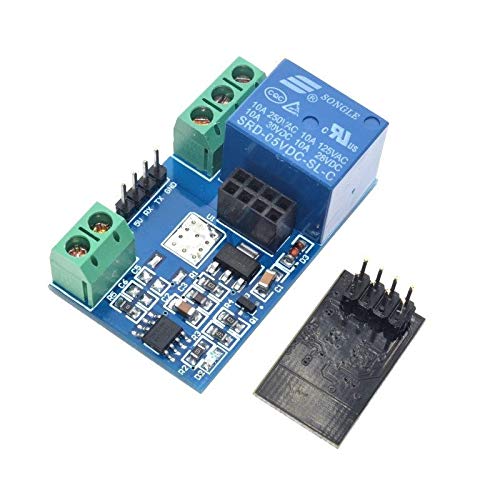

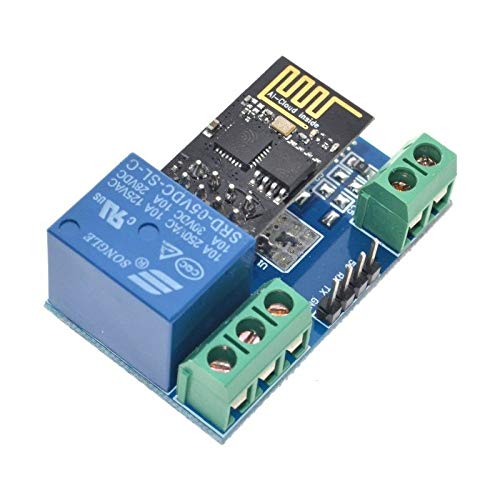

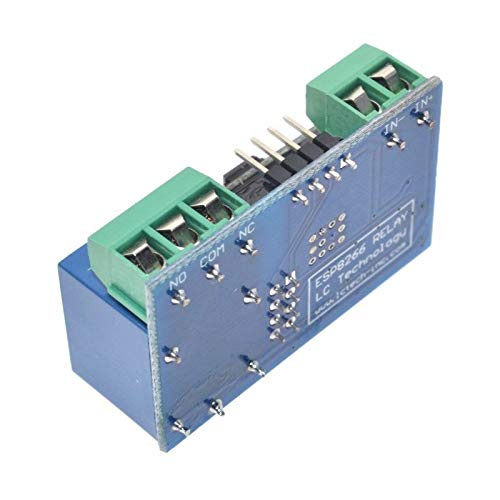

2pcs ESP8266 5V WiFi Relay Module Things Smart Home Remote Control Switch Phone APP

2pcs ESP8266 5V WiFi Relay Module Things Smart Home Remote Control Switch Phone APP Product size: 45 * 28mm Operating voltage: DC5V Communication: WIFI (ESP8266 module) Serial communication parameters: 9600,8,1,0,0 Transmission distance: the maximum transmission distance of 400m (open environment, mobile phone equipped with WIFI module) Load: 10A/250VAC 10A/30VDC, the relay pull 100,000 times Way of Working: Mobile phone equipped with WiFi module; Mobile phone and WiFI module equipped with the same router, through the mobile phone APP to control the relay; this mode, the transmission distance depends on the signal router. TIPS: ESP8266 module has a timeout mechanism, when the phone for some time (the default 180S) did not give instructions to the module, the module will kick off the phone, the computer can send AT + CIPSTO = to modify this time (Time range 0-7200), such as: AT + CIPSTO = 3600. When the module on the WIFI module is unplugged, USB to TTL module RX, TX, GND pins were connected to the module RX, TX, GND pin, IN +, IN- 5V power supply, then the module can be used as a USB Relays to use, scalability. Packet Contains: 2pcs x ESP8266 5V WiFi Relay Module
