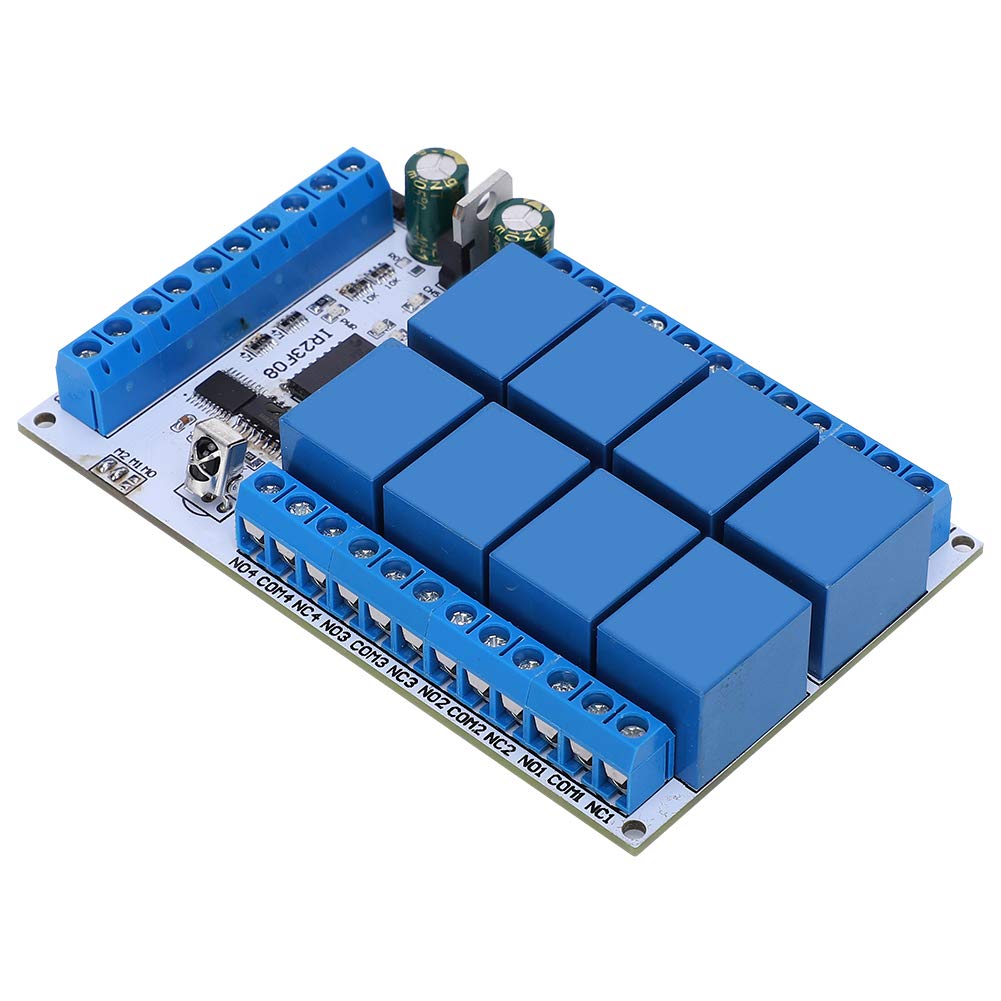

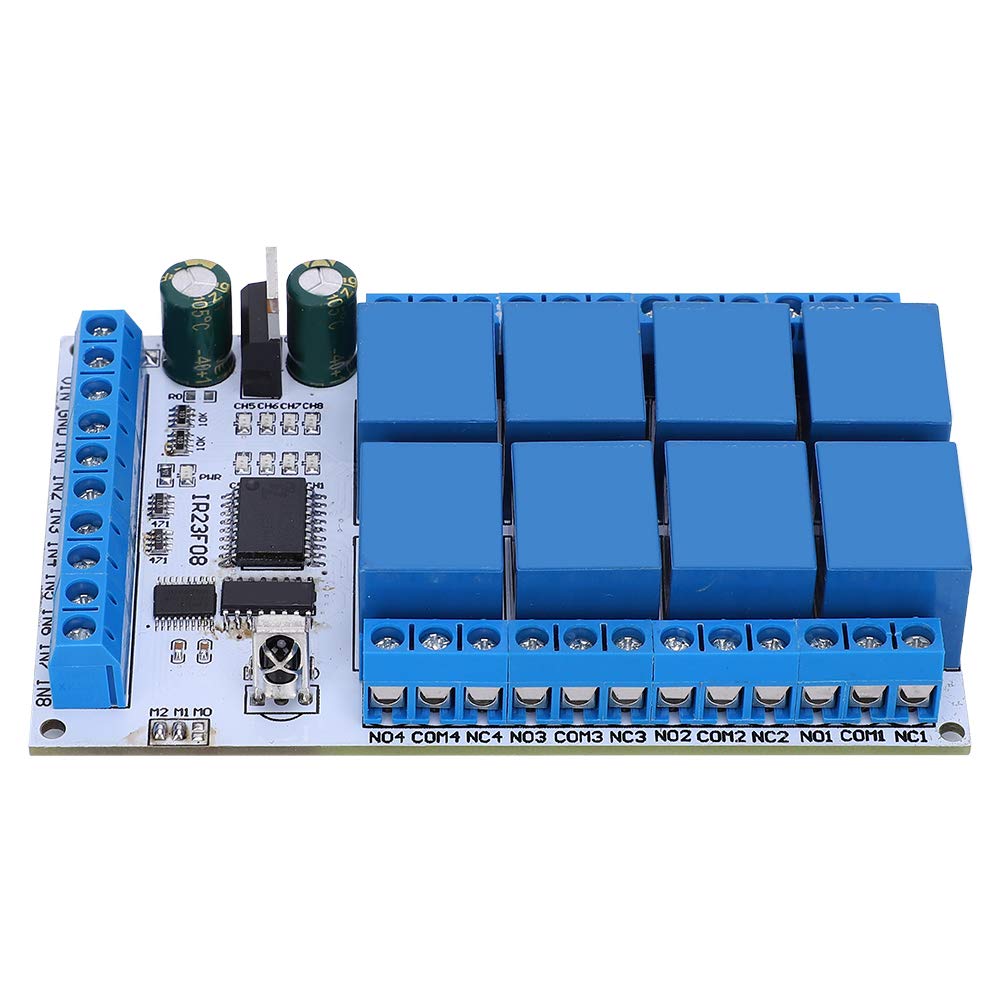

8 Channel Infrared Remote Control Switch Relay, Multi‑function Infrared Low Pulse Control Relay

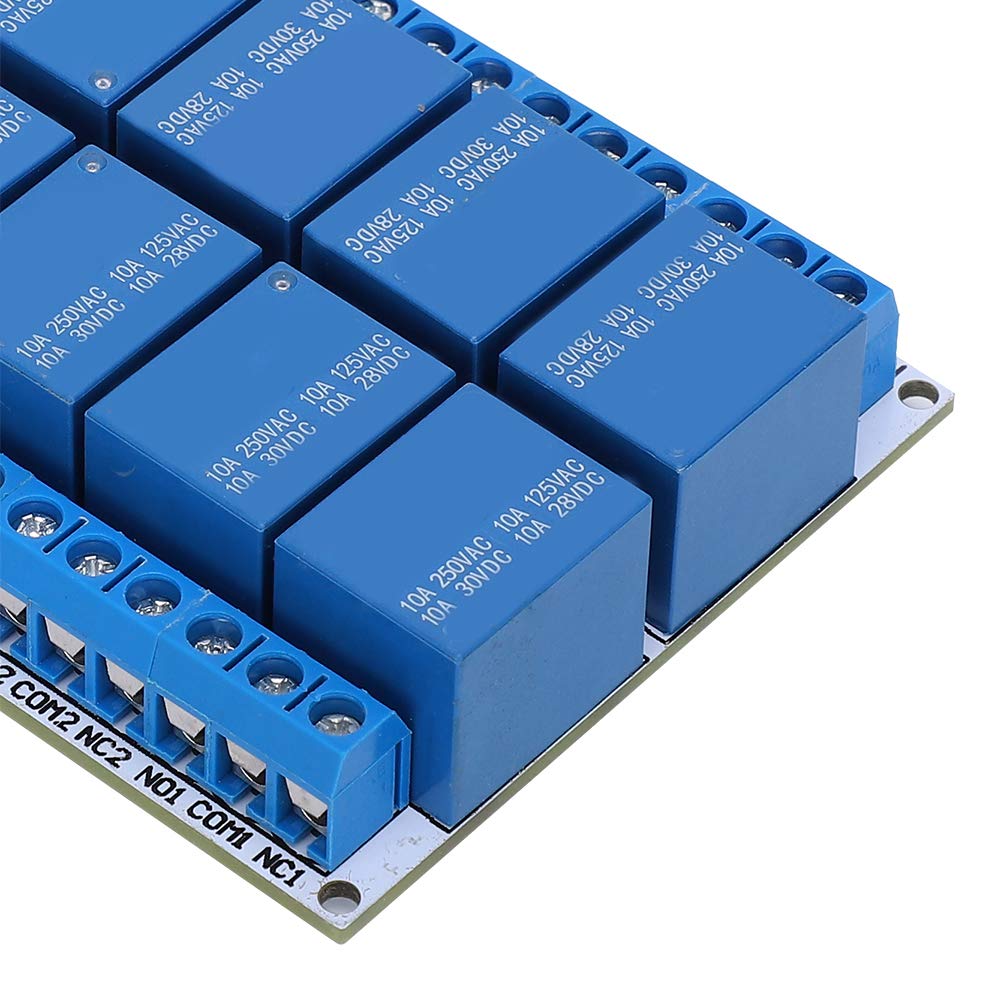

• Parameters Optional Voltage: 12V, Infrared Receiver: Vs1838 Or Ic Compatible , Infrared Codes: Codes, Maximum Relay Load: Dc 1 110V 5A Ac 85 265V 6A

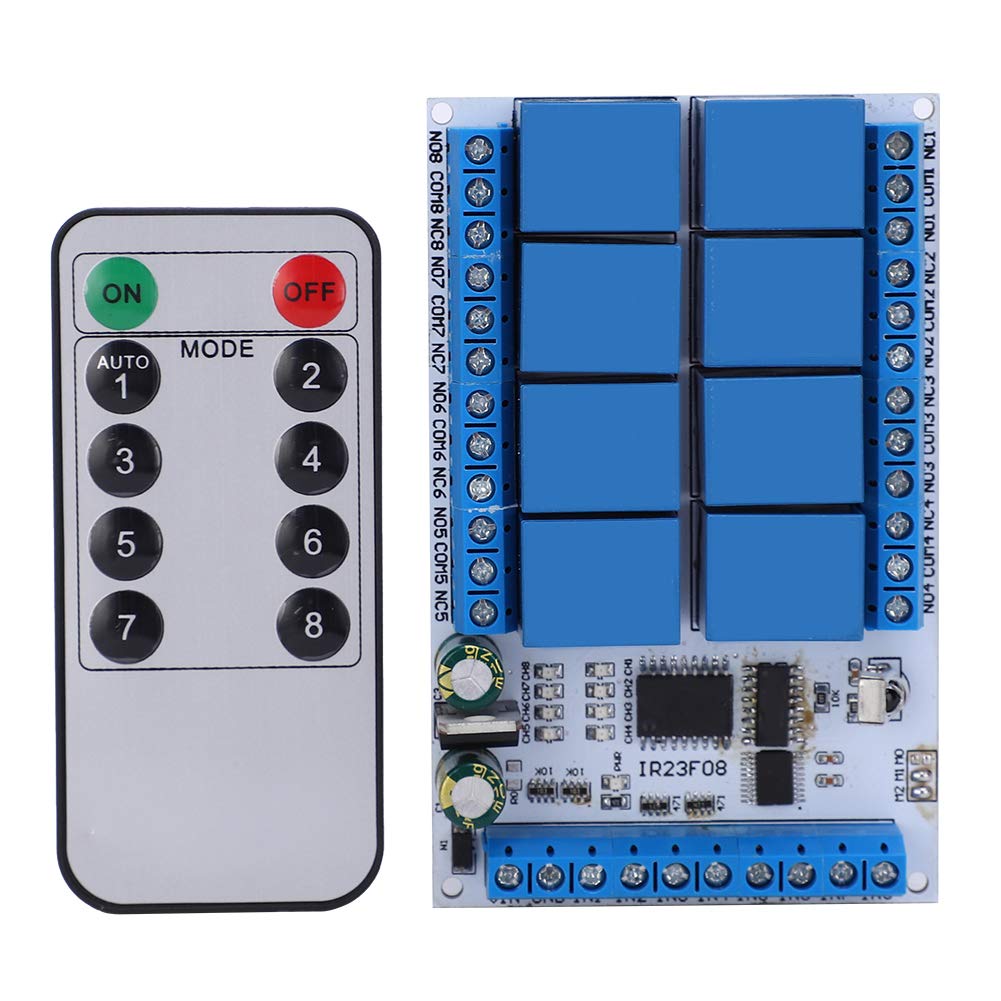

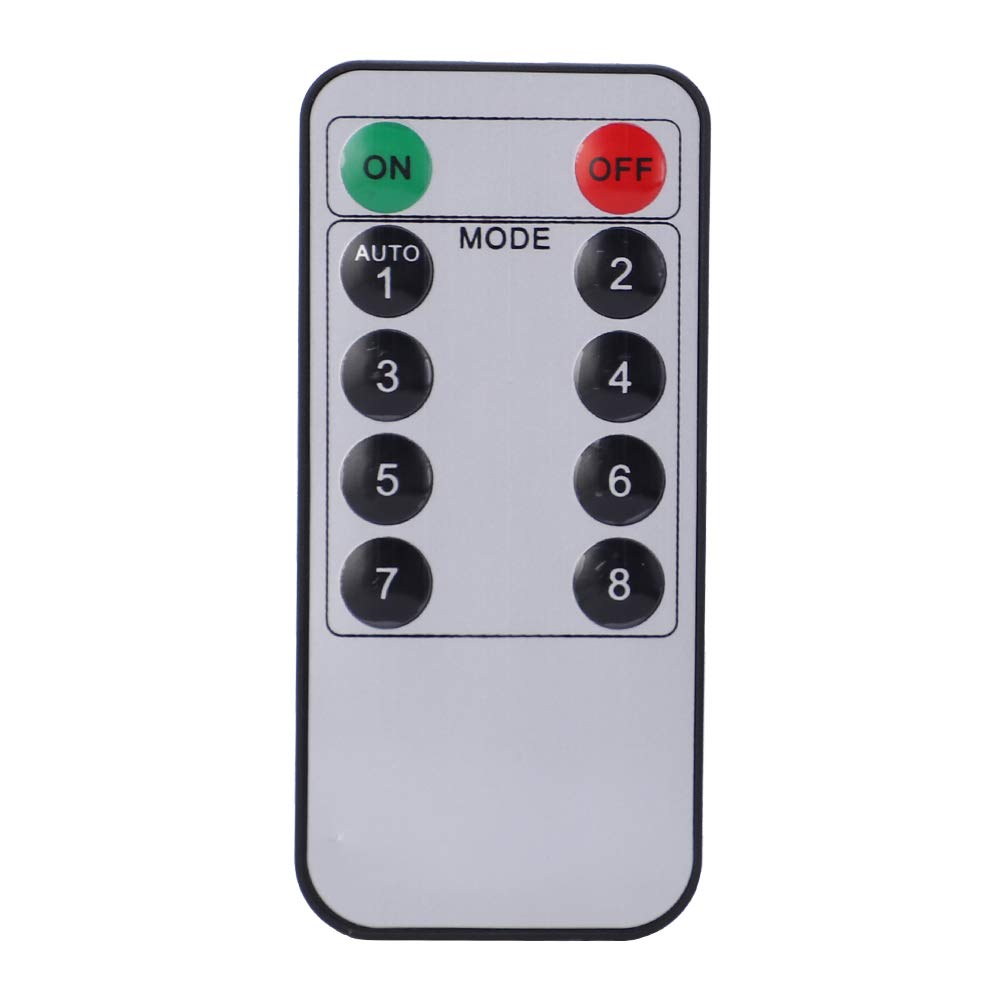

• 8 Channel Infrared Controller 8 Channel Multi Function Infrared Controller, Each Channel Triggers And Delays Independently, Does Not Interfere With Each Other With Remote Control Remote Control Distance Of 8 15 Meters Receiver Sensitive > 0 5Mw M2

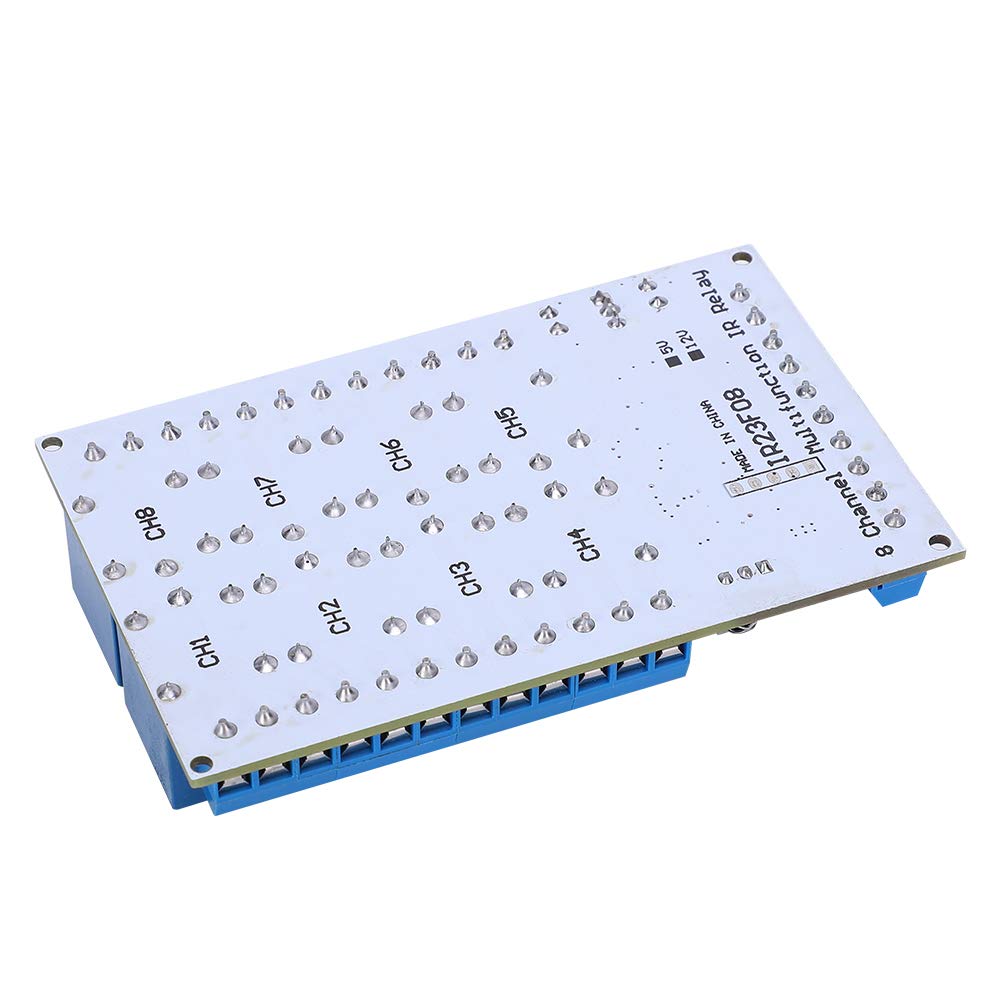

• 4 Function Modes 4 Function Modes: Inching, Delay 2 10 60 600 3600 Seconds , Self Locking, Latching The Function Mode Is Set By The Solder Pad On The Board

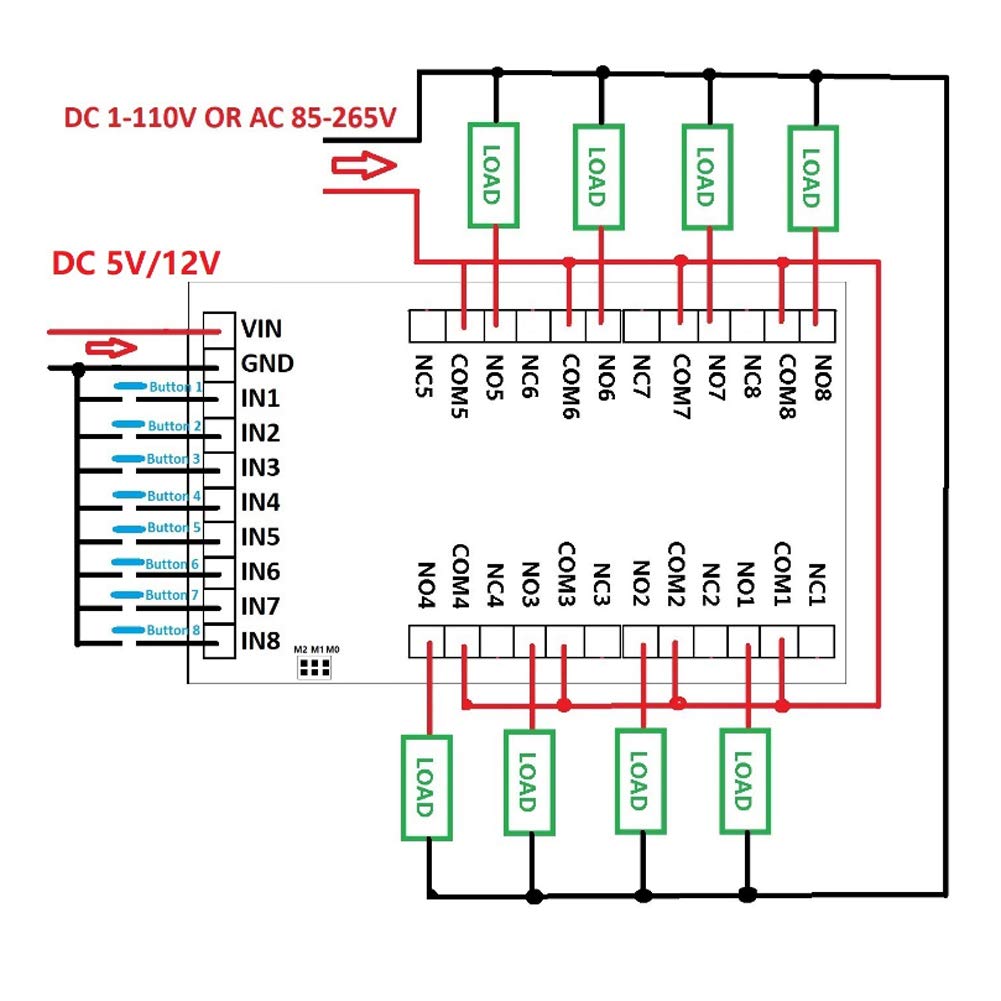

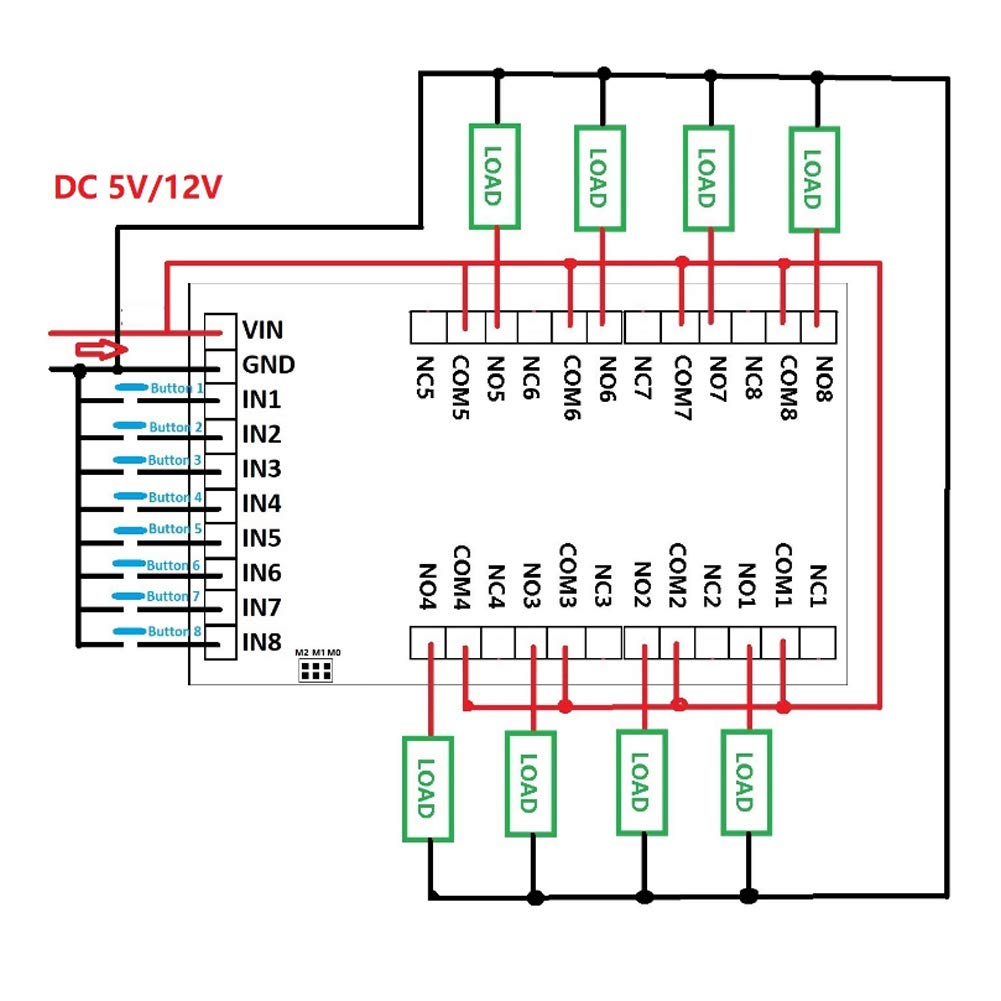

• Low Pulse Control Low Pulse Control Gnd Control Connected To The Button Or Io Interface, Controlled By Single Chip Microcomputer Input Control Interface: 5V Ttl Level, Npn Triggered, 0 2 2 Seconds Low Pulse
• Our Professional Tech Team Is Available To Solve Product Problems We Will Get Back To You Within 12 Hours

Feature: 1. 8 Channels multifunction infrared controller, each channel triggers independently and delays independently, will not interfere with each other. 2. 4 Functional modes: inching, delay (2/10/60/600/3600 seconds), selflocking, interlocking (the functional mode is set by the solder pad on the board). 3. Low pulse control (GND control connected with the button or IO interface controlled by single chip microcomputer). 4. There are 5V and 12V types available, you can choose by your needs. 5. Remote control distance of 8‑15 meters (receivers sensitive >= 0.5mw /m2). Spec: Condition: Brand New Item Type: Relay Material: Plastic Optional Voltage: 5V, 12V Working Current (DC 12V): Standby current 8MA 1 relay operating 37MA 2 relay operating 66MA 3 relay operating 94MA 4 relay operating 122MA 5 relay operating 150MA 6 relay operating 178MA 7 relay operating 206MA 8 relay operating 232MA Inching, self-locking, interlocking and delay four functional modes Infrared Receiver: VS1838(or IC compatible) Infrared Codes: codes Remote Control Distance: 8-15 meters (receivers sensitive >= 0.5mw /m2) Input Control Interface: 5V TTL level, NPN triggered, 0.2-2 seconds low pulse Maximum Load Capacity of Relay: DC 1-110V/5A;AC 85-265V/6A Battery: Button battery, CR2025, 3V (Not included) Package List: 1 x 8 Channel Infrared Relay 1 x Remote Control
