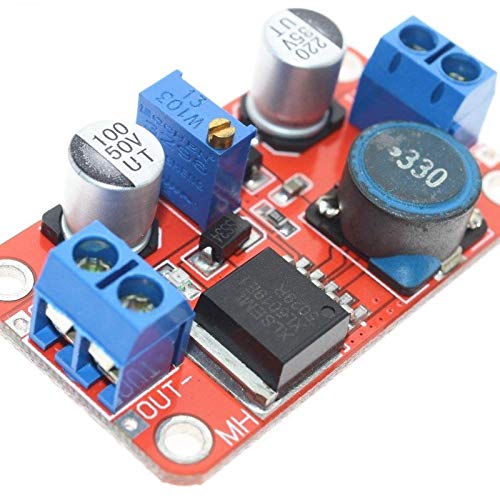

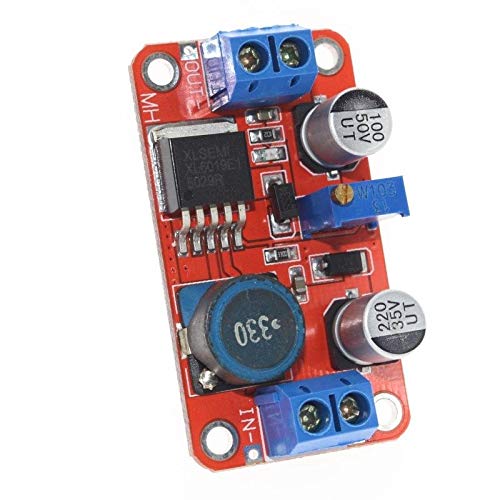

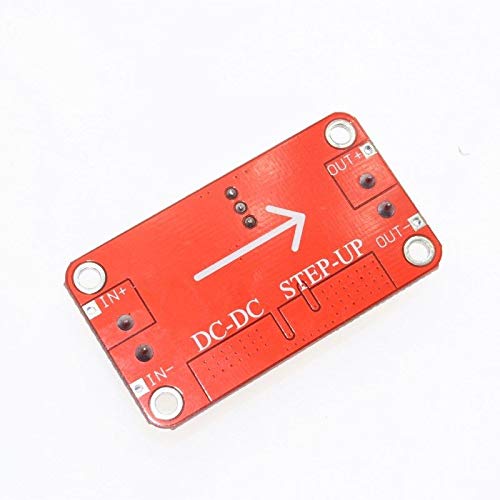

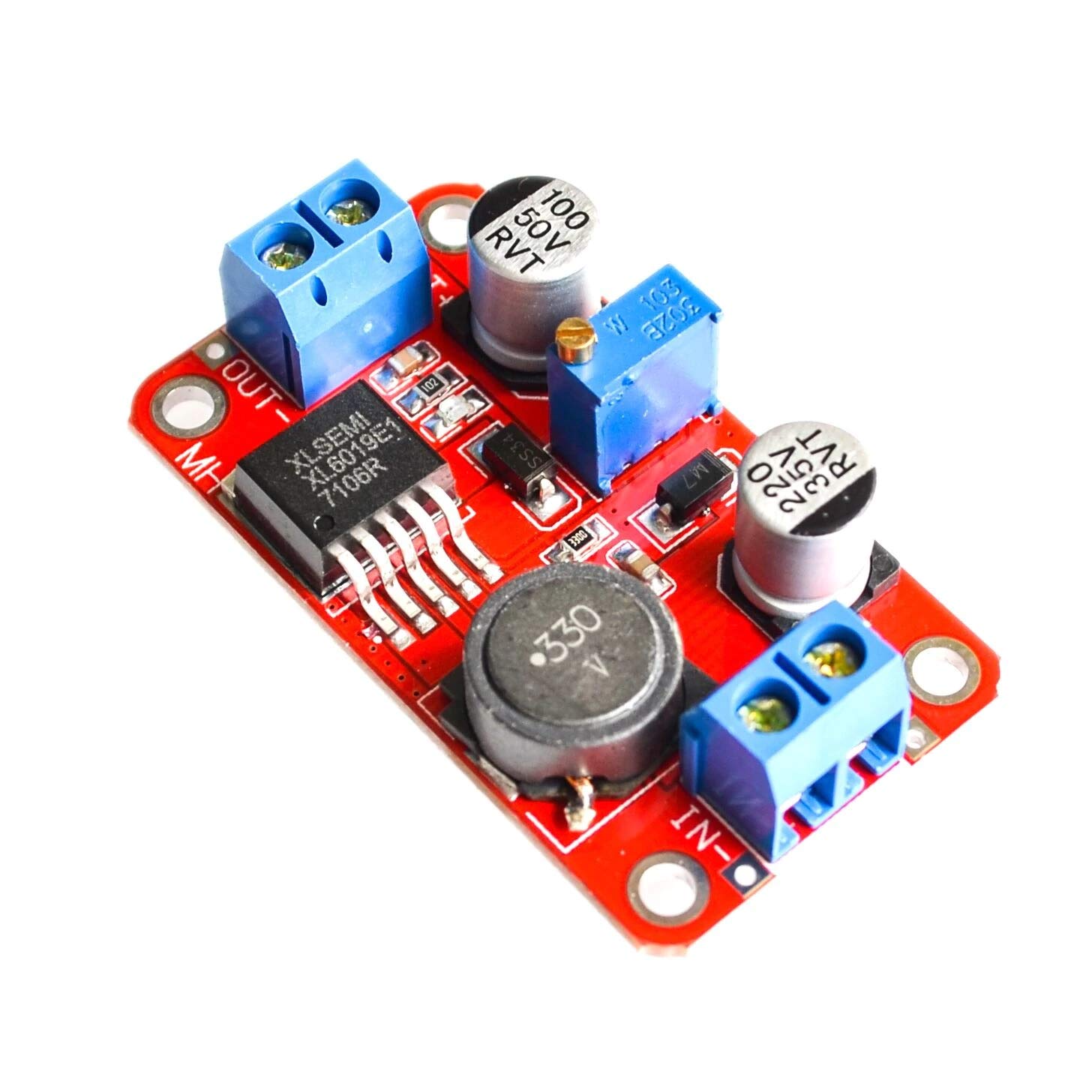

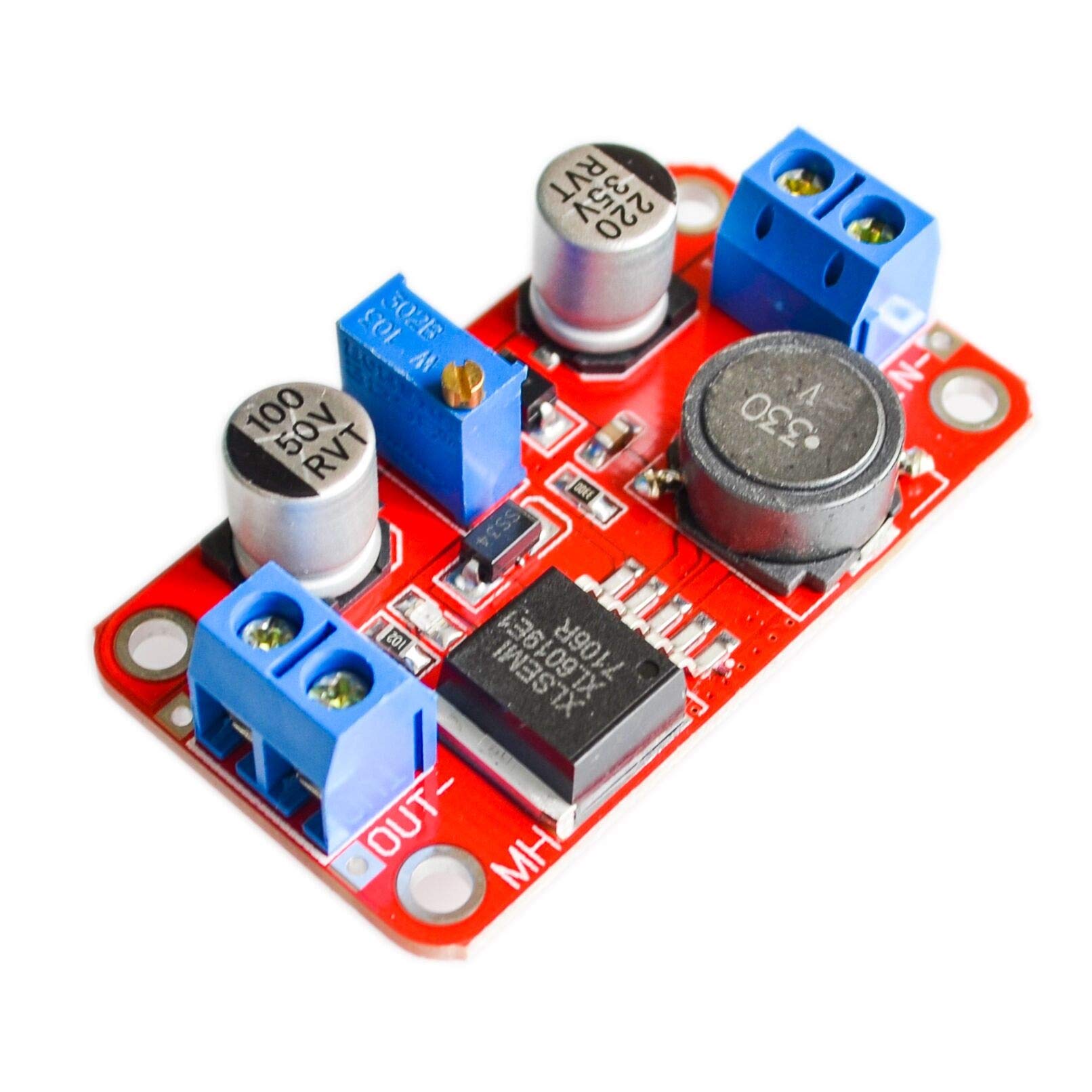

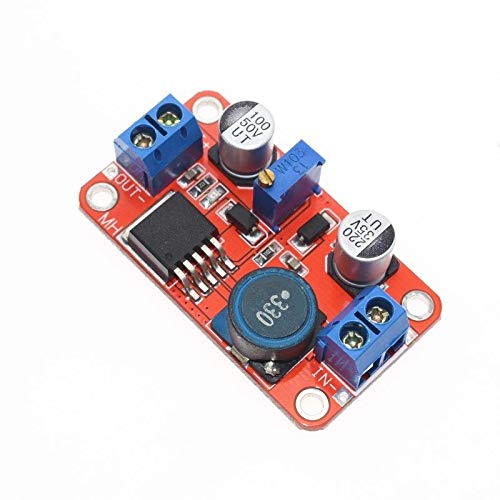

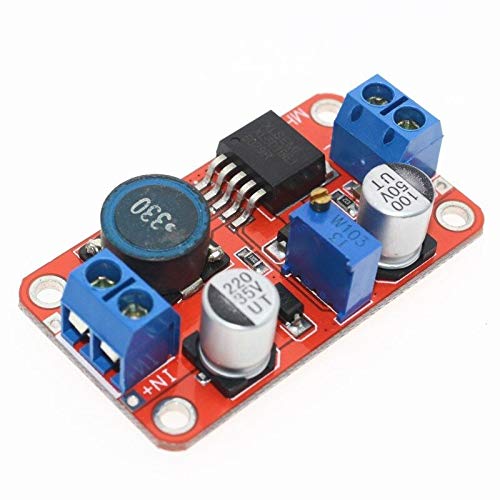

TECNOIOT 2pcs DC DC Boost Power Supply XL6019 Voltage Stabilized 5V/12V/24V Adjustable

x2pcs DC-DC power supply module boost module step-up voltage converter Voltage regulator XL6019 adjustable output 5V/12V/24V This XL6019 module DC DC boost can provide 5V / 12V / 24V output can be adjusted, performance beyond LM2577. the conventional use of IMPULSO topology as a constant voltage output, the internal integration of MOSFET, peripheral devices, low-cost system, built-in temperature protection, overcurrent protection circuit protection complete set of reliability, high reliability. Specifications: The Model Specifications: XL6019 boost module Module Features: non-isolated step-up rectification: Non-synchronized rectification Input range: Limits: 3-40 V, Recommended values: 3 V-35 V Output range: Limits: 5-45 V, recommended values: 5 V-40 V (via rotary potentiometer) Input Current: Limits: 0-5A, Recommended Values: 0-3A conversion efficiency: up to 94% open frequency: 220 KHz, the second generation of switching power technology ripple output: less than $ mv number load regulation: + plusmn; 0.5% voltage regulation: ± plus; 0.5% Advantages: 1 The use of conventional topology IMPULSAR complete set of constant voltage output, internal integration of MOSFET, peripheral devices less, the cost of the system is low; 2 Wide input voltage range, input voltage up to 35 V; 3 The output voltage can be adjusted, the highest can withstand 40 V; 4 Built-in temperature protection, overcurrent protection circuit protection complete set of reliability, high reliability; 5 Efficiency conversion system can reach more than 90%, easy design of heat; 6 TO263-5L standard package, suitable for 30 W within the boost application. Packet Contains: 2pcs x DC DC Boost Power Supply XL6019 Module
