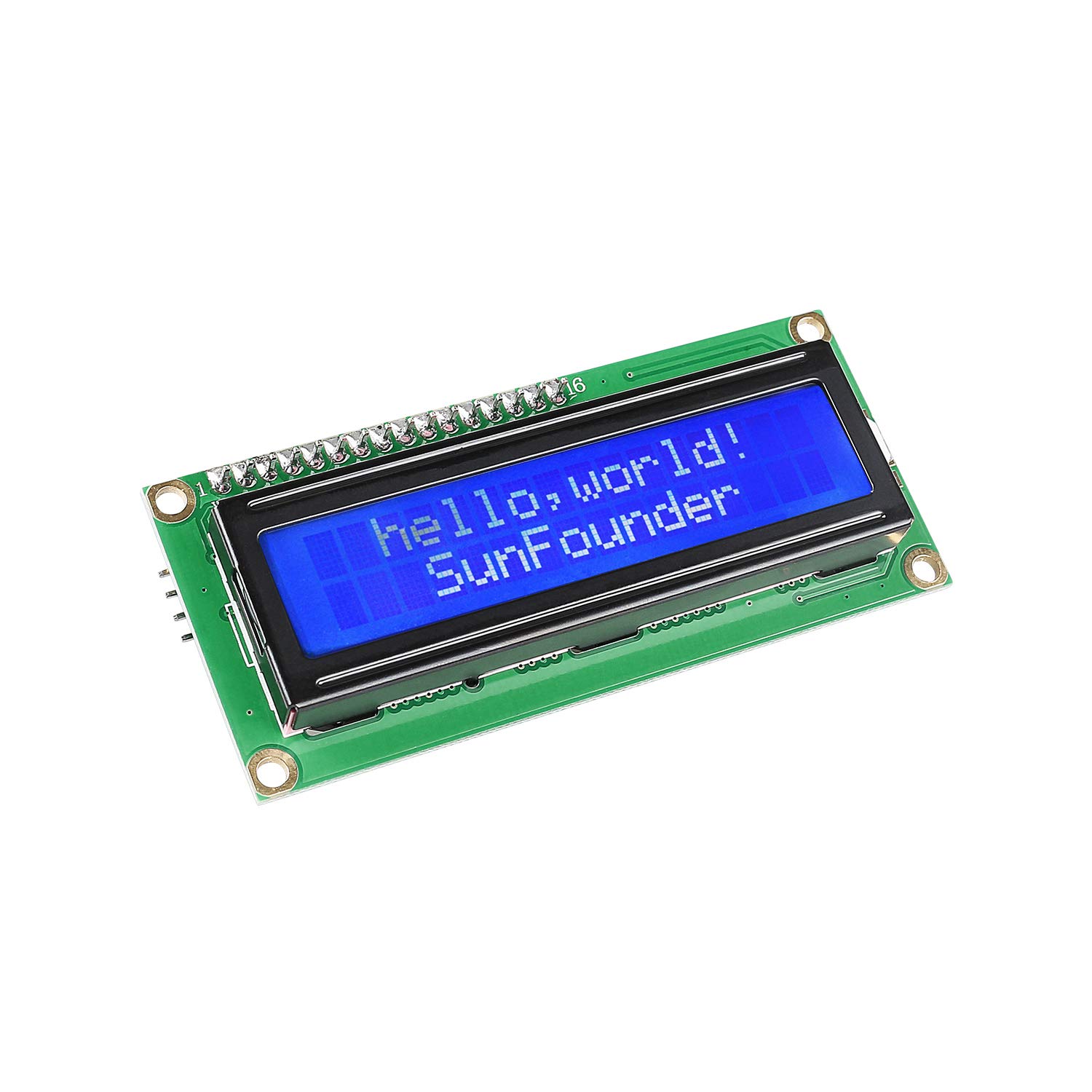

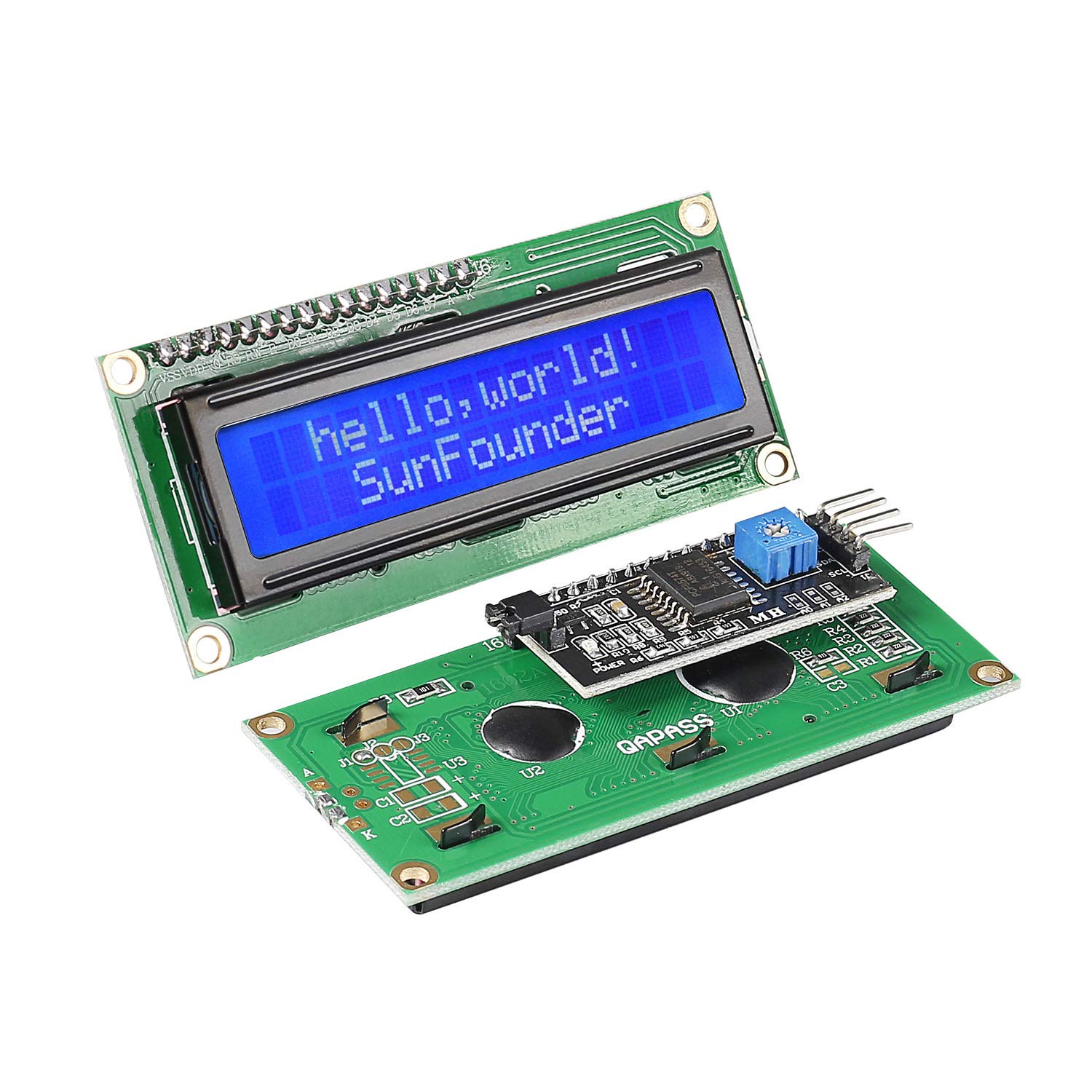

SunFounder IIC I2C TWI 1602 Serial LCD Module Display compatible with Arduino R3 Mega 16x2

• Easy to use. Fewer I/O ports are occupied, only four – VCC, GND, SDA (Serial Data Line), SCL (Serial Clock Line)
• Support IIC Protocol. The I2 C library lcd1602 is provided, so you can call directly

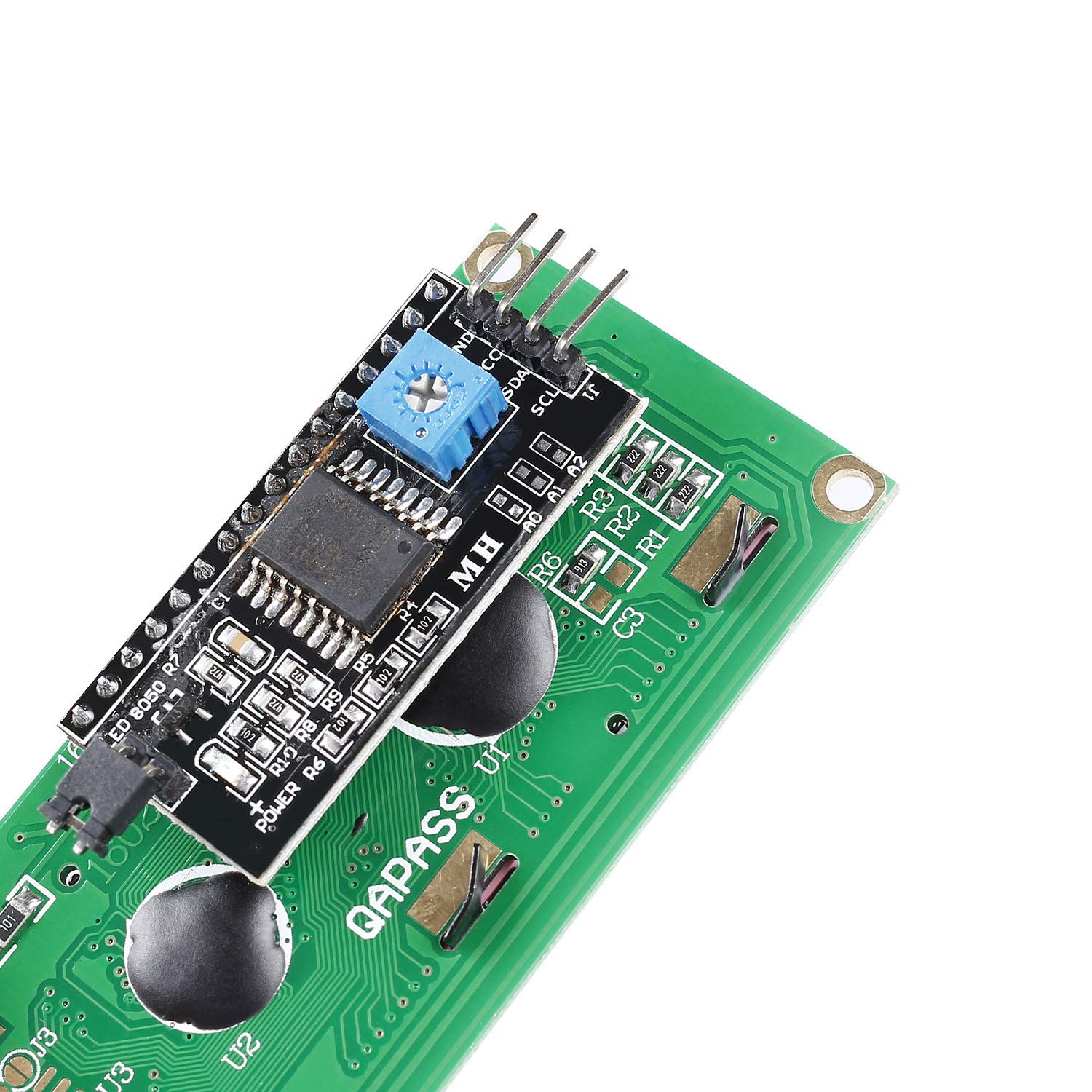

• With a potentiometer used to adjust backlight and contrast
• Power supply: +5V
• Module address: ox27

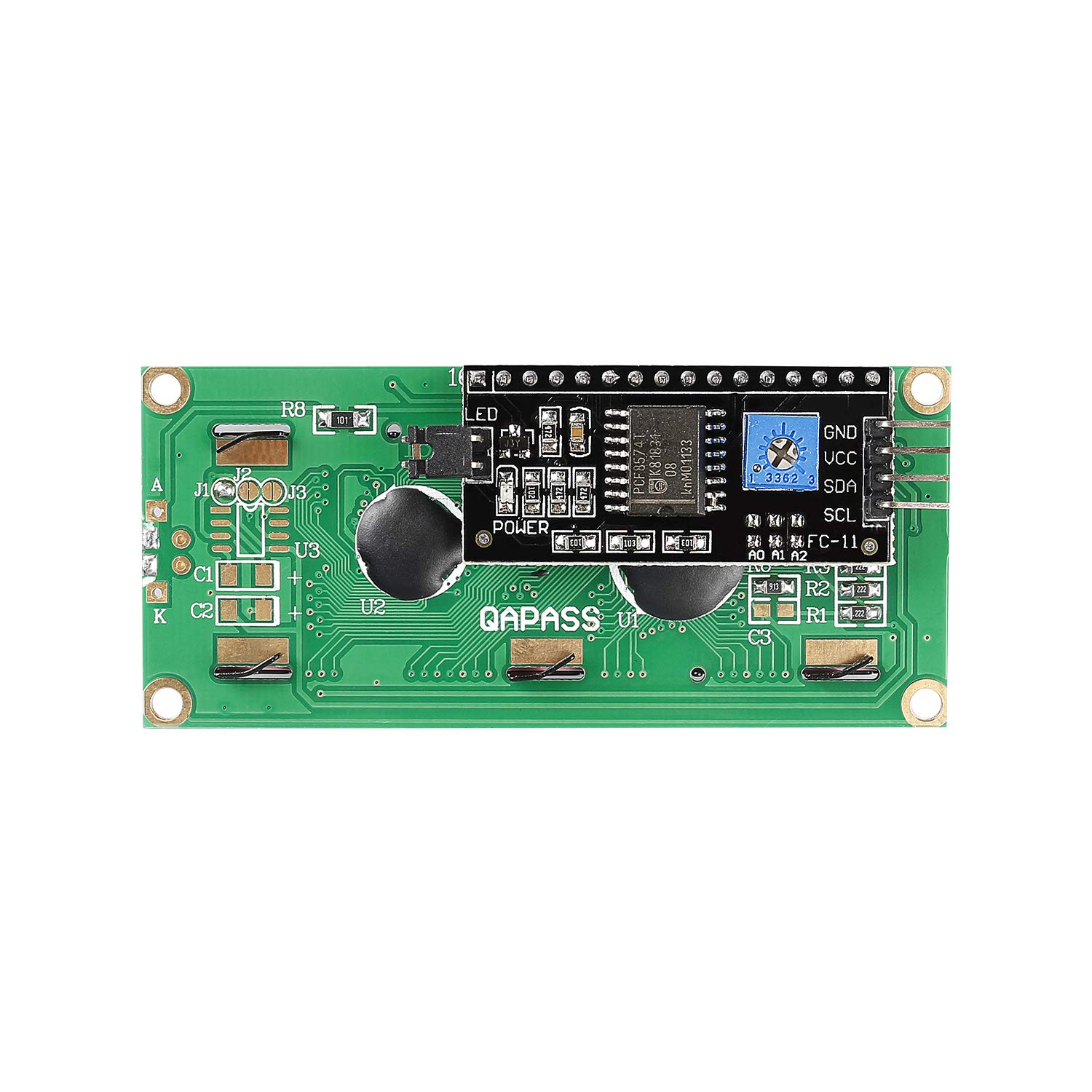

SunFounder IIC I2C TWI 1602 Serial LCD Module Display compatible with Arduino Uno R3 Mega 16x2 SunFounder Wiki to learn more details http://wiki.sunfounder.cc/index.php?title=I%C2%B2C_LCD1602 Feature: As we all know, though LCD and some other displays greatly enrich the man-machine interaction, they share a common weakness. When they are connected to a controller, multiple IOs will be occupied of the controller which has no so many outer ports. Also it restricts other functions of the controller. Therefore, LCD1602 with an I2C port is developed to solve the problem. It is also simple to handle. It has only two bidirectional data lines, a serial data line and a serial clock one. How to wire: GND—GND; VCC—VCC; SDA—A4; SCL—A5 Application: Used to display Characters, letters and Numbers. Specification: Power supply: +5V Address of the module: ox27 Package include: 1 * I2C LCD1602
