Stepper Motor Controller, Signal Generator - Pulse Signal & PWM Signal with 3 Frequence Range, Speed Regulator for MKS OSC

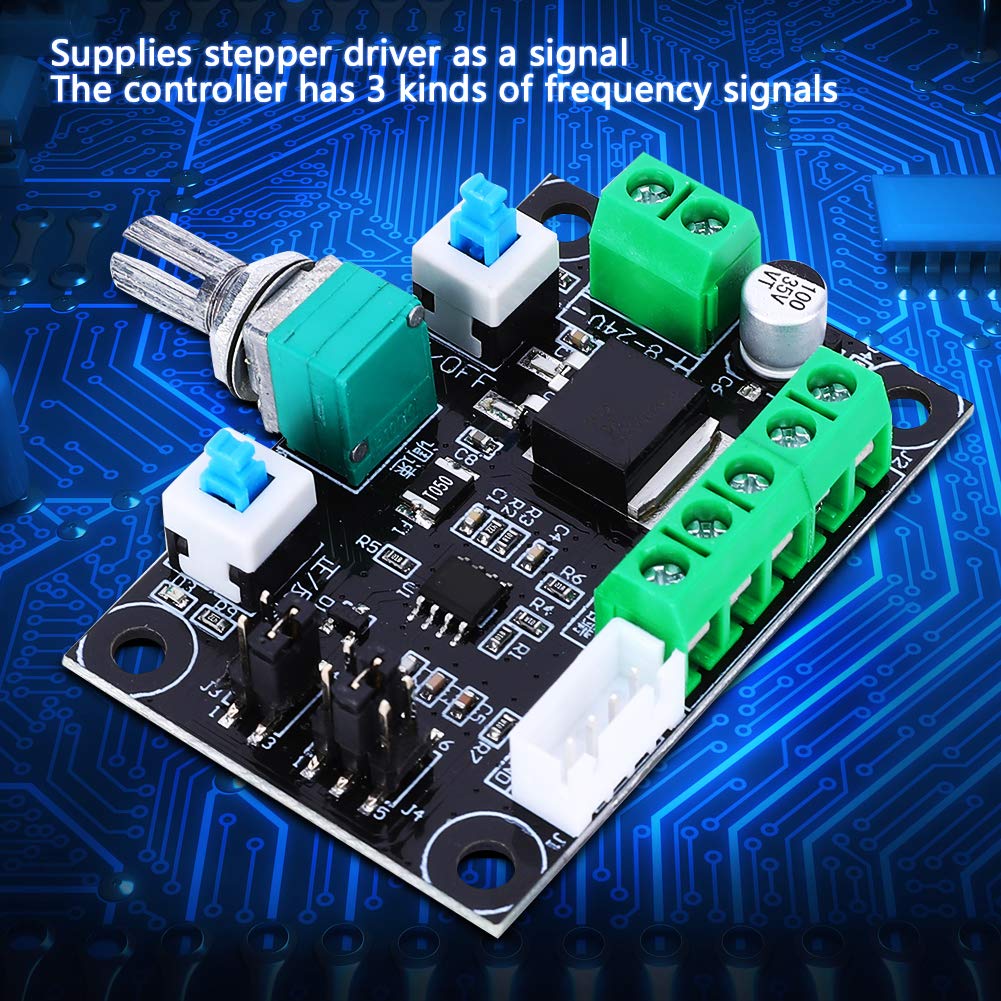

• This module is a pulse generation module and delivers the stepper driver as a signal.
• To control the stepper motor, it must be equipped with a driver.
• This simple control + stepper driver + stepper motor + DC power supply can form a simple control platform.

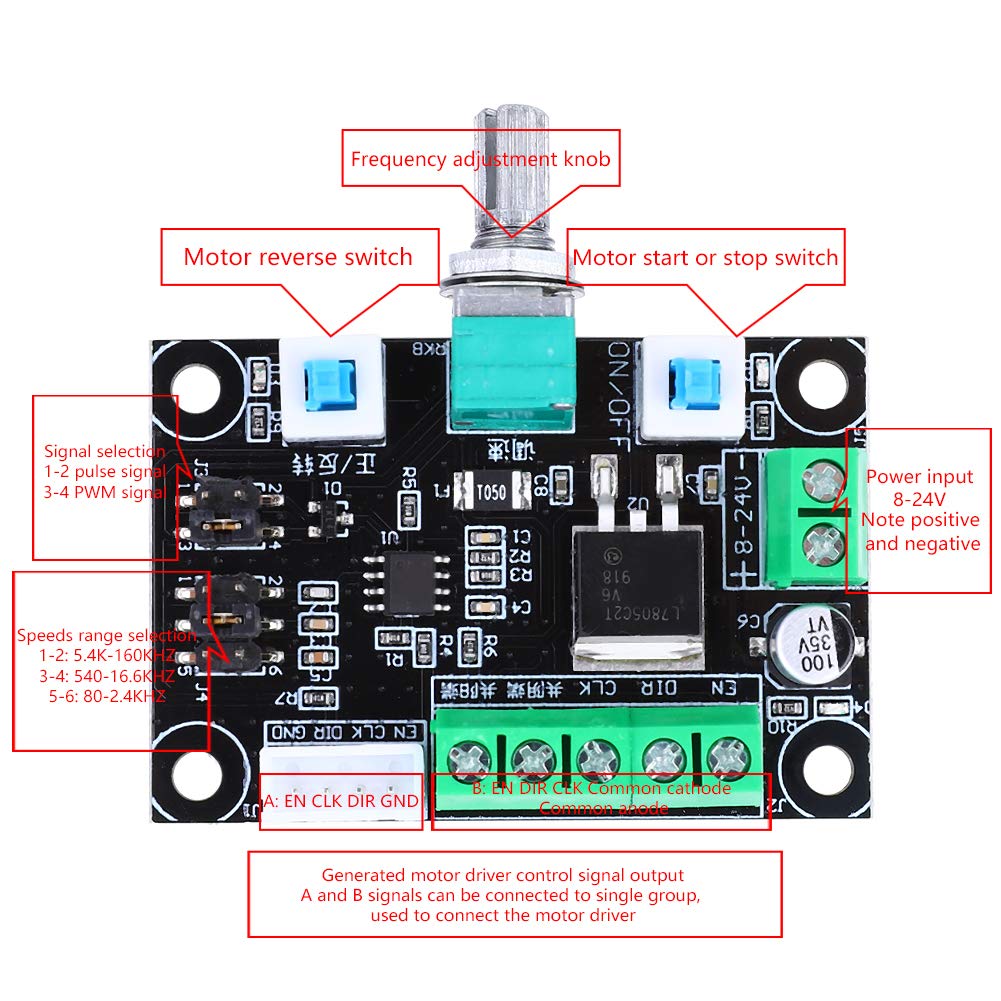

• The controller has a total of 3 types of frequency signals: high 5.4 K to 160 kHz, medium 540 to 16.6 kHz, low 80 to 2.4 kHz.

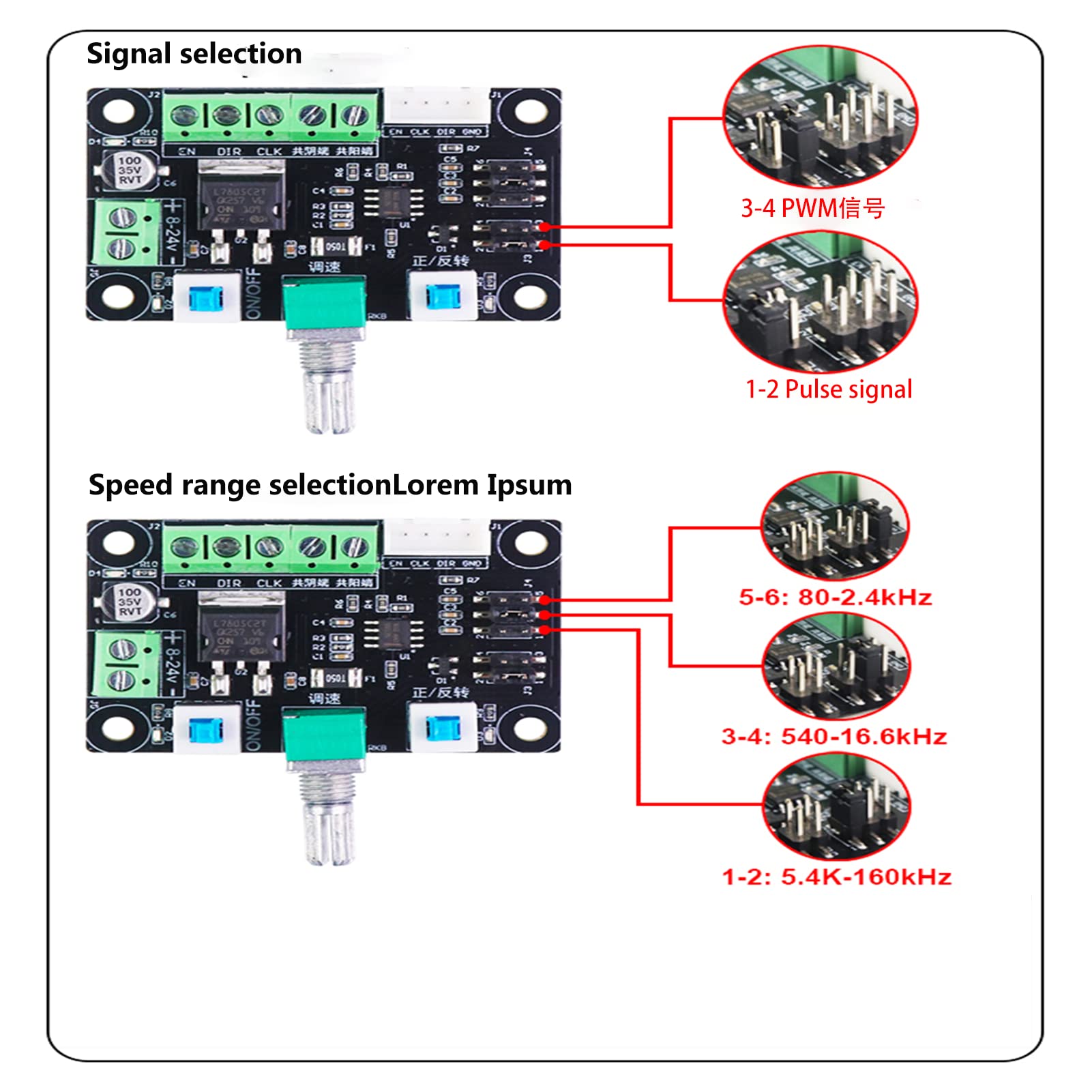

• It can create a pulse signal and PWM signal and can be selected by jumping. Frequency Measurement: can measure PUL and two ports with common cathode (or common anode).

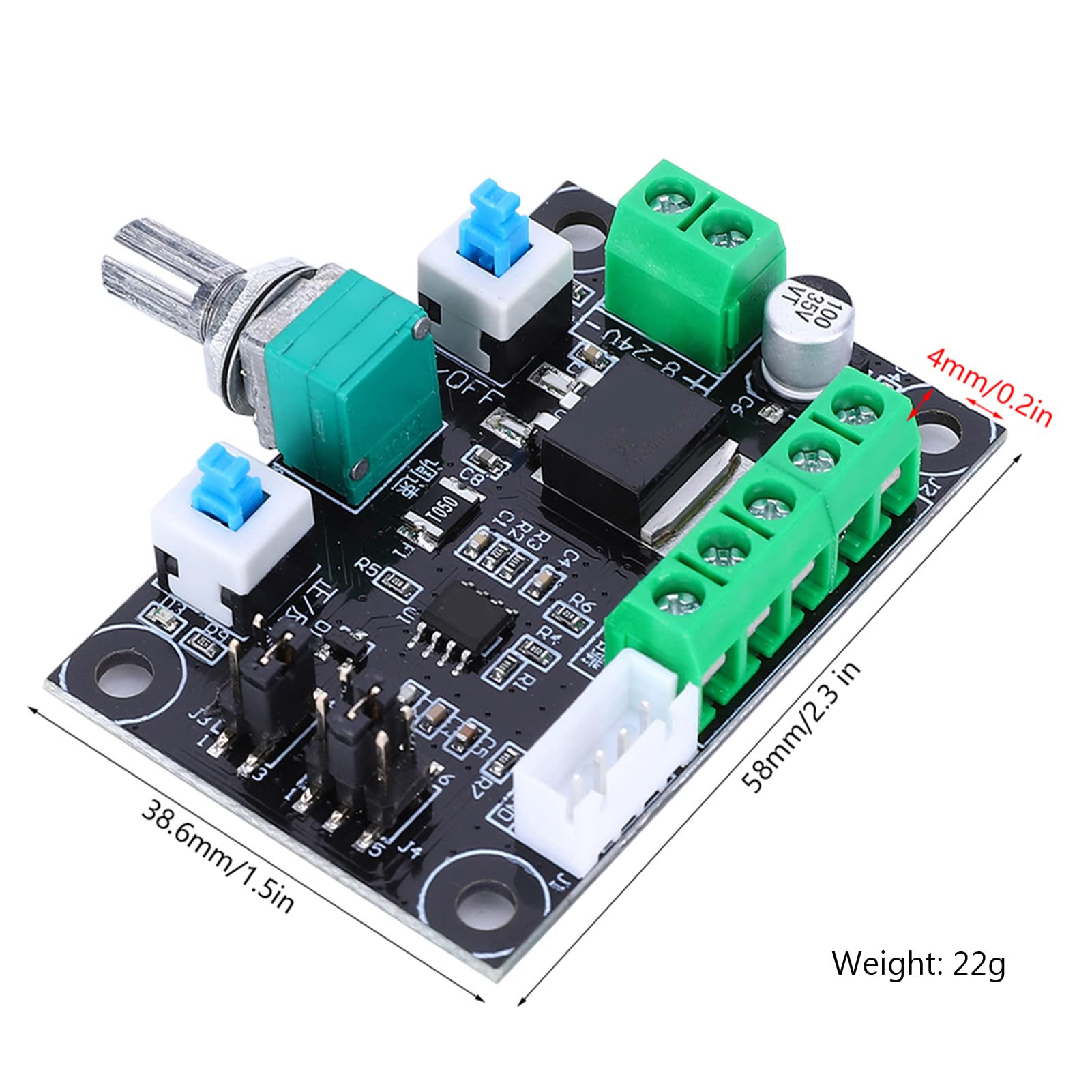

Specification: Condition: 100% brand new. Element type: stepper motor drive regulator Material: plasticSize: approx. 38.6 x 58 mm / 1.5 x 2.3 inches. Different stepper motor drive connections have different designations, but the same function: EN = ENA = FREE activate PUL = PULS = CLK pulse DIR = CW = CWW direction. Common Anode Connection (Connection B) EN + PUL + DIR + connected to the common anode EN connects with EN PUL- connects to CLK DIR- connects with YOU Common cathode connection (connection B) EN-PUL-DIR - connected to the common cathode EN + connects with EN PUL + connects to CLK her DIR + connects with YOU Package list: 1 x control board, 2 x seal, 1 x nut
