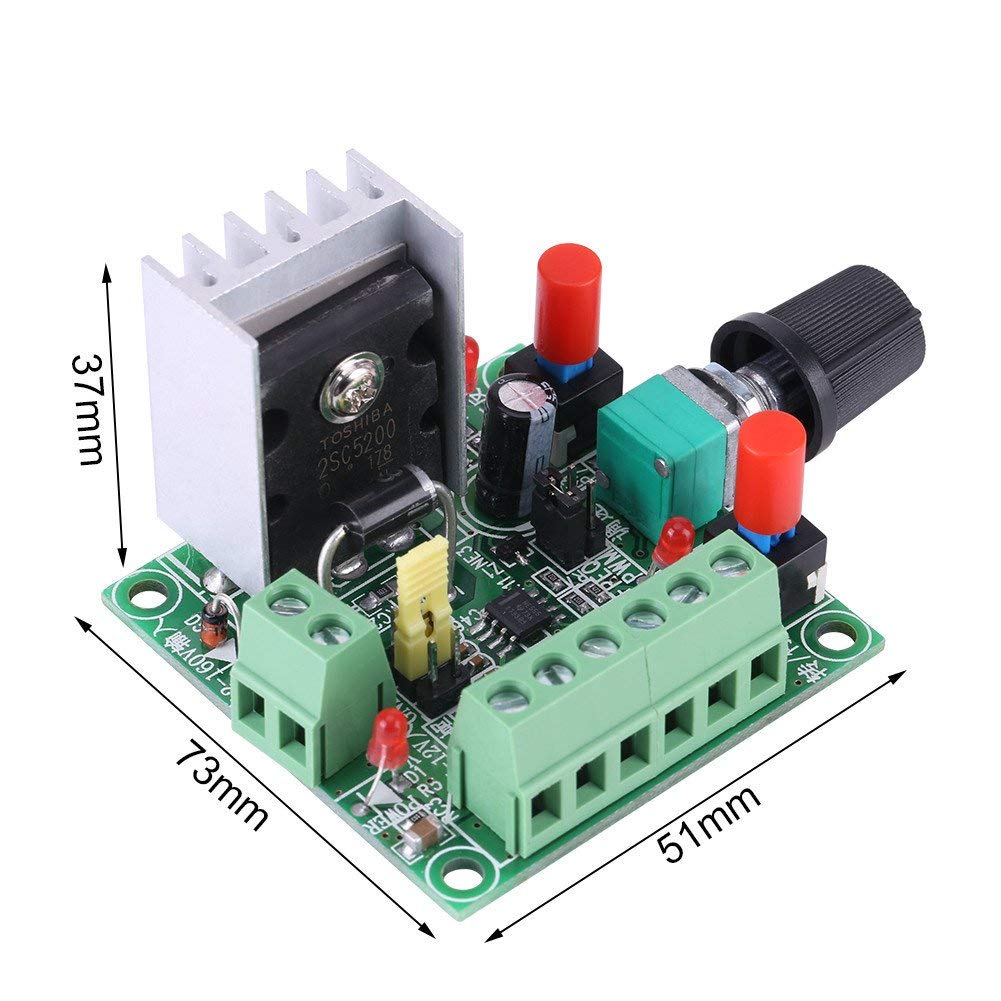

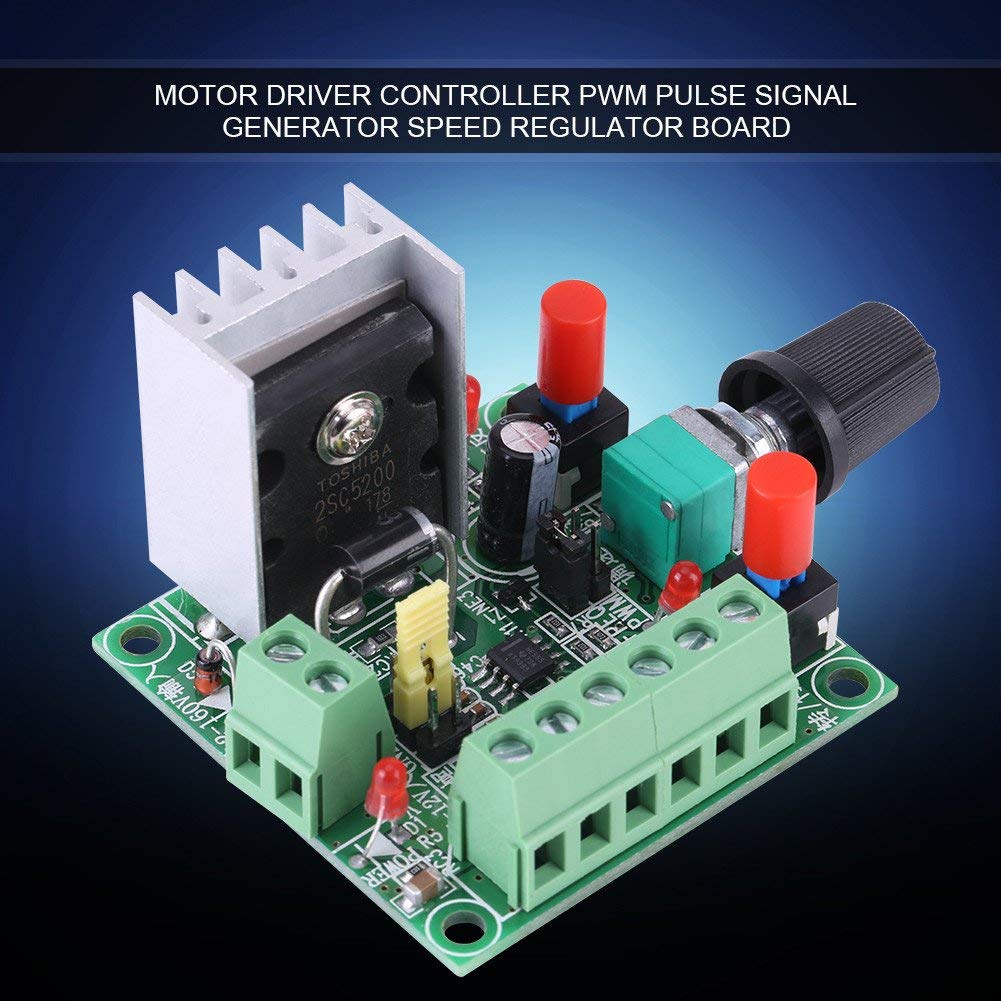

PWM Pulse Generator with Stepper Motor Cruise Regulator Adjustable Frequency Board PWM Generator 73 x 51 x 37mm

• 【Application】This module is provided as a stepper drive signal, but it also needs to be used to control the stepper motor.
• 【Button】The button has high, middle and low positions. In total, three types of frequency can be used to select jumpers.
• 【Frequency】: The measurement frequency can be PUL and the common cathode terminal (GND) of two ports.

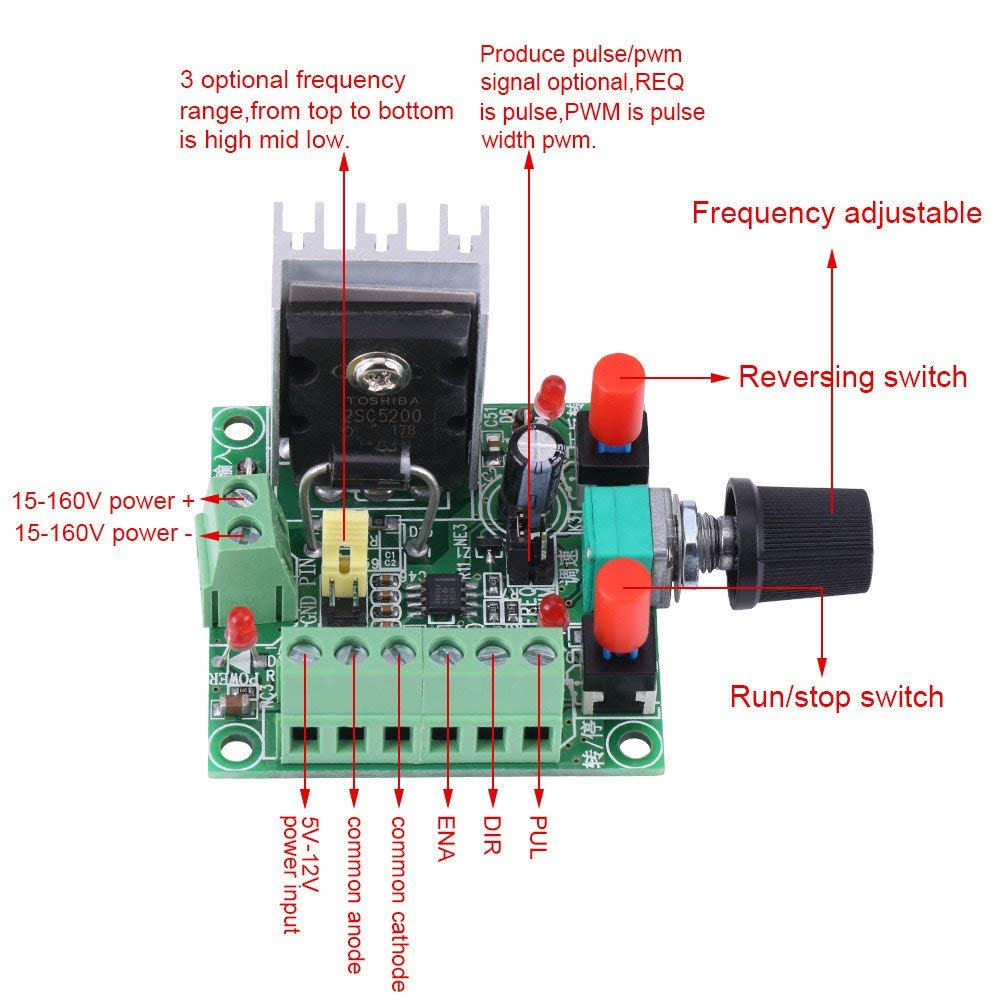

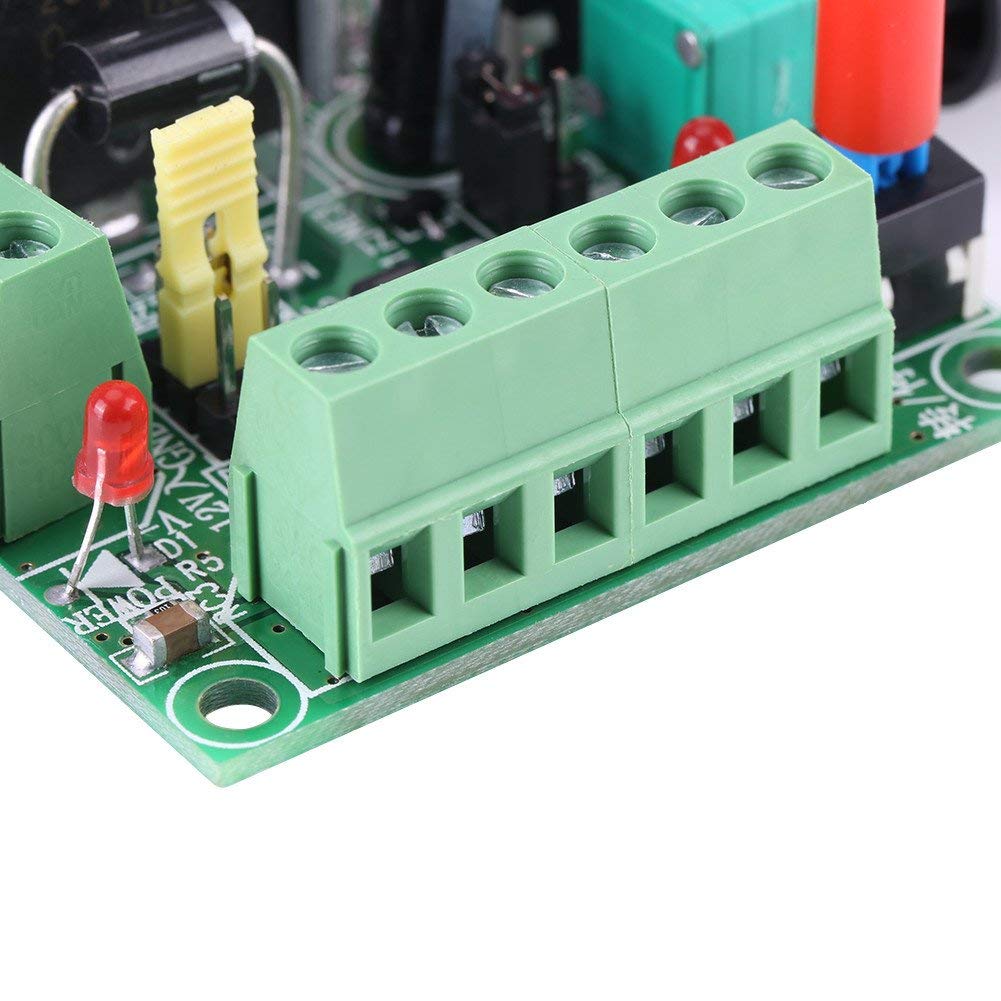

• 【Connections】: PUL + and PUL- positive and negative pulsed; with EN + and EN-, the positive and negative terminals are activated, DIR + and DIR- being the positive and negative directions. These six lines are connected to drive the corresponding pulse, i.e. six p ports.
• 【Power】: 15-160VDC or 5-12VDC If using 5-12VDC, connect the positive end to the 5-12VDC input and the negative end to the common cathodic end.

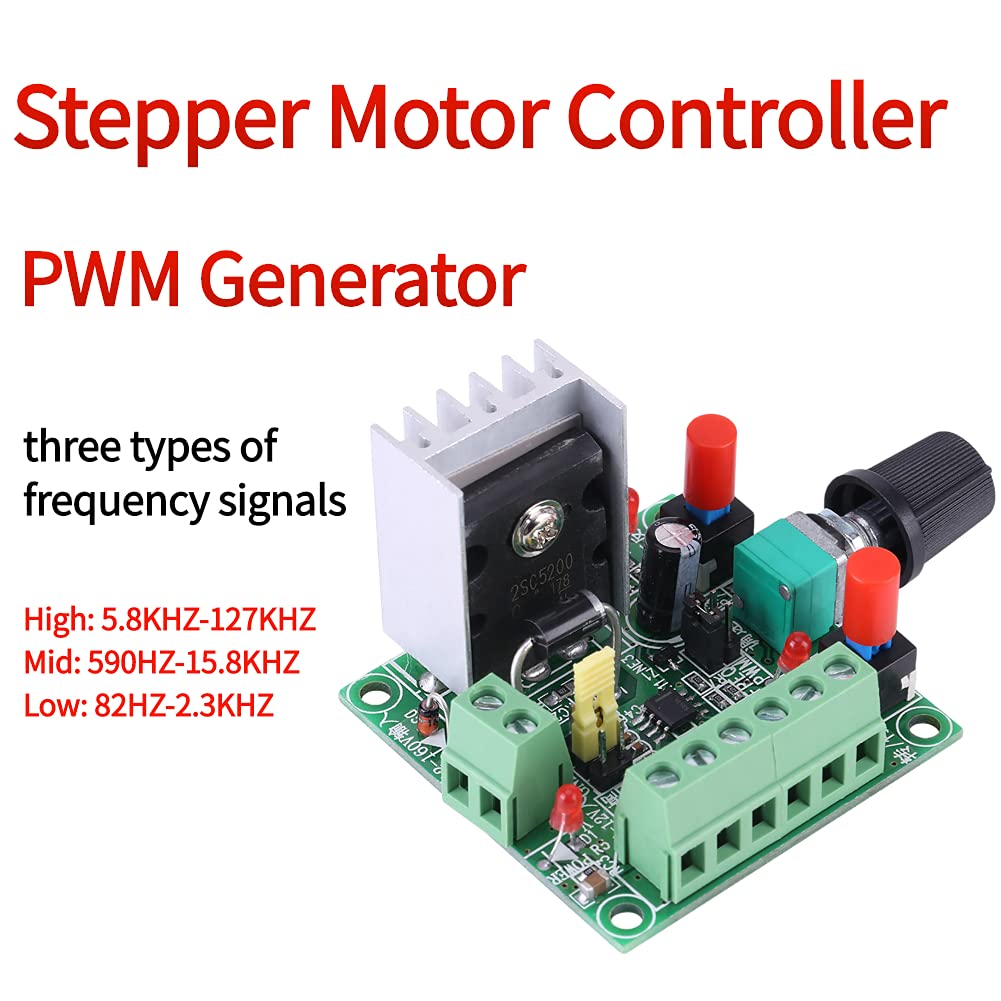

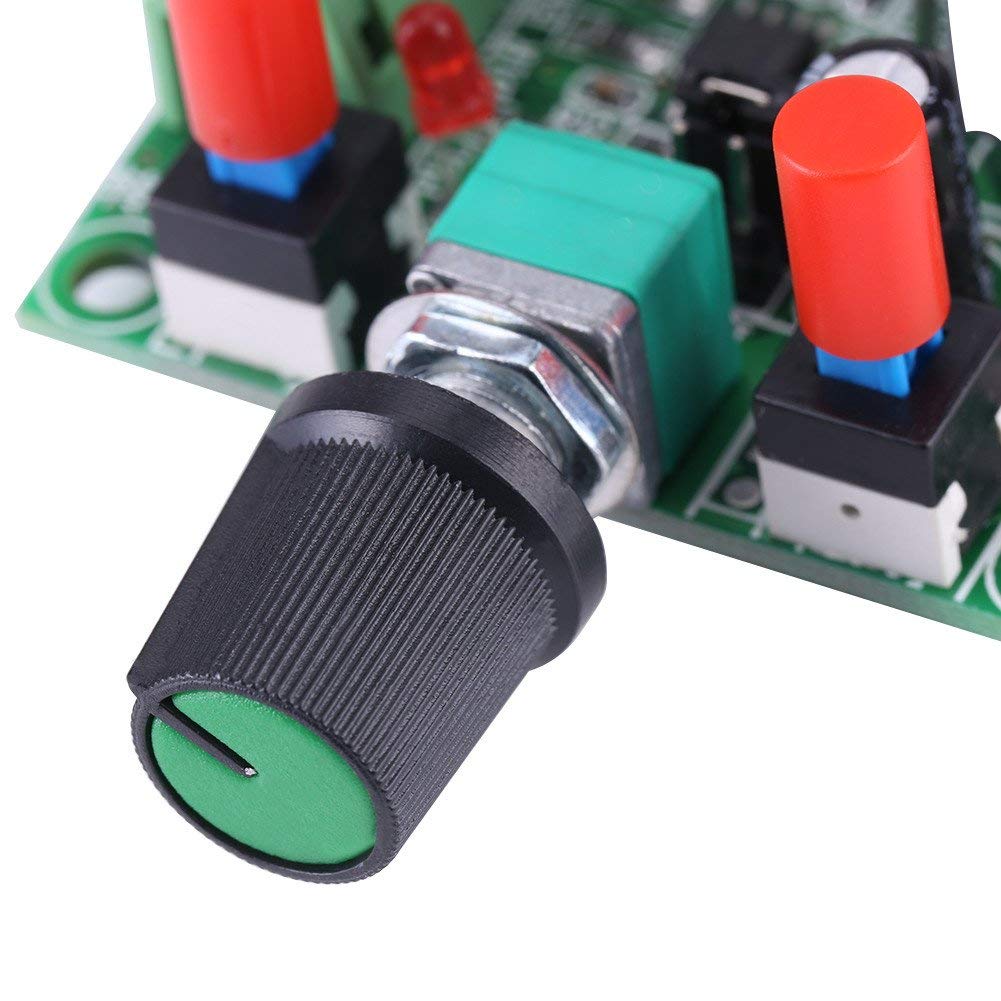

Description: This controller can generate PWM signal functions, the board has a jumper, you can set the default selection provided in the pulse rate signal. Features: This module is provided as a stepper drive signal. To control the stepper motor, but also must have the reader to use. The controller has a high, medium and low total of three types of frequency signals that can be used to select a jumper. The measurement frequency can reach two PUL ports and common cathode terminal (GND). PUL + and PUL-pulsed positive and negative; EN + and EN. - must activate the terminals Positive and negative; DIR + and DIR- are the positive and negative directions. These six lines are connected to drive the pulse, direction, so six possible ports. Power supply: 15-160VDC or 5-12VDC.If you use a 5-12 VDC power supply, connect the positive end to the DC 5-12V input, connect the negative end at the end of the ca. common method.The forward and reverse of the motor can be controlled by pressing the key.The speed of the motor can be controlled by adjusting the frequency of the potentiometer. Specification: Supply voltage: 15-160 V/5-12 V. Frequency: High: 5.8KHZ-127KHZ, Average: 590HZ-15.8KHZ, Low: 82HZ-2.3KHZ Size: approx. 73 x 51 x 37 mm/2.87 x 2 x 1.45 inches. Weight: 50 g Quantity: 1 item. Package list: 1 x PWM Generator Note: If you want to start or stop the function, the ENA controller activation terminal must be connected to a common cathode or common anode reader.
