Stemedu 20kg Weight Sensor Scale Load Cell + 24bits High Precision HX711 AD Weighing Module DIY Scale, for Arduino Raspberry Pi

• ? Links to tutorials and libraries: https://www.instructables.com/id/Arduino-Scale-With-5kg-Load-Cell-and-HX711-Amplifi/ https://learn.sparkfun.com/tutorials/load-cell-amplifier-hx711-breakout-hookup-guide https://github.com/aguegu/ardulibs/tree/master/hx711
• Works for arduino and raspberry pi

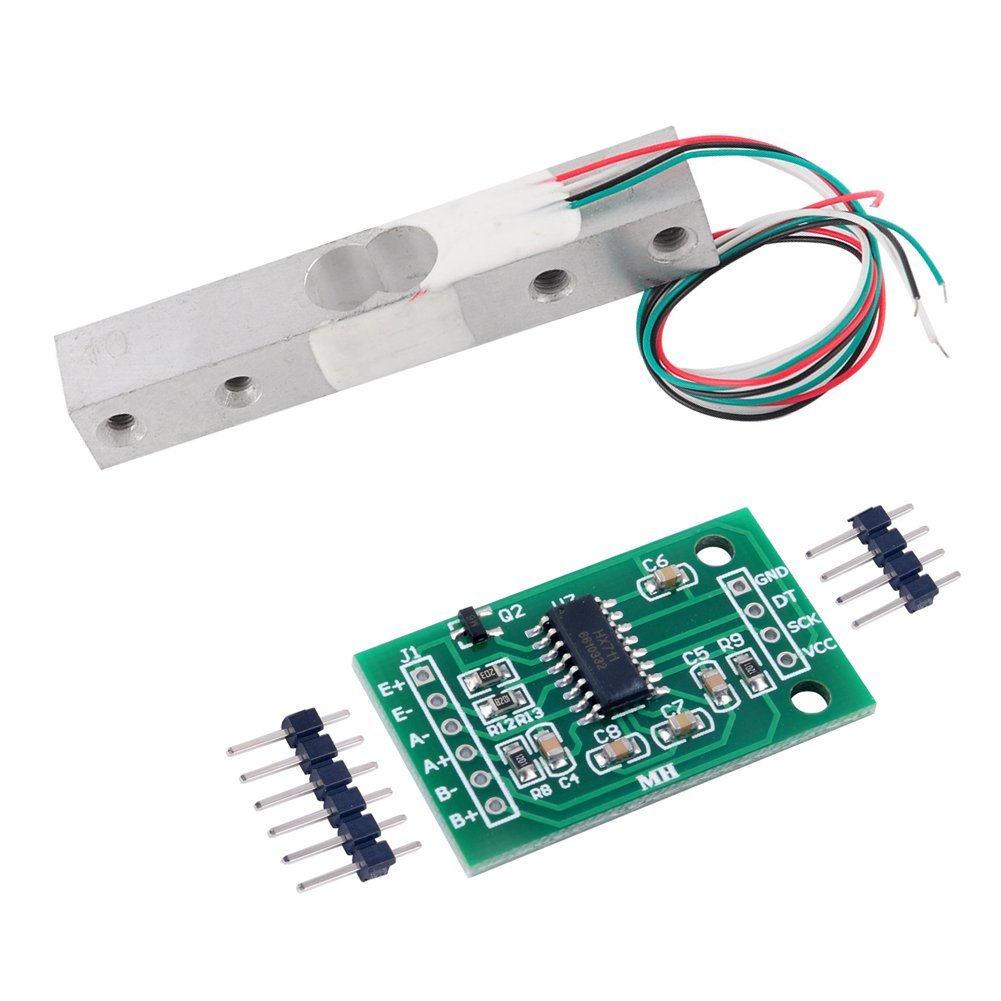

• Package Included: 1pcs 20KG Load Cell Sensor + HX711 A/D Load Cell Amplifier Module
• How to email us? Please click ¡°Stemedu¡± (you can find Sold by Stemedu under Buy Now button), in the new page, click ¡°Ask a question¡± to email us

Description Four leads, easy to use 5-10V drive voltage applied, the force is directly output as a voltage change signal. Dimensions: 12.7mm * 12.7mm * 80mm Sensor through the screw hole at one end fixed and the other end to keep floating state, applying gravity following the direction indicated by label Particular attention must not directly push the white plastic cover part, so as not to damage the sensor Connection: Red to E+ Black to E- Green to A+ White to A- Package included 1 X 20KG Weight Sensor 1 X HX711 A/D Load Cell Amplifier Module
