Stemedu Load Cell 1KG AD Amplifier HX711 Breakout Board Portable Kitchen Scale Weight Sensor Module Weighing for Arduino Raspberry Pi

• ? Links to tutorials and libraries: https://www.instructables.com/id/Arduino-Scale-With-5kg-Load-Cell-and-HX711-Amplifi/ https://learn.sparkfun.com/tutorials/load-cell-amplifier-hx711-breakout-hookup-guide https://github.com/aguegu/ardulibs/tree/master/hx711

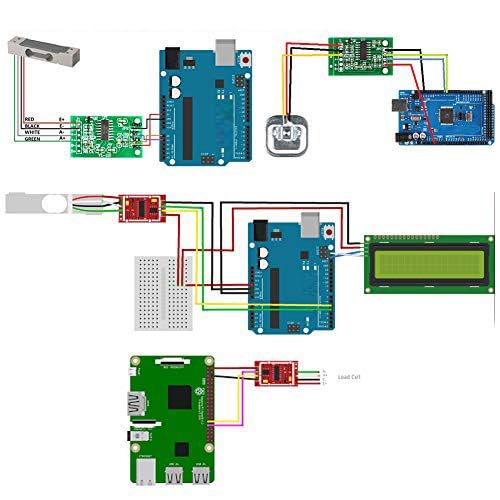

• Works for arduino and raspberry pi
• 5-10V drive voltage applied, the force is directly output as a voltage change signal
• Package Included: 1pcs 1KG Load Cell + 1pcs HX711 A/D Load Cell Amplifier Module
• ? How to email us? Please click ¡°Stemedu¡± (you can find Sold by Stemedu under Buy Now button), in the new page, click ¡°Ask a question¡± to email us

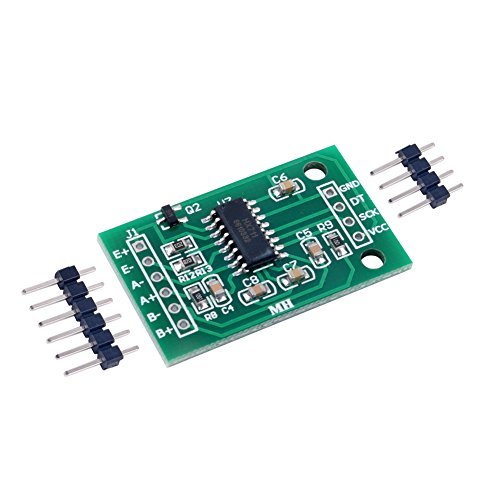

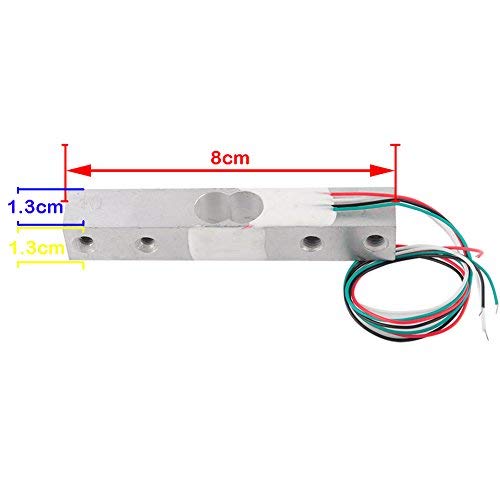

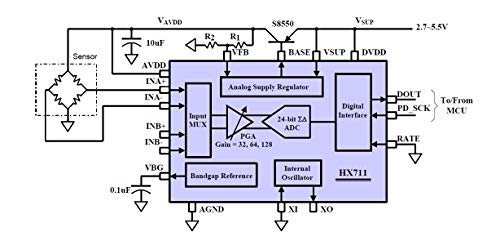

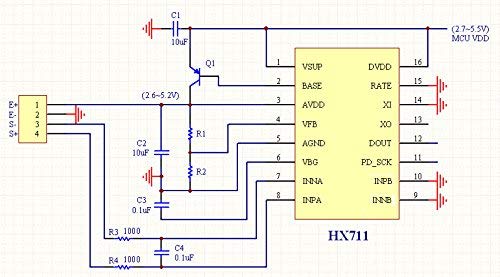

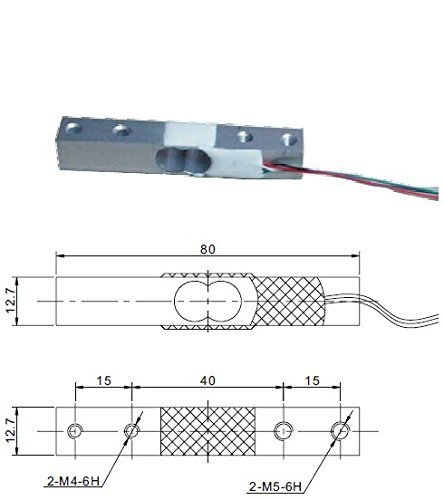

HX711 Description The module uses 24 high-precision A/D converter chip hx711, is designed for high-precision electronic scale and design, with two analog input channels, the internal programmable gain amplifier integrated multiplier 128 The input circuit can be configured to provide a bridge voltage electrical bridge (such as pressure, weight) sensor model is an ideal high-precision, low-cost sampling front-end module Two selectable differential input channels On-chip active low noise PGA with selectable gain of 32, 64 and 128 On-chip power supply regulator for load-cell and ADC analog power supply On-chip oscillator requiring no external component with optional external crystal On-chip power-on-reset Simple digital control and serial interface: pin-driven controls, no programming needed Selectable 10SPS or 80SPS output data rate Simultaneous 50 and 60Hz supply rejection Current consumption including on-chip analog power supply regulator: normal operation <1.5mA, power down <1uA Operation supply voltage range: 2.6 ~ 5.5V Operation temperature range: -40 ~ +85¡æ Size 35mmx20mm 1KG Load Cell Description: Size:80x12.7x12.7mm Connection: Red to E+ Black to E- Green to A+ White to A- Package Includes: 1 X Load Cell 1KG 1 X HX711 Weighing Sensors
