SSI TECHNOLOGIES MG-9V Series Media Gauge Digital Pressure Gauge Sensor with LCD Display, 5000psig Operating Pressure, 9V, 0.25% Accuracy, 1/4-18 NPT Male Process Connector Type

• Chemical Compatibilities: Any gas or liquid compatible with 304L and 316L stainless steel. For example, Motor Oil, Diesel, Hydraulic fluid. Brake Fluid, Water*, Waste Water. Hydrogen, Nitrogen, and Air.
• LCD Display Battery Saver Mode MG-9V automatically powers down after 5 minutes
• The MediaGauge models differ in accuracy, media isolation, user functions and output capabilities
• A MediaGauge digital pressure gauge is ideal for use in many applications such as Refrigeration, Process Control, Fuel Cells, Pumps, Hydraulics, Pneumatics, Compressors and Agriculture

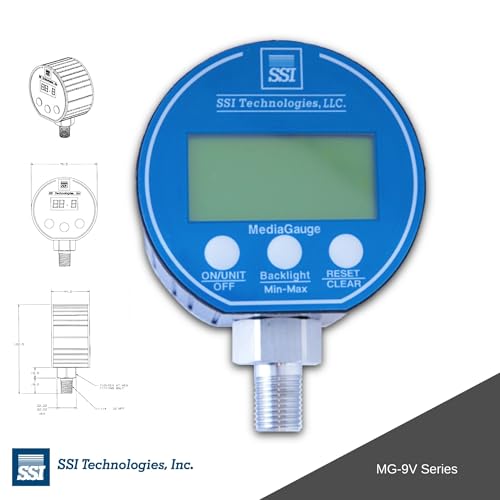

The MediaGauge Model MG-9V digital pressure gauge is a stand alone 9V battery operated multi-functional digital pressure gauge. The MG-9V digital pressure gauge contains a media isolated piezoresistive pressure sensing element, signal conditioning circuitry for temperature and calibration compensation, a 304L stainless steel input pressure port and a _CD back lit display. The MG-9V digital pressure gauge has an accuracy of ± 0.25 % full scale. A battery power saver mode is incorporated into the MG-9V to automatically shut the LCD display off after 5 minutes prolonging the battery's life.
