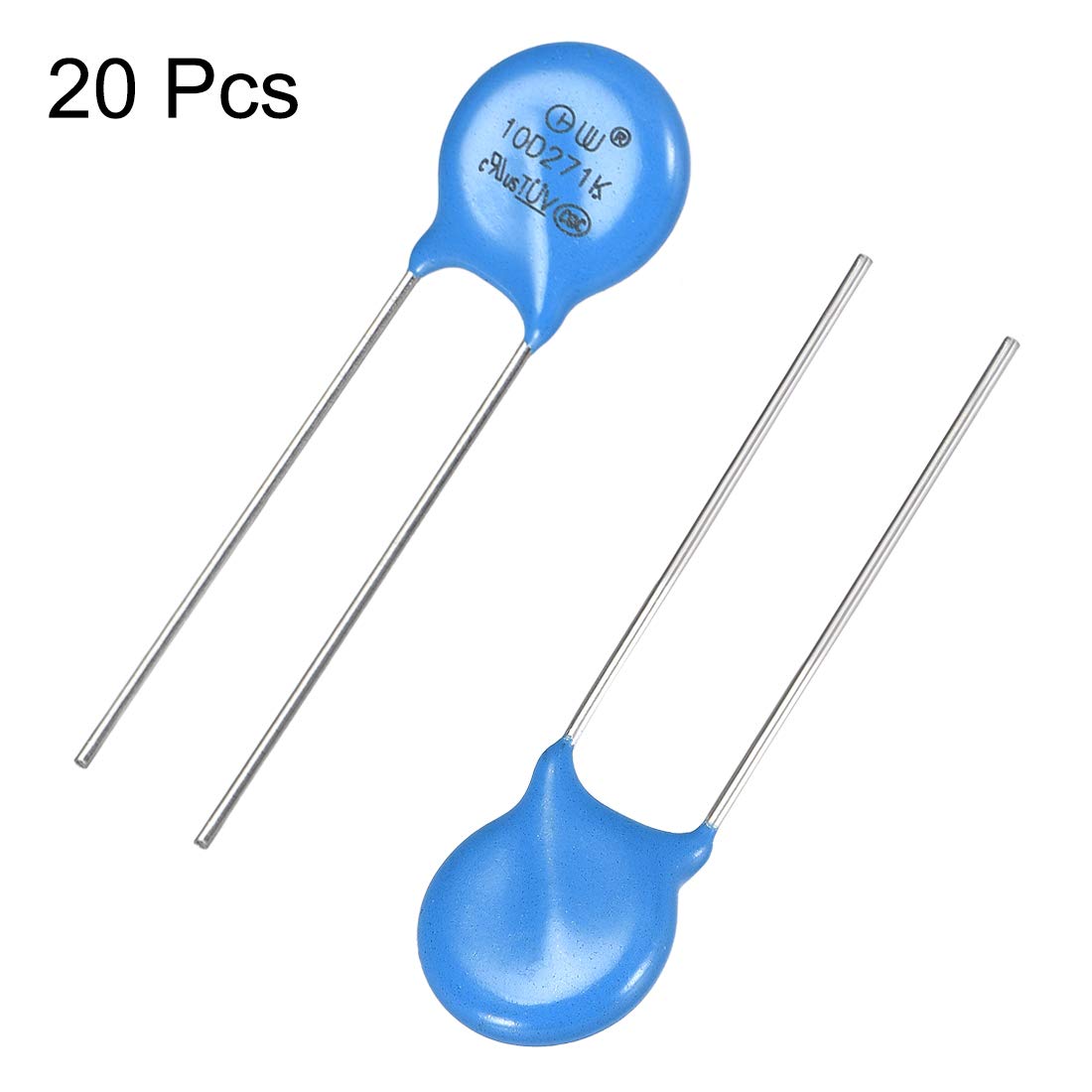

sourcingmap 20Pcs Voltage Dependent Resistors AC 175V 10D271K Radial Lead Disc Varistors

• Model: 10D271K; Max. Allowable Voltage: AC 175V; DC 225V; Varistor Voltage: 270V ±10%
• Max. Clamping Voltage (8/20 μS): 455V; Max. Clamping Current (8/20 μS): 25A

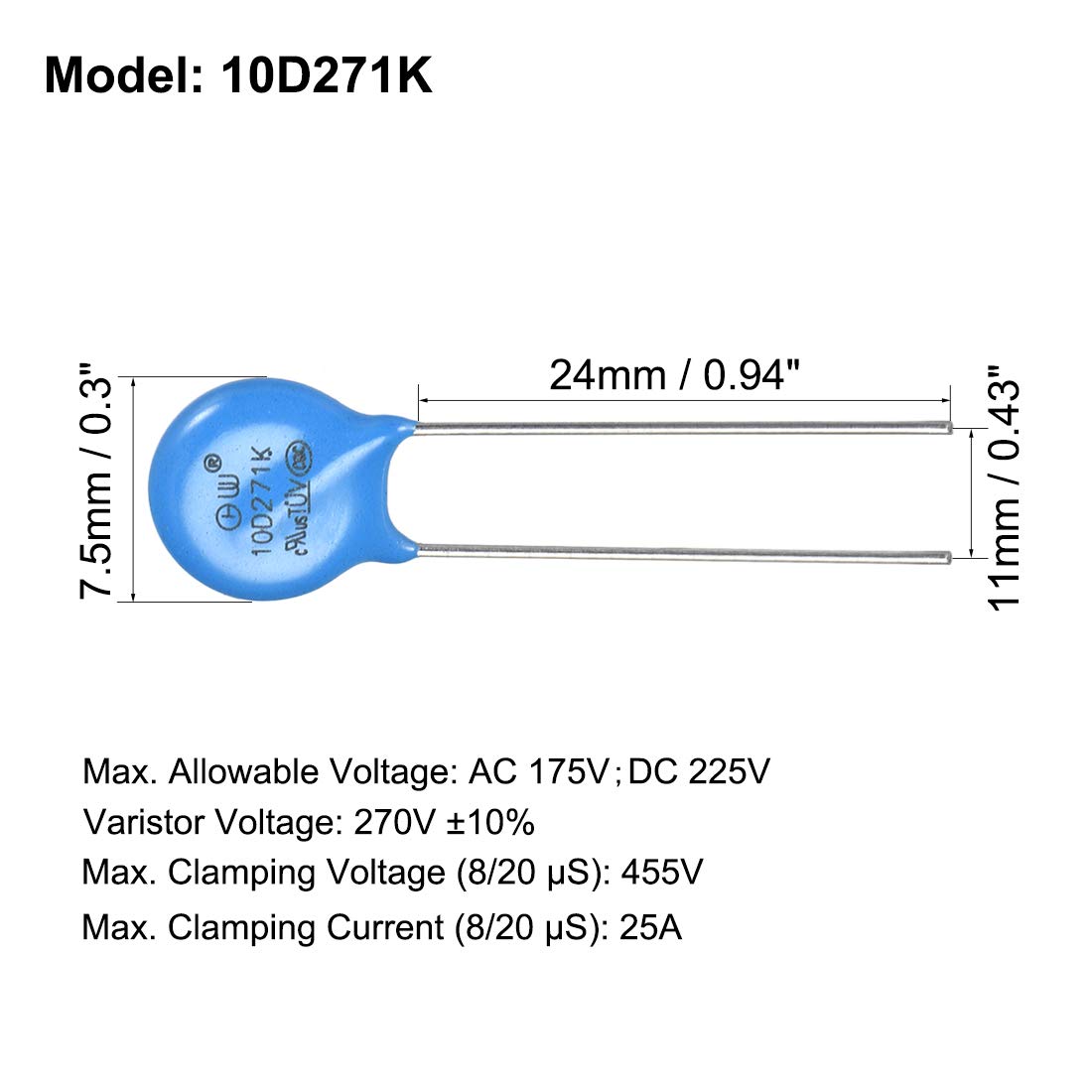

• Lead Size: 24 x 0.7mm / 0.94" x 0.03" (L*D); Lead Spacing : 7.5mm / 0.3"; Lead Type: Straight
• Specific epoxy coated disc construction with radial leads, long life use.
• Voltage Dependent Resistor is designed to protect equipment against transient voltage spikes.

Specifications: Model: 10D271K Max. Allowable Voltage: AC 175V; DC 225V Varistor Voltage: 270V ±10% Max. Clamping Voltage (8/20 μS): 455V; Max. Clamping Current (8/20 μS): 25A Max. Peak Current (8/20 μS) : 2500A Rated Power: 0.4W; Max. Energy: 40J Typical Capacitance : 504pF (1kHz) Lead Type: Straight Lead Size: 24 x 0.7mm / 0.94" x 0.03" (L*D); Lead Spacing : 7.5mm / 0.3" Body Size: 11 x 3.6mm / 0.43" x 0.14" (D*T) Fit Climate Type: 40/85/56 Material: Epoxy, ZnO; Color: Blue Package Content: 20 x Voltage Dependent Resistors Descriptions: 1.Specific epoxy coated disc construction with radial leads, long life use. 2.The Voltage Dependent Resistor is designed to protect equipment against transient voltage spikes. 3.Connected directly across the power supply rails. When a voltage spike is encounted, the varistor rapidly changes impedance from its normal high impedance state to a very low level in standby mode. 4.Can permit absorbtion of the unwanted high voltage and protect voltage sensitive components and circuits. 5.Widely used in power supply, industrial equipment, lighting products, electronics and home appliance etc.
