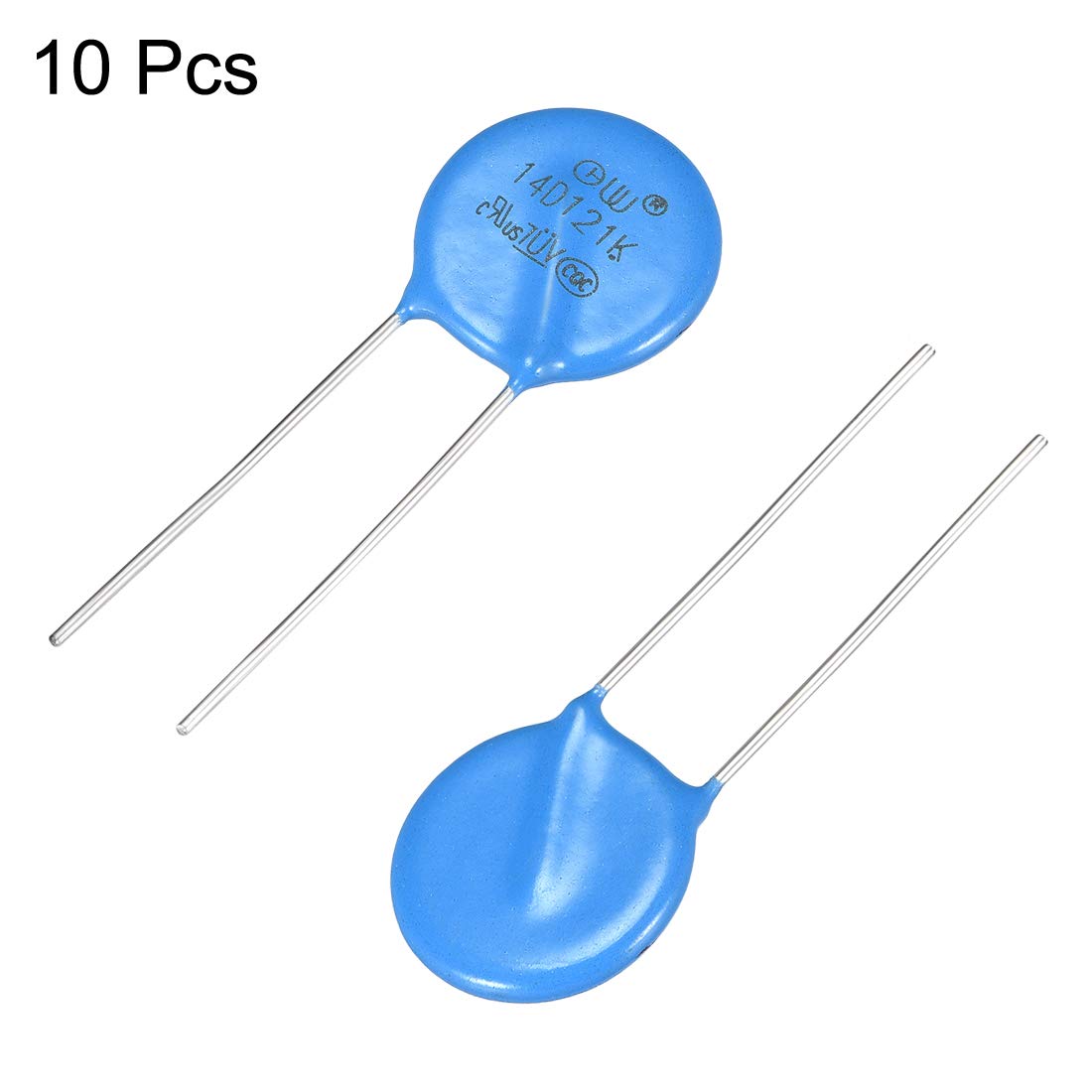

sourcingmap 10Pcs Voltage Dependent Resistors AC 75V 14D121K Radial Lead Disc Varistors

• Model: 14D121K; Max. Allowable Voltage: AC 75V; DC 100V; Varistor Voltage: 120V ±10%
• Max. Clamping Voltage (8/20 μS): 200V; Max. Clamping Current (8/20 μS): 50A

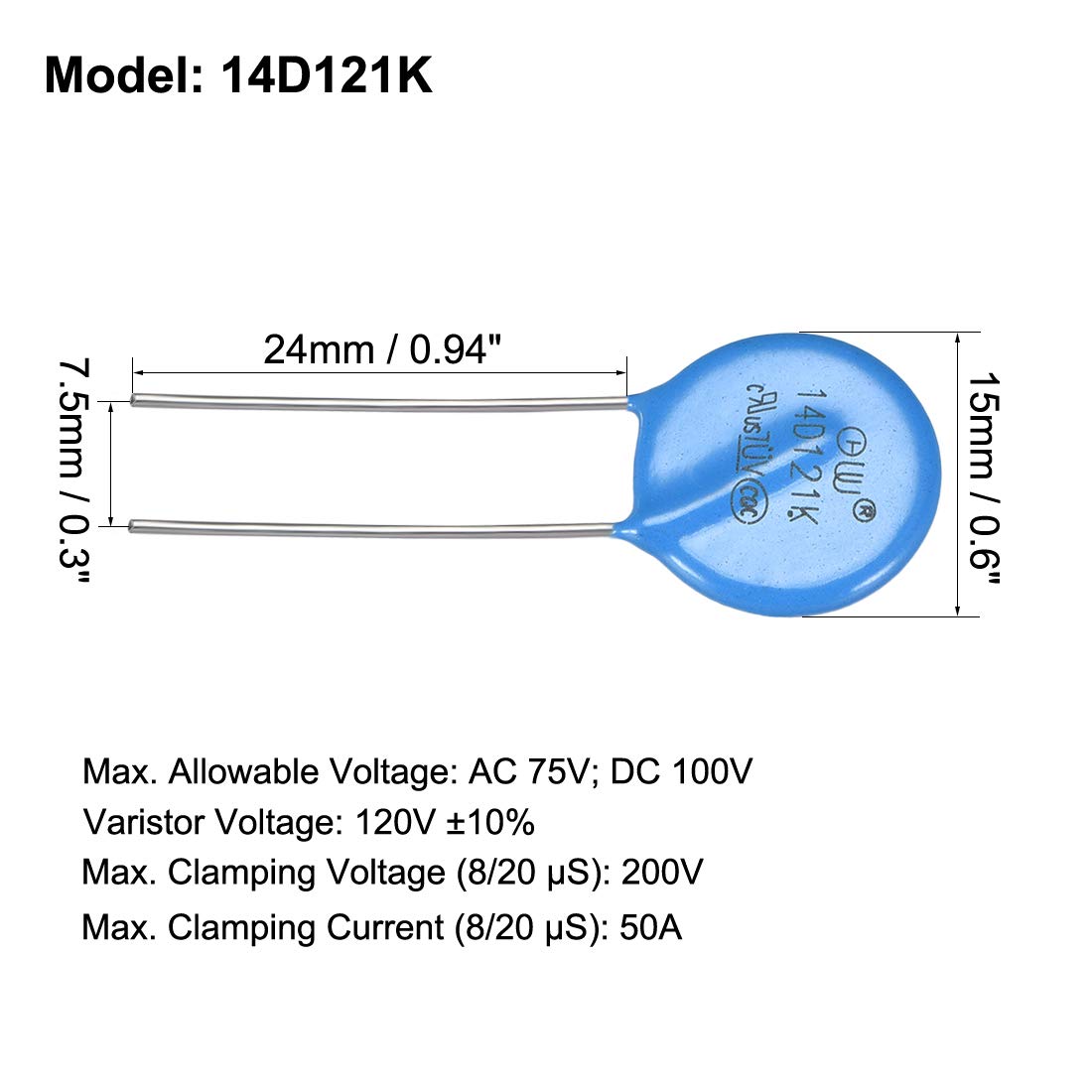

• Lead Size: 24 x 0.7mm / 0.94" x 0.03" (L*D); Lead Spacing : 7.5mm / 0.3"; Lead Type: Straight
• Specific epoxy coated disc construction with radial leads, long life use.
• Voltage Dependent Resistor is designed to protect equipment against transient voltage spikes.

Specifications: Model: 14D121K Max. Allowable Voltage: AC 75V; DC 100V Varistor Voltage: 120V ±10% Max. Clamping Voltage (8/20 μS): 200V; Max. Clamping Current (8/20 μS): 50A Max. Peak Current (8/20 μS) : 4500A Rated Power: 0.6W; Max. Energy: 32J Typical Capacitance : 3528pF (1kHz) Lead Type: Straight Lead Size: 24 x 0.7mm / 0.94" x 0.03" (L*D); Lead Spacing : 7.5mm / 0.3" Body Size: 15 x 3mm / 0.6" x 0.12" (D*T) Temperature Coefficient: PTC; Fit Climate Type: 40/85/56 Material: Epoxy, ZnO; Color: Blue Package Content: 10 x Voltage Dependent Resistors Descriptions: 1.Specific epoxy coated disc construction with radial leads, long life use. 2.The Voltage Dependent Resistor is designed to protect equipment against transient voltage spikes. 3.Connected directly across the power supply rails. When a voltage spike is encounted, the varistor rapidly changes impedance from its normal high impedance state to a very low level in standby mode. 4.Can permit absorbtion of the unwanted high voltage and protect voltage sensitive components and circuits. 5.Widely used in power supply, industrial equipment, lighting products, electronics and home appliance etc.
