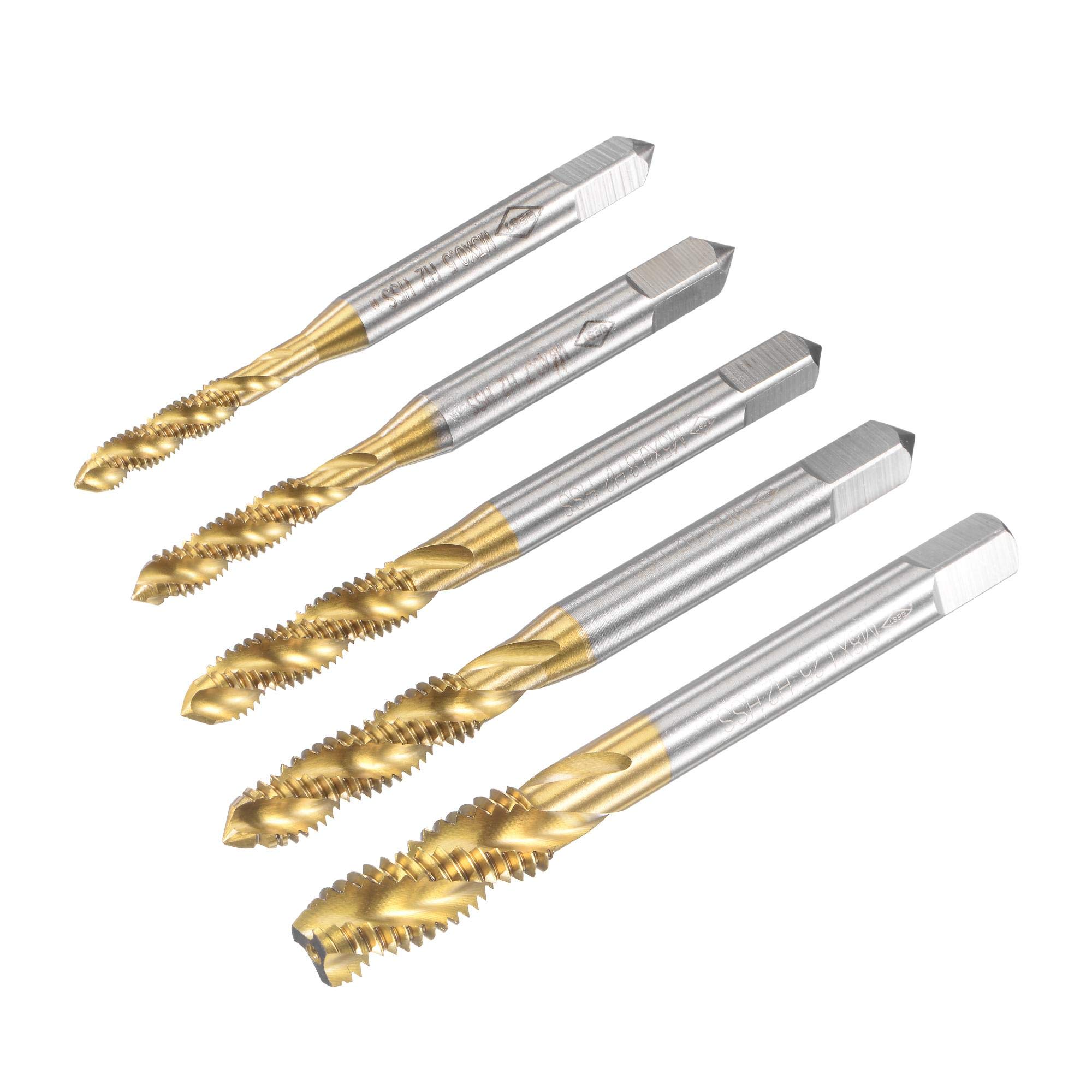

sourcing map M3 M4 M5 M6 M8 Spiral Flute Taps Set Titanium Coated High-Speed Steel Machine Thread Metric Screw Taps 5pcs

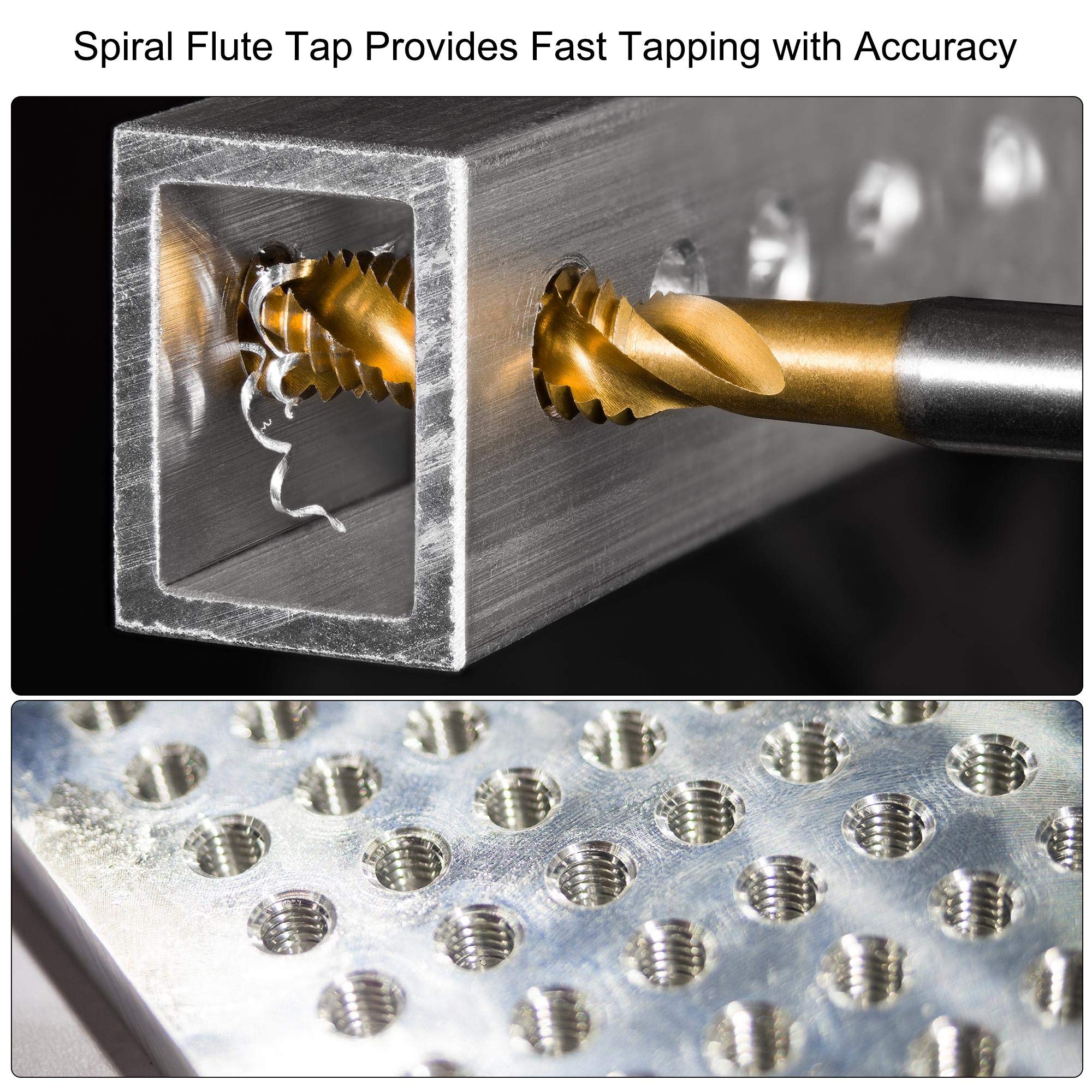

• Tap Size: M3 x 0.5, M4 x 0.7, M5 x 0.8, M6 x 1, M8 x 1.25. Spiral flute design, upward chip removal. Right hand thread cutting, clear threads without burrs, fast tapping with accuracy.

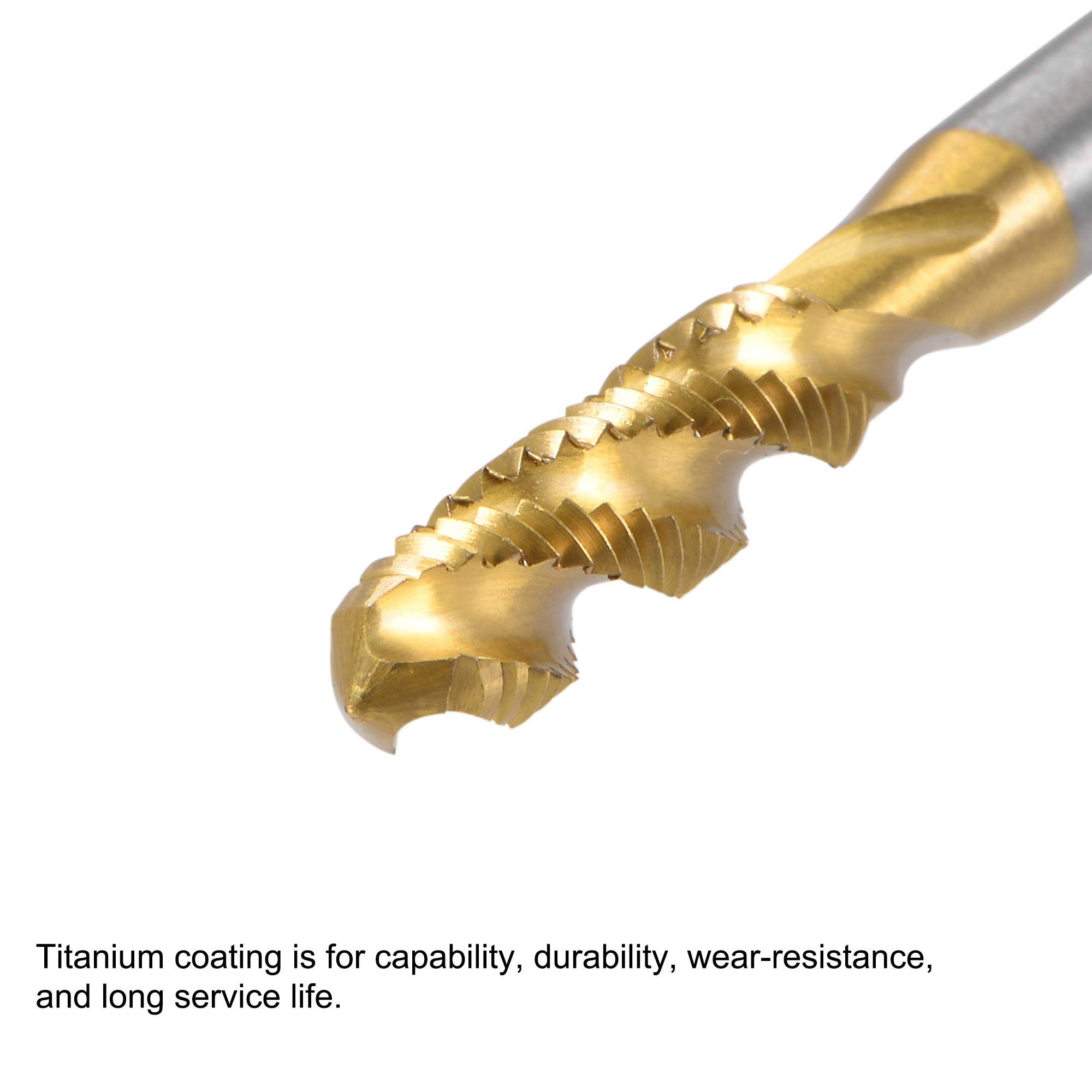

• Material & Coating: High-speed steel taps features high hardness and toughness, good for general purpose applications. Titanium coating is for capability, durability, wear-resistance, and long service life.
• Applications: Suitable for processing blind holes and sticky materials. Suitable for drilling and tapping aluminum, die steel, stainless steel, bronze, hard plastics, etc.
• Easy to Use: Used on drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps.
• Tips: Machine taps are suggested to be used with tap collets with overload protection. Hand use is easy to cause damage to the tap due to uneven force.

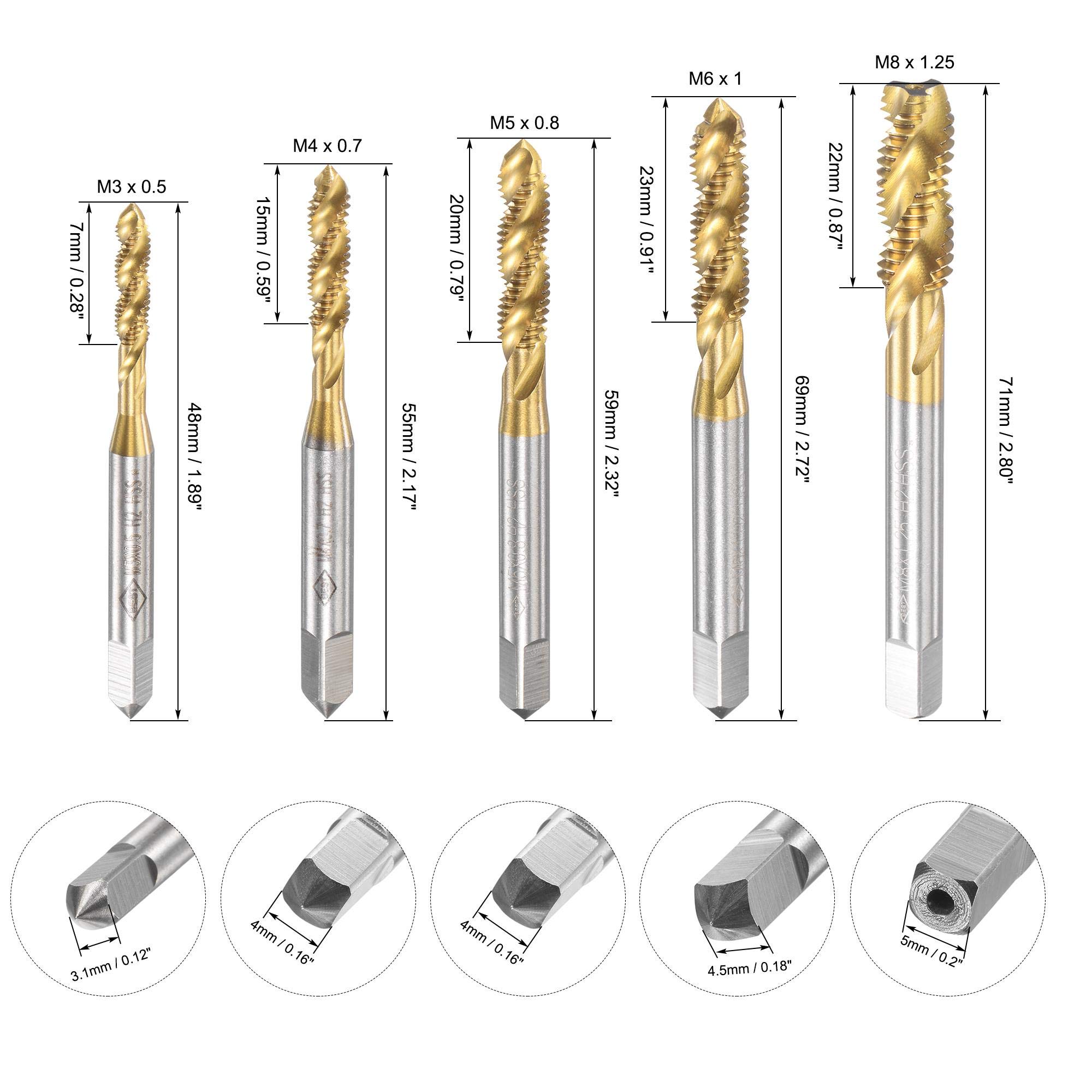

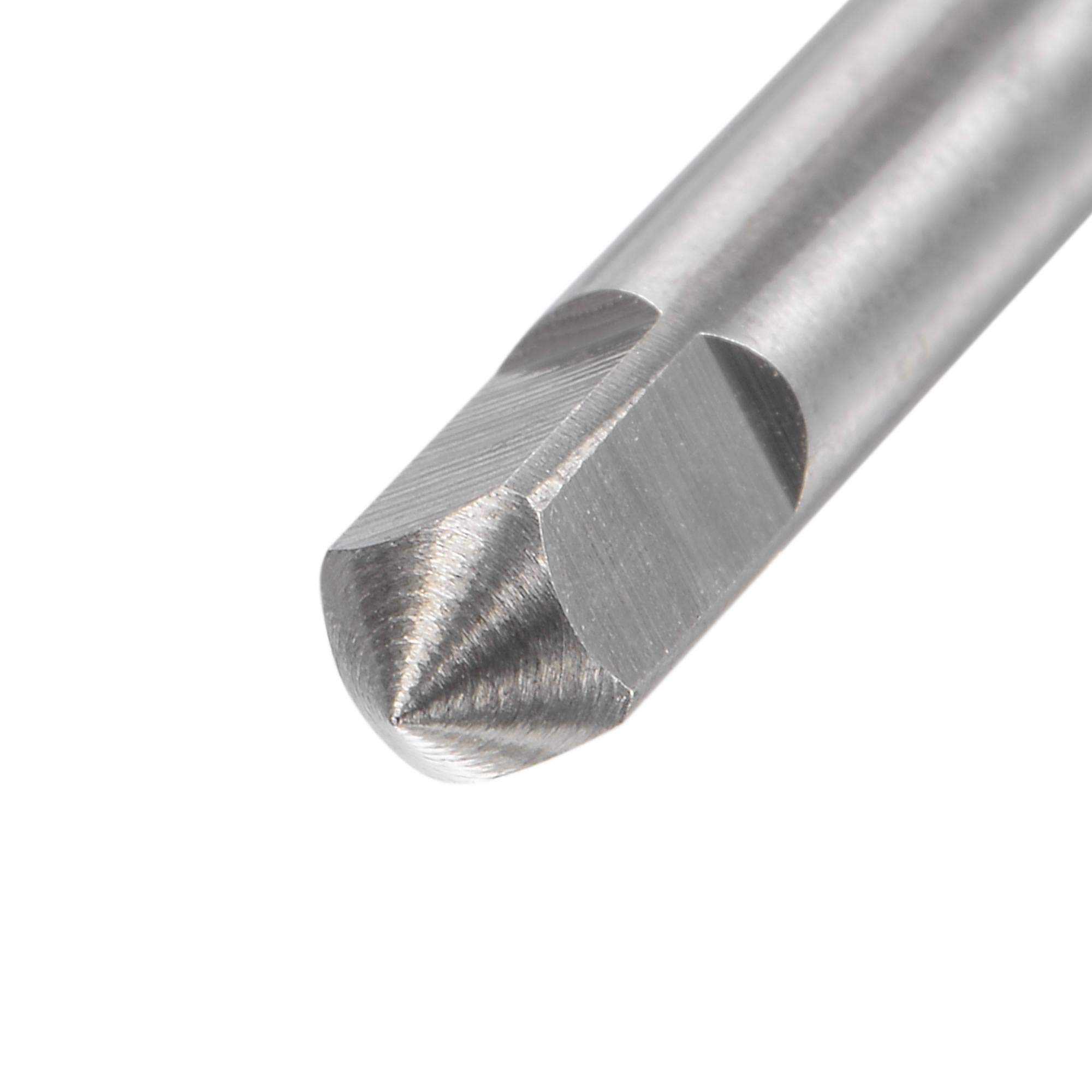

Specifications: Thread Size: M3 x 0.5, M4 x 0.7, M5 x 0.8, M6 x 1, M8 x 1.25 Thread Length: 7mm / 0.28", 15mm / 0.59", 20mm / 0.79", 23mm / 0.91", 22mm / 0.87" Square Shank Size: 3.1mm / 0.12", 4mm / 0.16", 4mm / 0.16", 4.5mm / 0.18", 5mm / 0.2" Total Length: 48mm / 1.89", 55mm / 2.17", 59mm / 2.32", 69mm / 2.72", 71mm / 2.80" Material: High-speed Steel 6542 Surface Treatment: Titanium Coated Descriptions: 1. Spiral flute design, upward chip removal. Right hand thread cutting, clear threads with no burrs, fast tapping with accuracy. 2. High-speed steel taps features high hardness and toughness, good for general purpose applications. Titanium coating is for capability, durability, wear-resistance, and long service life. 3. Suitable for processing holes and sticky materials. Suitable for drilling and tapping aluminum, die steel, stainless steel, bronze, hard plastics, etc.. 4. Used on drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps. 5. Machine taps are suggested to be used with tap collets with overload protection. Hand use is easy to cause damage to the tap due to uneven force. Package Included: 5pcs x Spiral Flute Taps
