sourcing map ER20-A(M25) Type Collet Clamping Hex Nuts for CNC Milling Chuck Holder Lathe

• Model : ER20 A Type ; Material : Cast Steel

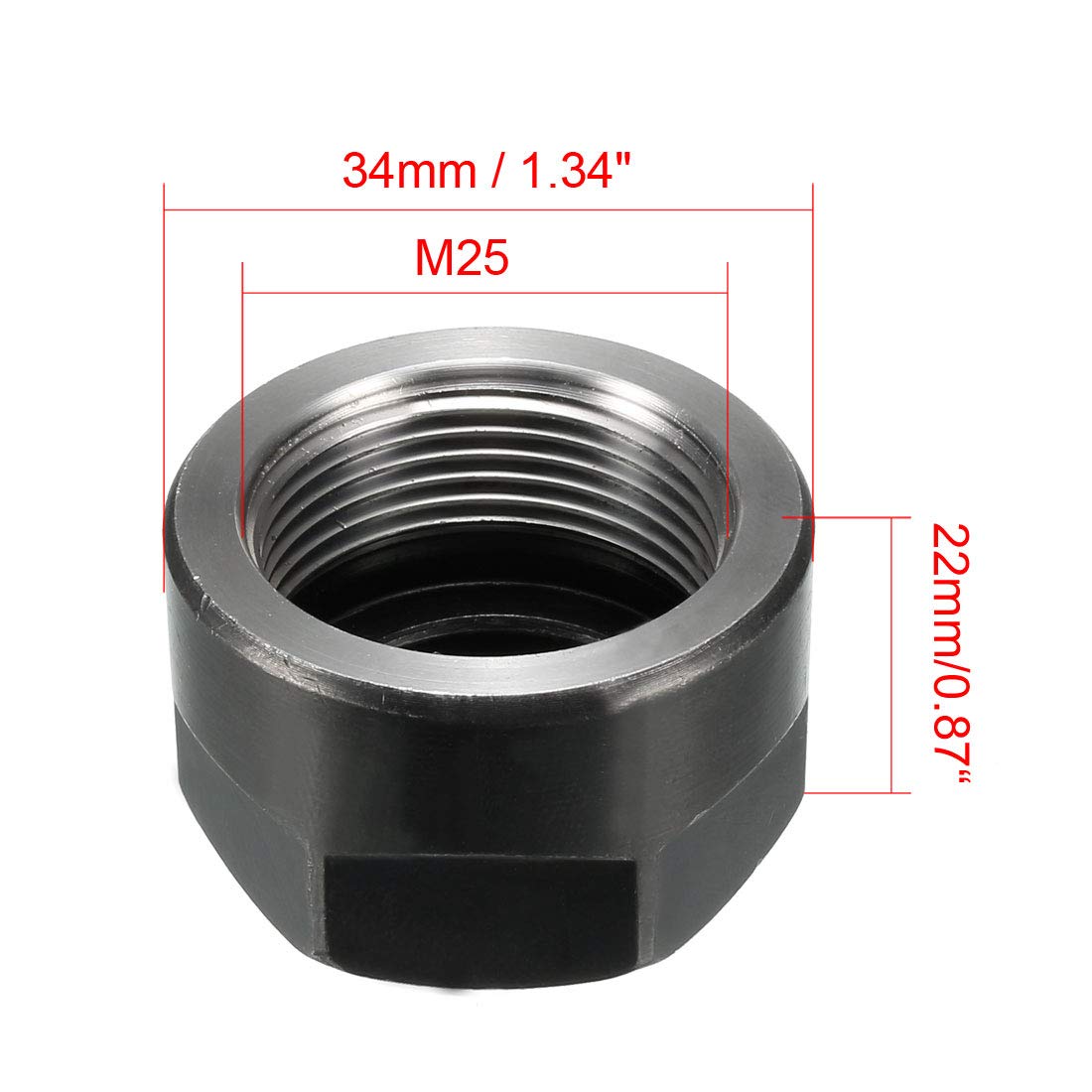

• Hole Diameter : 16mm/ 0.63”;Overall Size(Approx.) : 34 x 22mm/ 1.34” x 0.87“ (D*H)
• This collet nut is a great replacement for the broken part; Fit most tool holders
• Package Content: 1 x Collet Nut
• Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

Precision ground and hardened. This collet nut is a great replacement for the broken part. Fit most tool holders. Specification: Product Name : Collet Hex Nut Model : ER20-A Overall Size:34 x 22mm / 1.34” x 0.87“ (D*H) Thread Size: M25 Thread Pitch: 1.5mm Hex Nut Width: 30mm/1.18“ Hole Diameter: 16mm/ 0.63” Material : Cast Steel Package Content: 1 x Collet Nut
