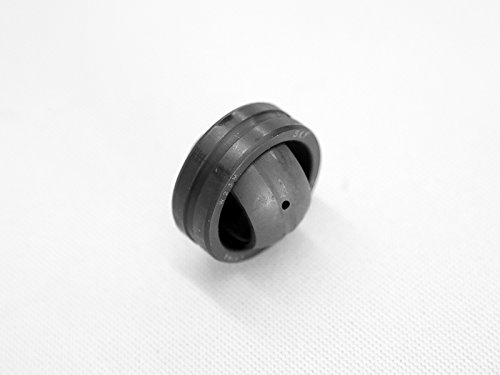

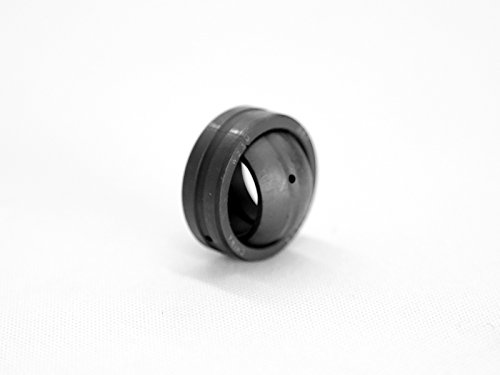

SKF GE 60 TXG3E-2LS Radial Spherical Plain Bearing
About this item
- Designation: GE 60 TXG3E-2LS
- Lubricant: Maintenance free dry lubrication
Product description
Radial spherical plain bearings. Design: Steel/PTFE fabric. Sealing solution: Triple-lip seal. Unit system: Metric. Bore diameter d: 60mm. Outside diameter D: 90mm. Nominal width B: 44mm. Width outer ring C: 36mm. Angle of tilt : 6. Raceway diameter inner ring dk: 80mm. Diameter lubrication hole (outer ring) M: mm. Chamfer dimension bore r1min: 1mm. Chamfer dimension outer ring r2min: 1mm. Abutment diameter shaft damin: 66.5mm. Abutment diameter shaft damax: 66.8mm. Abutment diameter housing Damin: 80mm. Abutment diameter housing Damax: 84mm. Fillet radius shaft ramax: 1mm. Fillet radius housing rbmax: 1mm. Basic dynamic load rating C: 695kN. Basic static load rating C0: 1160kN. Specific dynamic load factor K: 300N/mm. Specific static load factor K0: 500N/mm.
Product details
