sourcing map 3/8-32 UNEF Tap and Die Set with 30mm Round Die Stock Handle Wrench, High Speed Steel Machine Thread Tap and Round Die Threading Tool

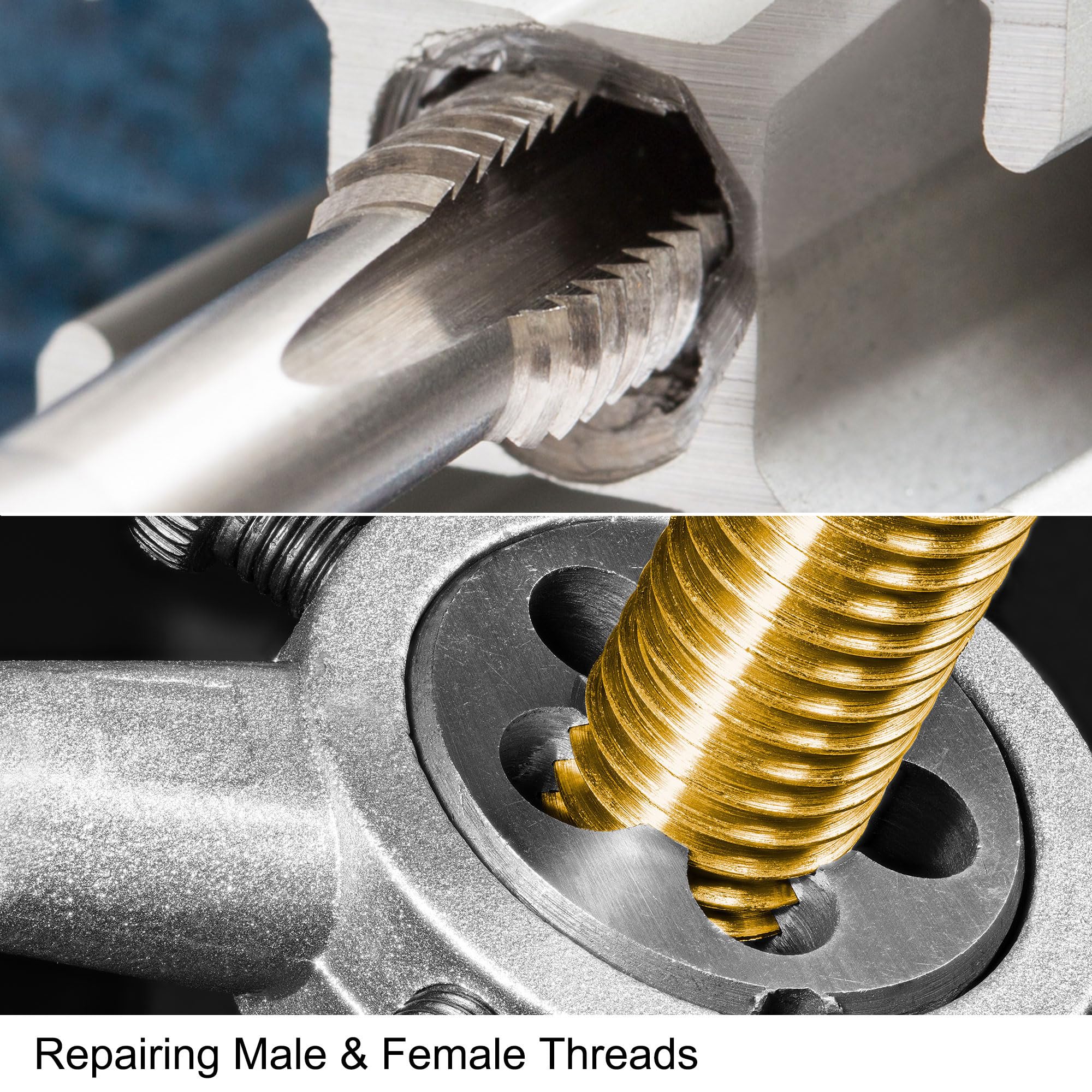

• Tap and Die Set: 3/8-32 UNEF thread tap and round die. 30mm die stock fits 20mm-30mm / M9-M11 capacity, with adjustable screws. Suitable for making or repairing male and female threads. Good for general purpose applications.
• Application: Can re-thread existing threads in hard materials like metal, or make new threads in soft material like plastic. Used to process mild steel, aluminum, stainless steel, iron, cast iron, alloy steel, and hard plastics, etc.

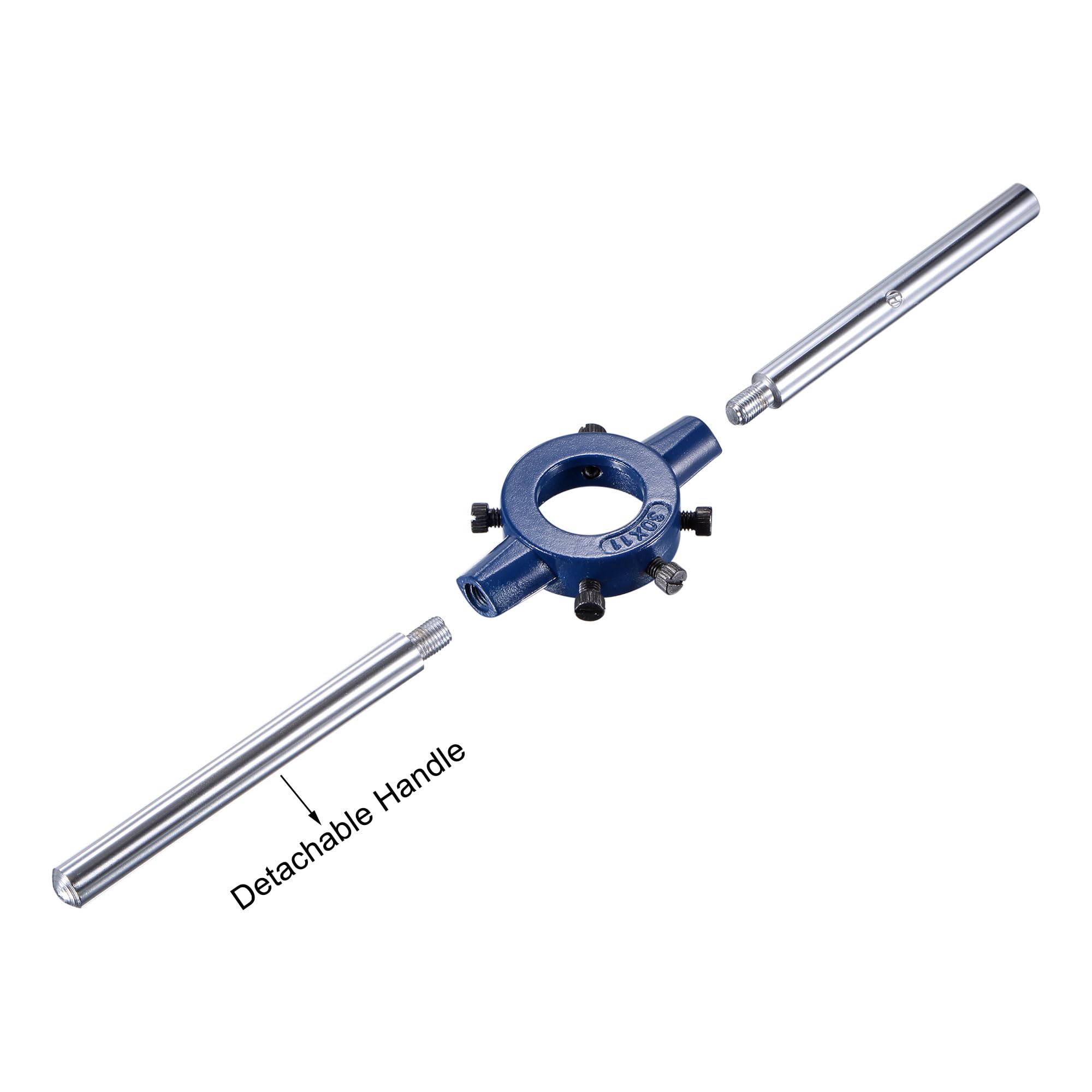

• Special Design: High-speed steel machine tap is with high hardness and toughness for wear resistance. Features just the base substrate without any additional coatings. With adjustable screws, the die stock can securely hold round dies

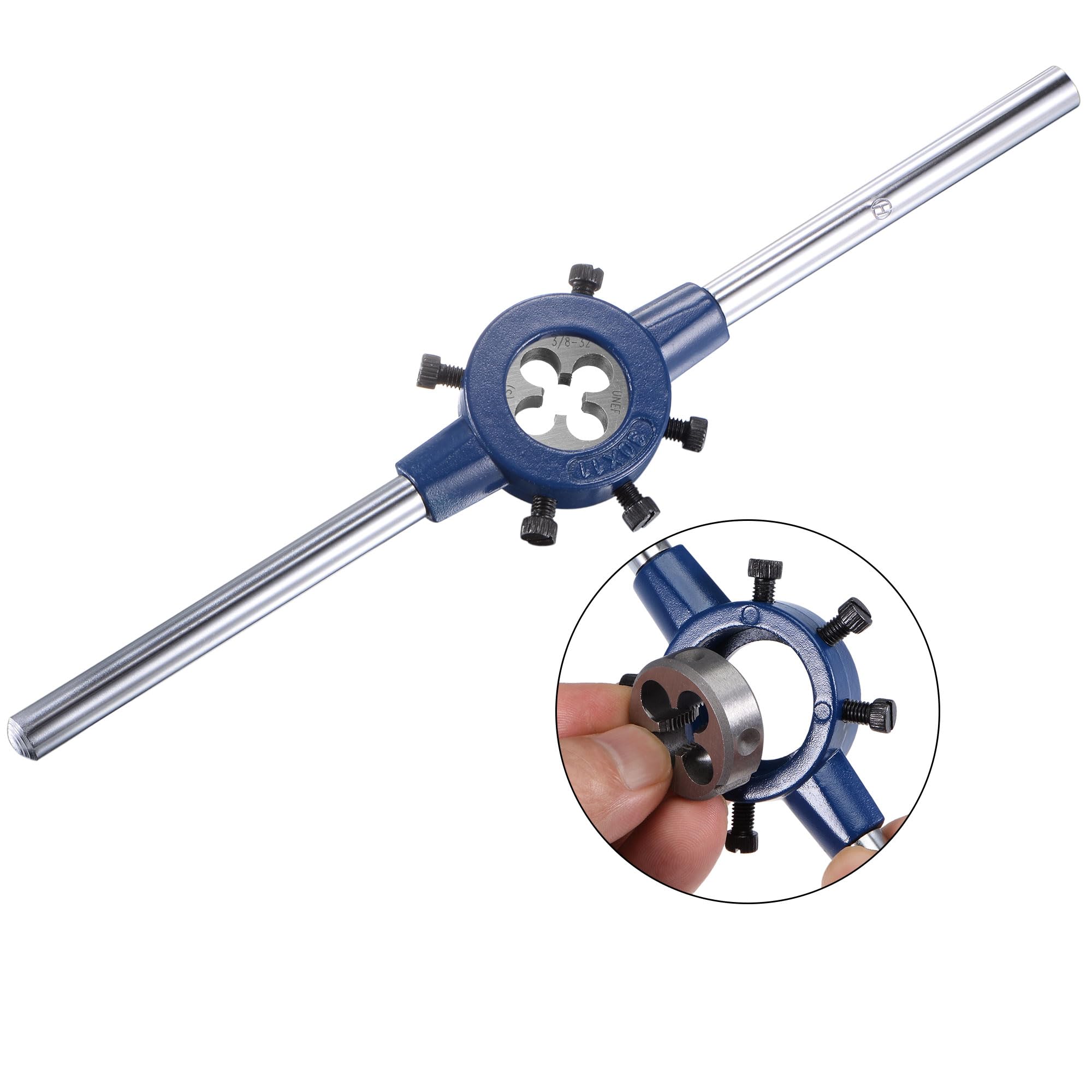

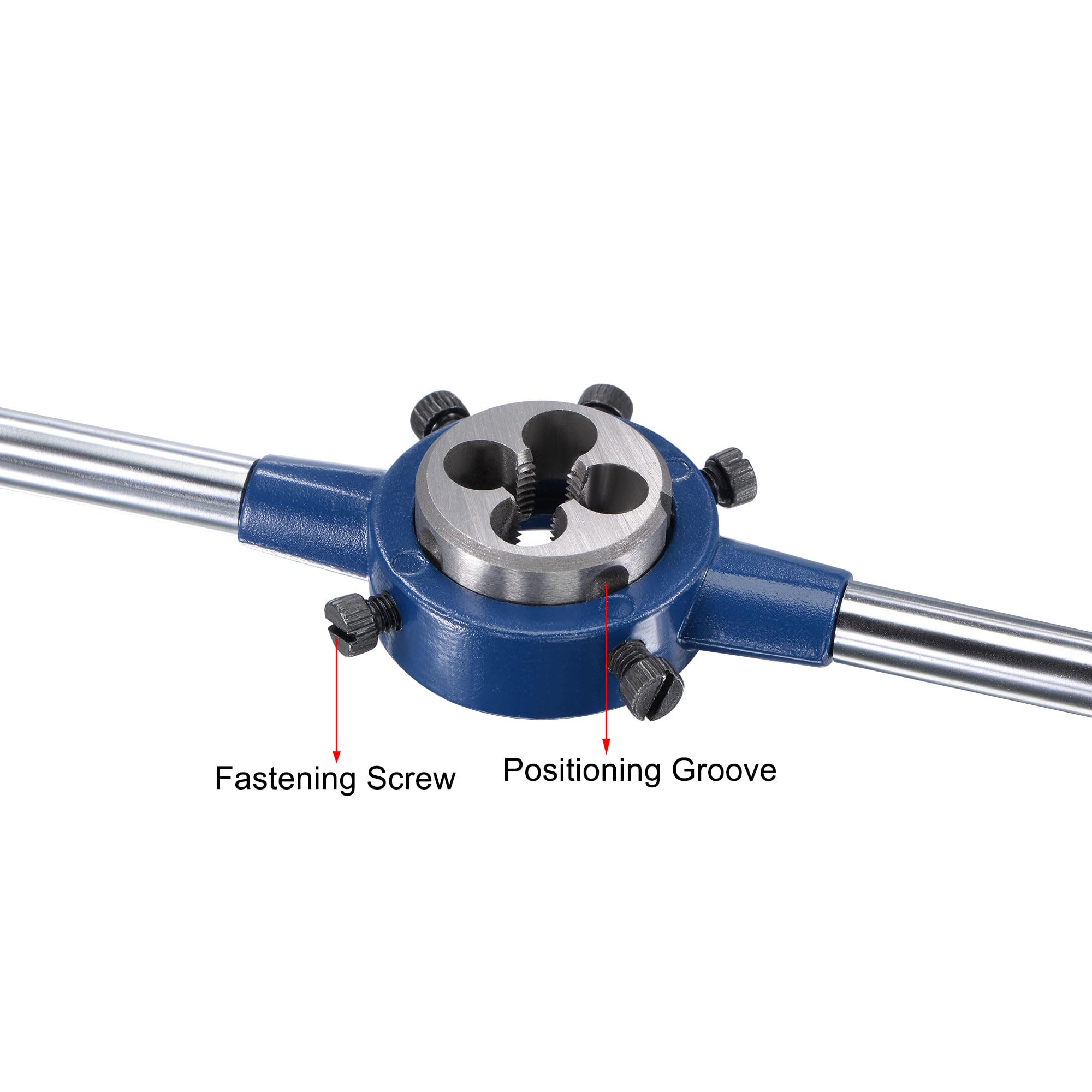

• Easy to Use: The positioning groove of the die should be aligned with the fastening screw in the middle of the die wrench, and the screw should be inserted into the slot of the die and tightened.
• Tips: It needs to be reversed every 1/4~1/2 turn to facilitate the chip discharge from the chip hole. Suitable lubricating oil should be added to the cutting edge of the die when tapping threads.

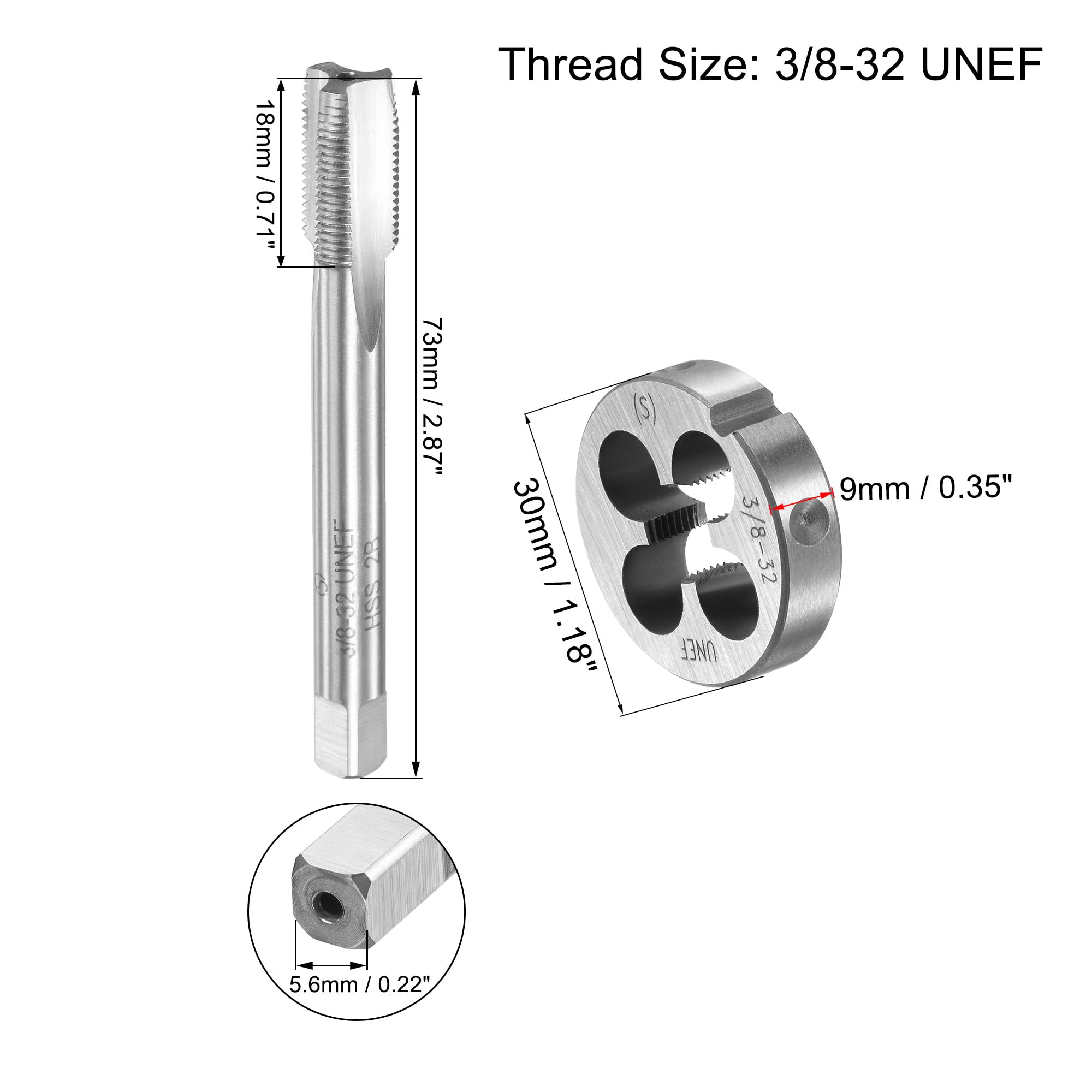

Specifications: Thread Tap: Thread Size: 3/8-32 UNEF; Thread Length: 18mm / 0.71"; Square Shank Size: 5.6mm / 0.22"; Overall Length: 73mm / 2.87"; Tolerance Grade: 2B; Material: High Speed Steel Round Die: Thread Size: 3/8-32 UNEF; Outside Diameter (OD): 30mm / 1.18"; Thickness: 8mm / 0.31"; Accuracy class: 6g; Material: Tool Steel (9CrSi) Die Stock: Size: 30mm x 11mm / 1.18" x 0.43" (D*H); Fit Capacity: 20mm-30mm (M9-M11); Overall Length: 256mm / 10.08"; Material: Cast Iron Descriptions: The round die is suitable for re-threading existing threads in hard materials like metal, or making new male threads in soft material like plastic. Good for general purpose threading. The high-speed steel tap can make or repair female threads, great for general purpose applications. Machine tap is with high hardness and toughness for wear resistance. Features just the base substrate without any additional coatings. Use with tapping oil to get higher quality threads and more durable taps. The die stock is suited for 30mm outside diameter round dies. Provides good wear resistance for long service life. With adjustable screws, the die stock can securely hold round dies and is easy to operate. The die and tap set with die wrench can greatly improve the efficiency of processing threads, and are necessary tools for hand tapping operation. Can be used to process mild steel, aluminum, stainless steel, iron, cast iron, alloy steel, and hard plastics, etc. Package Included: 1 x Thread Tap, 1 x Round Die, 1 x Die Stock Handle Wrench
