Sonero AVT115 HDMI Audio Extractor, 4K schwarz

• 4K HDMI audio extractor for resolutions up to 4K/ UltraHD/ 2160p @60Hz with 600MHz/6Gbps per channel (total 18Gbps) bandwidth, max. 12-bit 4K (60Hz)
• Dual audio output: output of digital multi-channel sound for 5.1/7.1 surround sound via optical S/PDIF (Toslink) and stereo via 3.5 mm jack output
• Supports uncompressed audio such as LPCM and compressed audio such as DTS and Dolby Digital
• Compliant with HDCP 1.4 and 2.2 specifications, supports 3D formats up to 600 MHz

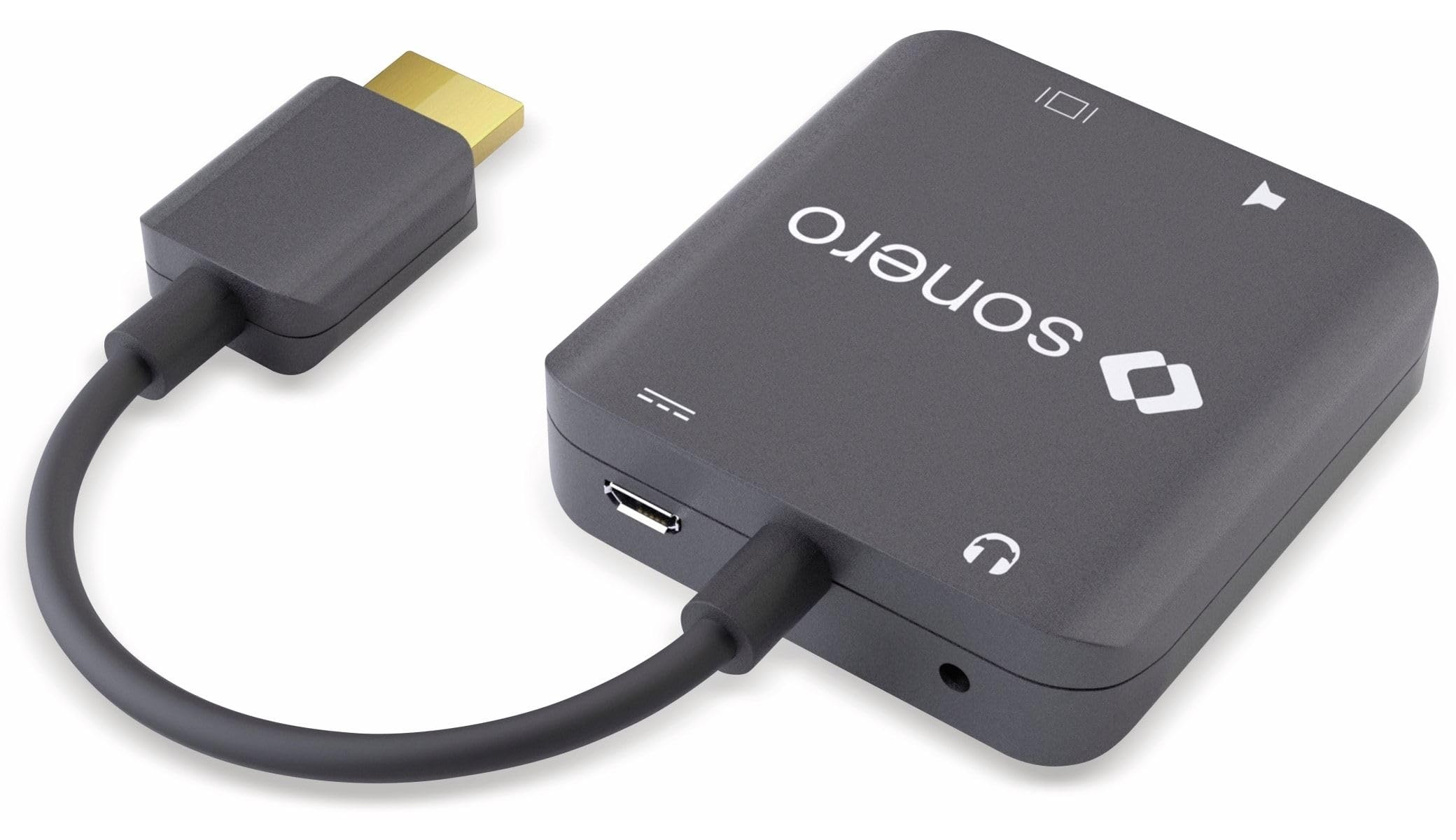

• Input side as a 10 cm pigtail HDMI cable for easy connection to the source device - 5V power supply via any USB device via microUSB input

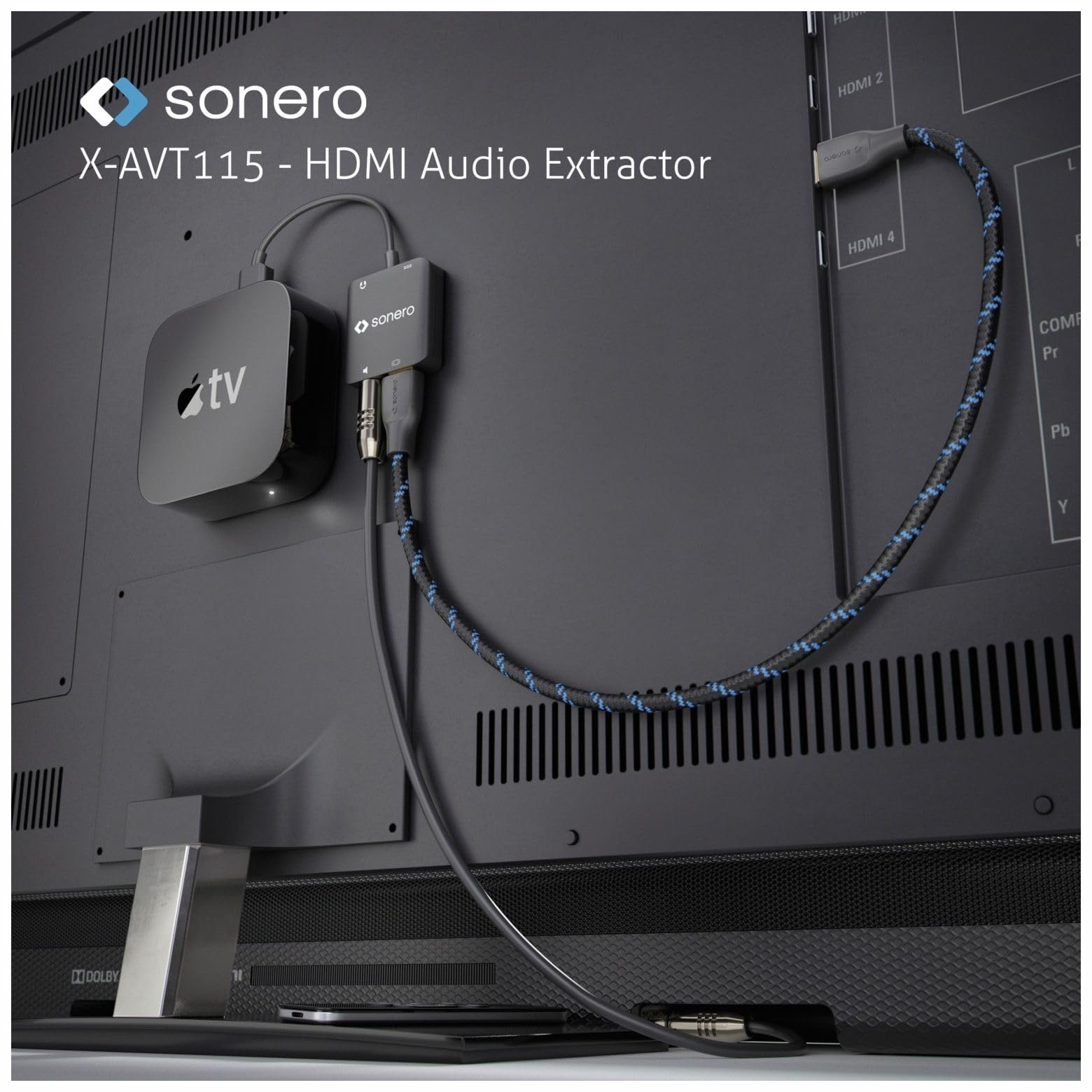

Product Description This is an HDMI audio extractor that supports resolutions up to 4K / UltraHD / 2160p @ 60Hz. It forwards AV signals from a source device such as a BluRay player to a monitor / TV and enables the extraction of the audio signal for connection to an amplifier / AVR via optical S / PDIF (Toslink), so that HD video and high quality audio becomes possible. This device extracts the 5.1 surround audio signal from the source signal and transmits it to the connected amplifier / AVR, with full support of Dolby 5.1 and DTS 5.1 for a local surround system, e.g. B. in home theaters. The additional 3.5mm jack output extracts and converts (downmix) the audio signal to L / R stereo for headphones or other audio devices. Operation 1. Connect the HDMI source device to the HDMI input of this audio extractor 2. Connect the HDMI display to the HDMI output 3. Connect the optical S / PDIF Toslink connection to the amplifier for lossless 5.1 audio quality - Or connect headphones or other audio device to the 3.5mm headphone output for stereo audio Scope of delivery 1x 4K HDMI audio extractor, pigtail 1x user manual 1x MicroUSB to USB cable Features - HDMI resolutions up to 4K / UltraHD / 2160p @ 60Hz - Supports 600MHz / 6Gbps per channel (18Gbps all channels) bandwidth - Supports video resolutions up to 12-bit 4K (60Hz), 12-bit 1080p (60Hz) or 12-bit 720p / 1080i (60Hz) - Supports 3D- Formats up to 600 MHz - Compatible with HDCP 1.4 and 2.2 specifications - Supports uncompressed audio such as LPCM - Supports compressed audio such as DTS and Dolby Digital Technical data Size 55x55x16mm Weight 55g Input HDMI, Micro USB Output HDMI, S / PDIF optical (Toslink), 3.5mm stereo jack HDCP support 1.4 and 2.2 CEC -Support ung Yes EDID support Yes Supported resolutions Up to 4K / UltraHD / 2160p @ 60Hz Power consumption 5V DC, 1A Humidity 10% to 85% (non-condensing) Operating temperature 0 ° C to 70 ° C Storage temperature -10 ° C to 80 ° C Connections HDMI INPUT - Connect this connection to the HDMI source device TOSLINK OUTPUT - Connect this port to an amplifier with Toslink input using an S / PDIF Optical Toslink cable to enjoy high quality multi-channel audio HDMI OUTPUT - Connect this port to your HDTV MICRO-USB INPUT - Power supply input (5V / 1A) 3.5mm OUTPUT - Connect a suitable headphone or other audio device to this 3.5mm jack connection. Note The adapter must be connected correctly, with the cable directly to the source, in addition 5V DC must be fed in via Micro USB, if a 3.5mm plug is inserted, the optical Toslink output does not work. The correct audio codec must be set because the sources recognize the EDID from the TV. Box Contains Sonero ATV100 HDCP Converter 4K HDCP 1.4 to HDCP 2.2
