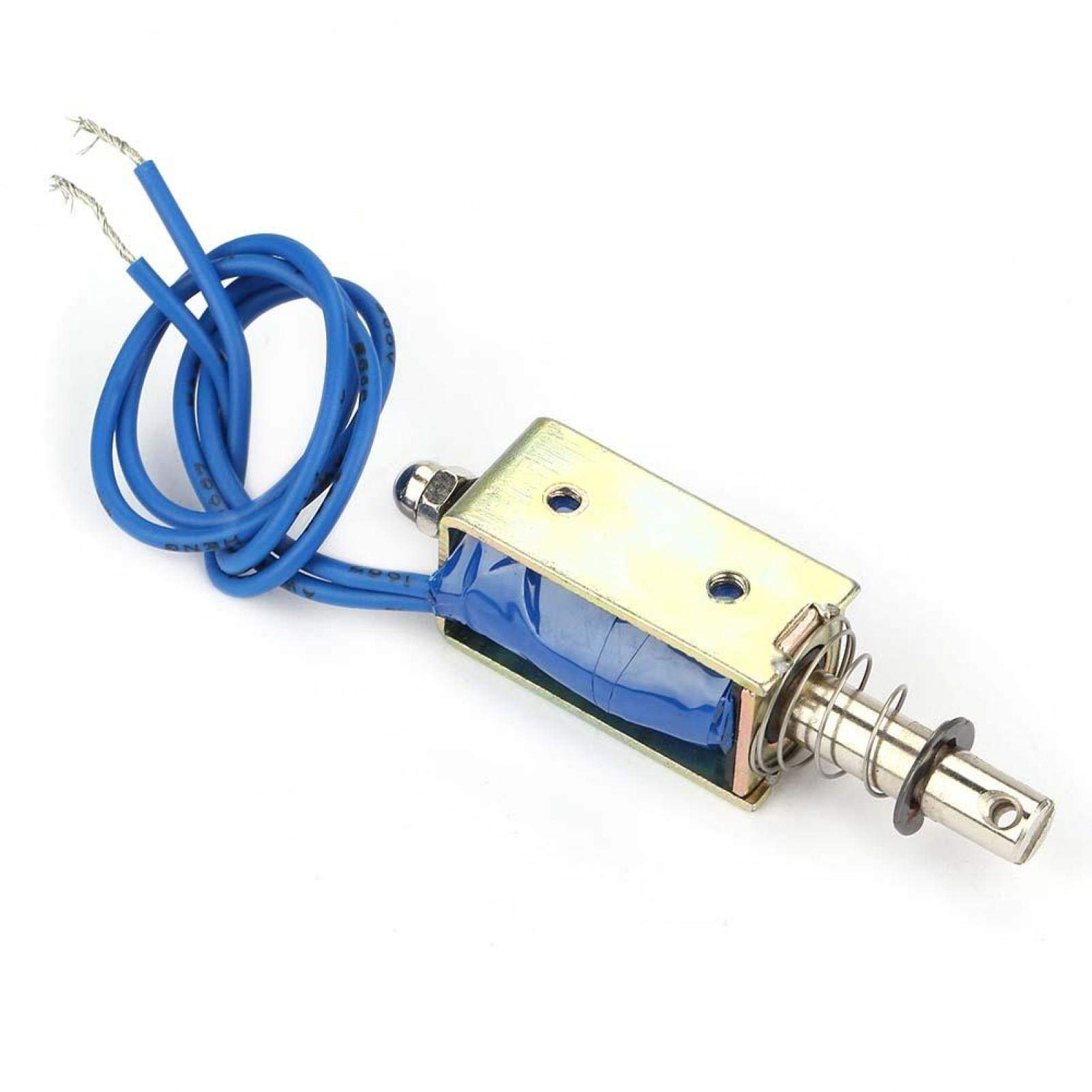

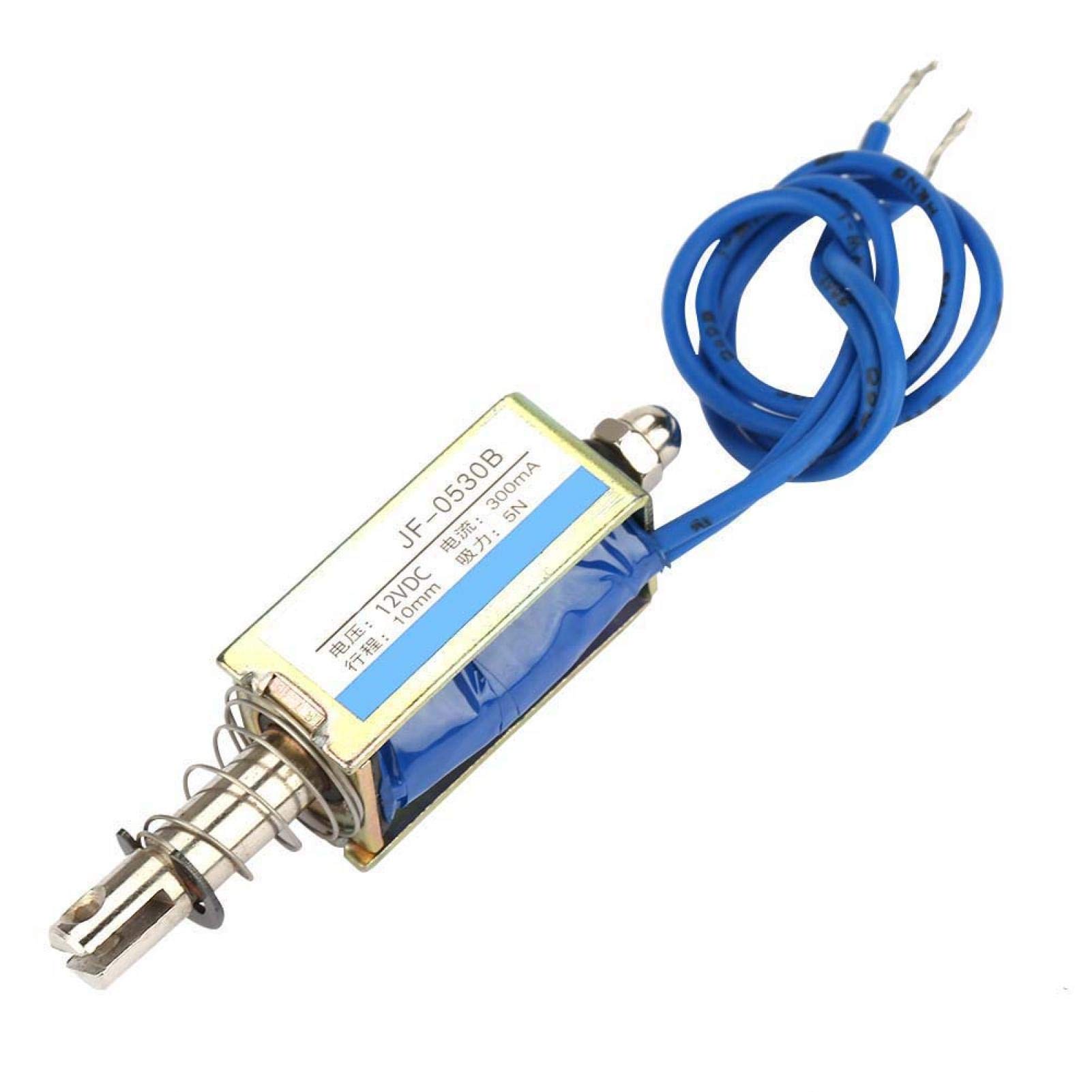

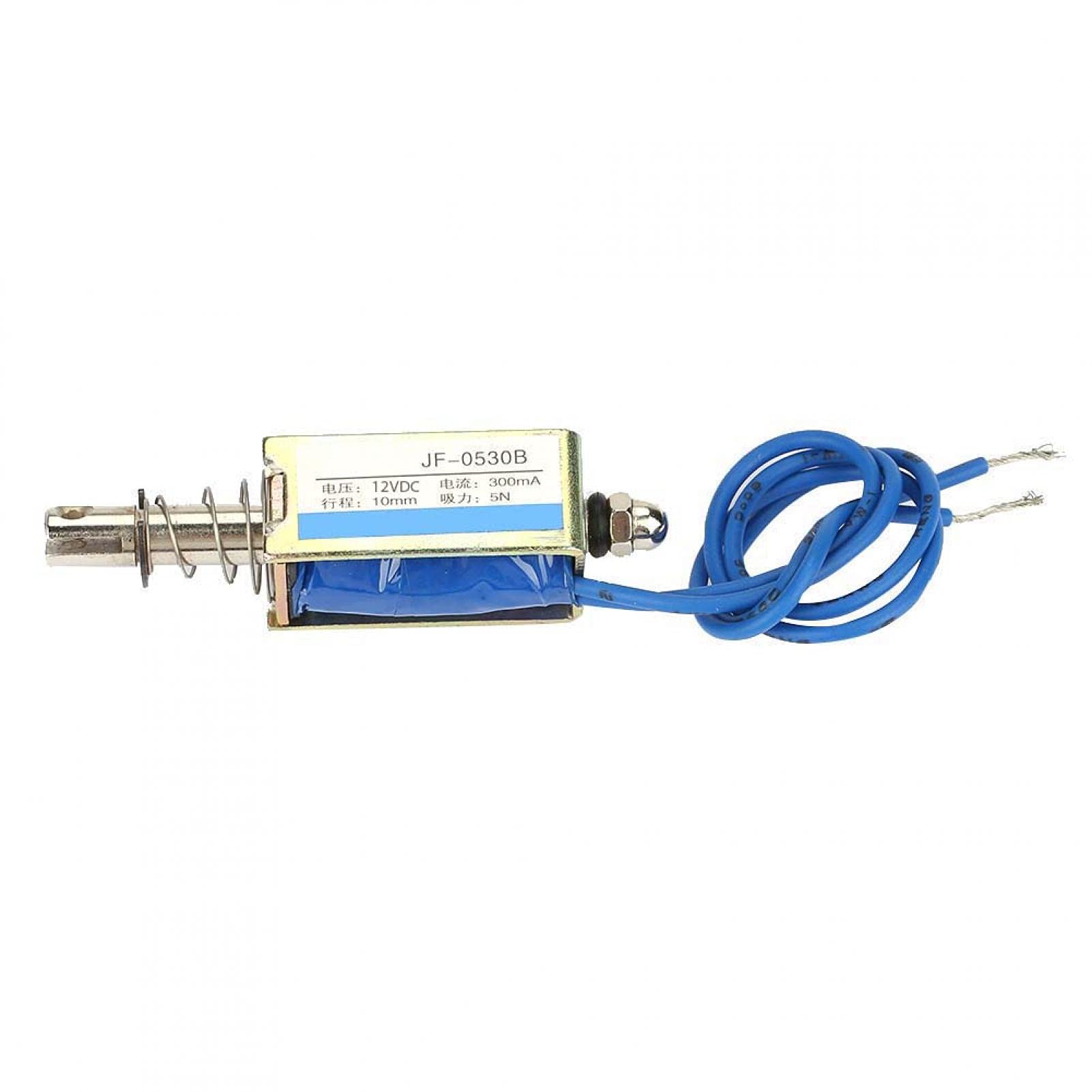

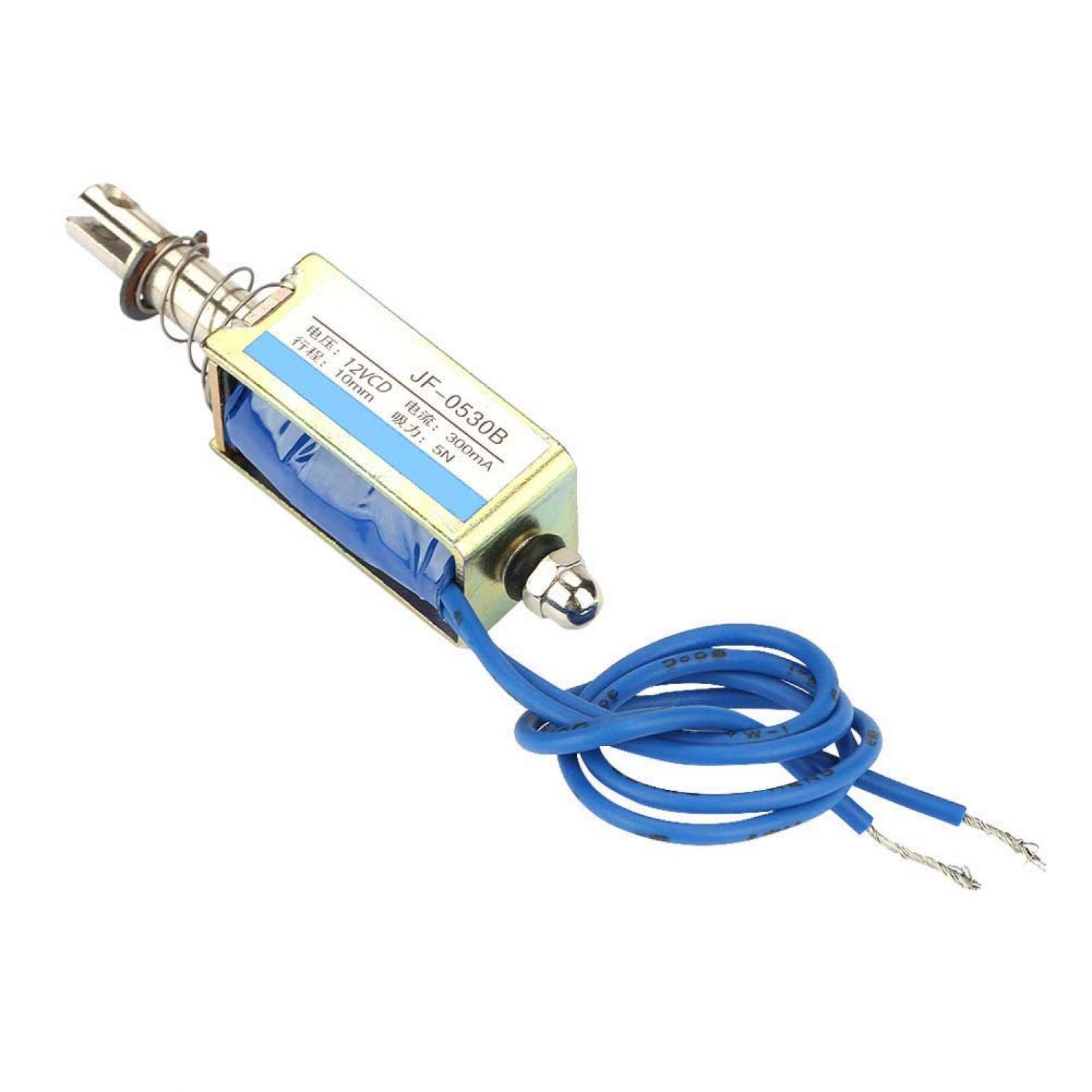

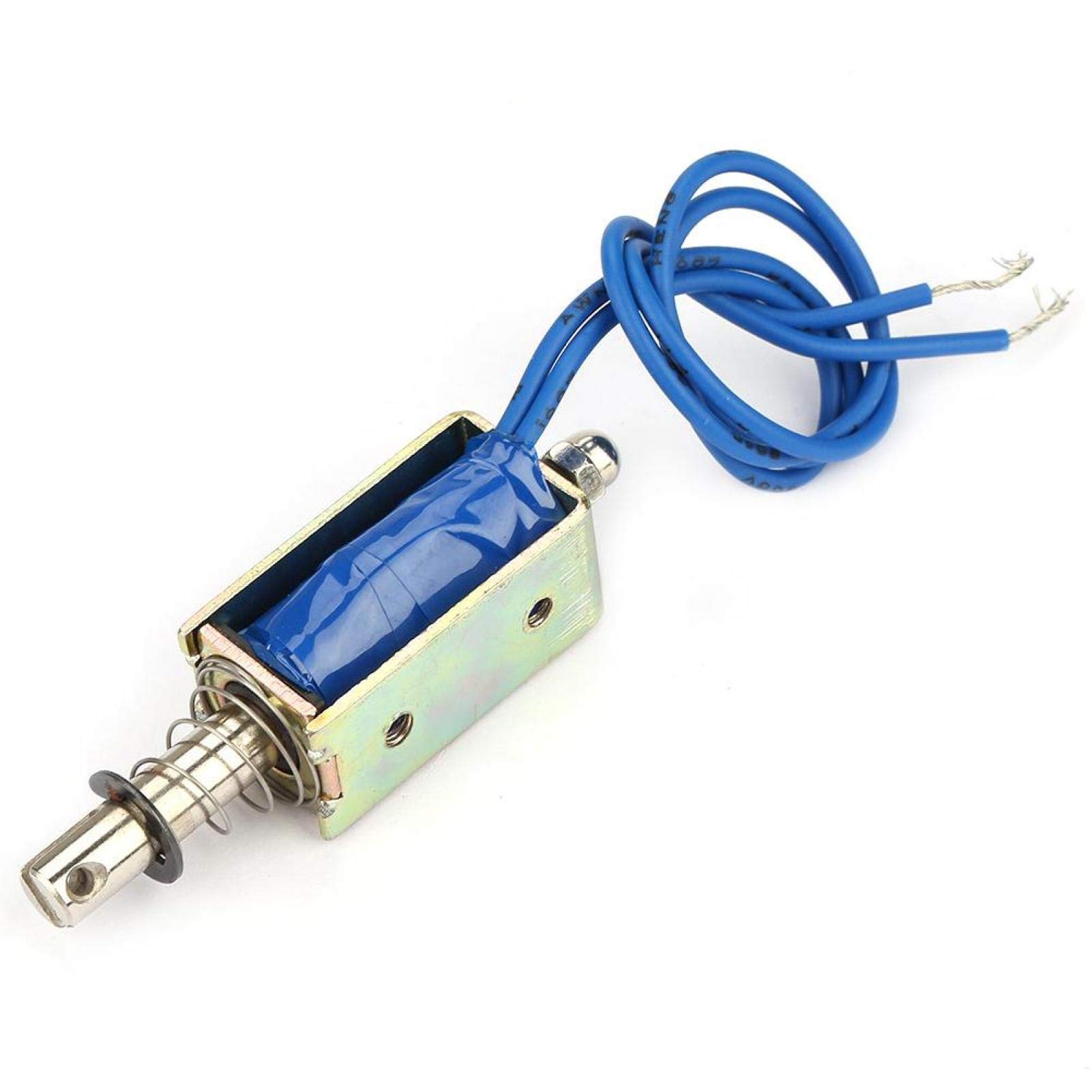

Solenoid Electromagnet, DC 6/12/24V 5N Push Pull Type Open Frame Linear Motion Automation Control,300mA 10mm(12V)

• 【FEATURE】- The DC electromagnet has three voltage options of 6V/12V/24V, easy to install and use
• 【Good Design】- The DC electromagnet is a push-pull, linear motion, frame type, plunger spring return, low friction to ensure high efficiency and extended life, 24V DC electromagnet.
• 【Advantages】- Solenoid electromagnet has simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high electrical conductivity.
• 【Application】- DC solenoid electromagnet widely used in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,auto door lock,etc.
• 【Noted】- As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time, best operate time is in 30 seconds.

Specification: Model: JF-0530B Working voltage: DC 6V/12V/24V (Optional) Working current: 300mA Magnet attraction: 5N Retractable range: 10mm Weight: 31g / 1.1oz Package list: 1 * DC electromagnet Note: The actual product color may deviate from the photo due to light. There may be a slight deviation in the measurement of product.
