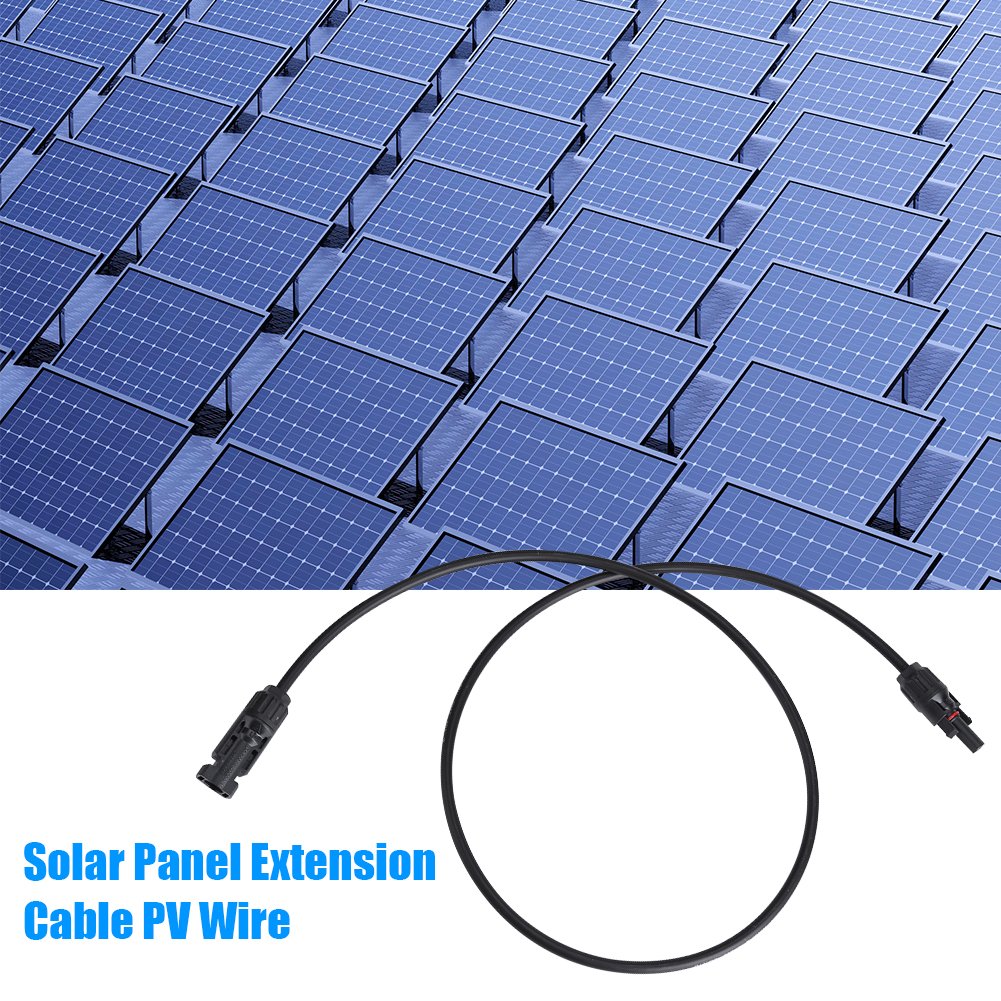

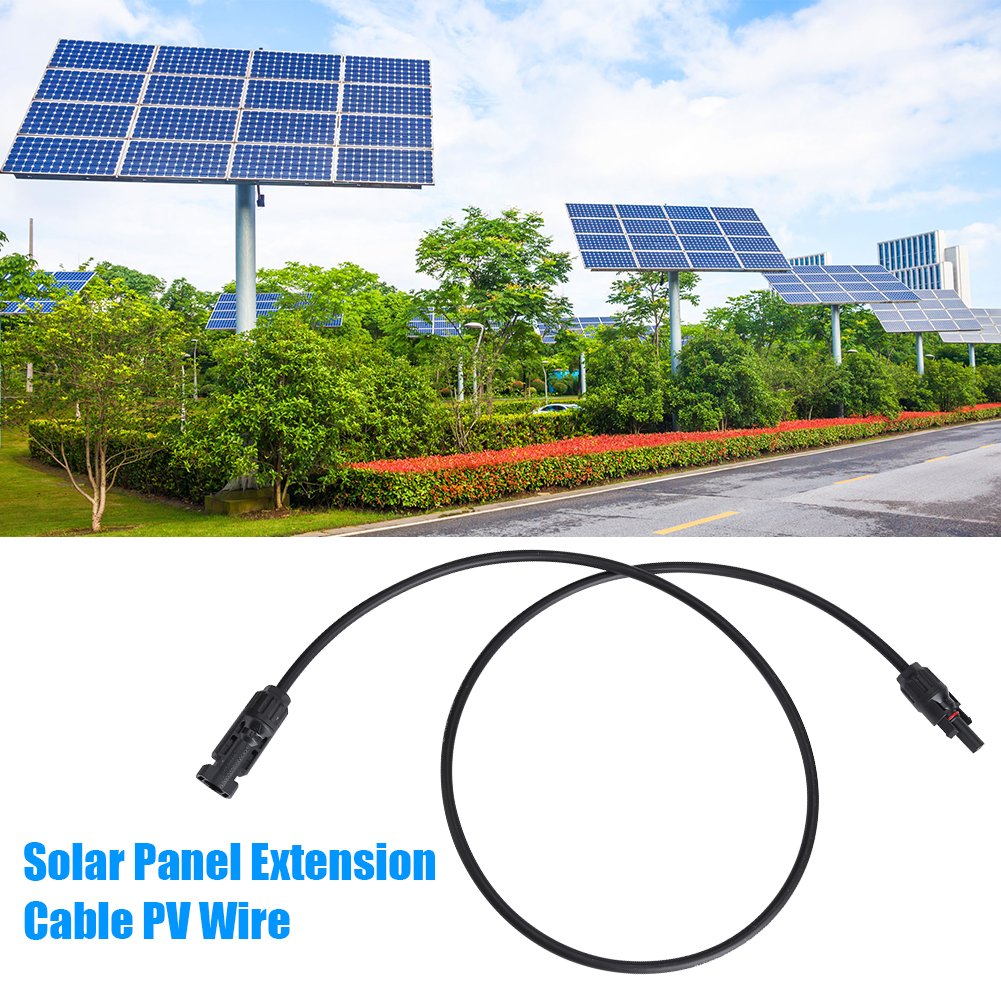

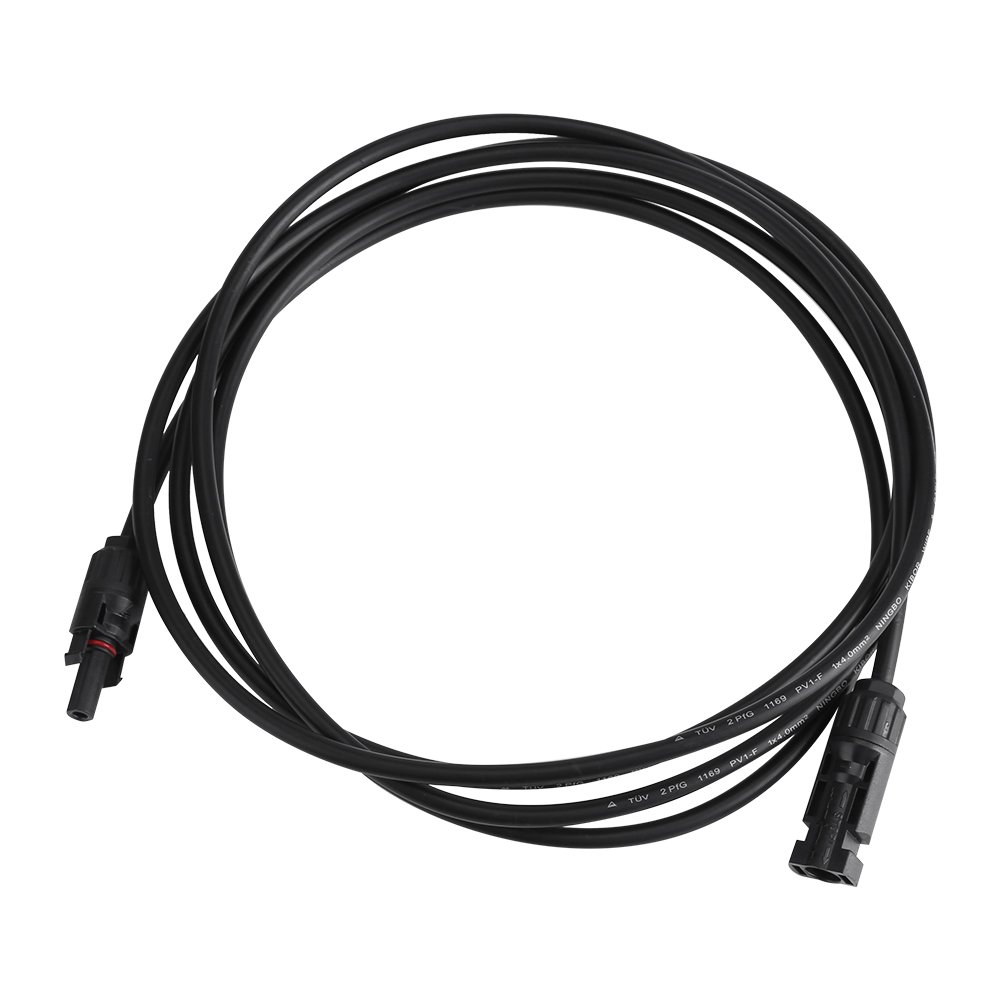

Yosoo Solar Extension Cable Solar Panel PV Wire with Male Female MC4 Connectors Adapter(3M(10FT)-Cable Cross-section6MM)

• The extension cable adopts the crimping terminal connection, with good abrasion resistance and excellent softness.
• The MC4 connector has high resistance against UV, anti-aging, water and dust proof

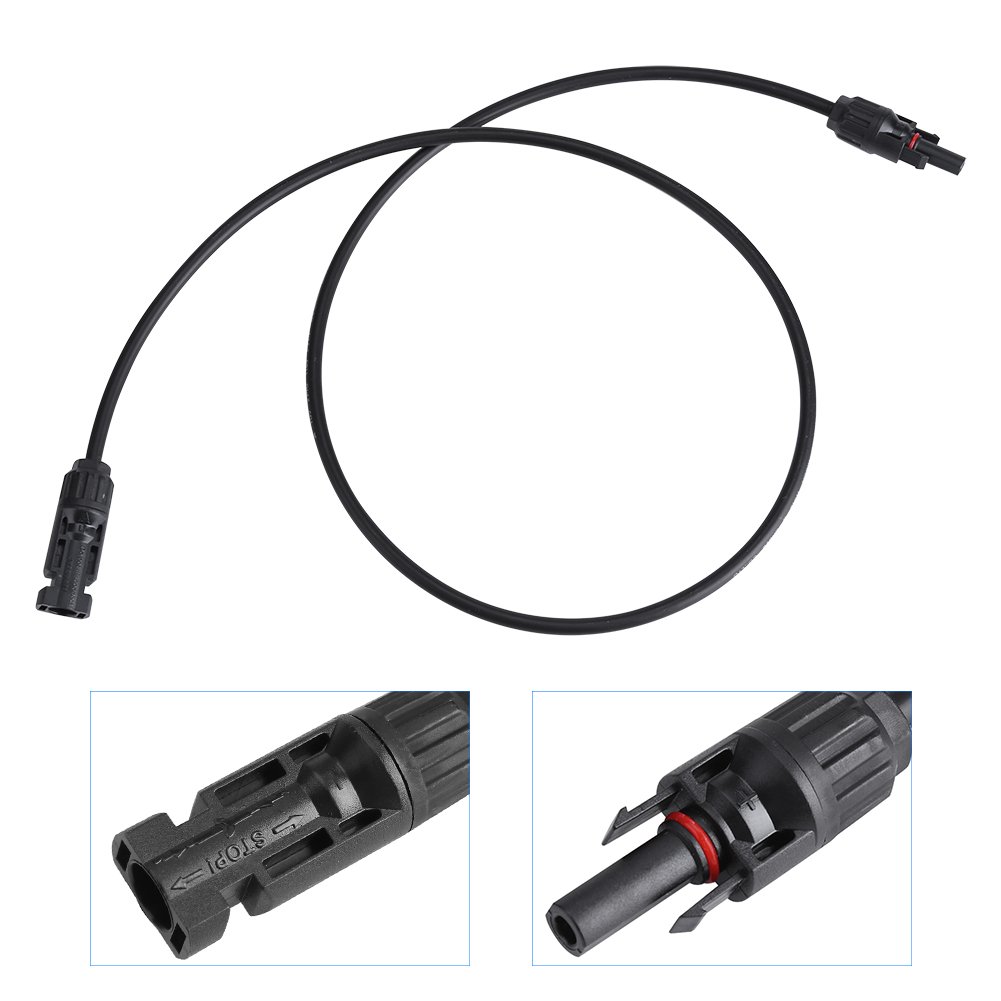

• Male and female connectors with a fixed self-locking mechanism, opening and closing freely.
• Two cables with MC4 connectors at one end connecting to solar panel and bare on the other end connecting to charge controller.
• Suitable for all types of applications including roof solar systems, solar power station, PV connector and PV junction box.

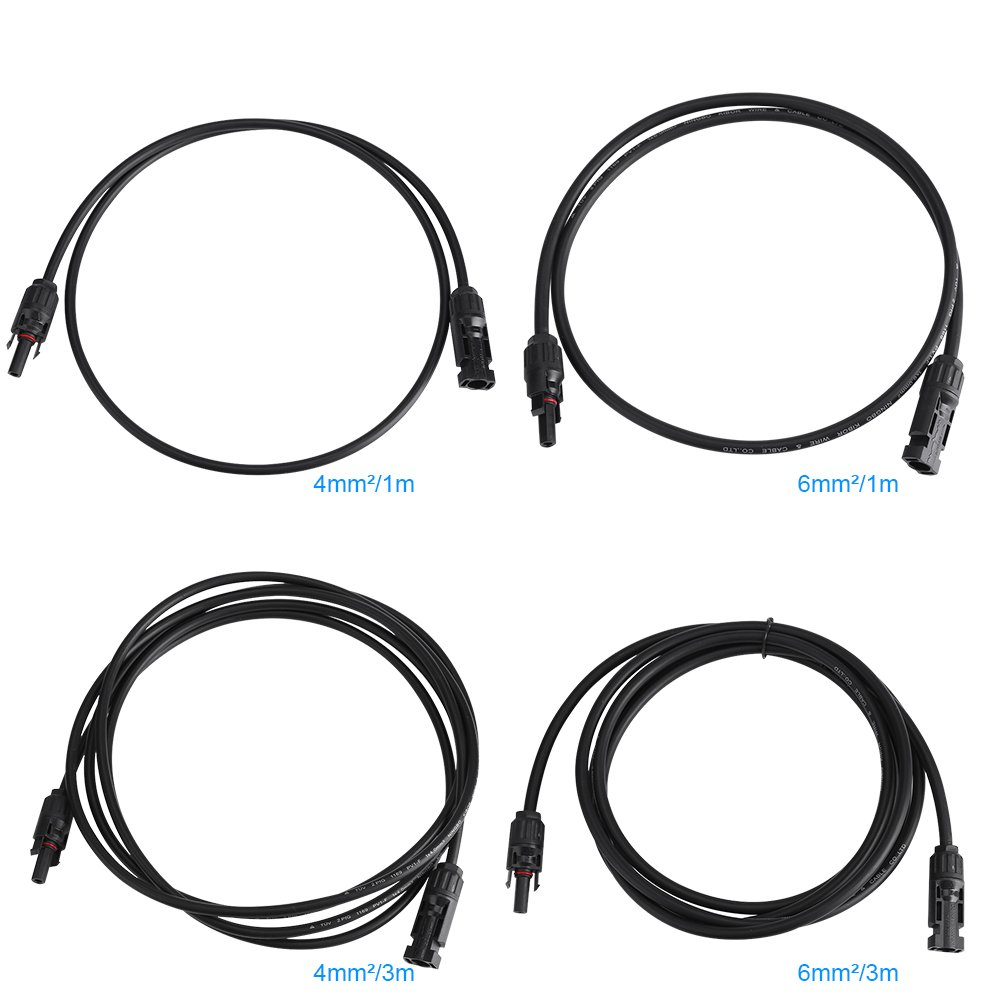

Description Specifications: Condition: 100% Brand New Cable Length: 1meter / 3ft, 3meters / 10ft(Optional) Cable Cross-section: 4mm², 6mm²(Optional) For Connector: Working Current: 30A Maximum Working Voltage: DC1000V Contact Resistance: 0.5mΩ Insulation Resistance: 500MΩ Working Temperature: -40 ~ + 105 Protection Level: IP67 Safety Level: 2 Insertion Force: 50N Withdrawal Force: 50N Insulation Material: PPO, Black Contact: Copper cn, Nickel sn Flammability Rating: UL94-VO Terminal Connection: Crimp For Cable: Cable Cross-section: 4mm² / 6mm² Cable OD Range: 4mm²: 3mm-5mm 6mm²: 5mm-7mm Rated Current: 70A Rated Voltage: 600V/1800V (AC / DC) Connector Type: Weight: approx. 87~289g Package Included: 1 x Solar Extension Cable with Connector
