NUZAMAS NEW 10 Sets of Solar Panel Connectors Male Female for PV Solar Panel Cable & 1 Pair of Solar Tool Spanner Wrenches for Connectors Assembly

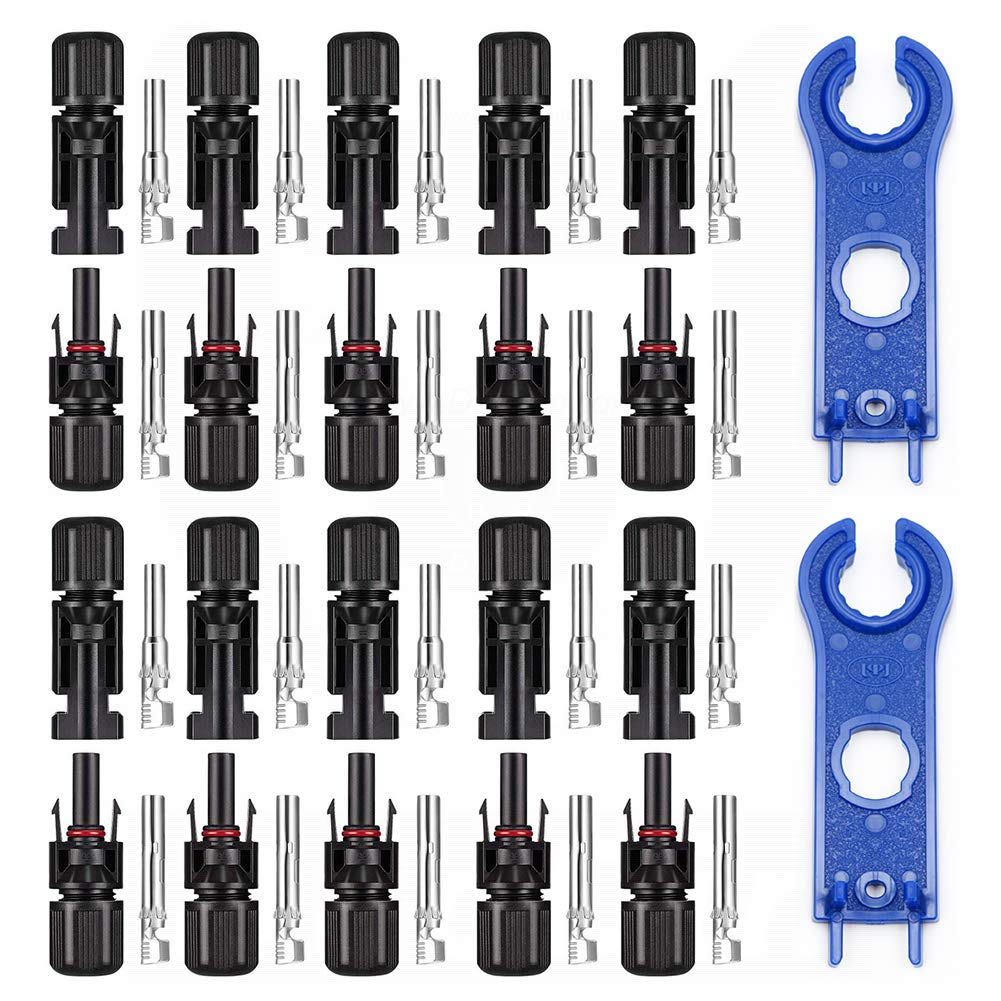

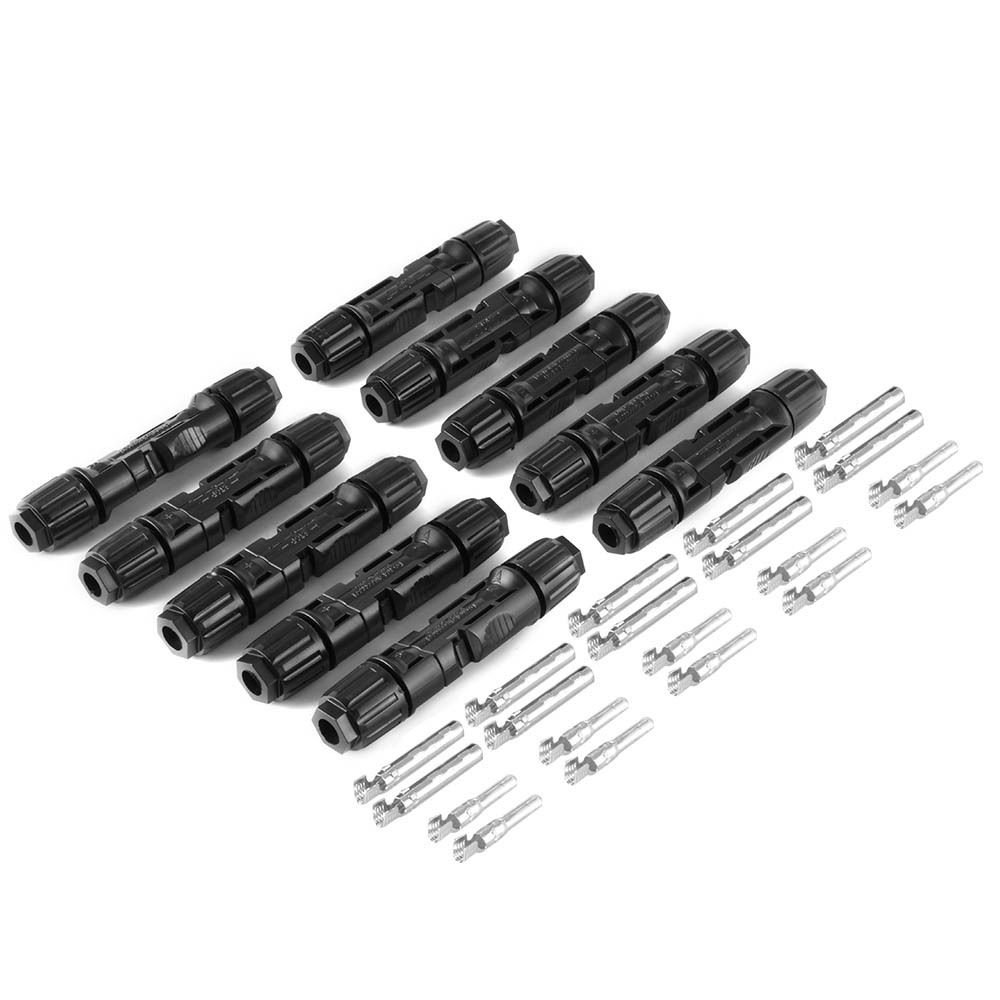

• Packages Includes: 10 set of plugs, 10 male connectors and 10 female connectors, and set of 2 connector wrench.

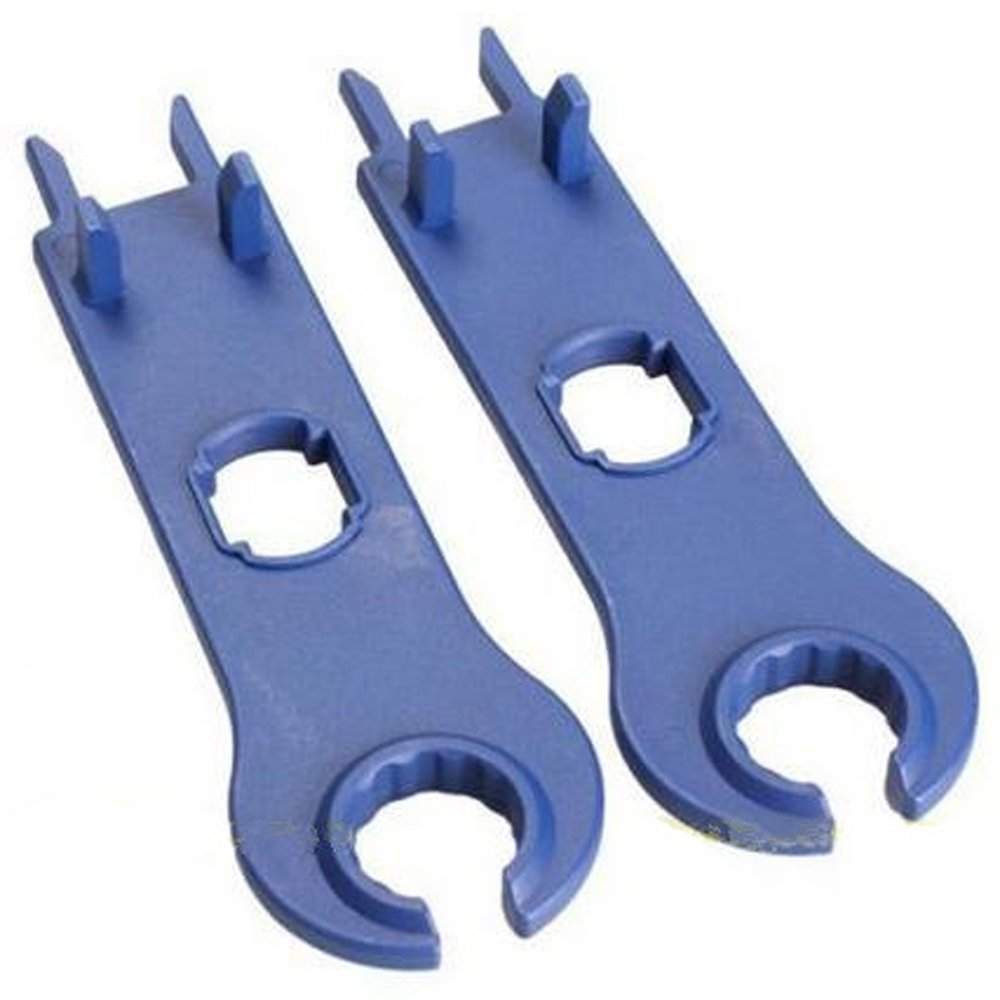

• The wrench: designed for assembling and disassembling male and female connectors
• The wrench: durable ABS material, light weight, portable and easy to use
• Double wrenches- handy tool, quick screw down, great for DIY job
• The connectors: Double seal rings for better waterproof effect, Low transition resistance; Resistance of extra high / low temperature; Self-locking design, high mechanical endurance

Features: The wrench: Designed for assembling and disassembling male and female connectors Durable ABS Material, Light weight, portable and easy to use Double wrenches- quick screw down Size: 12x4x0.5cm/4.7x1.6x0.2inch Handy tool, great for DIY job The connectors: Simple, safe, quick effective field assembly. Double seal rings for better waterproof effect, Low transition resistance. Resistance of extra high / low temperature High current and voltage carrying capacity. Self-locking design, high mechanical endurance. Specifications: Rate voltage: 1000V Rated current: 30A(4mm², 6mm²) Test voltage: 6KV(50Hz) Protect degree: IP67 Insulation material: PPO Contact material: Copper sliver plated Operating temperature: -40°C~+90°C Safe class: 2 Flame class: UL94-V0 Contact resistance of plug connectors: ≤5mΩ Insertion force: ≤50N Withdraw force: ≥50N Suitable cable: 2.5mm²/ 4mm²/ 6mm²(AWG14/12/10) Locking system snap in Drawing Package include: 2 x NUZAMAS Connector Wrench 10 x NUZAMAS Male Solar Panel Cable Connectors 10 x NUZAMAS Female Solar Panel Cable Connectors
