SOIC8 SOP8 Flash Chip IC CH341A USB Programmer Flash BIOS Chip USB Programmer Module (SB Programmer+SOP8 Clip+Adapter)

• Design: It can program the sop8 chip online, no chip with circuit board is needed, which can save people's time. The SOP8 folder can program EEPROM online without disassembling the chip, so BIOS refreshing is simpler and more efficient.

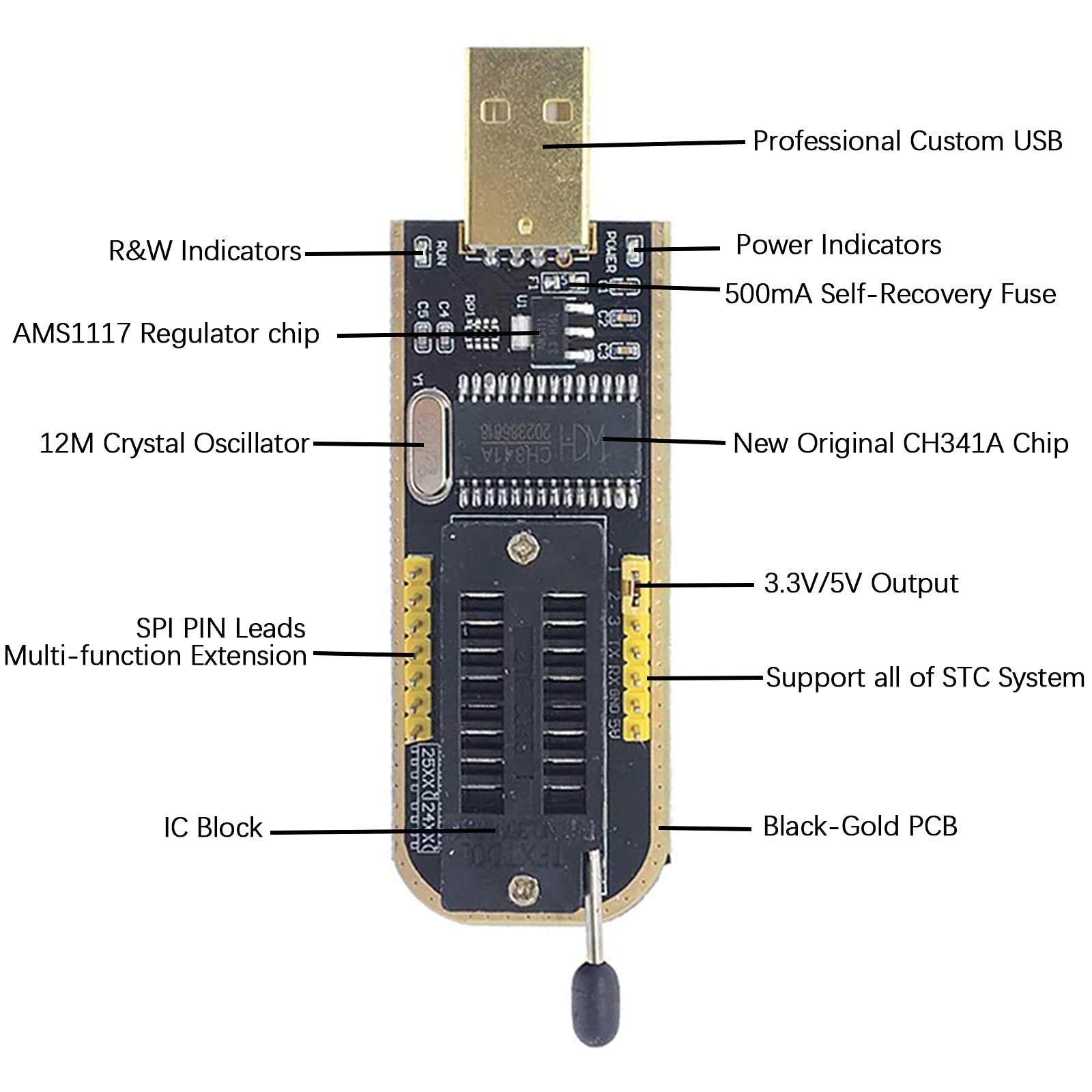

• Features: Very suitable for amateur programmers 24 and 25 series FLASH. Use dedicated CH341A chip USB. USB1.1 communication. The erase programming speed is about 2-3Mbit checks per minute. The programming speed is 2-3 times that of ordinary ATMEGA8 series programmers.
• Application: The main purpose of the CH341A programmer is to perform backup, erasure, programming, calibration and other operations on various software. SOIC8 SOP8 test clip, used for EEPROM 24CXX / 25CXX / 93CXX online programming.
• Note: Some chips are affected by peripheral circuits, so they cannot be trimmed directly. Please check the chip location on the motherboard before buying! Due to the characteristics of the CH341A chip, the ESMT SST 25 chip can only read but not write.

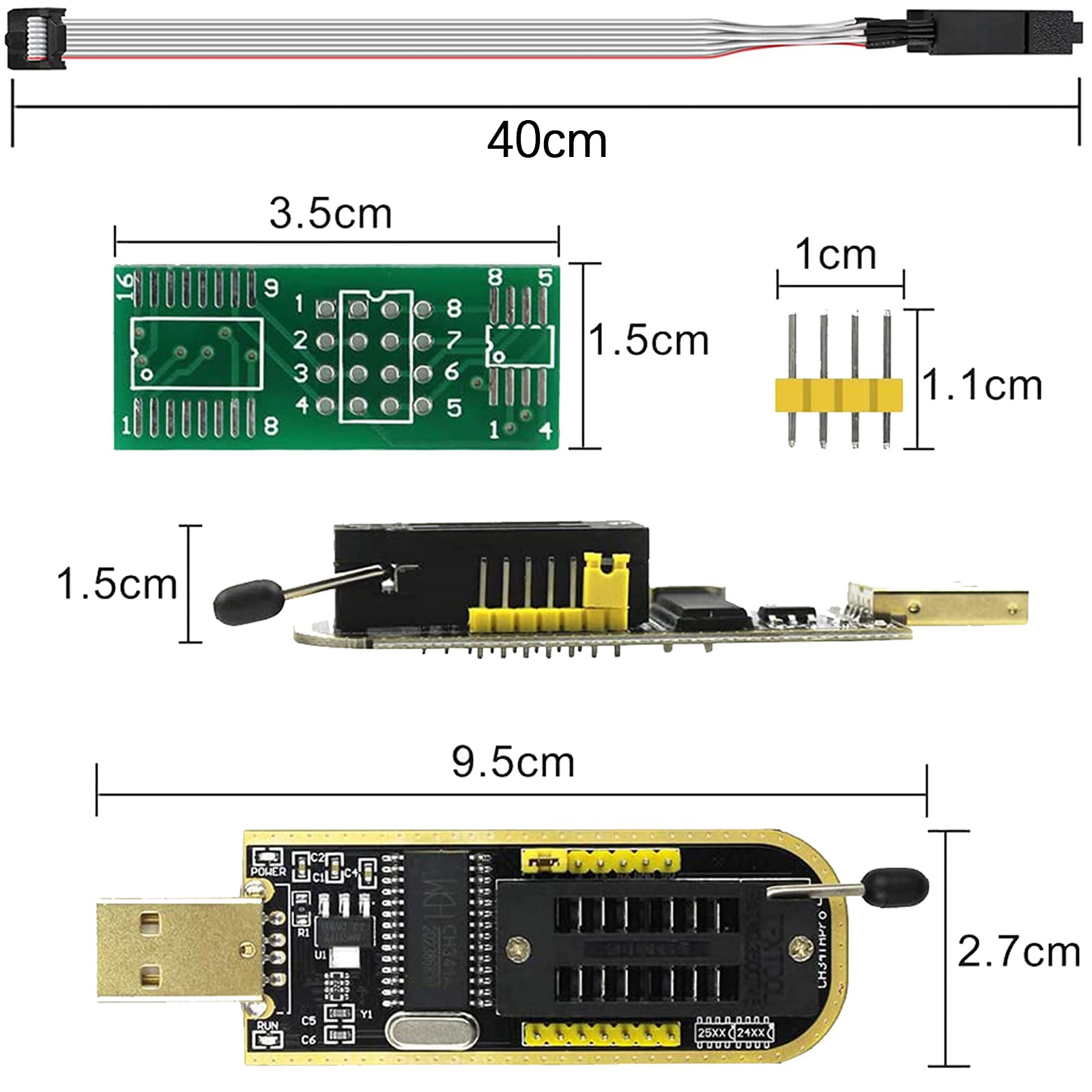

• The package includes: 1 CH341A programmer, 1 SOP8 test clip, 1 8Pin to 8Pin converter, 2 SOP8 SOP16 to 8Pin converters, 2 2.54mm 4Pin connectors

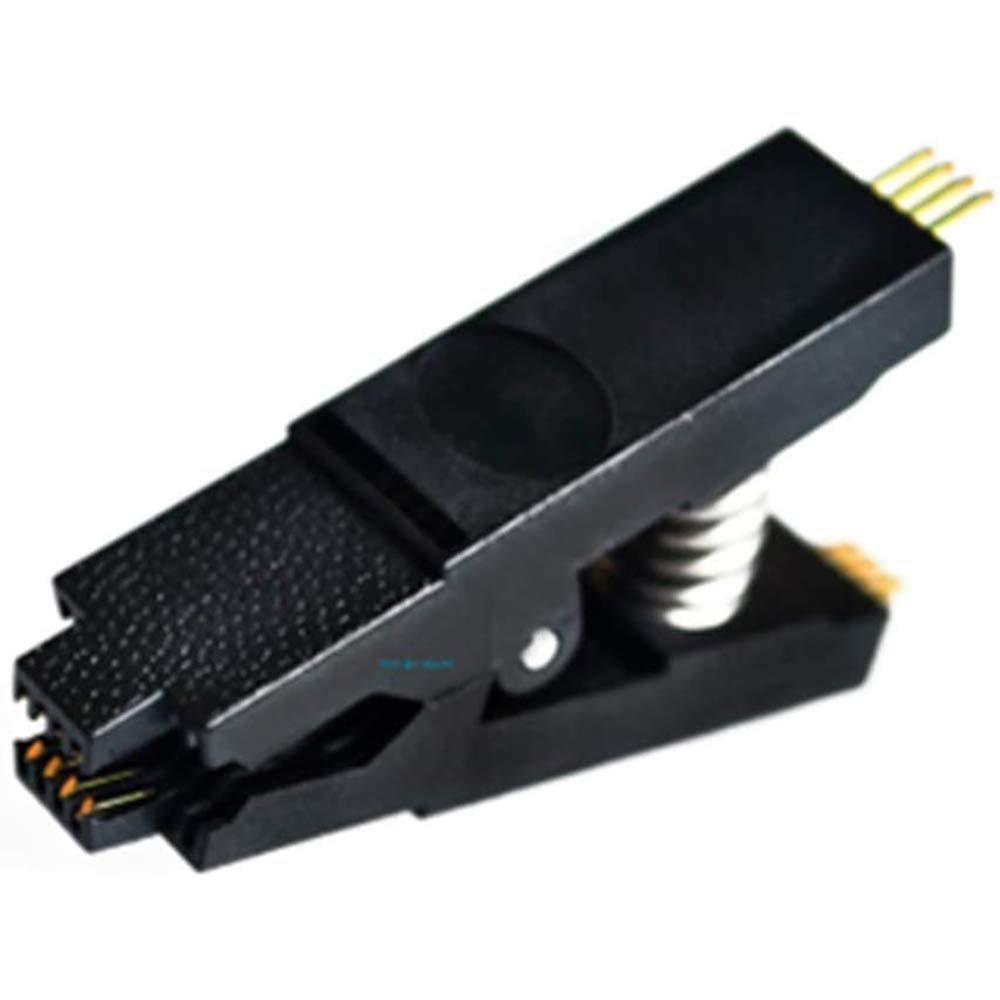

For all sorts of Color TV set memory (24 series IC), LCD (24.25 series IC), Desktop Motherboard (25 series IC) , Notebook (25 series IC) , Router (25 series IC), Card (25 series IC), DVD (25 series IC), Set-top boxes (25 series IC), Software to unlock, backup, erasing, burning, check. Note for Test Clip: 1. The test clip can basically be used with many high-power programmers. When a programmer with a protected function is encountered, the clip cannot be read at normal voltage. You need to add a 3.3V voltage. How to use: Hold the chip first, and add a 3.3V voltage to the pin corresponding to the 8th pin of the chip. Generally, the 3.3V power supply has two wires, the VCC is connected to the clip, and the other wire is grounded. 2. Do not forcibly press down when clamping, first open the clip and clip it from the left and right sides of the chip. When disassembling, please don’t pull it out directly. First separate the clips left and right, then take them out so that they won't break the tip of the clip. Package contains: 1 x CH341A Programmer 1 x SOP8 Test Clip 1 x 8Pin to 8Pin Converter 2 x SOP8 SOP16 to 8Pin Converter 2 x 2.54mm 4Pin header
