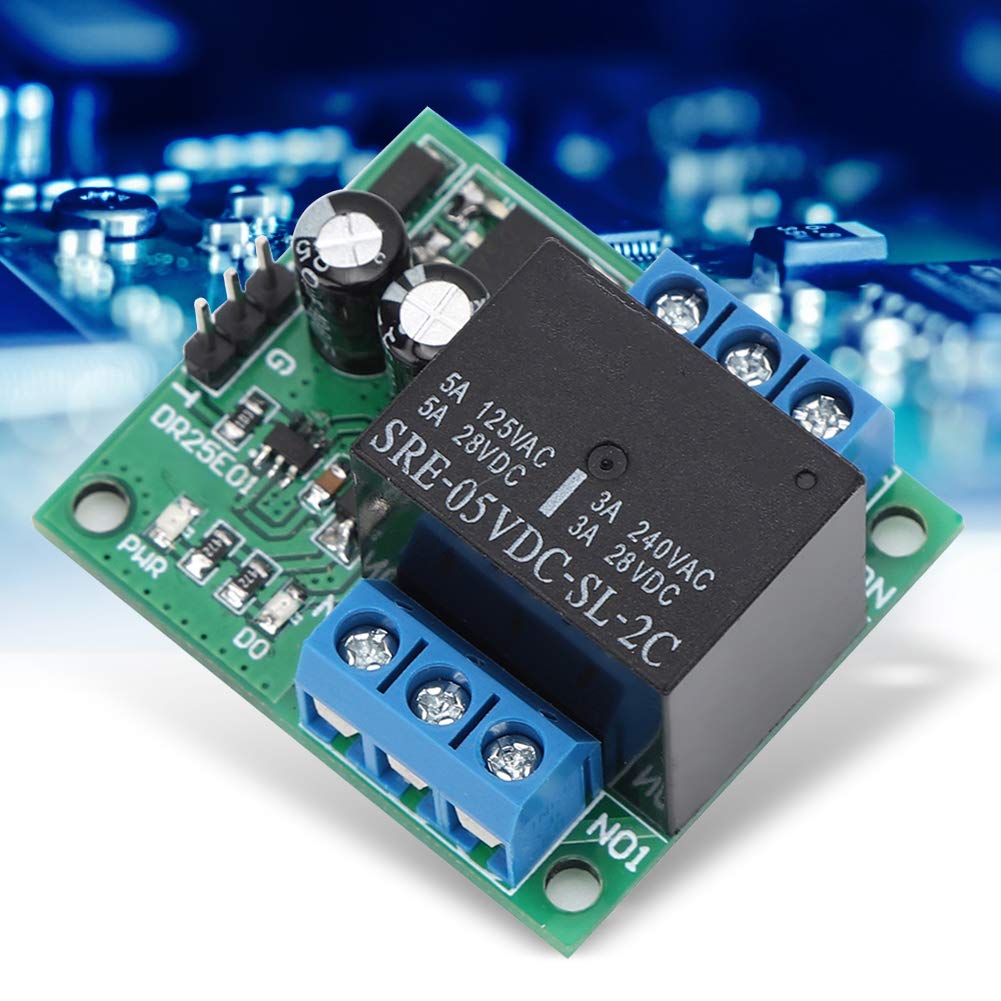

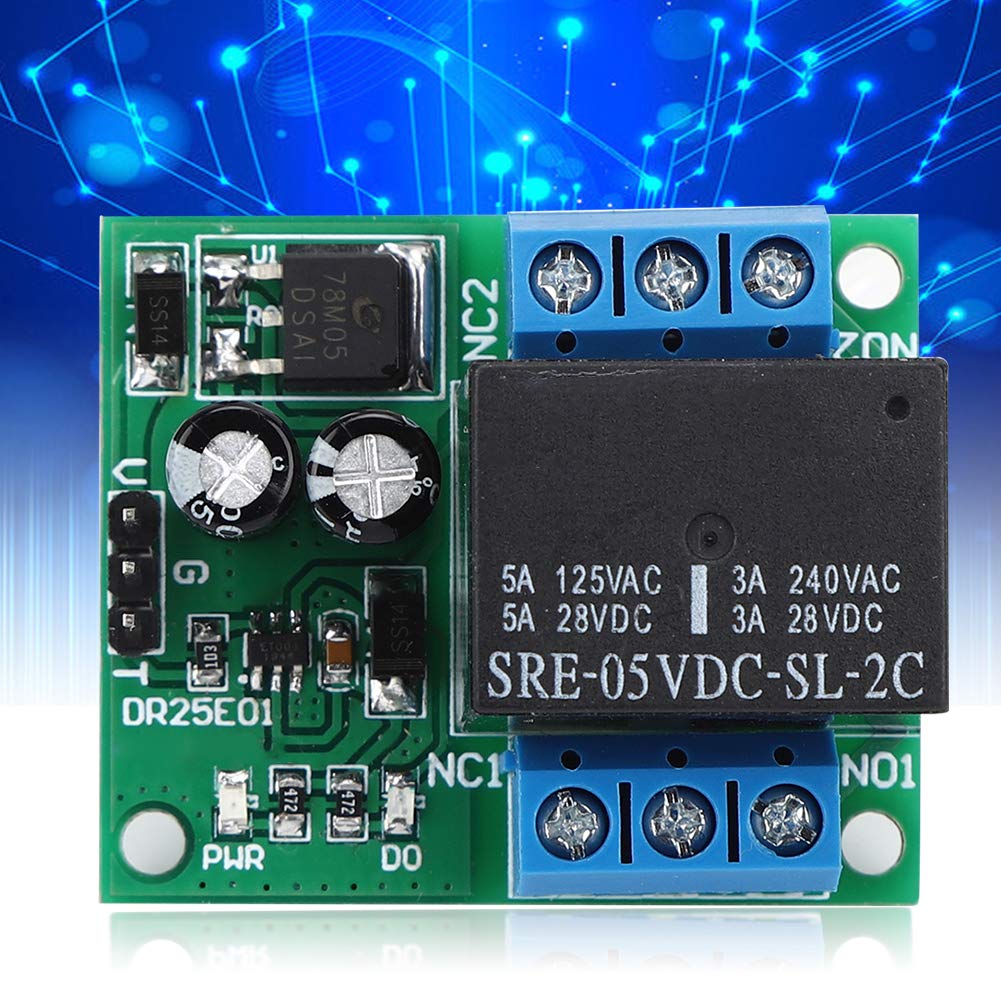

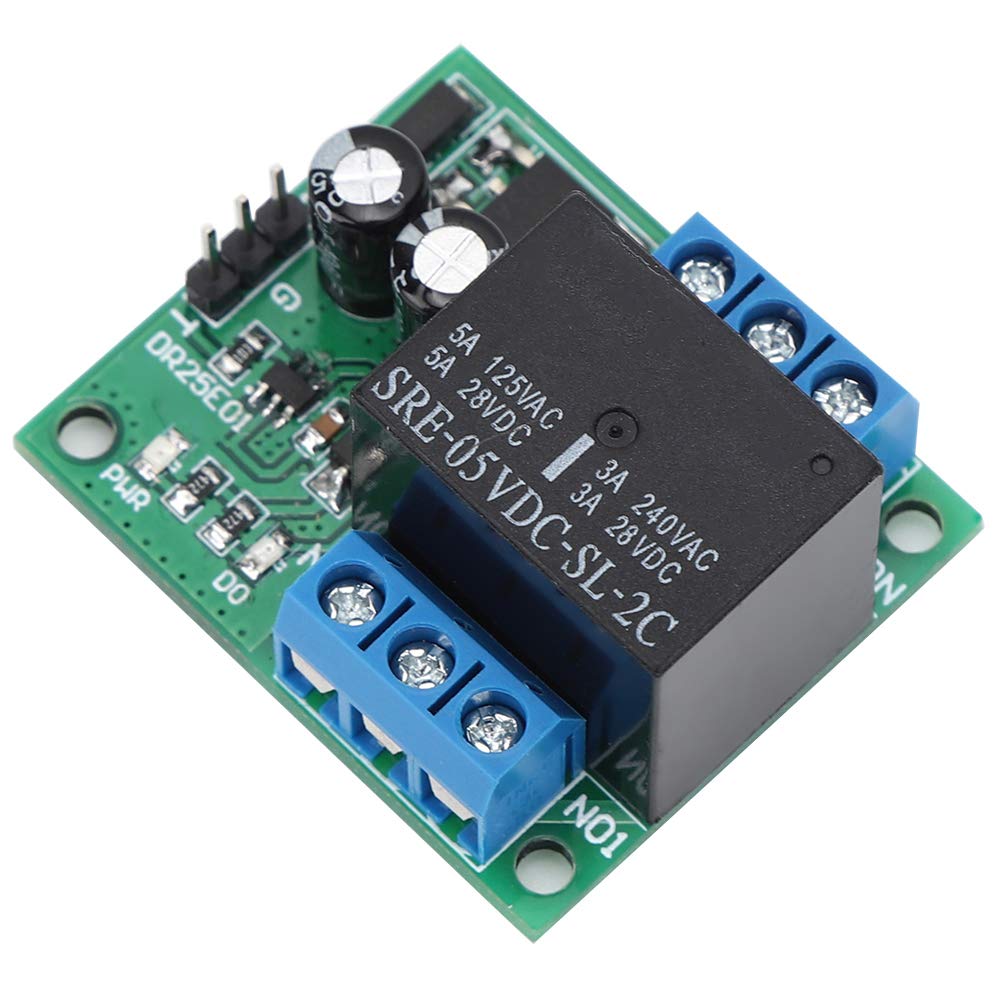

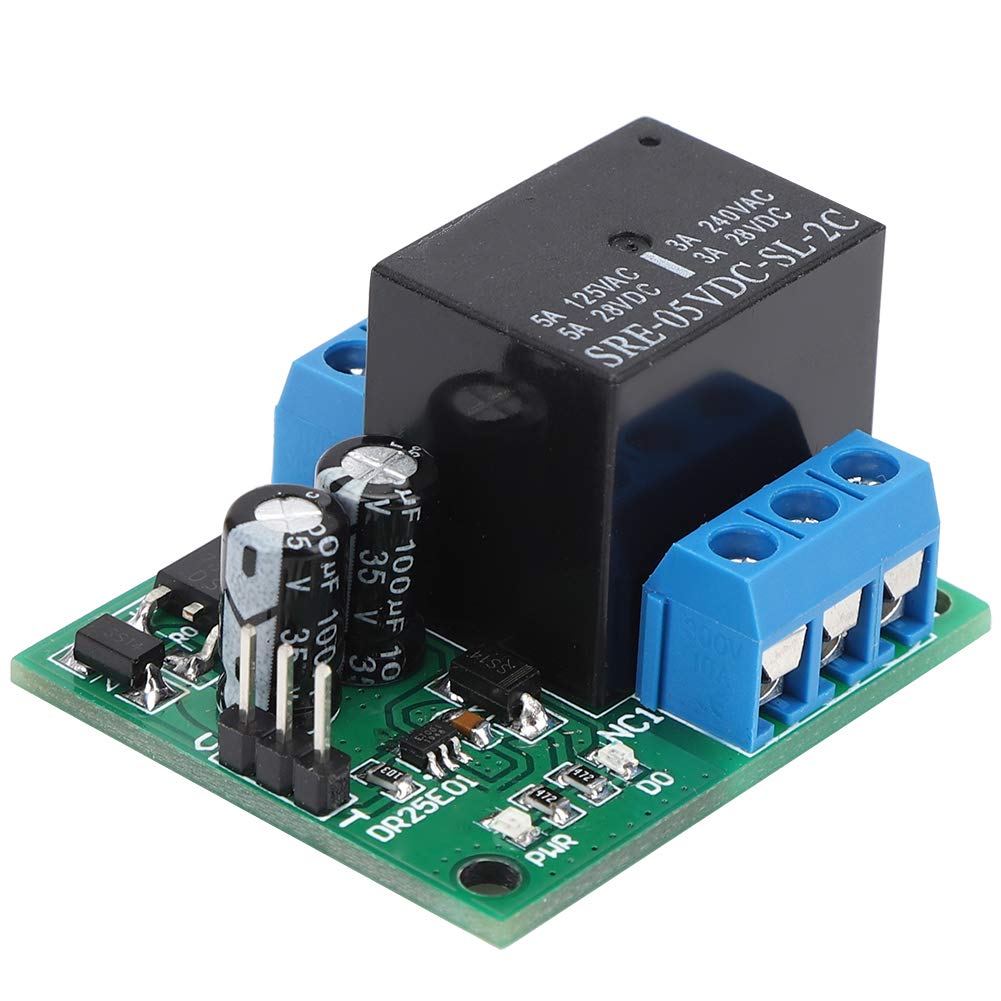

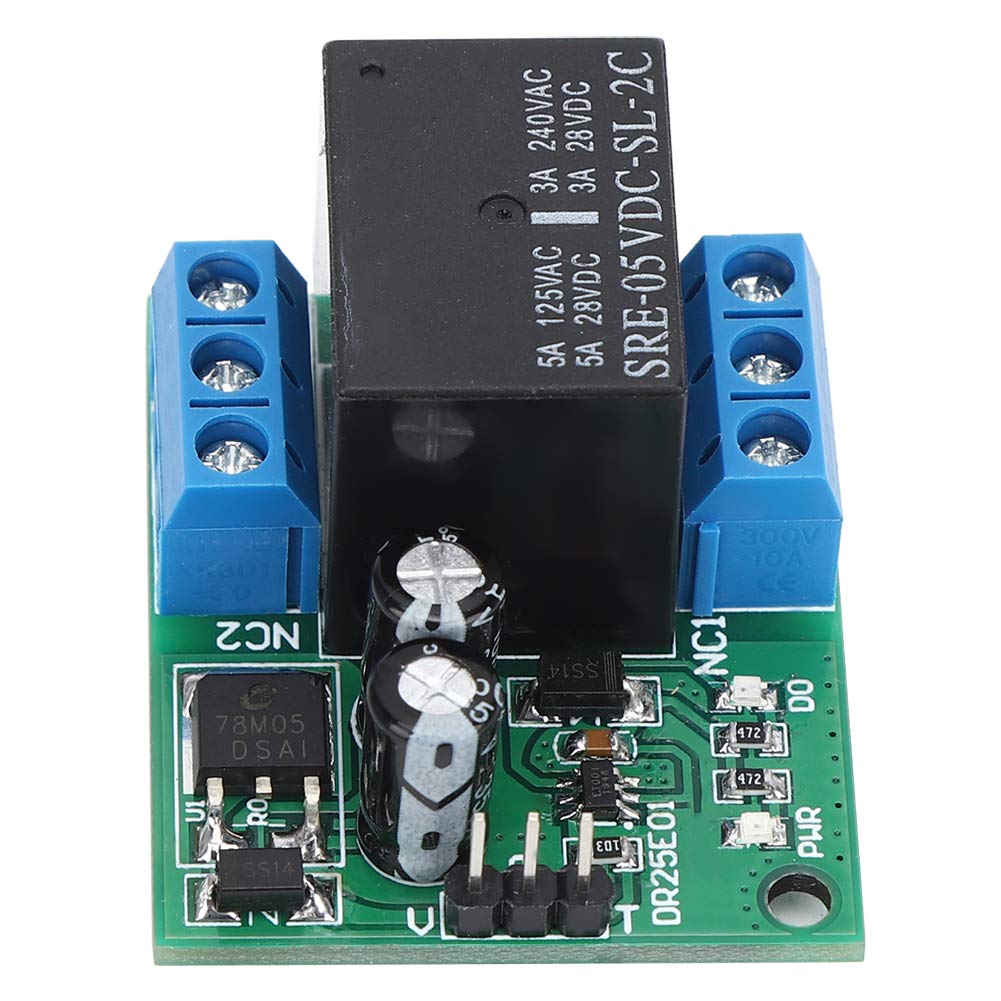

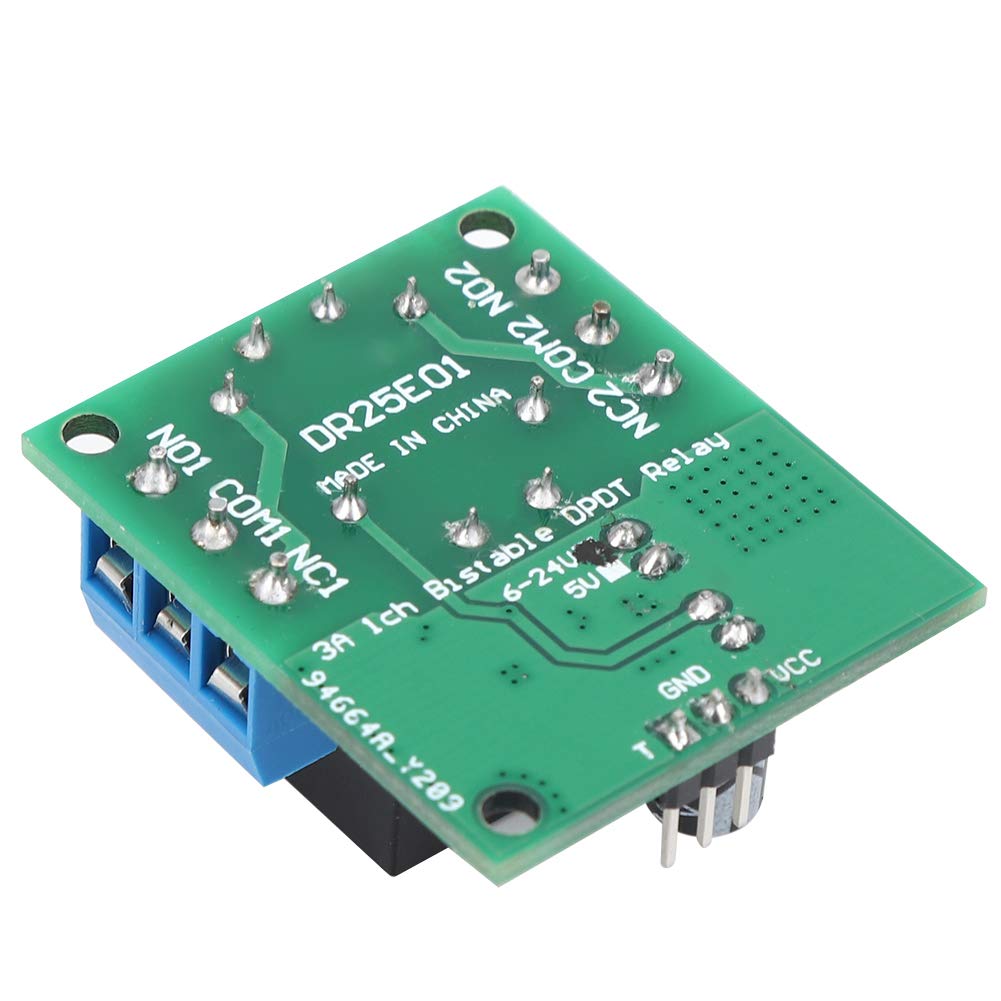

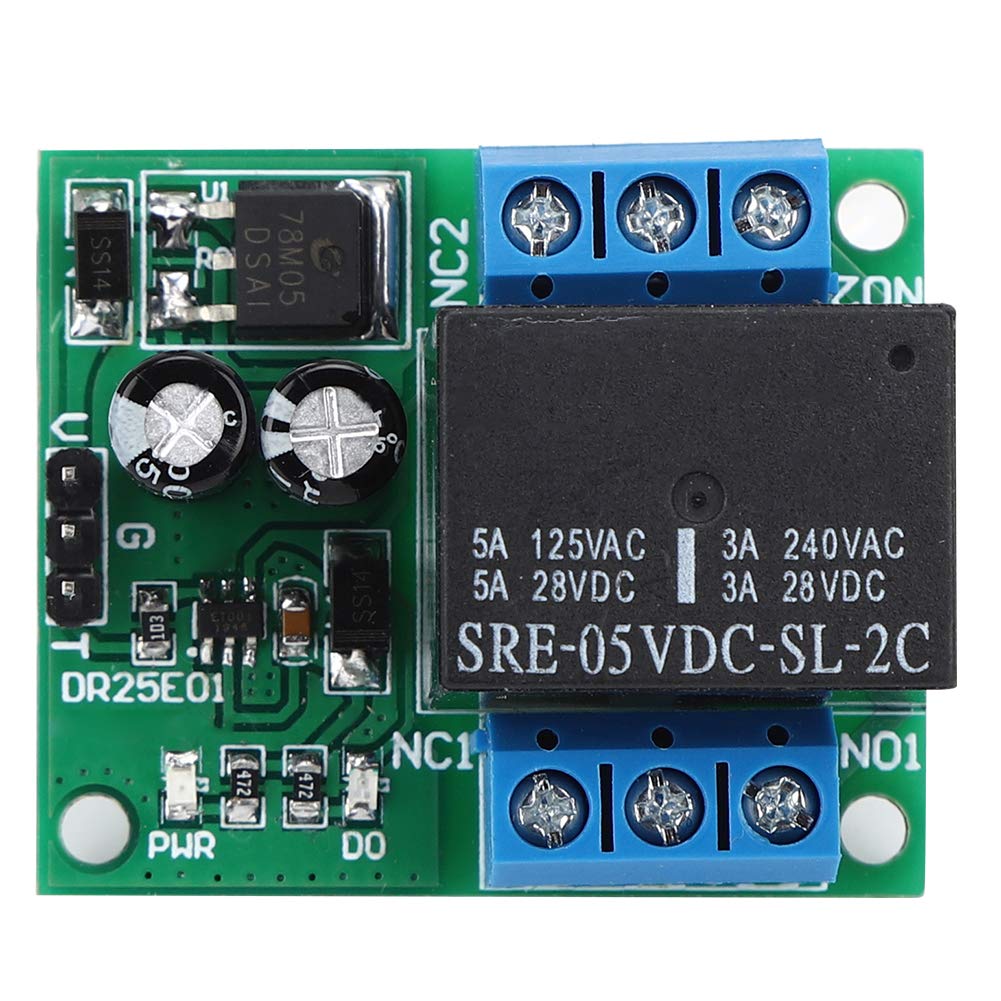

Double Throw Bistable Relay Module 5V 12V 24V DC Self-Locking Relay for Automotive Industrial Control Computer Accessories

• 【High Security】 Low pulse control mode, the user's own safety can be guaranteed during use, and the product's safety performance is good.
• 【Indicator Display】 When the product is working, it has a power indicator and a reverse polarity indicator, which can clearly display the working status and bring users a good experience.
• 【Stable Performance】 Our products are made of high-quality electronic components, complete accessories, stable and performance.
• 【Easy To Install】 Users only need to watch the to install, the installation is simple and convenient, easy to use and maintain.
• 【Reasonable Design】 This is a self-locking (bistable) double pole double throw relay. Once triggered, the relay will pull back, trigger again, and then the relay will open.

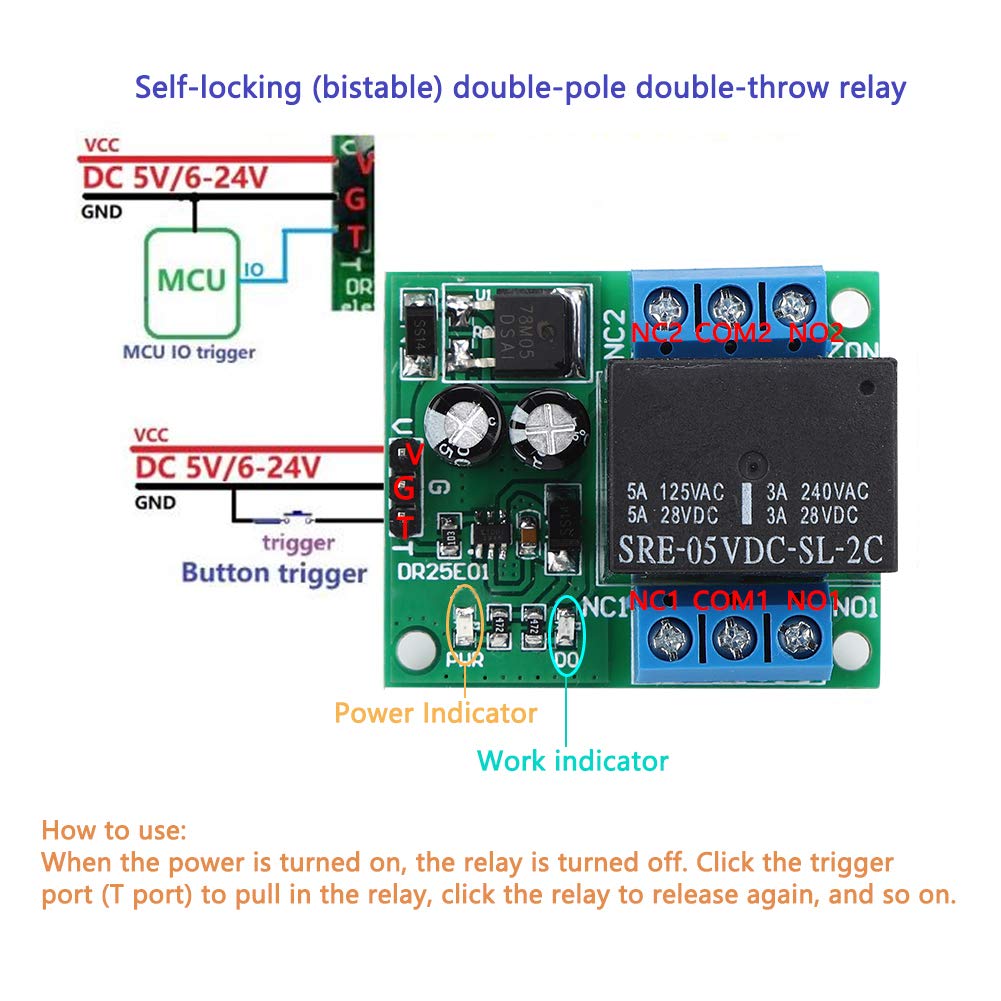

Specifications: Item Type: DPDT Relay Module Input voltage: DC 5V (5V version), DC 6-24V (12V version) (optional) Module Operating Current: Front 2MA, Rear 60-70MA Charging current: 5A maximum (motor <=3A) Control mode: low pulse control Size: approx. 39.5 x 33.3 x 23.3 mm/1.6 x 1.3 x 0.9 inches. Brooch Description: V: positive power G: negative power supply terminal and ground terminal of the trigger signal; T: Trigger signal input (0.2-2 second low pulse). NO1: Normally open relay COM1: common relay port NC1: Relay normally closed NO2: Normally open relay COM2: common relay port NC2: Relay normally closed How to use: When the power is turned on, the relay is turned off. Click the trigger port (T port) to pull the relay, click the relay to release it, etc. Package list: 1 x DPDT Relay Module
