Schellenberg Screw-in Winder with Mini and Maxi Strap, White, 50802

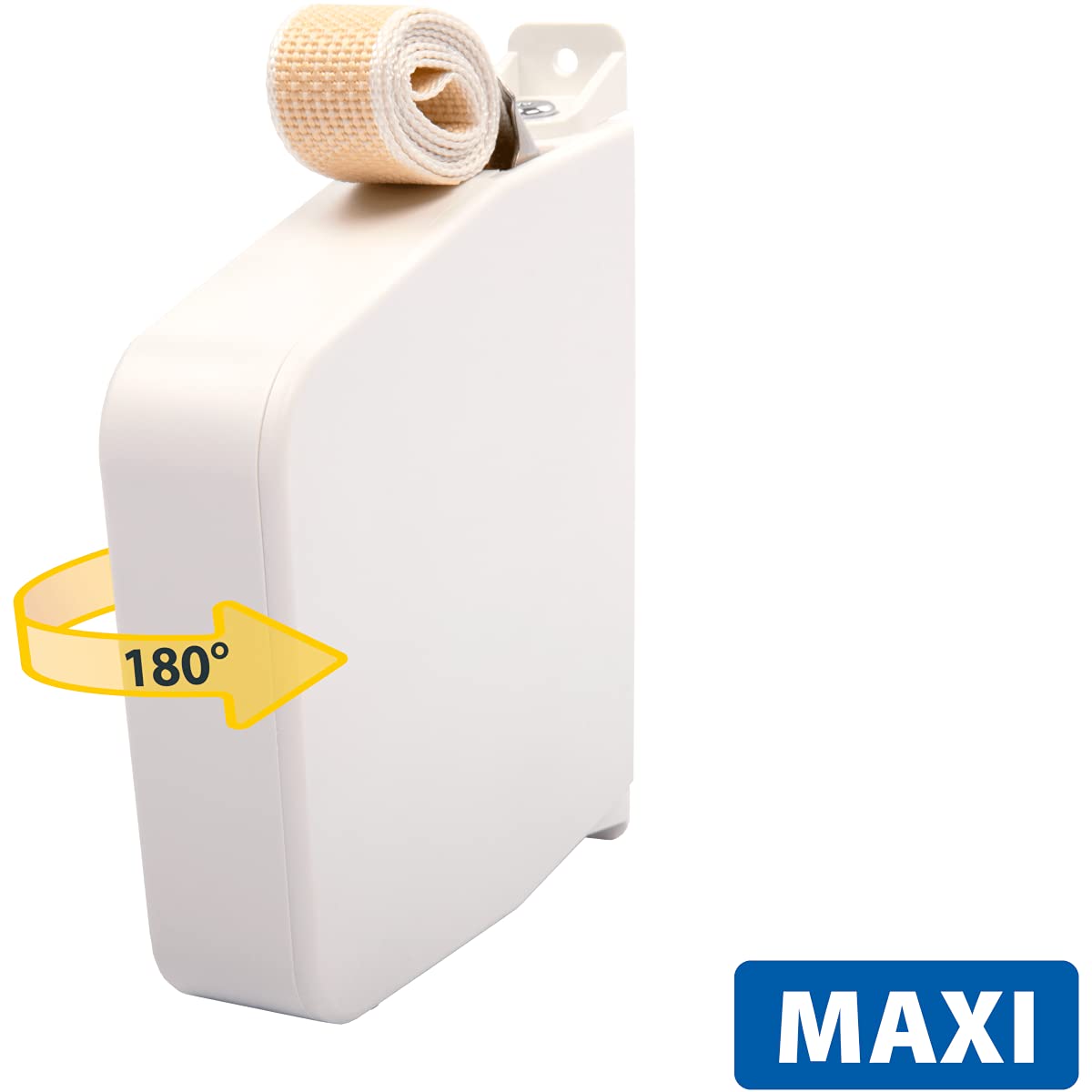

• Tough roller screw for mounting on the wall or window frame can be rotated around/180°
• With strap for roller shutter length: 2.10 m width: 0.9 (23 mm) system inch (maxi)

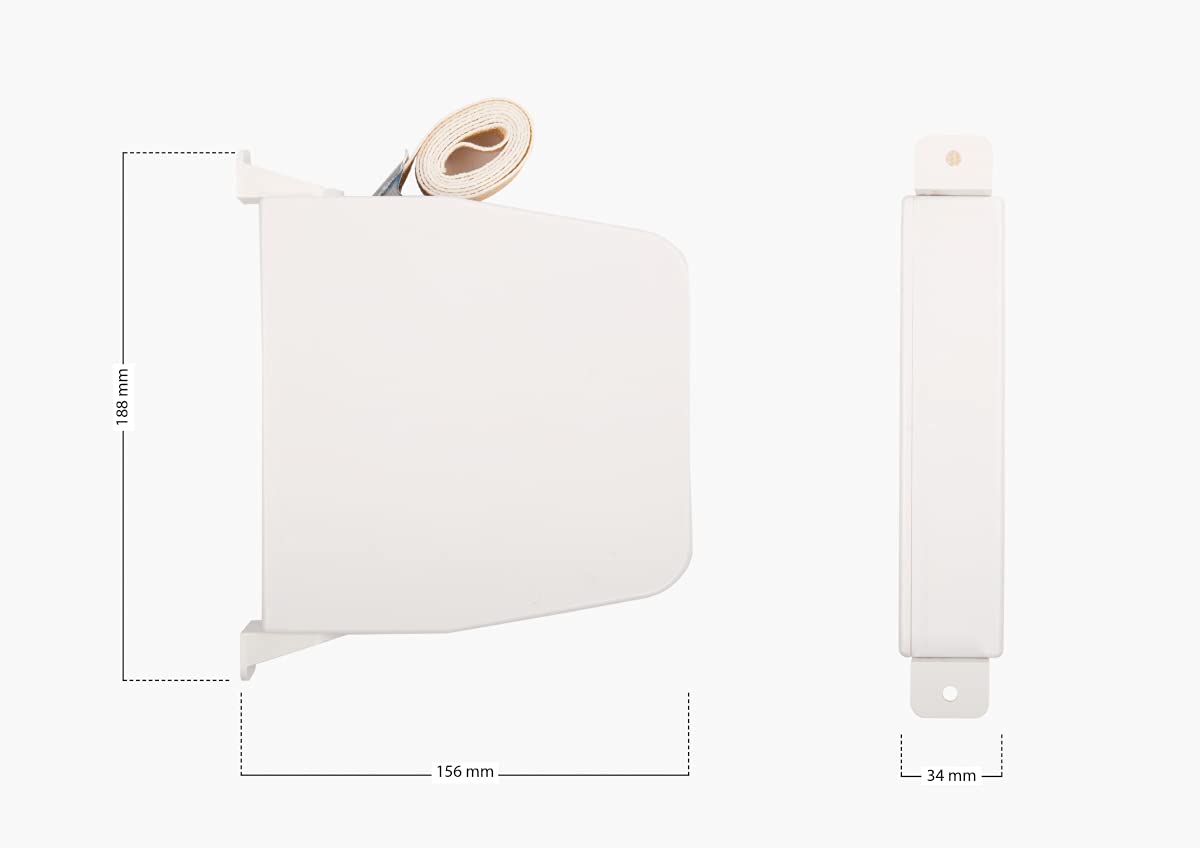

• Dimensions: 34 x 188 x 156 mm
• Hole spacing: 17.0 cm

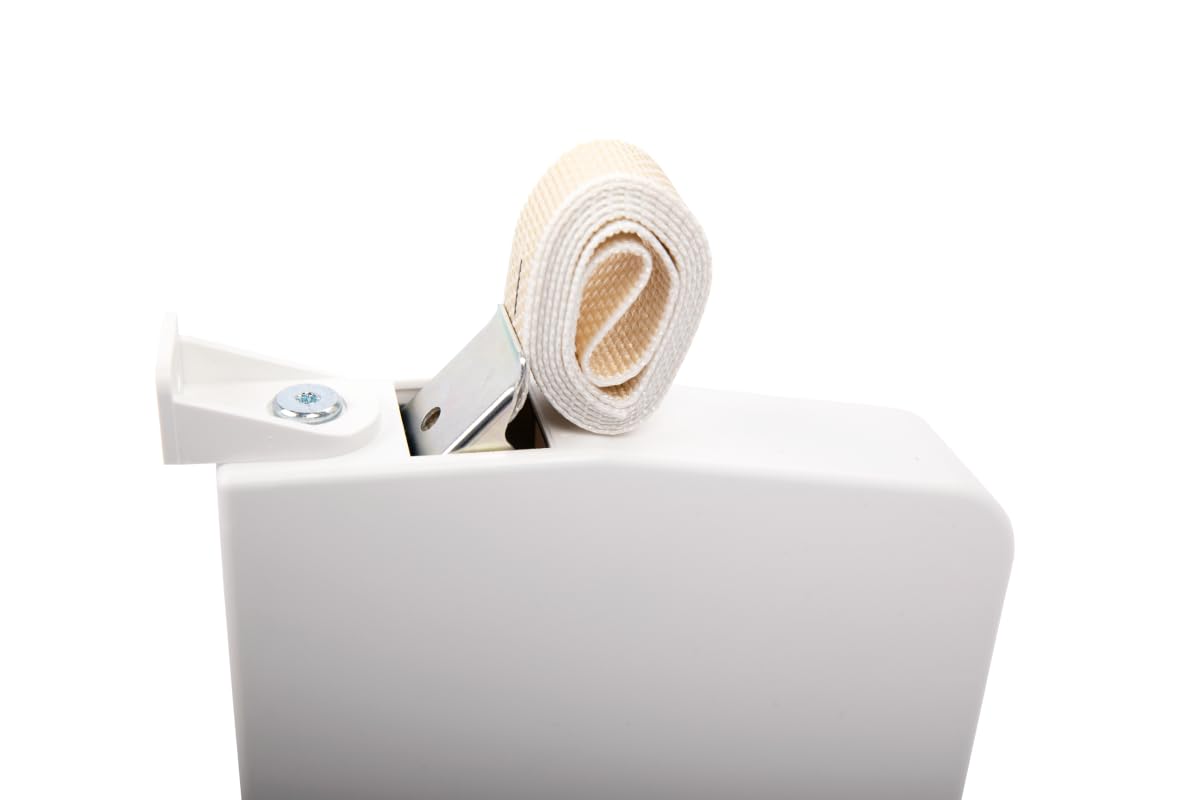

• Less transactions for the timeline: the strap is already built-in

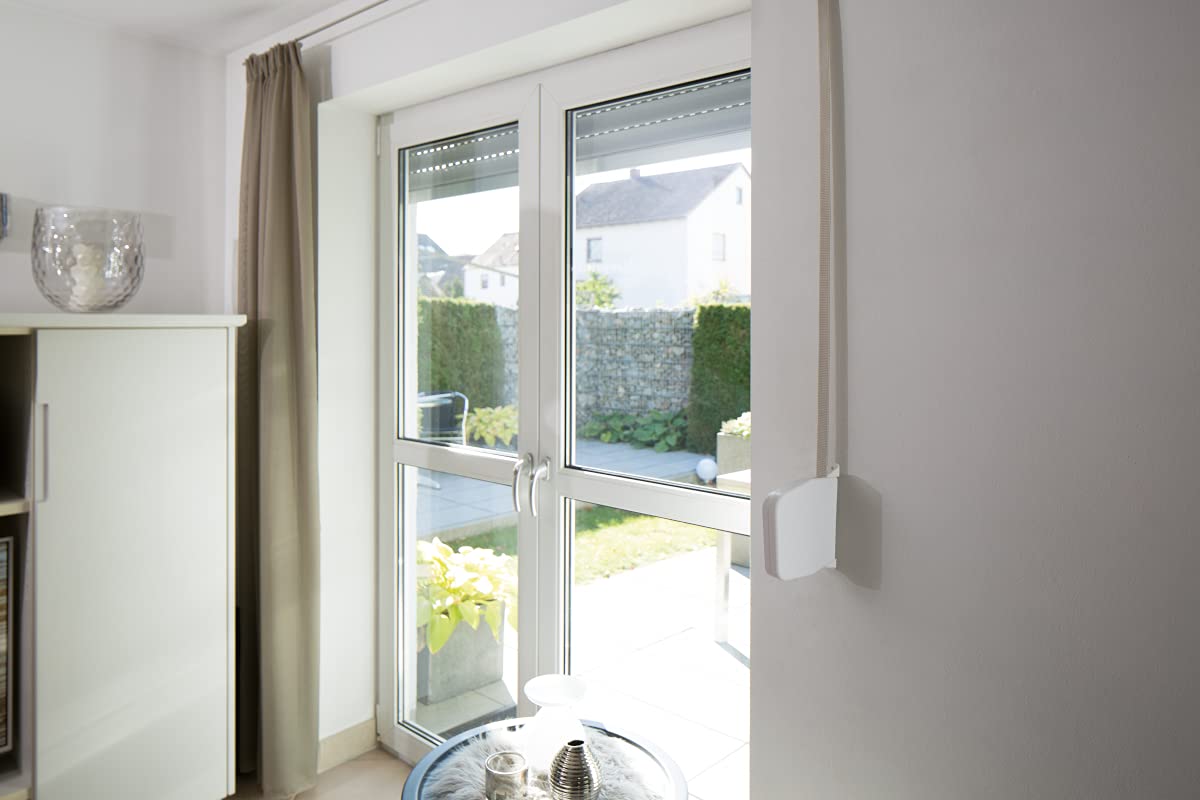

Schellenberg offers different forms of screw-on reels in white and brown. The webbing reels are suitable for roller shutter straps with a width of 14 mm or 23 mm. You can select the reel suitable for your personal assembly situation thanks to the different hole gaps (from 8.0 cm to 17.0 cm). A strap is even supplied with some models. Features The MAXI Schellenberg project-mounted screw reel has a hole gap of 17.0 cm. It is mounted directly protruding on the wall or window frame. A strap with a width of 23 mm and a length of 5.3 m is supplied with the screw reel (MAXI system). The strap is already mounted in the reel. You no longer have to wrap it yourself on the coil. Advantages Sturdy screw winder for mounting on the wall or window frame discreet design: suitable for almost all environments adjustable over 180° less operation for mounting: the strap is already integrated hole spacing: 17.0 cm Dimensions: 34 x 188 x 156 mm with roller shutter strap, length: 5.3 m/width: 23 mm (system) MAXI) Application areas The MAXI Schellenberg screw-on reel for mounting on the wall or window frame is the right choice in the following cases: the strap comes out of the wall use of the roller shutter system: MAXI wide roller shutter profiles Diameter of octagonal shaft: 60 mm Width of the strap: 23 mm hole spacing 17,0 cm Technical data System: MAXI Dimensions: 34 x 188 x 156 mm hole spacing: 17,0 cm Colour: white Roller shutter strap, length: 5,3 m Roller shutter strap, width: 23 mm Roller shutter strap, colour with a strap reel white: beige Installation instructions Close roller shutter Disassemble old and old reel Webbing Undoing the roller shutter of the octagonal shaft Mount the new webbing winder to the wall or window frame. Pull the webbing approximately 4.5 m out of the reel and lead it into the flap box through the webbing guide Fix the free end of the strap to the pulley Wrap the webbing on the pulley by turning the shutter shaft (respect direction of rotation) Attach the roller shutter back to the octagonal shaft.
