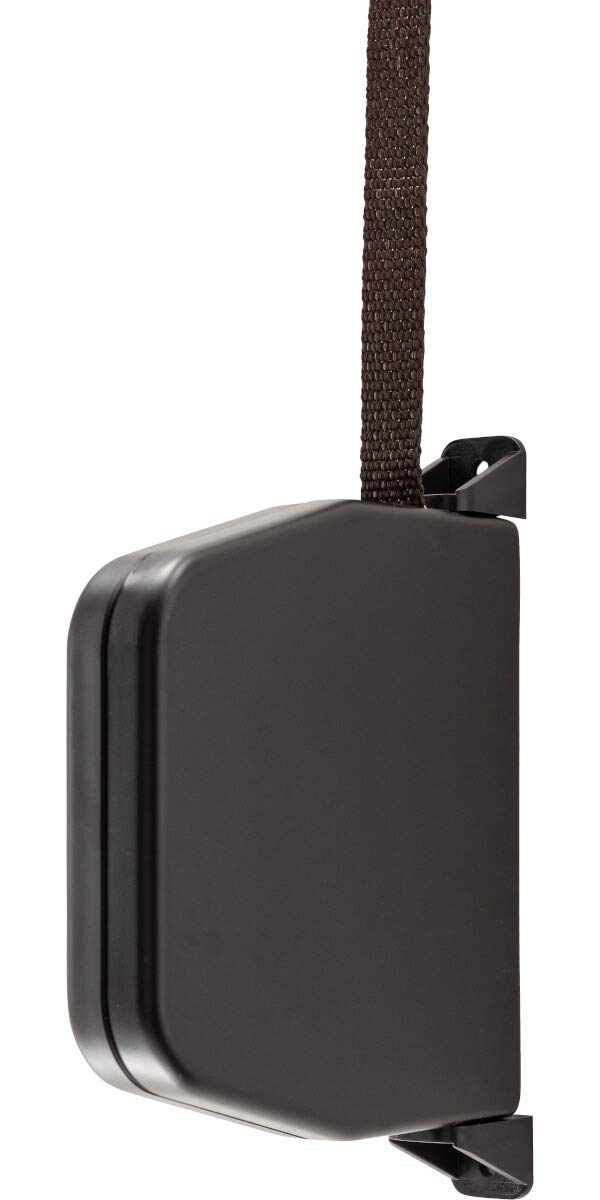

Schellenberg Screw-in Winder with mini and Maxi Strap, Brown, 50508

• Tough roller for Screw Mounting on the wall

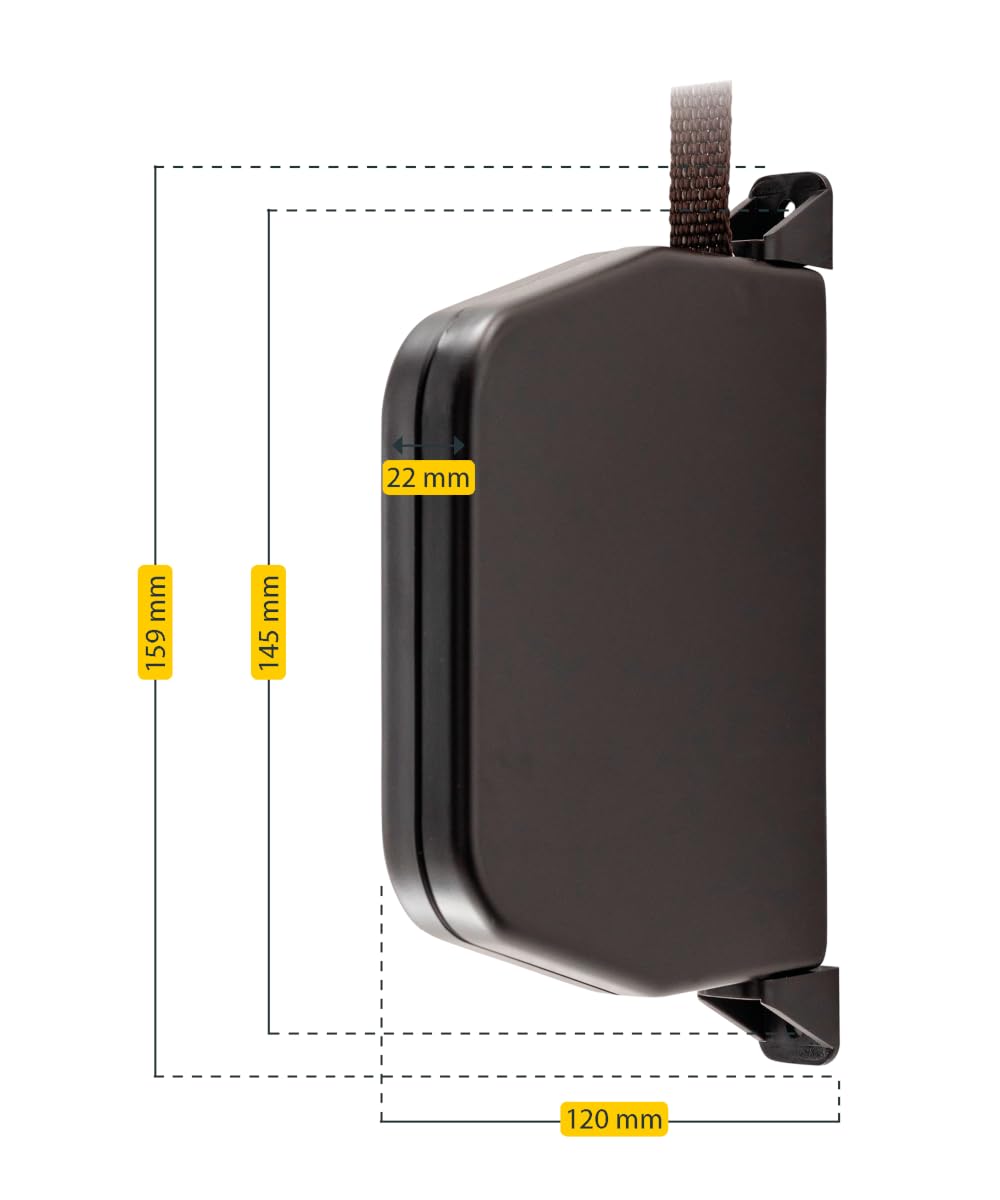

• Dimensions: 159 x 28 x 120 mm
• The pane prémontré with Strap (Length: 5 m/Colour: brown)
• 180° Swivel
• Suitable for heavy roller width of 0.6 inch (14 mm) mini (system)

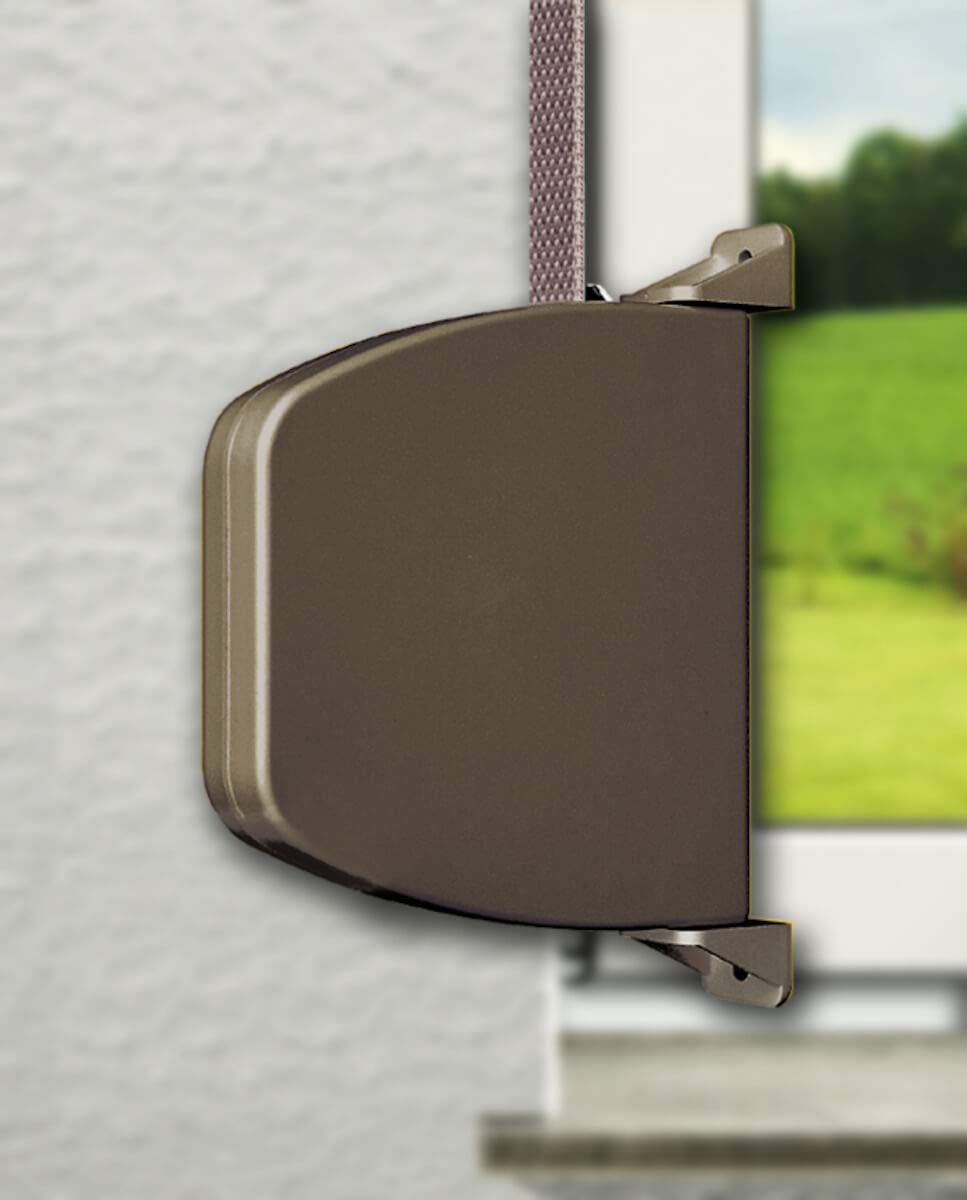

Schellenberg offers different forms of screw-on reels in white and brown. The webbing reels are suitable for roller shutter straps with a width of 14 mm or 23 mm. You can select the reel suitable for your personal assembly situation thanks to the different hole gaps (from 8.0 cm to 17.0 cm). A strap is even supplied with some models. Features The MINI Schellenberg screw-on reel for mounting on the wall or window frame is suitable for straps with a width of 14 mm (MINI system). The brown strap reel has a hole gap of 14.5 cm and is mounted directly protruding to the wall. A strap with a width of 14 mm and 5,0 m length is supplied with the screw reel. The strap is already mounted in the reel. You no longer have to wrap it yourself on the coil. Advantages: Sturdy screw-on reel for wall mounting Discreet design: suitable for almost all environments. Adjustable 180° For roller shutter straps with a width of 14 mm (MINI system) Dimensions: 28 x 159 x 120 mm With pre-shown shutter strap (length: 5.0 m, colour: brown) Allocation areas The screw-on winder MINI Schellenberg for mounting on the wall is the right choice in the following cases: The strap comes out of the wall Use of the roller shutter system Mini narrow roller shutter profiles Octagonal shaft diameter: 40 mm Strap width: 14 mm Hole spacing: 14.5 cm Technical features System: MINI Dimensions: 28 x 159 x 120 mm Hole spacing: 14.5 cm Colour: brown Roller shutter strap, length: 5.0 m Roller shutter strap, width: 14 mm Roller shutter strap, colour: brown Installation instructions Close roller shutter Disassemble old reel and old webbing Undo roller shutter from octagonal shaft Mount new webbing reel on wall or wall window frame. Pull the webbing approximately 4.5 m out of the reel and lead it into the flap box through the webbing guide Fix the free end of the strap to the pulley Wrap the webbing on the pulley by turning the shutter shaft (respect direction of rotation) Attach the roller shutter back to the octagonal shaft.
